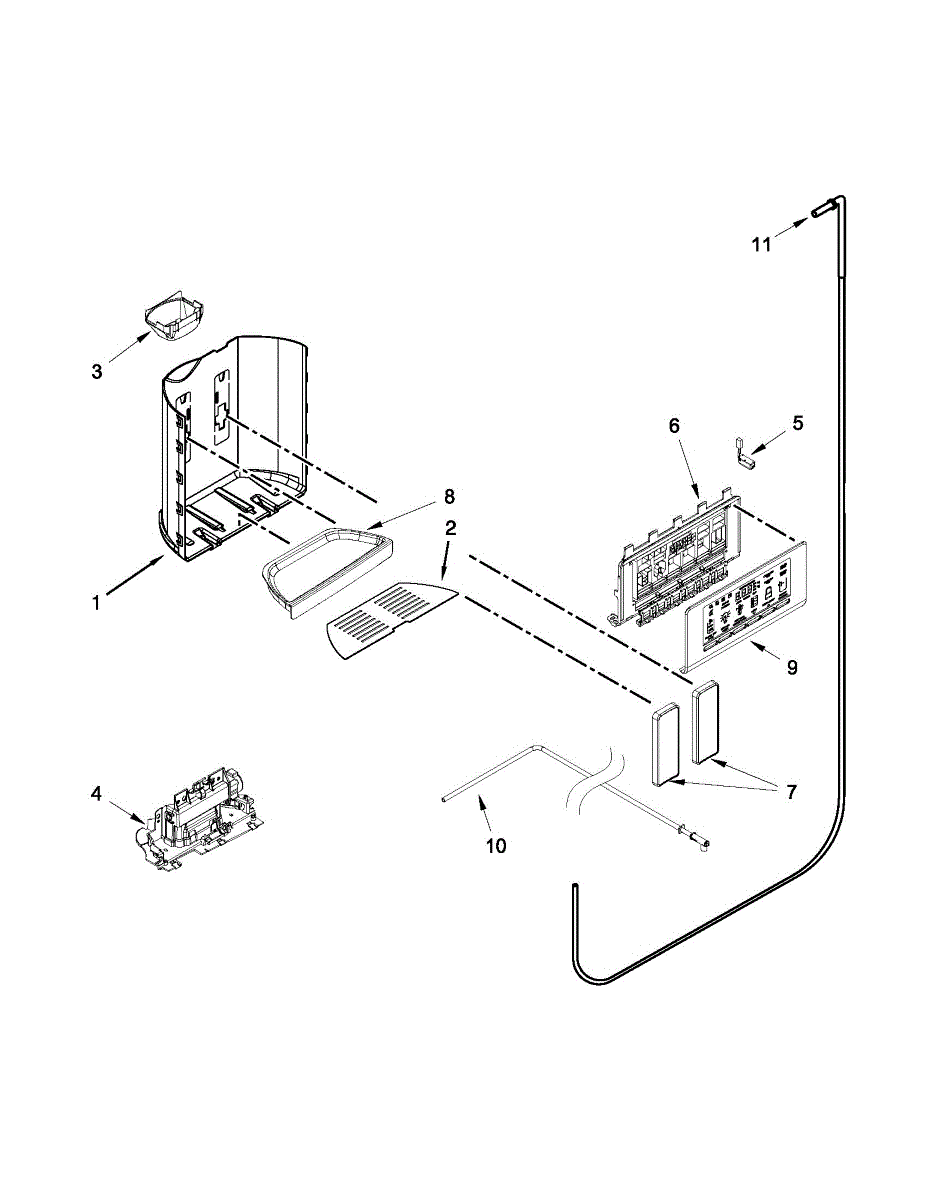

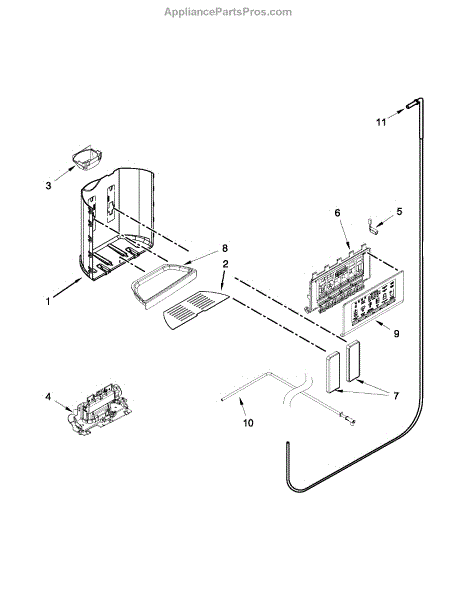

Parts for Kenmore 106.51782412 (10651782412, 106 51782412): Dispenser Parts

The FreshFlow Refrigerator Air Filter is an OEM component for Whirlpool and Maytag refrigerators. Located inside the ventilation system, this filter purifies circulated air. This air filter is 3" wide by 2" high and white in color. It should be replaced every 6 months to ensure the best performance.

Causes of failure relate to clogging from trapped dust, dander and other allergens despite regular replacement intervals. Performance decreases as filter media becomes saturated over months of use.

Symptoms of a dirty or blocked refrigerator air filter include:

• Reduced airflow causes higher compressor runtime hours
• Odors being pulled into the fridge from unfiltered vents
• Shortening of food storage life due to unpurified air exposure
• Reduced fan speeds or strange noises originating from the vents

This genuine Whirlpool filter is also compatible with Maytag, Jenn-Air, and Amana models as well.

The Whirlpool EveryDrop Ice and Refrigerator Water Filter 1 is an OEM replacement part for Whirlpool refrigerators. This filter works to remove small particles from water to ensure clean, great-tasting ice and drinking water directly from the refrigerator door.  Measuring approximately 2.50 x 2.50 x 8.69 inches, this filter is easy to install.

For optimal performance, we recommend replacing the filter every six months. The filter material is made from coconut carbon block, which has a micron rating of 0.5 and a flow rate of 0.5 gpm. The filter is designed to operate at a maximum pressure of 125 psi and an operating temperature of 38-100°.

Symptoms of a filter needing replacement include:

• Gradual decline in water/ice quality over time exhibiting muddy appearance or odd tastes
• Filter life indicator appears showing it is time for a new one

Causes stem from normal usage over the stated capacity of the original filter. Allowing one to expire could produce unhealthy water.

This OEM replacement part is compatible with select Maytag, Jenn-Air, and Amana models as well.

This grille is the outer vent trim that covers and protects the appliance's air opening while restoring a finished look. It helps keep debris out of the vent area and maintains proper airflow and appearance. What it does:

• Covers the vent opening and hides internal components for a finished appearance
• Protects the vent area from large debris and accidental contact
• Secures to the appliance face to prevent rattling or gaps
• Helps maintain proper airflow by keeping the vent opening unobstructed

• Disconnect power to the appliance before starting any work
• Remove any retaining screws or clips and lift the old grille straight off
• Align the replacement grille and secure with the original fasteners; do not overtighten

This refrigerator ice guide channels cubes and crushed ice along the intended path so they land in your bin or glass. When the guide is damaged or missing, ice can scatter, jam, or miss the dispenser opening. What it does

• Guides ice from the ice maker/bucket into the bin and through the dispenser chute
• Helps keep ice flowing smoothly and reduces spills at the opening
• Restores proper aim for cubed and crushed ice
• Typical symptoms: ice spraying or missing the glass, frequent jams, or visible damage to the guide

• 1 ice guide

• Disconnect power to the refrigerator before servicing
• Remove the ice bin and access the guide per your model's design
• Transfer and reuse existing mounting screws or clips, if applicable
• Verify alignment, then test both cubed and crushed dispensing

This door ice separator assembly guides ice from the dispenser chute to the dispenser tray, helping prevent jams and misfeeds. It replaces a cracked, warped, or broken separator to restore smooth ice dispensing. What it does:

• Directs ice through the dispenser chute so cubes drop cleanly into cups or glasses
• Helps prevent ice clumping and jams at the door dispenser
• Restores proper alignment of the dispenser path after damage or wear
• Useful when ice falls unevenly or gets stuck in the dispenser area

• Basic removal of the dispenser inner door panel may be required; keep track of fasteners and clips.
• Disconnect power to the appliance before starting work to avoid electrical or mechanical hazards.
• Inspect surrounding chute and dispenser components for damage and clean any ice buildup before reassembly.
• Use gentle force when snapping the new separator into place to avoid breaking tabs—do not force misaligned parts.

This dispenser light replaces the small lamp that illuminates the refrigerator's ice/water dispenser alcove. It restores clear visibility of the dispenser area in low light so you can see fill levels and selections while dispensing.

• Provides illumination for the dispenser alcove when the control turns the light on
• Common symptoms: no dispenser light, dim or flickering light, or intermittent illumination
• Helps with accurate filling and improves visibility when dispensing ice or water

• Unplug the refrigerator or disconnect power before servicing
• Access the dispenser housing; remove any trim or lens as needed to reach the light
• Release locking tabs or screws and unplug the wire connector from the old light
• Connect and seat the new light, reassemble, restore power, and test operation

This replacement pad cushions and isolates components to reduce vibration and prevent rubbing or chafing where parts contact the cabinet or tub. It helps quiet operation and protects finishes from wear. What it does

• Acts as a small shock absorber to reduce vibration and rattling
• Prevents metal-to-metal contact that can cause noise or cosmetic damage
• Keeps components properly spaced and aligned to avoid rubbing
• Commonly replaced when you hear new noises or see wear marks where parts meet

• Disconnect power to the appliance before servicing
• Access the area requiring the pad per your model's service instructions
• Remove any old adhesive residue and position the pad firmly; some pads use pressure-sensitive adhesive
• Use basic hand tools as needed and test operation after reassembly

This spigot directs water from the refrigerator's water/ice system to the dispenser or ice maker, restoring proper flow and containment. Replace a cracked or worn spigot to stop leaks and poor dispensing. What it does:

• Channels water from the internal water line to the dispenser or ice/ice-maker area
• Prevents leaks and directs flow into the dispenser or ice chute
• Can stop drips, spraying, or pooling caused by a damaged spigot
• Works as a simple replacement when the original is cracked, warped, or blocked

• One replacement spigot

• Disconnect power and shut off the refrigerator water supply before starting
• Remove access panels or bin(s) as needed to reach and remove the old spigot
• Inspect seals and gaskets; replace if damaged to ensure a watertight fit
• After installation, restore water and power, then check carefully for leaks

This replacement water dispenser valve tube routes water from the dispenser valve to the dispenser outlet so your appliance can deliver water and ice correctly. It restores a proper, leak-free flow path for the dispenser. What it does:

• Connects the dispenser valve to the dispenser outlet, directing water flow for dispensing and ice-making functions
• Replaces cracked, pinched, or deteriorated tubing that can cause leaks or weak/blocked water flow
• Helps stop visible leaks under the dispenser area and restore normal dispensing performance
• Compatible with factory valve connections and dispenser fittings when the OEM tube is specified

• One replacement water dispenser valve tube

• Disconnect power and shut off the water supply before starting work
• Inspect matching fittings and clamps; reuse only if undamaged — replace clamps if corroded
• Route the tube following factory routing to avoid kinks and ensure secure connections
