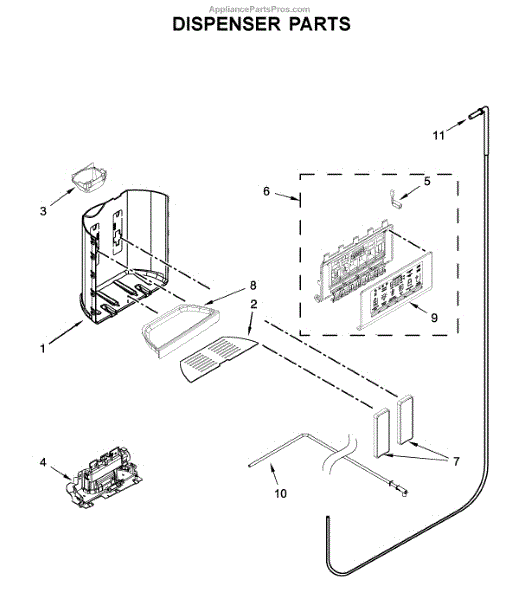

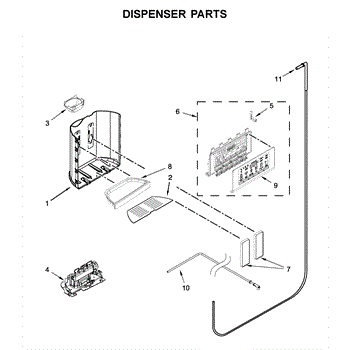

Parts for Kenmore 106.51783413 (10651783413, 106 51783413): Dispenser Parts

The FreshFlow Refrigerator Air Filter is an OEM component for Whirlpool and Maytag refrigerators. Located inside the ventilation system, this filter purifies circulated air. This air filter is 3" wide by 2" high and white in color. It should be replaced every 6 months to ensure the best performance.

Causes of failure relate to clogging from trapped dust, dander and other allergens despite regular replacement intervals. Performance decreases as filter media becomes saturated over months of use.

Symptoms of a dirty or blocked refrigerator air filter include:

• Reduced airflow causes higher compressor runtime hours
• Odors being pulled into the fridge from unfiltered vents
• Shortening of food storage life due to unpurified air exposure
• Reduced fan speeds or strange noises originating from the vents

This genuine Whirlpool filter is also compatible with Maytag, Jenn-Air, and Amana models as well.

This refrigerator ice guide channels cubes and crushed ice along the intended path so they land in your bin or glass. When the guide is damaged or missing, ice can scatter, jam, or miss the dispenser opening. What it does

• Guides ice from the ice maker/bucket into the bin and through the dispenser chute
• Helps keep ice flowing smoothly and reduces spills at the opening
• Restores proper aim for cubed and crushed ice
• Typical symptoms: ice spraying or missing the glass, frequent jams, or visible damage to the guide

• 1 ice guide

• Disconnect power to the refrigerator before servicing
• Remove the ice bin and access the guide per your model's design
• Transfer and reuse existing mounting screws or clips, if applicable
• Verify alignment, then test both cubed and crushed dispensing

Replacement ice door that fits in the freezer door dispenser to control ice flow and reduce warm-air infiltration. Restores proper dispensing action and helps prevent ice jams and frost buildup in the dispenser chute. What it does:

• Acts as the dispenser shutter to open and close the ice chute during dispensing
• Directs ice pieces into the cup to reduce spills
• Helps block warm air and moisture when the dispenser is idle to limit frost
• Common symptoms: ice won't dispense, door stuck open/closed, or frost/icing in dispenser area

• Disconnect power to the appliance before beginning any service
• Remove the dispenser bezel or cover to access the door
• Handle the plastic door and hinge carefully to avoid breakage; align hinge pins when installing
• After installation, restore power and test the dispenser operation to ensure proper fit and movement

This dispenser light replaces the small lamp that illuminates the refrigerator's ice/water dispenser alcove. It restores clear visibility of the dispenser area in low light so you can see fill levels and selections while dispensing.

• Provides illumination for the dispenser alcove when the control turns the light on
• Common symptoms: no dispenser light, dim or flickering light, or intermittent illumination
• Helps with accurate filling and improves visibility when dispensing ice or water

• Unplug the refrigerator or disconnect power before servicing
• Access the dispenser housing; remove any trim or lens as needed to reach the light
• Release locking tabs or screws and unplug the wire connector from the old light
• Connect and seat the new light, reassemble, restore power, and test operation

This spigot directs water from the refrigerator's water/ice system to the dispenser or ice maker, restoring proper flow and containment. Replace a cracked or worn spigot to stop leaks and poor dispensing. What it does:

• Channels water from the internal water line to the dispenser or ice/ice-maker area
• Prevents leaks and directs flow into the dispenser or ice chute
• Can stop drips, spraying, or pooling caused by a damaged spigot
• Works as a simple replacement when the original is cracked, warped, or blocked

• One replacement spigot

• Disconnect power and shut off the refrigerator water supply before starting
• Remove access panels or bin(s) as needed to reach and remove the old spigot
• Inspect seals and gaskets; replace if damaged to ensure a watertight fit
• After installation, restore water and power, then check carefully for leaks

This replacement water dispenser valve tube routes water from the dispenser valve to the dispenser outlet so your appliance can deliver water and ice correctly. It restores a proper, leak-free flow path for the dispenser. What it does:

• Connects the dispenser valve to the dispenser outlet, directing water flow for dispensing and ice-making functions
• Replaces cracked, pinched, or deteriorated tubing that can cause leaks or weak/blocked water flow
• Helps stop visible leaks under the dispenser area and restore normal dispensing performance
• Compatible with factory valve connections and dispenser fittings when the OEM tube is specified

• One replacement water dispenser valve tube

• Disconnect power and shut off the water supply before starting work
• Inspect matching fittings and clamps; reuse only if undamaged — replace clamps if corroded
• Route the tube following factory routing to avoid kinks and ensure secure connections
