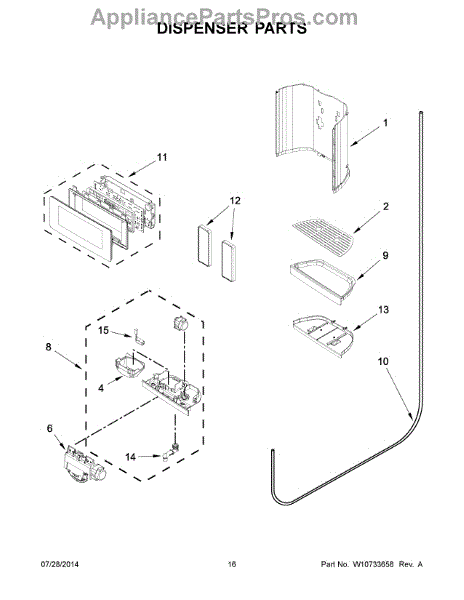

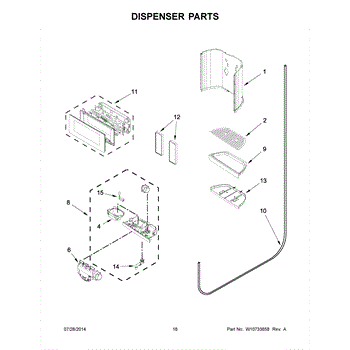

Parts for Kitchenaid KSC23C8EYY03: 09 - Dispenser Parts

This dispenser grille is the removable tray beneath your refrigerator's ice and water dispenser. It catches drips and small spills to help keep the area clean and protect the door finish and surrounding floor. What it does:

• Collects water and ice drips at the dispenser to reduce runoff and staining
• Provides a stable surface for cups while dispensing
• Restores appearance and function when the original grille is cracked, warped, stained, or missing
• Common symptoms: pooling water on the door, loose or ill-fitting tray, visible damage

• One dispenser grille

• Unplug the refrigerator and turn off the water supply before service
• Lift the old grille straight up/out from the dispenser recess; most models require no tools
• Clean the recess; align the tabs and press the new grille firmly into place
• Ensure the grille sits level and doesn't interfere with dispenser paddles

This refrigerator ice guide channels cubes and crushed ice along the intended path so they land in your bin or glass. When the guide is damaged or missing, ice can scatter, jam, or miss the dispenser opening. What it does

• Guides ice from the ice maker/bucket into the bin and through the dispenser chute
• Helps keep ice flowing smoothly and reduces spills at the opening
• Restores proper aim for cubed and crushed ice
• Typical symptoms: ice spraying or missing the glass, frequent jams, or visible damage to the guide

• 1 ice guide

• Disconnect power to the refrigerator before servicing
• Remove the ice bin and access the guide per your model's design
• Transfer and reuse existing mounting screws or clips, if applicable
• Verify alignment, then test both cubed and crushed dispensing

This ice door seals the dispenser chute between uses, keeping warm air and moisture out of the ice compartment. Replacing a worn flapper restores a tight seal, reduces frost and clumping, and improves dispenser performance.

• Opens for ice dispensing and closes to seal the chute between uses
• Helps maintain a barrier against warm air and humidity entering the ice compartment
• Reduces frost/condensation at the dispenser outlet
• Typical failure signs: frost or dripping at the dispenser, clumped or melting ice, or a flapper that won't close/seal

• Unplug the refrigerator before servicing
• Access is typically through the dispenser area; remove trim/control panel as directed for your model
• Note orientation; transfer any springs/pivots as designed and ensure the seal sits flat
• After installation, test dispense and confirm smooth motion and a snug seal

This dispenser drip tray sits beneath the refrigerator's ice/water outlet to catch drips and splashes. It helps keep the recess clean and dry and prevents moisture from running down the door or onto the floor.

• Collects residual water from ice and water dispensing to reduce spills
• Helps protect the door finish and surrounding area from moisture
• Replace if the tray is cracked, warped, stained, or missing
• Common symptoms: water pooling in the dispenser recess, water on the door or floor below the dispenser, tray won't stay seated

• Disconnect power to the refrigerator before servicing
• Lift out the old tray; clean and dry the dispenser recess
• Align and press the new tray fully into place so it sits flat and secure

This dual water tube routes water along two separate paths inside the refrigerator, supplying components such as the dispenser and ice maker. Replacing a cracked, kinked, or clogged tube restores steady flow and helps prevent leaks. What it does:

• Carries pressurized water to two internal destinations
• Helps supply the dispenser and/or ice maker
• Replaces tubing that is cracked, brittle, kinked, or leaking
• Typical symptoms: leaks behind/under the fridge, slow/no dispenser flow, ice maker not filling or making small/hollow cubes

• Unplug the refrigerator and shut off the water supply before servicing
• Place a towel or container to catch residual water when disconnecting lines
• Note original routing and connection points; transfer any guides/clips as needed
• Fully seat tubing in quick-connect fittings, tug-test for engagement, restore water, and check for leaks

Color: Grey

This dispenser drip tray catches water and minor spills beneath the refrigerator's ice/water dispenser, helping keep the grille area dry and protecting the door from moisture damage or staining.

• Collects drips and splashes from the dispenser to prevent puddling on the door
• Helps reduce staining, mineral residue, and odors around the dispenser area
• Sits in the dispenser grille for easy removal and cleaning
• Common signs it's needed: cracked or warped tray, excessive water on the dispenser shelf, or a missing tray

• Unplug refrigerator or switch off power before servicing
• Lift out the old tray from the dispenser grille; clean area
• Seat the new tray flat and flush in the grille opening
• Verify proper fit and stability before restoring power

This spigot body assembly routes water from the refrigerator supply to the dispenser and replaces a worn, cracked, or leaking dispenser spigot. It restores proper water flow and helps stop drips or visible leaks at the dispenser. What it does:

• Channels water from the supply line through the dispenser area for normal dispense operation.
• Provides the structural mounting for the dispenser valve and actuator components.
• Common symptoms it can address: leaking or dripping at the dispenser, visible cracks or broken spigot housing, or intermittent water flow from the dispenser.
• Works with existing dispenser valve and seals when those components are undamaged.

• Disconnect power to the appliance and shut off the water supply before starting work.
• Access may require removing the refrigerator door panel or inner dispenser bezel.
• Inspect and replace any worn O-rings or seals during reassembly to prevent leaks; tighten fasteners only to specified torque if provided by the manufacturer.

This dispenser light replaces the small lamp that illuminates the refrigerator's ice/water dispenser alcove. It restores clear visibility of the dispenser area in low light so you can see fill levels and selections while dispensing.

• Provides illumination for the dispenser alcove when the control turns the light on
• Common symptoms: no dispenser light, dim or flickering light, or intermittent illumination
• Helps with accurate filling and improves visibility when dispensing ice or water

• Unplug the refrigerator or disconnect power before servicing
• Access the dispenser housing; remove any trim or lens as needed to reach the light
• Release locking tabs or screws and unplug the wire connector from the old light
• Connect and seat the new light, reassemble, restore power, and test operation
