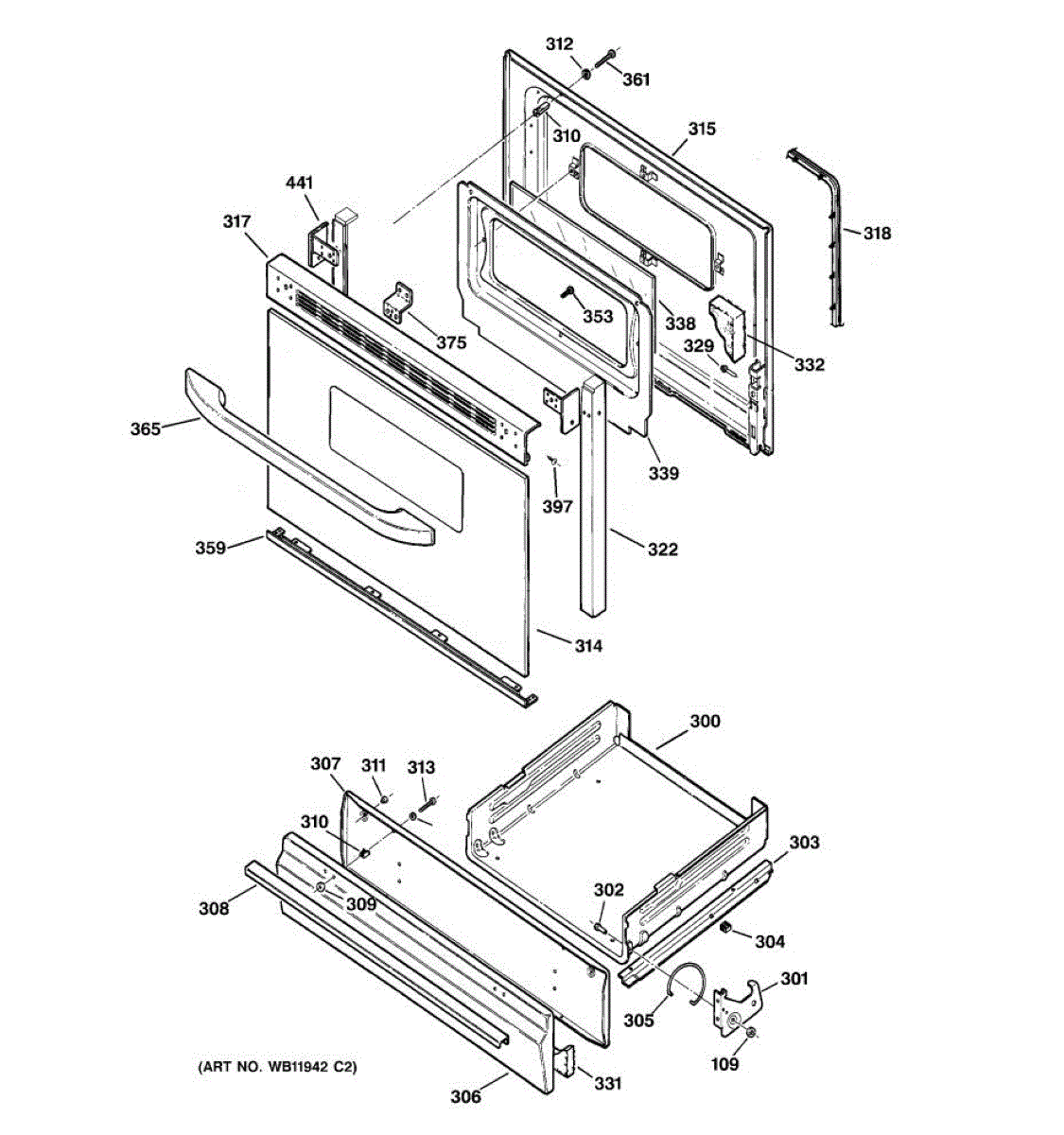

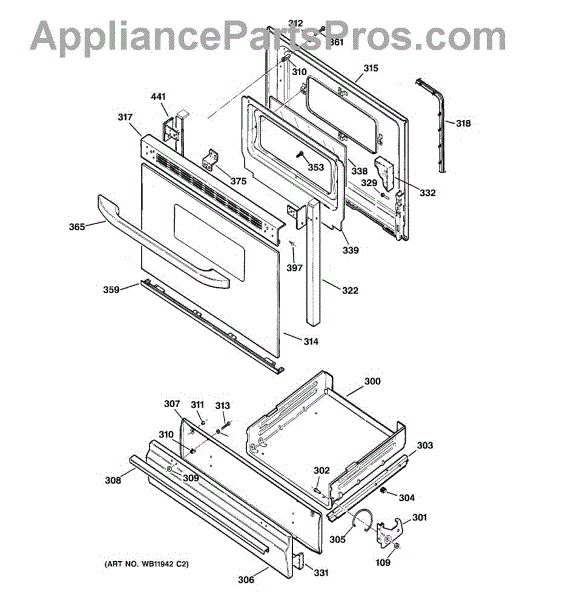

Parts for Hot Point RGB533WEH7WW: 04 - Door & Drawer Parts

Includes 12 speed nuts.

This is the right side broiler hinge. For left side use WB10K6.

This is the left side broiler hinge. For right side use WB10K5.

This broiler pin secures the oven's broiler drawer or rack, letting it slide and lock smoothly for even broiling. Replaces a worn or broken pin to restore proper broiler movement and alignment. What it does:

• Acts as the hinge/anchor for the broiler drawer or rack so it opens and closes smoothly
• Prevents the drawer or rack from sagging, binding, or coming loose
• Helps maintain correct broiler alignment for even heat exposure
• Common symptom: drawer or rack won't slide, sits crooked, or falls out

• Disconnect power (and gas if applicable) and allow the appliance to cool before servicing.
• Remove the broiler drawer or rack per the owner's manual to access the pin.
• This part typically installs by sliding or snapping into a bracket; verify fit before final assembly.

This broiler slide is the oven rack support that lets the broiler pan and rack slide in and out smoothly for cooking and removal. It restores proper rack movement and helps keep broiler pans supported and stable. What it does

• Supports the broiler pan and rack so they sit level and slide smoothly
• Replaces worn or bent slides that cause racks to bind, tilt, or fall
• Reduces scraping, sticking, and uneven pan movement during use
• Restores safe access for inserting and removing broiler pans

• One broiler slide

• Disconnect power to the range before starting work; if a gas range, also shut off the gas supply
• Remove oven racks and broiler pan before replacing the slide to access mounting points
• Reuse original fasteners unless replacements are specified by the manufacturer

This is the right side broiler door spring. For left side use WB9K3.

This is the left side broiler door spring. For right side use WB9K2.

This replacement broil handle restores a clean, functional grip for opening the broiler/oven compartment. Designed to match the original fit and finish, it helps make access to the broiler easier and keeps your range looking complete. What it does:

• Replaces a cracked, faded, or broken broil/oven handle for safe, reliable opening and closing
• Provides a secure grip so the broiler door can be opened without damage to the appliance or user
• Restores the appliance's finished appearance when the original handle is discolored or worn
• Fits the manufacturer's original mounting points for a proper, stable attachment

• Disconnect power to the appliance before beginning any service to avoid injury
• Retain and reuse original mounting screws and brackets unless replacement hardware is specified
• Installation typically requires basic hand tools; handle fastens to the door at the original mounting points

Includes 12 washers.

This spacer fits between mating parts in select GE cooking appliances to set correct clearance and alignment. Replacing a worn or missing spacer helps secure the assembly and prevents rubbing or damage to adjacent surfaces during use.

• Maintains proper spacing so hardware tightens squarely and components sit evenly
• Helps prevent metal-to-metal contact that can cause noise, wear, or surface damage
• If missing, broken, or deformed, you may notice looseness, misalignment, rattling, or scraping
• Restores original fit and finish when replaced

• Disconnect power; if applicable, shut off gas. Allow the appliance to cool completely
• Support the part being unfastened (such as a door, handle, or trim) to avoid strain on panels or glass
• Install the spacer in the same location/orientation as the original and reuse existing hardware if serviceable
• Tighten screws evenly; do not overtighten against glass or enameled surfaces

The Bumper is an OEM part for GE ranges. It is located on the sides of the oven drawer and serves as a cushion to prevent noise, vibration, and wear. As time goes on, regular use of the appliance can cause it to become damaged or worn out.

Causes of a bad bumper can include wear and tear from regular use, deterioration of the material over time, or damage from excessive force when closing the door.

Symptoms of a bad Bumper include:

• Excessive noise
• Difficulty in sliding the drawer
• Misalignment
• Wear, and increased friction

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

Includes 12 washers.

Includes 12 screws.

Outer door glass for oven. Color: white. Glass has clear window.

This oven door gasket restores the seal between the oven cavity and the door. Replacing a worn gasket helps the oven reach and maintain set temperatures while preventing heat and fumes from escaping around the door.

• Forms the compressible seal between the door and the oven front frame
• Helps the oven hold temperature for more consistent cooking results
• Reduces heat loss and leakage at the door perimeter
• Common signs to replace: frayed or flattened gasket, visible gaps at corners, heat or odors escaping, longer preheat or uneven baking

• Disconnect power before service; for gas ranges, also shut off the gas supply
• Allow the oven to cool completely and wear gloves
• Remove the old gasket by releasing its ends/retainers and clean the mounting area
• Fit the new gasket evenly without stretching; seat corners and ends fully, then check door closure

Includes 12 screws.

Replace a cracked, shattered, or heat-damaged inner oven door pane with this heat-resistant glass. It restores proper insulation and visibility, helping your oven maintain temperature and protecting the door assembly from spills and high heat.

• Replaces the interior pane within the oven door assembly
• Helps retain heat for consistent cooking performance
• Shields the door liner and insulation from spills and steam
• Common signs it's needed: cracked/shattered inner glass, missing or loose pane, heat escaping, or the door exterior feeling hotter than usual

• Disconnect power or turn off gas and allow the oven to cool completely
• Remove the door per your model's instructions and place it on a padded surface
• Wear gloves; handle glass by the edges and avoid overtightening retainers
• Transfer any brackets, trim, or gasket from the original pane if your model uses them; before reassembly

This replacement screw fastens appliance components and panels, restoring a snug, rattle-free fit. Use it to replace a missing or stripped fastener so trim, brackets, and other parts stay properly secured and aligned. What it does:

• Secures panels, brackets, trim, or burner-related parts to the chassis
• Replaces missing, damaged, rusted, or stripped fasteners
• Helps reduce vibration and rattling from loose components
• Restores proper fit and alignment of attached parts

• 1 screw

• Disconnect power; shut off gas before servicing
• Replace one screw at a time to maintain alignment and fit
• Hand-start threads to prevent cross-threading; tighten snugly without overtightening
• Wear cut-resistant gloves and use the correct driver for the head type

The Bottom Door Trim is an OEM part for GE ranges. It serves as a finishing touch, providing a seamless transition between the bottom of the oven door and the base or kick plate area.

Causes of a damaged Bottom Door Trim range from impacts during cleaning or moving the range, to general wear and tear over years of use. Exposure to high heat or spills can also contribute to the deterioration of the trim.

Symptoms of a bad Bottom Door Trim can include:

• Cracked or broken trim pieces
• Missing sections of trim
• Loose or misaligned trim
• Faded or discolored trim material

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models

Includes 12 screws.

This White Door Handle is an OEM replacement part for GE ranges. Located on the oven door, this handle provides a means of safely accessing the cooking cavities. As contact points, this durable handle allows withstanding high-heat openings and closings.

Causes can be normal wear and tear over many heating cycles, repeated heavy impacts from storage items, or long-term UV exposure breaking down surface finishes.

Symptoms of a bad door handle may include:

• Breaks, cracks, or splits appearing in the plastic or coating
• Discoloration, fading, or peeling removing their clean look
• Wobble, looseness, or difficulty opening/closing the door due to wear

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This part has been discontinued and is no longer available.

This right-side door end cap provides a finished edge and secure mounting point for the outer oven/stove door trim, restoring fit and appearance. Use it to replace a cracked, loose, or missing end cap and reduce rattling or gaps. What it does:

• Covers and protects the outer door edge while anchoring the trim for a proper door fit
• Restores the door's finished appearance when the original cap is cracked, broken, or faded
• Helps eliminate noise or vibration caused by a loose or damaged end cap
• Maintains alignment so the door trim and handle sit correctly

• Designed to install on the outer door edge; confirm right-side orientation before starting
• Remove door trim screws or clips as required; keep hardware separate and reuse if intact
• Use basic hand tools; avoid force that can damage surrounding trim or finish
• Disconnect power to the appliance and allow surfaces to cool before beginning work
