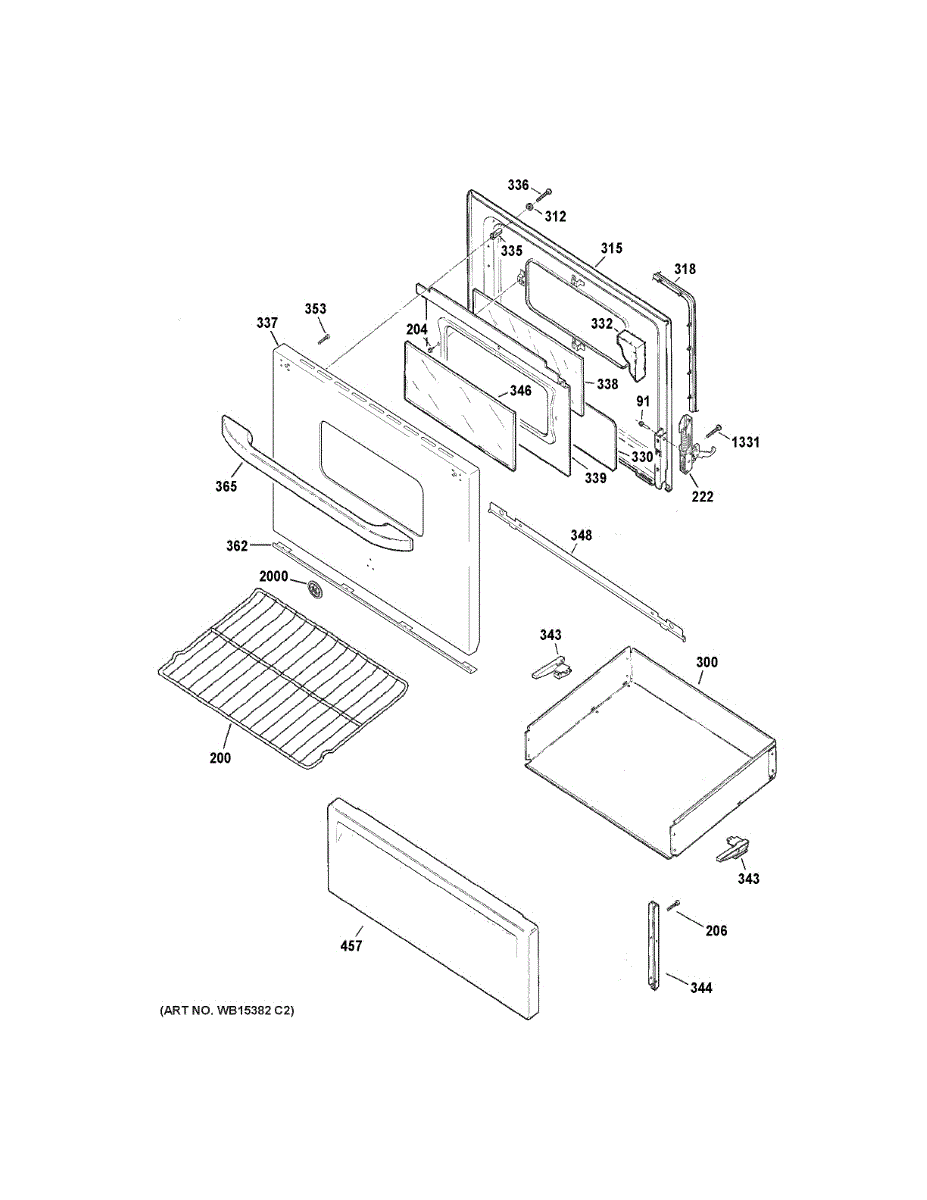

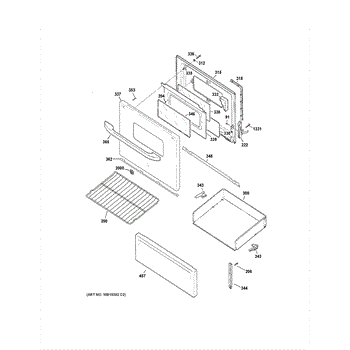

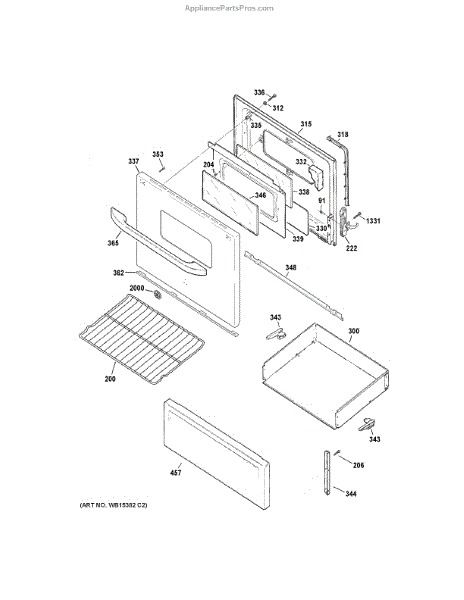

Parts for Ge JBS10DF2BB: Door & Drawer Parts

The Oven Rack is an OEM part for GE ovens. It provides a stable and reliable surface for placing baking sheets, pans, and dishes inside the oven for cooking or baking.

Causes of a faulty oven rack can include wear and tear over time, bending or warping due to heavy items or improper handling, or damage from cleaning or harsh chemicals. A damaged or malfunctioning oven rack can lead to uneven cooking, unstable support for cookware, or difficulty in removing or inserting the rack into the oven.

Symptoms of a bad oven rack may include:

• Uneven cooking or baking results
• Difficulty sliding the rack in or out of the oven
• Bent or warped rack structure
• Instability when placing cookware on the rack

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

This replacement screw secures appliance components so panels, brackets, and trim stay tight and aligned. Use it to replace a missing, stripped, or rusted fastener and restore a solid, rattle-free fit in the affected assembly.

• Fastens parts to the chassis/frame or mounting brackets
• Replaces lost, damaged, or corroded hardware
• Can help address loose or vibrating panels and minor misalignment
• Maintains a secure attachment during normal operation

• Disconnect power before servicing; for gas appliances, also shut off the gas supply
• Match the screw to the original location and reuse any clips or washers if present
• Start threading by hand to avoid cross-threading; tighten snugly without overtightening
• Repair/replace damaged receiving threads or clip for proper hold

This is a replacement 8-18 x 5/16 machine screw used to secure appliance panels and components. It restores proper fastener fit so parts stay mounted and operate safely. What it does:

• Fastens panels, brackets, and small components where an 8-18 x 5/16 screw is specified
• Prevents loose parts, rattling, and misalignment caused by missing or worn screws
• Provides the correct thread size and length for reliable reattachment
• Works wherever the OEM calls for this specific 8-18 x 5/16 screw

• Turn off and unplug the appliance before starting any repair
• Use the correct screwdriver or driver bit to avoid stripping the head
• Do not overtighten; snug until secure to prevent damage to threads or mounting surfaces
• If replacing multiple fasteners, use matching screws to maintain proper fit and function

The Door Hinge is an OEM replacement part for GE ranges. It allows for smooth and controlled opening and closing of the oven door. It features a sturdy metal construction and is designed to withstand the repeated use and high temperatures of the oven.

Symptoms of a faulty door hinge include:

• Oven door not closing or sealing properly
• Difficulty in opening or closing the oven door
• Uneven or loose door seal

A bad door hinge can occur due to wear and tear over time, excessive weight or force applied to the door, or damage from accidental impact. If you notice issues such as the oven door not closing properly, difficulty in opening or closing the door, or an uneven seal, it may be time to replace the old or damaged door hinge with this genuine OEM part.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.


This drawer body is the metal pan that forms your range's lower drawer. Replacing a bent or rusted body restores alignment so the drawer slides smoothly, stays on its tracks, and safely supports its contents.

• Forms the structural base of the lower drawer assembly
• Attaches to the drawer front and the side glides/rails
• Keeps the drawer square and aligned for smooth travel
• Damage may cause sticking, scraping noises, sagging, or the drawer coming off track

• Disconnect power and let the appliance cool completely before servicing
• Remove the drawer; transfer the existing drawer front, handle, and any brackets to the new body as required
• Inspect and align the slides/rails, then seat the drawer on the tracks
• Test for smooth operation before loading the drawer

Includes 12 washers.

This welded oven door liner assembly replaces a damaged or warped inner door panel to restore proper sealing and heating performance. It provides the structural inner surface for the door and supports inner components for safe, even cooking. What it does:

• Replaces a cracked, bent, or rusted inner door liner that can let heat escape or affect cooking performance
• Restores flat, secure mounting for door insulation, glass, and hardware
• Helps maintain oven temperature by providing a proper sealing surface
• Prevents contact between oven cavity heat and outer door components

• One welded door liner assembly (inner door panel) as shown

• High-level replacement: door disassembly required; follow OEM instructions and keep track of fasteners and glass placement
• Use gloves and eye protection when handling sharp sheet-metal edges and glass
• Ensure power is disconnected (unplug or shut off breaker) before starting any repair

The Gasket Door Assembly is an OEM replacement part for GE ovens. This gasket provides a seal around the oven door, ensuring that heat is retained inside the oven for efficient cooking and baking. It helps to maintain the correct temperature and prevents heat from escaping, which can affect cooking performance and energy efficiency.

Causes of a bad gasket door assembly can include regular wear and tear, exposure to high temperatures, and physical damage such as cuts or tears. Over time, the gasket can lose its elasticity and sealing capability.

Symptoms of a bad Gasket Door Assembly include:

• Heat escaping from the oven door
• The oven taking longer to preheat or maintain temperature
• Uneven cooking or baking results
• Visible damage or gaps in the gasket

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This spacer sets the correct gap and alignment between appliance components so panels, brackets, or handles mount securely and operate quietly. Replacing a worn or missing spacer helps prevent rubbing, noise, and premature wear. What it does:

• Maintains proper clearance between mating parts for accurate alignment
• Positions mounting hardware at the correct depth
• Helps prevent rattling, rubbing, or uneven gaps
• Replaces a missing, cracked, warped, or heat-damaged spacer

• 1 spacer

• Disconnect power and allow the appliance to cool before service
• Note the original order/orientation of washers and spacers during disassembly
• Install the new spacer in the same position; reuse hardware if undamaged
• Tighten fasteners evenly and avoid overtightening; verify clearances before restoring power

This is a replacement mounting screw used on compatible GE appliances to secure panels and components. It provides a corrosion-resistant, painted finish for a neat, lasting fit. What it does:

• Fastens trim, panels, or internal components where a 10-16 thread screw is required
• Painted/plated finish resists rust and blends with appliance surfaces
• Replaces worn, missing, or stripped screws to restore secure mounting
• Helps eliminate rattles or loose panels caused by missing fasteners

• One painted/plated 10-16 screw (2.15" length)

• Verify screw size and length match the original before installation
• Use appropriate driver to avoid stripping the head; do not overtighten
• Disconnect power or follow appliance safety guidelines if working near electrical components
• If the original screw threads are damaged, inspect mating part and replace as needed

Replace a cracked, shattered, or heat-damaged inner oven door pane with this heat-resistant glass. It restores proper insulation and visibility, helping your oven maintain temperature and protecting the door assembly from spills and high heat.

• Replaces the interior pane within the oven door assembly
• Helps retain heat for consistent cooking performance
• Shields the door liner and insulation from spills and steam
• Common signs it's needed: cracked/shattered inner glass, missing or loose pane, heat escaping, or the door exterior feeling hotter than usual

• Disconnect power or turn off gas and allow the oven to cool completely
• Remove the door per your model's instructions and place it on a padded surface
• Wear gloves; handle glass by the edges and avoid overtightening retainers
• Transfer any brackets, trim, or gasket from the original pane if your model uses them; before reassembly

This right-side drawer glide supports and guides the lower drawer on your range so it opens and closes smoothly. Replace a worn or broken glide to restore easy operation and keep the drawer aligned. What it does:

• Mounts to the cabinet frame on the right-hand side to guide the lower drawer
• Provides a smooth sliding surface for the drawer rail
• Helps keep the drawer level and properly aligned
• Common symptoms: drawer hard to open/close, rubs or binds, sags, or comes off track

• 1 right-hand drawer glide

• Disconnect power and let the appliance cool; for gas ranges, also shut off gas supply
• Remove the lower drawer to access the side glides
• Note right-side orientation; release or unfasten the old glide and install the new one in the same position
• Reinstall the drawer and check for smooth, level travel

This drawer mounting bracket secures the lower storage or warming drawer to the range cabinet, keeping it aligned so it opens and closes smoothly. Replace a bent, broken, or missing bracket to restore proper drawer tracking and stability.

• Anchors the drawer to the range frame and supports correct slide alignment
• Helps prevent binding, rubbing, and uneven gaps
• Replace if the drawer wobbles, sags, falls off the track, or rattles
• Use when the original bracket is bent, cracked, or missing

• Disconnect power; for gas models, also shut off the gas supply
• Remove the drawer and note the bracket's orientation and mounting points
• Retain and transfer mounting hardware from the original bracket if needed
• Reinstall the drawer and verify smooth, level operation before restoring power/gas

This replacement screw fastens appliance components and panels, restoring a snug, rattle-free fit. Use it to replace a missing or stripped fastener so trim, brackets, and other parts stay properly secured and aligned. What it does:

• Secures panels, brackets, trim, or burner-related parts to the chassis
• Replaces missing, damaged, rusted, or stripped fasteners
• Helps reduce vibration and rattling from loose components
• Restores proper fit and alignment of attached parts

• 1 screw

• Disconnect power; shut off gas before servicing
• Replace one screw at a time to maintain alignment and fit
• Hand-start threads to prevent cross-threading; tighten snugly without overtightening
• Wear cut-resistant gloves and use the correct driver for the head type

This barrier door assembly replaces the oven/stove barrier used to block heat and fumes when the appliance is not in use, helping maintain proper airflow and appliance efficiency. It's a direct-fit replacement designed to restore the door's sealing and movement. What it does:

• Covers and seals the internal opening to prevent heat, smoke and cooking odors from escaping when closed.
• Helps maintain proper internal airflow and prevents drafts when the appliance is off.
• Restores smooth opening and closing action if the original barrier door is broken, warped, or cracked.
• Can reduce heat loss and improve the performance consistency of the oven cavity.

• Disconnect power to the appliance before starting any repair.
• Handle the door carefully to avoid damaging hinges or mounting tabs during removal and installation.
• Use common hand tools; follow OEM instructions for alignment and fastening to ensure proper fit and movement.

This door handle provides a sturdy grip to open and close your appliance door smoothly and restores the original fit and finish. Durable construction matches OEM mounting points for a clean, secure replacement. What it does:

• Replaces a worn, cracked or broken door handle to restore proper opening and closing
• Provides a secure grip to reduce slippage and improve user control
• Restores the appliance's original appearance and functional usability
• Helps prevent further cabinet or door edge damage caused by a damaged handle

• Install with the power supply disconnected and following the appliance manufacturer's safety guidelines
• Some models require removing the door trim or inner liner to access mounting screws
• Keep original screws and trim; replace only with specified hardware if provided

This replacement drawer panel restores the finished front appearance of the appliance drawer and covers the drawer opening for a clean, like-new look. It's a direct-fit cosmetic panel made to match the appliance's original finish. What it does

• Replaces a cracked, dented, scratched, or faded drawer front to restore appearance
• Covers and protects the drawer opening from dust and debris
• Provides the correct mounting surface for existing trim, handles, and clips
• Helps maintain consistent appearance across the appliance front

• High-level replacement; remove drawer assembly to access mounting screws or clips
• Keep small fasteners and mounting clips; verify orientation before tightening
• Use hand tools and avoid over-tightening to prevent panel damage
• Follow safety procedures and disconnect power if instructed by the manufacturer
