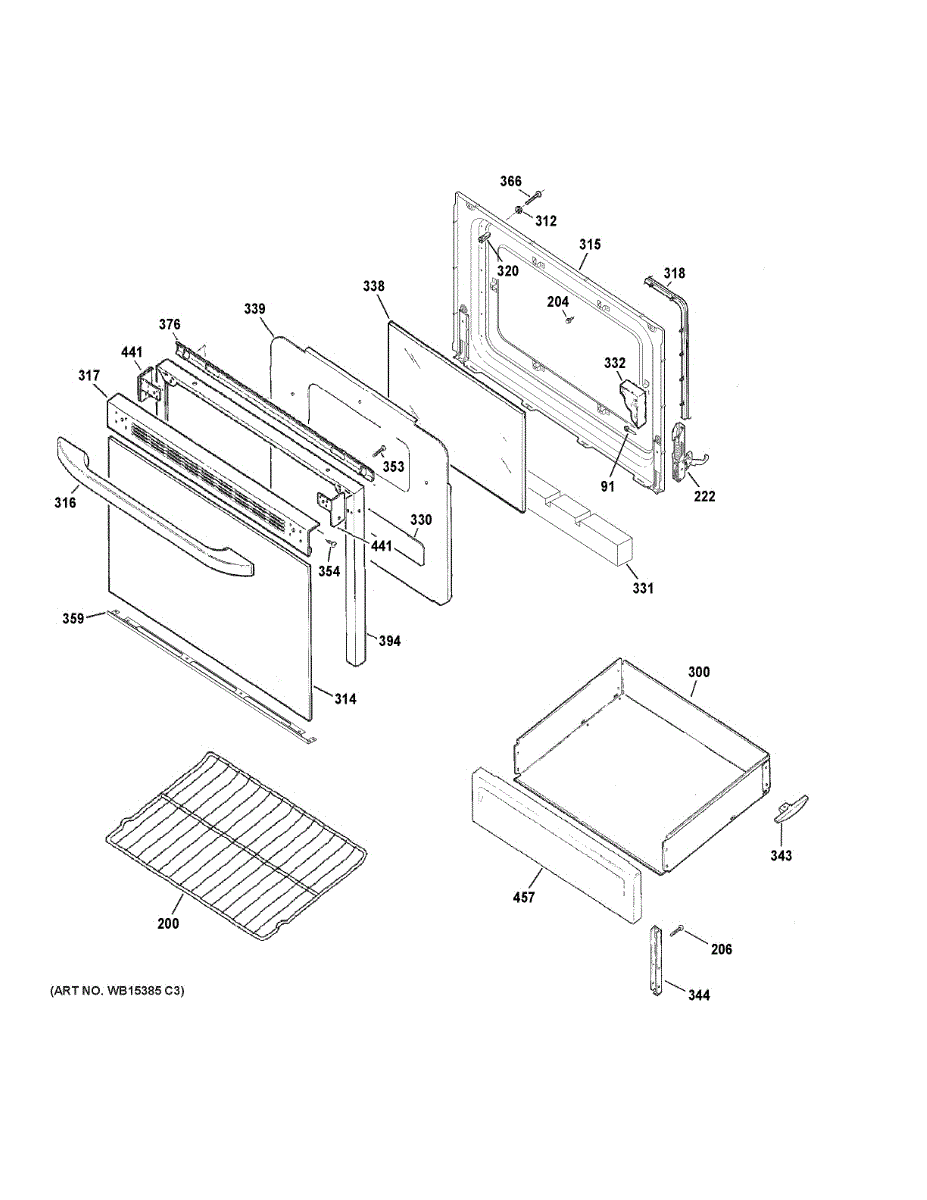

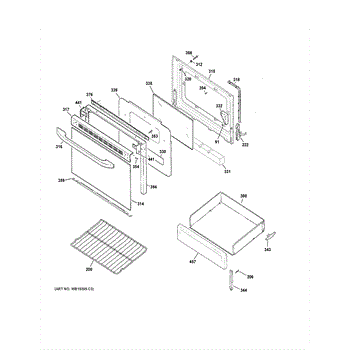

Parts for Ge JBS45DF2WW: Door & Drawer Parts

The Oven Rack is an OEM part for GE ovens. It provides a stable and reliable surface for placing baking sheets, pans, and dishes inside the oven for cooking or baking.

Causes of a faulty oven rack can include wear and tear over time, bending or warping due to heavy items or improper handling, or damage from cleaning or harsh chemicals. A damaged or malfunctioning oven rack can lead to uneven cooking, unstable support for cookware, or difficulty in removing or inserting the rack into the oven.

Symptoms of a bad oven rack may include:

• Uneven cooking or baking results
• Difficulty sliding the rack in or out of the oven
• Bent or warped rack structure
• Instability when placing cookware on the rack

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

This replacement screw secures appliance components so panels, brackets, and trim stay tight and aligned. Use it to replace a missing, stripped, or rusted fastener and restore a solid, rattle-free fit in the affected assembly.

• Fastens parts to the chassis/frame or mounting brackets
• Replaces lost, damaged, or corroded hardware
• Can help address loose or vibrating panels and minor misalignment
• Maintains a secure attachment during normal operation

• Disconnect power before servicing; for gas appliances, also shut off the gas supply
• Match the screw to the original location and reuse any clips or washers if present
• Start threading by hand to avoid cross-threading; tighten snugly without overtightening
• Repair/replace damaged receiving threads or clip for proper hold

The Door Hinge is an OEM replacement part for GE ranges. It allows for smooth and controlled opening and closing of the oven door. It features a sturdy metal construction and is designed to withstand the repeated use and high temperatures of the oven.

Symptoms of a faulty door hinge include:

• Oven door not closing or sealing properly
• Difficulty in opening or closing the oven door
• Uneven or loose door seal

A bad door hinge can occur due to wear and tear over time, excessive weight or force applied to the door, or damage from accidental impact. If you notice issues such as the oven door not closing properly, difficulty in opening or closing the door, or an uneven seal, it may be time to replace the old or damaged door hinge with this genuine OEM part.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.


This drawer body is the metal pan that forms your range's lower drawer. Replacing a bent or rusted body restores alignment so the drawer slides smoothly, stays on its tracks, and safely supports its contents.

• Forms the structural base of the lower drawer assembly
• Attaches to the drawer front and the side glides/rails
• Keeps the drawer square and aligned for smooth travel
• Damage may cause sticking, scraping noises, sagging, or the drawer coming off track

• Disconnect power and let the appliance cool completely before servicing
• Remove the drawer; transfer the existing drawer front, handle, and any brackets to the new body as required
• Inspect and align the slides/rails, then seat the drawer on the tracks
• Test for smooth operation before loading the drawer

Includes 12 washers.

A welded door liner assembly that replaces a damaged or dented inner door shell to restore proper sealing and appearance. Designed as a direct-replacement inner surface for affected appliance doors. What it does

• Replaces a cracked, dented, or otherwise damaged inner door liner that can allow drafts or interfere with proper door closure.
• Restores the door's interior surface so gaskets and inner components mount correctly.
• Helps eliminate cold or heat leaks caused by a compromised liner.
• Improves door appearance and prevents further damage to internal door parts.

• Disconnect power and follow OEM service manual instructions before starting work.
• Use safe handling practices — edges may be sharp and assembly can be heavy; use gloves and eye protection.
• May require removing door panels, trim, and hardware; retain mounting screws and check gasket seating during reassembly.

This replacement door handle restores a secure grip and clean appearance to your appliance door. Swap a cracked or loose handle to bring back smooth, reliable opening and closing.

• Provides a sturdy handhold to open/close the door
• Mounts to the door with model-specific screws/fasteners
• Common symptoms: cracked or broken handle ends, loose/wobbly handle, difficulty opening the door, missing handle
• Helps improve both function and appearance

• Disconnect power at the breaker before beginning any repair
• Open the door and access the handle's mounting screws per your model (often from the inside of the door)
• Support the door panel to avoid stress while removing/installing screws; transfer any spacers as needed
• Tighten fasteners snugly without overtightening; test door operation and alignment

Color: White.

The Gasket Door Assembly is an OEM replacement part for GE ovens. This gasket provides a seal around the oven door, ensuring that heat is retained inside the oven for efficient cooking and baking. It helps to maintain the correct temperature and prevents heat from escaping, which can affect cooking performance and energy efficiency.

Causes of a bad gasket door assembly can include regular wear and tear, exposure to high temperatures, and physical damage such as cuts or tears. Over time, the gasket can lose its elasticity and sealing capability.

Symptoms of a bad Gasket Door Assembly include:

• Heat escaping from the oven door
• The oven taking longer to preheat or maintain temperature
• Uneven cooking or baking results
• Visible damage or gaps in the gasket

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

A small mounting spacer that positions and secures components inside the appliance, helping maintain correct clearances and alignment for reliable operation. Replaces worn or missing spacers to reduce rubbing, vibration, or misalignment. What it does:

• Provides a fixed gap or support between parts to prevent contact and wear
• Keeps panels, brackets or assemblies properly aligned during operation
• Reduces vibration and noise caused by loose or missing spacing hardware
• Helps ensure correct airflow or clearance where specified by the manufacturer

• Install with the original fasteners and in the same orientation; do not force or deform the spacer
• Verify the mating surfaces are clean and free of debris before installing
• Disconnect power to the appliance before starting work and follow basic electrical safety
• Replace any other damaged mounting hardware to ensure a secure repair

The Oven Drawer Glide is an OEM replacement part for GE electric and gas ranges. It functions as the suspension mechanism facilitating smooth extension and retraction of range drawer shelves.

Causes of a bad drawer glide can include wear from years of use, damage from heavy pots or pans straining the glide, or loose mounting fixtures failing to securely support shelf weight.

Symptoms of a bad drawer glide include:

• Difficulty accessing or storing items within drawers
• Squeaking or grinding noises when opening/closing
• Drawers failing to fully extend or retract
• Risk of entire drawer assembly detaching over time

This OEM GE part is also compatible with some Hotpoint, RCA and select Kenmore electric and gas range models.

This drawer bracket secures and supports a refrigerator/ freezer drawer, restoring proper alignment and load-bearing at the front or side mounting point. It's a simple replacement that helps the drawer open and close smoothly. What it does:

• Holds and supports the drawer to prevent sagging or tipping under normal loads
• Keeps the drawer aligned on its track for smooth operation
• Restores proper engagement with the cabinet so the drawer seats and latches correctly
• Helps prevent binding, catching, or uneven gaps when opening or closing

• Disconnect power to the appliance before servicing and work with the drawer empty.
• Remove the drawer and any trim as needed to access the bracket; use appropriate hand tools (screwdriver/socket) for fasteners.
• Reuse existing screws only if undamaged; replace fasteners if stripped or corroded.
• Align the bracket carefully before tightening to avoid binding; do not force or overtighten plastic components.

This painted screw head is a cosmetic and protective cap that restores the finished look where a visible screw is used. It covers the screw head and helps match surrounding black trim for a clean appearance. What it does:

• Covers and conceals a screw head to improve appearance of panels, trim, or bezels
• Helps protect the screw head from direct exposure and reduces visible wear
• Used when trim or panels show exposed or mismatched screw heads
• Common fix when screw heads are scratched, discolored, or visually distracting

• Use the matching screw and press or snap the cap into place over the screw head
• Disconnect power and remove any panels only as recommended by your appliance manual before working near electrical components
• Avoid forcing or prying the cap; if tight, gently ease it on to prevent breakage
• Replace any damaged caps with the exact part to maintain fit and finish

This replacement screw fastens appliance components and panels, restoring a snug, rattle-free fit. Use it to replace a missing or stripped fastener so trim, brackets, and other parts stay properly secured and aligned. What it does:

• Secures panels, brackets, trim, or burner-related parts to the chassis
• Replaces missing, damaged, rusted, or stripped fasteners
• Helps reduce vibration and rattling from loose components
• Restores proper fit and alignment of attached parts

• 1 screw

• Disconnect power; shut off gas before servicing
• Replace one screw at a time to maintain alignment and fit
• Hand-start threads to prevent cross-threading; tighten snugly without overtightening
• Wear cut-resistant gloves and use the correct driver for the head type

The Bottom Door Trim is an OEM part for GE ranges. It serves as a finishing touch, providing a seamless transition between the bottom of the oven door and the base or kick plate area.

Causes of a damaged Bottom Door Trim range from impacts during cleaning or moving the range, to general wear and tear over years of use. Exposure to high heat or spills can also contribute to the deterioration of the trim.

Symptoms of a bad Bottom Door Trim can include:

• Cracked or broken trim pieces
• Missing sections of trim
• Loose or misaligned trim
• Faded or discolored trim material

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models

This is a replacement mounting screw used on compatible GE appliances to secure panels and components. It provides a corrosion-resistant, painted finish for a neat, lasting fit. What it does:

• Fastens trim, panels, or internal components where a 10-16 thread screw is required
• Painted/plated finish resists rust and blends with appliance surfaces
• Replaces worn, missing, or stripped screws to restore secure mounting
• Helps eliminate rattles or loose panels caused by missing fasteners

• One painted/plated 10-16 screw (2.15" length)

• Verify screw size and length match the original before installation
• Use appropriate driver to avoid stripping the head; do not overtighten
• Disconnect power or follow appliance safety guidelines if working near electrical components
• If the original screw threads are damaged, inspect mating part and replace as needed

This end cap is a replacement terminal cover that protects and secures exposed connector ends on the appliance. It restores a finished appearance and helps prevent accidental contact with live terminals. What it does:

• Covers and protects terminal ends and wiring from contact and debris
• Helps maintain a secure connection by holding terminals in place
• Prevents shorting or arcing caused by exposed connectors
• Useful when the original cap is cracked, missing, or damaged

• Disconnect power to the appliance before servicing to avoid electric shock
• Verify fit and orientation before snapping the cap into place over the terminals
• If terminals or wiring are damaged, replace or repair those components before installing the cap

This drawer panel is the front replacement piece that restores the appearance and proper closure of a damaged or worn lower appliance drawer. It provides the visible face and mounting surface needed for normal drawer use. What it does:

• Replaces a cracked, dented, scratched, or warped drawer front to improve appearance
• Provides the mounting surface and edge needed for the drawer to sit and close correctly
• Covers and protects the underlying drawer components from spills and debris
• Matches the OEM shape and hole pattern for straightforward replacement when compatible

• Disconnect power to the appliance and remove any contents from the drawer before starting.
• Handle the panel carefully; edges and mounting tabs can be sharp.
• Remove fasteners and clips from the old panel and transfer any required hardware or brackets to the new panel if applicable.
