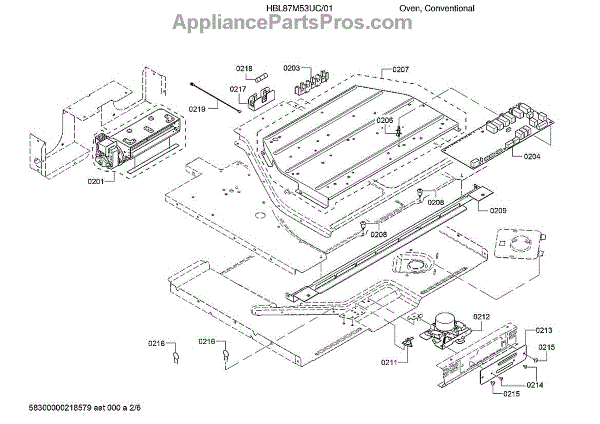

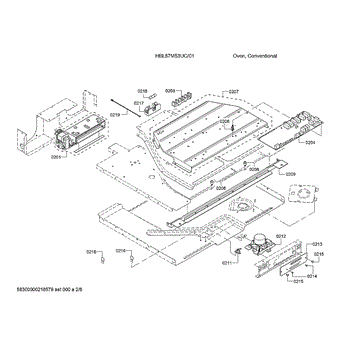

Parts for Bosch HBL87M53UC/01: Door Latch / Cooling Fan Parts

This Terminal Box is an OEM part for Bosch Built-In Ovens. Integral to the oven's electrical system, this component serves as a secure connection point for various electrical wires within the appliance.

A common issue with a malfunctioning Terminal Box is loose connections or damage to the terminal block due to heat exposure or aging.

Symptoms of a defective Terminal Box may include:

• Inconsistent power supply to the oven
• Non-functional heating elements
• Sparks or electrical arcing within the terminal box area

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore models.

This programmed electronic control module replaces the dishwasher's main logic board to restore cycle control and user-interface functions. It comes pre-programmed to manage wash cycles, display status, and respond to inputs without on-site flashing. What it does:

• Controls wash cycle sequencing, timers, and user-interface indicators
• Responds to button presses and touch controls so the dishwasher starts and advances through cycles
• Manages water fill, drain, and pump commands as directed by sensor inputs
• Can clear failures caused by a defective main control when symptoms point to electronics

• Disconnect power at the breaker before starting any repair
• Handle the module by the edges and avoid static discharge; use anti-static precautions if available
• Reconnect power and run a diagnostic or test cycle after installation to verify normal operation

This spacer sets the correct gap between mating components so the assembly aligns and operates smoothly. Replacing a worn or missing spacer restores proper fit, helps prevent rubbing, and supports consistent performance. What it does:

• Maintains specified clearance and alignment within the assembly
• Helps prevent metal-to-metal contact that can cause noise or wear
• Supports smooth movement or secure mounting where designed
• Symptoms of a failed spacer can include looseness, misalignment, scraping noises, or uneven movement

• 1 spacer

• Disconnect power (and shut off gas/water if applicable) before servicing
• Access the relevant assembly and note the spacer's orientation/position
• Replace one-for-one; seat fully and avoid overtightening fasteners
• Reassemble and test for proper alignment and smooth operation

This temperature limiter is a safety thermostat that monitors heat and opens the circuit when temperatures exceed safe limits. It helps protect internal components by preventing overheating and unintended damage during operation. What it does:

• Monitors appliance temperature and interrupts power to the heater if excessive heat is detected
• Helps prevent overheating-related damage and safety hazards
• Common failure signs include no heat, intermittent heat, or the unit shutting off prematurely
• Tests open for continuity when tripped or failed

• 1 temperature limiter

• Disconnect power at the breaker and allow the appliance to cool completely
• Note wire locations and transfer one lead at a time to the new limiter
• Reinstall in the original position so the sensor makes proper contact as designed
• Inspect/replace any heat-damaged terminals; test operation after reassembly

The Door Latch is an OEM part for Bosch wall ovens and ranges. It secures the oven door safely closed during baking and broiling. As an essential component for safety, the latch allows controlled access to the cooking cavity while preventing accidental openings.

Causes can be wear from constant use, damage from impact, or deterioration of latch parts over time.

Symptoms of a faulty latch include:

• The door popping or swinging open during use
• Difficulty closing or fully engaging the latch mechanism
• Looseness around the door seal compromising heat retention

This genuine OEM Bosch part is also compatible with Thermador, Gaggenau and select Kenmore models.
