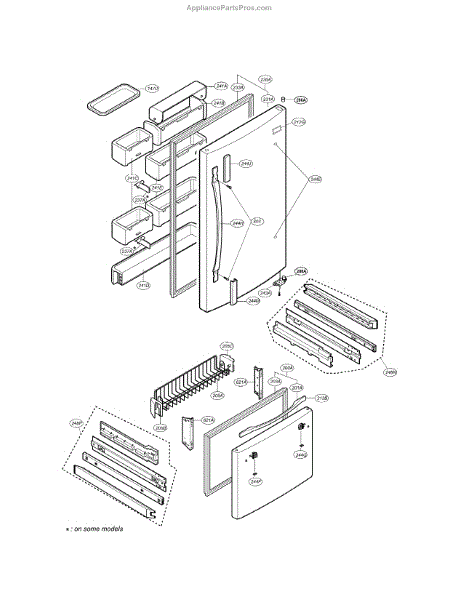

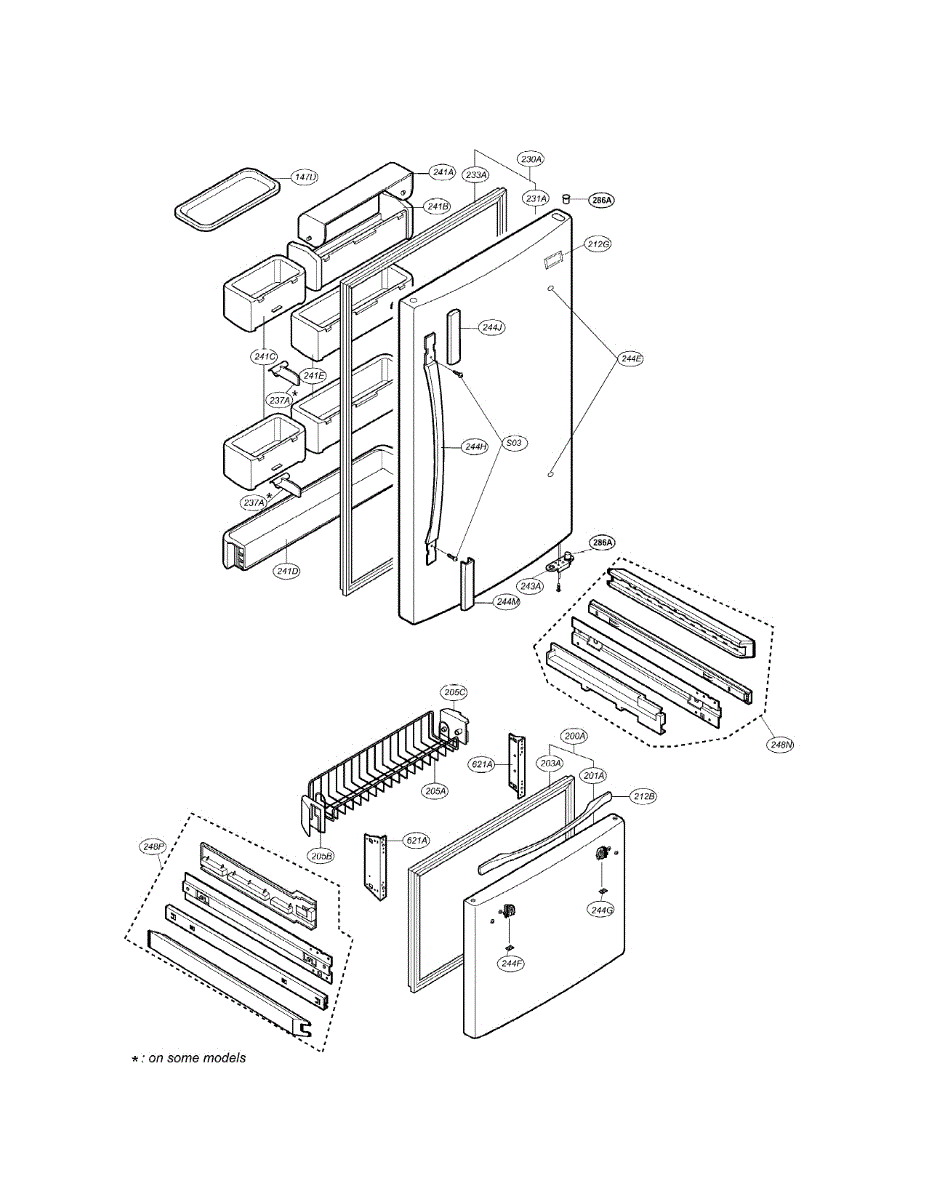

Parts for Lg LRDN20720BK: Door Parts

Door gasket assembly creates an airtight seal on your refrigerator door. Replace when torn, cracked, or loose to prevent warm air leaks and energy waste.

Left-hand end cap for refrigerator tilt-out freezer basket. Replaces broken, cracked, or missing basket support caps. Secures basket to frame rails.

End cap for freezer door basket. Secures and supports tilt basket assembly. Replace if broken, cracked, or missing. Right-hand side installation.

Exterior emblem nameplate that mounts to your refrigerator's front panel. Replaces missing, cracked, or faded badges to restore a clean look.

Replace your cracked or broken refrigerator dairy door bin and tray. Installs in the door to organize butter, cheese, and small items. Essential replacement when original is damaged or missing.

Replace your cracked or broken refrigerator door basket. This 8-inch storage bin installs inside the door to organize condiments and small items.

Replace your refrigerator's dairy door tray cover if cracked, broken, or missing. This cover protects dairy items stored in the door compartment.

Please Note: The Sears/Kenmore parts diagram shows this part to be a 8 inch refrigerator door shelf. However, this piece is actually 16 inches in length. If you need the 8 inch shelf, you will need to order 5004JJ1030A.

This is the door basket that mounts on the inner door to hold bottles, jars, and condiments. Replace a cracked or missing bin to restore secure, convenient storage and keep items organized on the refrigerator door.

• Attaches to the door liner to provide easy-access storage for small items
• Common failure signs: cracked plastic, broken mounting tabs, bin falls off, won't stay level, or missing bin
• Helps restore original storage layout and capacity
• Designed to fit the designated door slots for a solid, stable hold

What's included: One door basket/bin. Install notes:

• Compare the new bin to the original to confirm size and mounting points
• Empty contents; lift the old bin up and out of the door slots
• Align the new bin with the slots and lower until fully seated—do not force
• Distribute weight evenly and avoid overloading to prevent future damage

Plug insert cap for refrigerator drawer rails. Replaces cracked, broken, or missing rail caps. Installs on drawer slide assembly to complete rail.

Slide rail assembly for refrigerator shelves and drawers. Replaces broken, bent, or worn rails that prevent smooth gliding. Essential for restoring stability.

Replacement door hinge bushing for refrigerators. Installs in door hinge mechanism. Replace when worn, cracked, or causing door grinding or misalignment.
