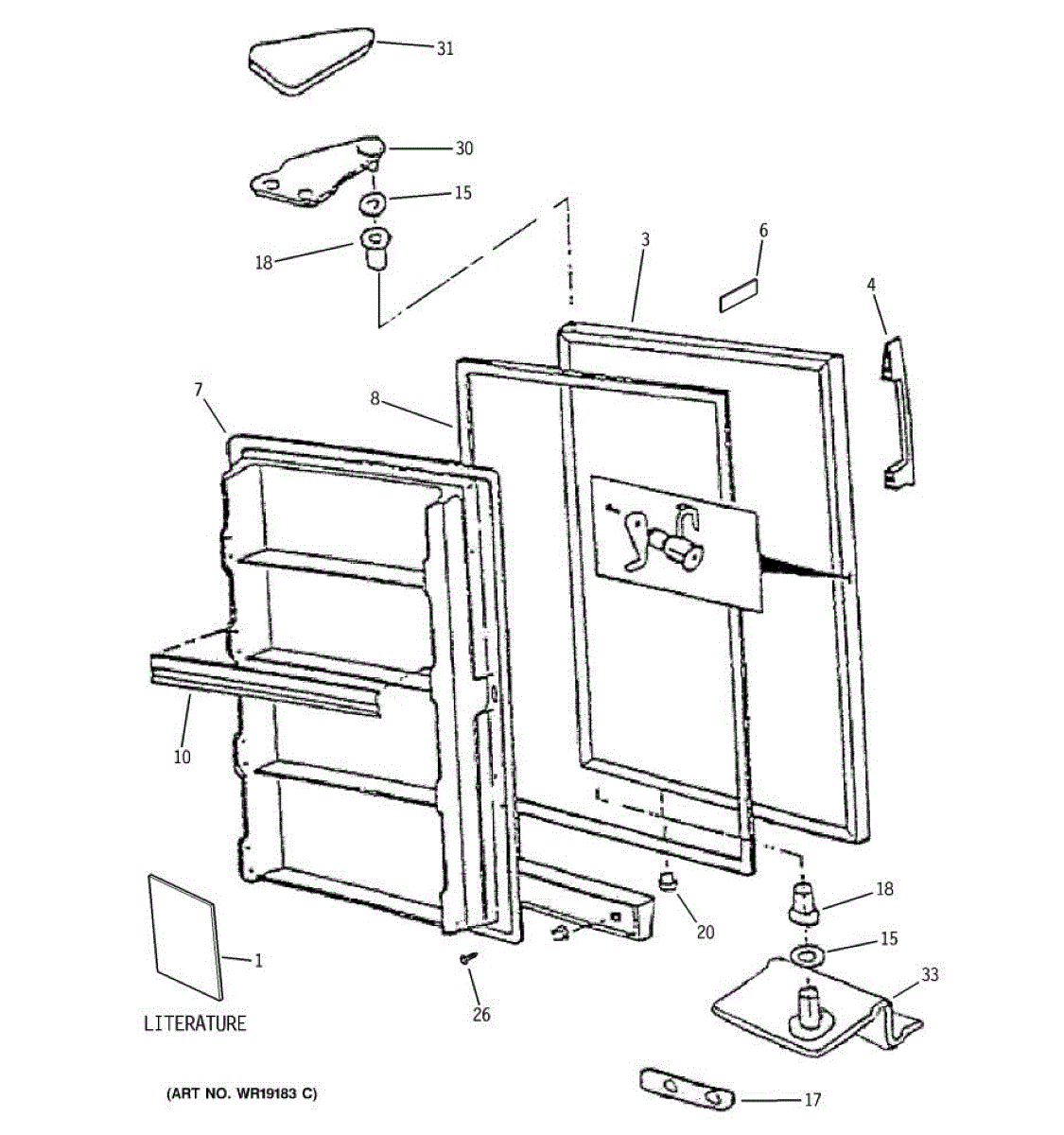

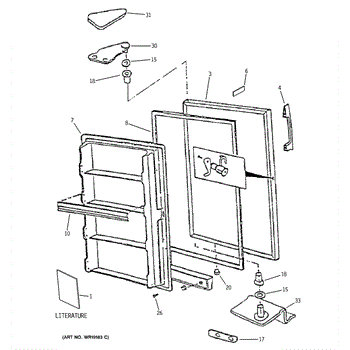

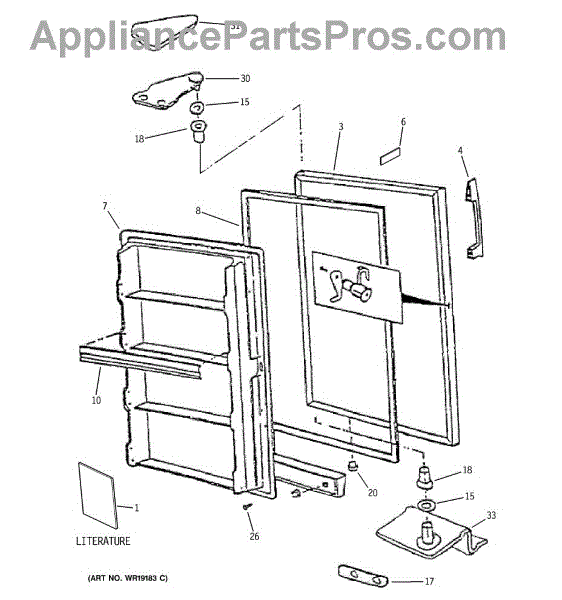

Parts for Ge FUM5SNAWW: 01 - Door Parts

This bottom hinge shim helps position and support the lower door hinge on refrigerators for correct door alignment and smooth operation. It restores proper spacing to reduce rubbing and uneven door gaps. What it does:

• Centers and levels the lower hinge to help doors close evenly and seal properly
• Provides a stable spacer to prevent hinge contact with cabinet or gasket
• Helps eliminate door rubbing, binding, or uneven gaps caused by worn/shifted hinge
• Simple replacement to address alignment-related door issues without replacing the entire hinge assembly

• Intended for the lower (bottom) door hinge; hinge location before ordering
• Remove power to the appliance and follow the manufacturer's service instructions
• Use basic hand tools; keep hardware organized during disassembly
• If hinge or mounting hardware is damaged, replace those parts as well for a reliable repair

This hinge bushing is a replacement door hinge wear part that helps the hinge rotate smoothly and keeps the door aligned for proper sealing. It reduces metal-on-metal wear where the hinge pin contacts the frame. What it does:

• Cushions the hinge pin and housing to prevent excess wear and noisy operation
• Restores smoother door movement and helps maintain proper door alignment
• Can stop or reduce squeaking, sticking, or rubbing at the hinge area
• Helps the door close more consistently by correcting worn hinge contact points

• One hinge bushing

• Disconnect power to the appliance and remove any items from the door before starting
• Support the door while loosening or removing hinge fasteners to prevent dropping or damage
• Replace the worn bushing on the hinge pin, then reassemble and tighten hardware to secure alignment
• Check door alignment and operation after installation; adjust hinge position as needed

This vent plug door is the replacement front vent flap that covers the appliance vent opening and helps control airflow and block drafts when the appliance is not running. It restores a secure, sealed vent surface for proper ventilation. What it does

• Replaces a cracked, warped, or broken vent plug door to stop drafts and reduce debris entry
• Allows the vent to open during operation and closes when idle to limit air loss
• Restores proper vent sealing that can affect airflow and efficiency
• Visible, damaged, or stuck vent flaps are common signs this part is needed

• 1 vent plug door

• Disconnect power to the appliance before starting any repair
• Typically secures with a few screws; basic hand tools may be required
• Handle gently to avoid damaging the flap or surrounding trim during installation
• Follow the manufacturer's instructions for correct orientation and fit
