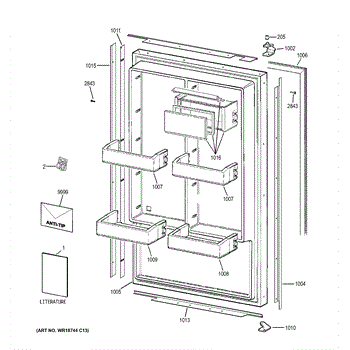

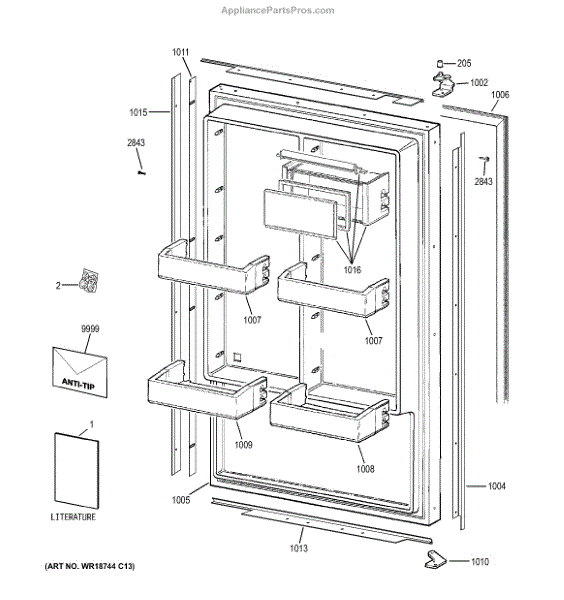

Parts for Ge ZIR360NHARH: Door Parts

This top hinge bushing helps the refrigerator door pivot smoothly and reduces metal-on-metal wear. Replacing a worn bushing restores quieter operation and helps the door align and close properly. What it does:

• Provides a low-friction mounting surface for the top hinge pin
• Reduces hinge noise, squeaks, and grinding when opening or closing the door
• Helps maintain proper door alignment and sealing by preventing excess play
• Prevents accelerated wear of the hinge pin and surrounding trim

• Always disconnect power to the appliance before starting any repair
• Support the door securely before removing the hinge to avoid injury or damage
• Inspect hinge pin and surrounding components; replace if heavily worn
• Hand-tighten fasteners, then torque to manufacturer specifications; avoid over-tightening plastic components

This refrigerator door gasket creates a tight, reliable seal between the door and cabinet. Replacing a worn gasket helps keep cold air in, block warm, humid air, and restore proper temperatures and efficiency.

• Forms an airtight seal around the door perimeter to maintain correct internal temperatures
• Helps reduce frost, condensation, and energy use caused by air leaks
• Resolves poor sealing from tears, warping, cracks, or compression set
• Can help with symptoms like doors not closing fully or popping open and warm spots near the door

• Unplug the refrigerator and clear items from the door before service
• Warm the new gasket in hot water or with low, indirect heat to relax and shape it
• Remove the old gasket from the retaining channel; press the new gasket in place starting at the corners and working evenly around
• Use gentle heat to eliminate gaps and ensure a consistent seal

Color: white

This deep fresh food door bin installs on the right-hand refrigerator door to provide sturdy storage for taller containers and everyday items. Replace a broken or missing bin to restore safe, organized space on your refrigerator door.

• Mounts to the right-side fresh food door to hold and organize items
• Deep profile adds capacity for taller containers and bottles
• Replace when the bin is cracked, warped, has broken tabs, or won't stay seated
• Common symptoms: bin falls out, leans, is loose, or is missing

• Empty the old bin; lift straight up to remove from the door liner
• Align the new bin's hooks with the slots and press down until fully seated
• Handle gently; allow plastic to warm to room temperature to reduce cracking risk
• Do not force into place; ensure correct right-side orientation

Color: white

This 8-32 x 5/8" Phillips screw is a stainless steel fastener used to secure panels and components in appliances. It resists corrosion and provides a reliable, low-profile Phillips head fastening solution. What it does:

• Fastens panels, brackets and trim where an 8-32 x 5/8" screw is specified
• Stainless steel construction helps resist rust in humid or food-prep environments
• Phillips head accepts standard drivers for quick, positive installation
• Replaces worn or stripped fasteners that cause loose or rattling parts

• One 8-32 x 5/8" Phillips stainless steel screw

• Unplug the appliance or disconnect power before beginning work
• Use a properly sized Phillips screwdriver to avoid cam-out or stripping
• Tighten until snug; avoid over-tightening which can strip threads or crack plastics
