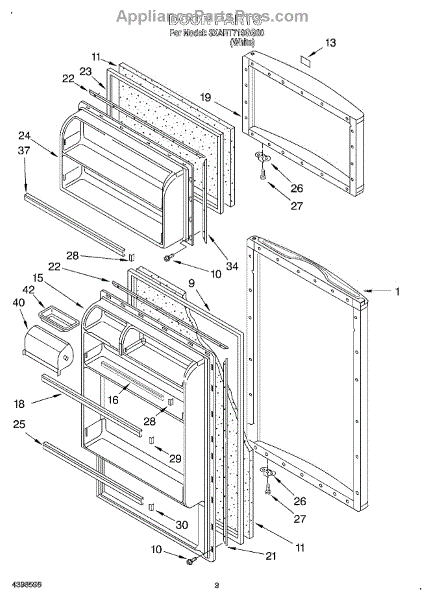

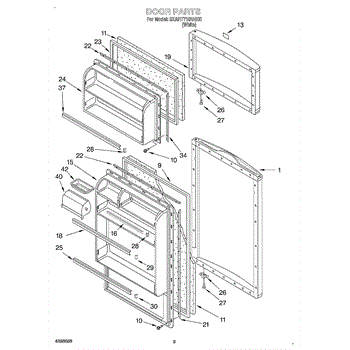

Parts for Whirlpool 3XART719GG00: 02 - Door Parts

The Fresh Food Door Gasket is an OEM part for Whirlpool refrigerators. It creates an airtight seal around the refrigerator door, helping to maintain the internal temperature and keep food fresh by preventing warm air from entering the refrigerator. This gasket measures approximately 44.70" X 27.16".

You should replace the fresh food door gasket if it becomes worn out or damaged. Causes of a bad door gasket can include regular wear and tear, damage from frequent opening and closing of the door, and exposure to temperature fluctuations. Over time, the gasket may become brittle, crack, or develop mold.

Symptoms of a bad fresh food door gasket include:

• Warm air entering the refrigerator, leading to higher internal temperatures
• The refrigerator running more frequently or for longer periods
• Visible cracks, tears, or mold on the gasket
• Difficulty in closing the refrigerator door securely

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Size: 8-18 x 1/2 inch.

This refrigerator door shelf trim forms the front rail of a door shelf to keep jars and bottles in place. Replace a cracked, loose, or missing bar to restore secure storage and help prevent items from sliding out during door movement.

• Serves as the front barrier/rail for a door shelf
• Mounts into end caps/tabs to hold items securely during opening and closing
• Common symptoms: cracked or broken bar, loose fit, missing trim, items falling from the shelf
• Restores proper fit, function, and usable storage space on the door

• Unplug the refrigerator before servicing
• Remove items from the shelf; release and lift off the old trim from the end caps/tabs
• Align the new trim with the end caps/tabs and press firmly until it snaps into place
• Handle aged plastic carefully to avoid cracking adjacent parts

This May Be Longer Than Original If So Cut To Fit

The Freezer Door Gasket is an OEM replacement part for Whirlpool side-by-side refrigerators. Located around the inside perimeter of the freezer compartment entrance, the gasket forms an insulating seal when the door closes. As an essential component ensuring efficient operation, the gasket helps maintain even sub-zero compartment temperatures.

Causes of a bad freezer door gasket can include cracking, flaking or splitting from repeated flexing as the door opens/closes, or impressions from dents compressing sealing surfaces.

Symptoms of a bad freezer gasket include:

• Noticeable frost buildup around the door edges indicating air leaks
• Difficulty latching the door fully with the locking mechanism
• Increased running times for the compressor to recover temperatures
• Higher energy bills from the refrigerator working harder to chill

 This OEM Whirlpool part is also compatible with Kenmore, Maytag, Amana, and KitchenAid side-by-sides.

This door shelf trim replaces the front-facing plastic trim that snaps onto a refrigerator door shelf to restore a finished appearance and help keep the shelf bin secured. Ideal when the original trim is cracked, chipped, or missing. What it does:

• Replaces damaged or missing front trim on a refrigerator door shelf.
• Restores the finished look of the door and helps retain items on the shelf.
• Snaps into place to secure the shelf bin edge and mounting tabs.
• Commonly used when the trim is cracked, broken, loose, or will not stay attached.

• Remove contents from the door shelf and, if necessary, remove the shelf bin before replacing the trim.
• Inspect mounting tabs on both the shelf and the trim; align tabs and press straight in until trim clicks into place.
• Handle broken plastic pieces carefully and wear gloves to avoid cuts; if mounting tabs are damaged, replacement of the shelf or additional repair may be required.

The Bracket-Door Stop is an OEM replacement part for Whirlpool appliances. This zinc-finished bracket is designed to prevent the appliance door from opening beyond its intended range, protecting both the door and surrounding components from potential damage. It ensures the door stays secure and functions smoothly during regular use.

Symptoms of a bad Bracket-Door Stop include:

• The door overextending when opened
• Difficulty in maintaining the door's position
• Visible bending, cracking, or damage to the bracket

Causes of a failing Bracket-Door Stop can include repeated stress from excessive force when opening the door, normal wear over time, or accidental impacts. A damaged bracket can compromise the door's alignment and overall functionality.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Door Shelf End Cap is an OEM part for Whirlpool refrigerators. This part secures the door shelf bar in place, ensuring that items stored in the door bins are properly supported and contained. The end cap attaches to the ends of the door shelf bar, providing stability and a finished look.

Causes of a bad end cap can include wear and tear from frequent use, heavy loads in the door bins causing stress and fractures, and accidental impacts or mishandling leading to cracks or breaks.

Symptoms of a bad door shelf end cap include:

• The door shelf bar becoming loose or falling off
• Cracks or breaks in the end cap
• Door bins not staying in place
• Difficulty in securing the door shelf bar

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Shelf Trim Endcap is an OEM replacement part for Whirlpool refrigerators. This component fits on the end of the refrigerator shelf trim, providing a finished look and securing the trim in place. It helps to maintain the integrity and appearance of the refrigerator shelves, preventing items from sliding off and ensuring the shelves are securely held in place.

Causes of a bad shelf trim endcap can include regular wear and tear, physical impact from loading and unloading items, or exposure to temperature changes that can cause the plastic to become brittle.

Symptoms of a bad Shelf Trim Endcap include:

• The shelf trim being loose or not staying in place
• Items sliding off the shelf due to instability
• Visible cracks or breaks in the endcap
• Difficulty in securing the shelf trim properly

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Door Shelf Bar is an OEM part for Whirlpool refrigerators. This part goes on the door to hold condiments on the shelf. This does not include the endcaps.

Causes of malfunction involve cracks developing from weight stress on fasteners.

Symptoms of a problematic shelf bar include:

• Gaps noticeable between shelves and door
• Visible bowing or sagging on panels

This is a genuine Whirlpool OEM replacement this part is also compatible with Maytag, Jenn-Air and some Kenmore models.

Note: In some cases, you may have to cut to fit.
