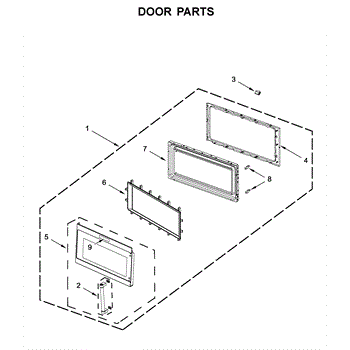

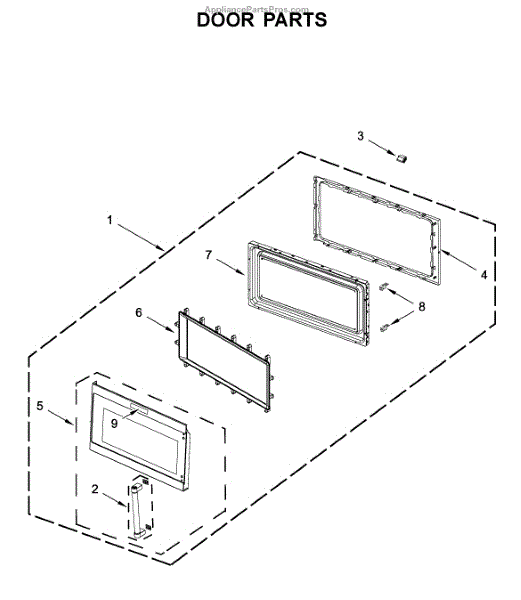

Parts for Kitchenaid KMHS120EBL9: Door Parts

This complete microwave door restores the oven's exterior and user access when the original door is cracked, dented, or cosmetically worn. It provides the finished trim and latch interface needed for normal door operation. What it does:

• Replaces a cracked, dented, or scratched microwave door to restore appearance.
• Provides the proper latch/mating surface so the microwave door can close and engage the control interlocks.
• Helps stop light leakage and prevents further damage to the oven cavity or internal components.
• Useful when the outer door panel, window, or handle is broken or cosmetically damaged.

• Disconnect power and follow the manufacturer's service instructions before starting any repair.
• Installation generally requires removal of the microwave outer casing and basic hand tools; handle parts carefully to avoid scratching the finish.
• Check latch alignment and door gasket seating during installation to ensure proper closure.

This stainless-finish microwave door replaces a damaged or worn door. It restores appearance, visibility, and proper latching/seal so the microwave opens and closes correctly and runs only when the door interlocks are engaged.

• Maintains the cavity door seal to contain microwave energy as designed
• Houses the door hooks that engage the interlock switches for safe operation
• Provides a clear viewing window to monitor cooking
• Addresses issues like the door not closing or latching, the unit not starting, or visible cracks/dents in the door

• Disconnect power at the breaker before servicing; microwave components can hold a charge
• Wear cut-resistant gloves; glass and metal edges may be sharp
• Follow your model's service procedure; transfer any reusable trim or spacers from the original door if required
• After installation, verify latch engagement and door alignment before restoring power

Color: White

Color: Black

Color: White

Color: Black

This outer door panel replaces a damaged or dented outer door on compatible Whirlpool appliances, restoring appearance and protecting the inner door components. It provides the exterior surface that you see and touch on the appliance door. What it does:

• Serves as the external surface of the appliance door and protects inner glass and components
• Restores a clean, undented exterior and improves appliance appearance
• Helps maintain the proper seal area and fit
• Commonly replaced when the outer door is bent, cracked, or cosmetically damaged

• Disconnect power (or unplug) and follow appliance-specific service manual before starting.
• Handle carefully to avoid scratching the finish or damaging inner glass and hardware.
• May require removing the door from the appliance and detaching inner panels, hinges, and/or trim—keep fasteners organized.

This outer door is the exterior cabinet panel that restores the appliance's finished appearance and protects internal door components from damage. Replaces a worn, dented, or corroded outer door panel to help the door look and function like new. What it does:

• Replaces damaged or dented exterior door panel to restore the appliance's appearance.
• Protects internal parts from moisture and impact.
• Helps maintain door alignment and sealing when used with intact inner components.
• Commonly used when the door shows visible cosmetic damage or exterior rusting.

• One outer door (single cabinet panel), as shown.

• High-level task: remove the inner liner and hinge fasteners to replace the outer panel; some models require disassembling door components.
• Use proper tools and support the door to prevent dropping or damage during removal.
• Disconnect power to the appliance before starting work if access requires electrical component removal.

This door latch is the replacement latching mechanism that secures the appliance door during operation, restoring proper door closure and safe operation. It fits the factory mounting and engages/disengages the door as designed. What it does:

• Secures the door closed so the appliance can run and maintain temperature or cycle safety systems
• Replaces a broken, worn, or loose latch that won't hold the door shut
• Commonly used when the door won't stay closed, won't latch, or the appliance won't start because the door is not detected as closed
• Engages with the door strike to ensure a positive, spring-loaded closure

• One door latch

• Disconnect power (unplug or switch off breaker) before beginning any repair
• Access may require removing the oven/dryer front panel or door trim
• Align the latch with the mounting holes and secure with the original screws; test latch operation before fully reassembling
• If electrical connectors are present, ensure they are fully seated and undamaged

This name plate is the appliance's model and serial identification label—an easy way to restore clear product ID for service, parts ordering, and warranty records. Keeps your appliance information visible and readable. What it does:

• Displays manufacturer model and serial numbers and other factory ID details
• Restores a missing or damaged ID label so technicians can identify the correct parts and specs
• Helps when registering the appliance or filing warranty and service requests
• Prevents delays caused by unreadable or absent identification information

• Clean and dry the mounting surface before applying; remove old adhesive residue
• Align carefully and press firmly; some name plates use adhesive backing or mounting tabs
• Do not cover vents, controls, or safety labels when installing
