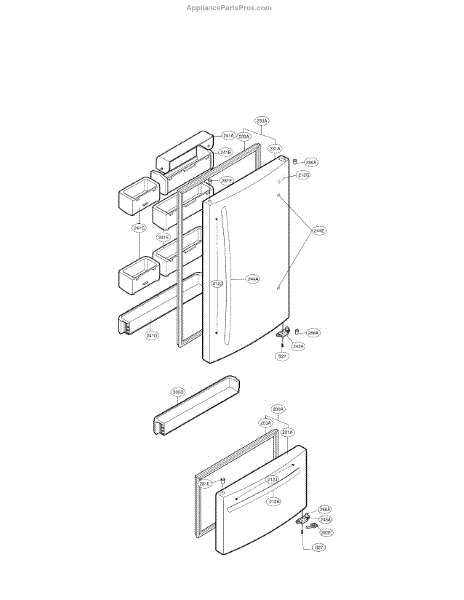

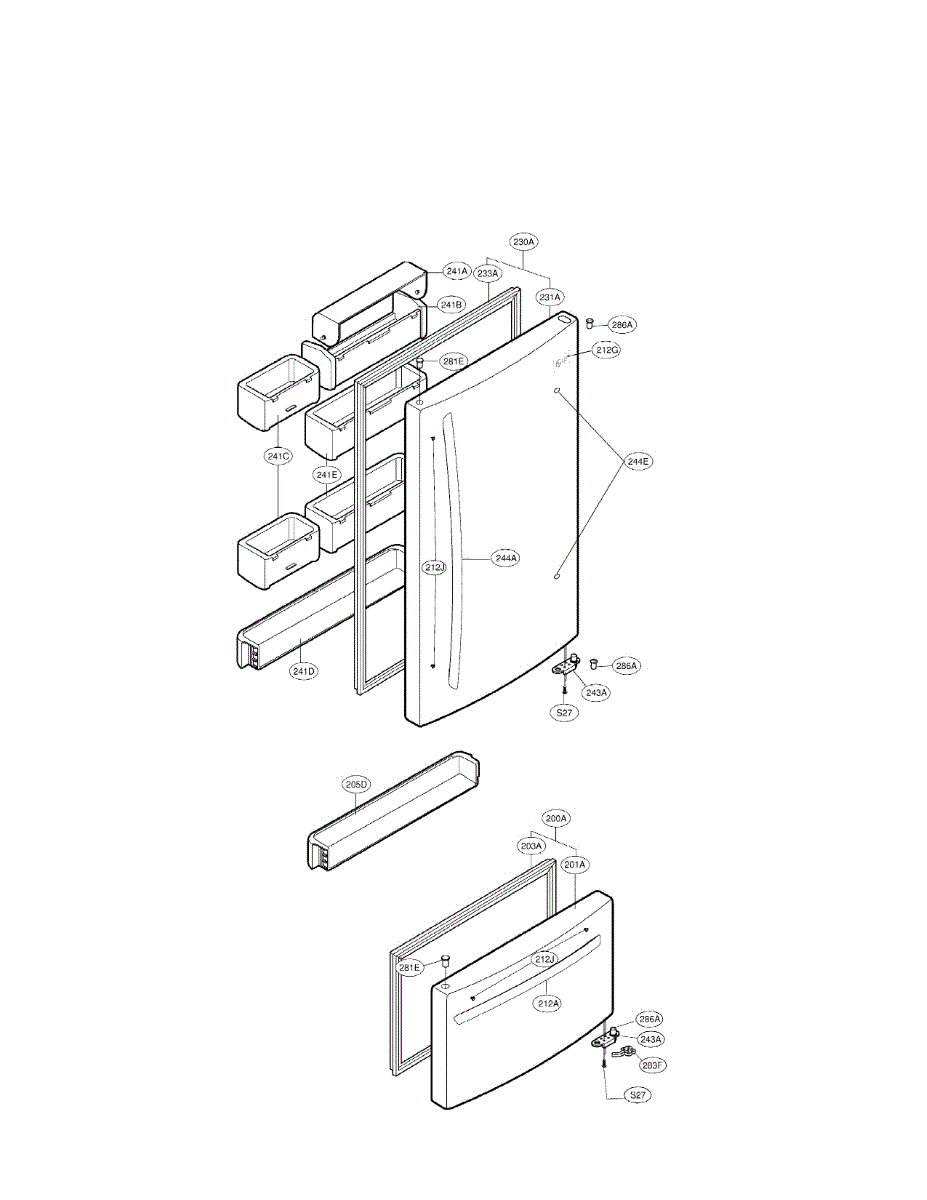

Parts for Lg LBC20514TT / 01: Door Parts

This replacement screw secures appliance components in their proper position. Replacing a missing or damaged fastener restores a snug fit, reduces rattling or vibration, and helps keep assemblies aligned for reliable operation.

• Secures panels, brackets, and internal components as specified by your model's parts diagram
• Replaces stripped, rusted, or missing hardware
• Helps address symptoms like rattling/vibration noise, loose panels/trim, or minor misalignment
• Maintains a stable, safe assembly during normal use

• Disconnect power; turn off water and gas supplies if applicable
• Match screw to its original location; do not mix different lengths or types
• Start threads by hand to avoid cross-threading; tighten snugly—do not overtighten
• Follow your model's service/parts diagram for correct placement

This is a replacement door gasket assembly that restores a tight seal around the refrigerator door to help keep cold air in and warm air out, improving cooling efficiency and reducing frost buildup. What it does:

• Seals the refrigerator door to prevent cold-air leaks and help maintain interior temperature.
• Helps reduce frost buildup and moisture on door shelves when the seal is intact.
• Can stop symptoms like warm spots near the door edge, noisy or overworking compressors, and visible gaps or tears in the existing seal.
• Restores proper door closure and can improve overall energy use when the original gasket is damaged.

• Disconnect power to the appliance before starting any service.
• Remove the old gasket carefully, then align the new gasket and press it into the door channel; work around the perimeter for an even fit.
• Check the gasket edge for full contact all the way around; run a paper test (paper should drag slightly when the door is closed) to verify seal.

This replacement door basket restores usable storage space in the refrigerator door, keeping bottles and condiments organized and easy to reach. Durable design maintains proper fit and function with the original door system. What it does:

• Replaces a cracked, warped or missing door basket to recover door storage capacity
• Supports upright storage of bottles and jars to prevent tipping and spills
• Helps keep frequently used items within easy reach for faster access
• Restores door seal alignment by properly supporting stored items

• Generally installs by sliding or snapping into the door track
• Inspect mating tracks or retainer clips and replace if damaged for a secure fit
• Do not force the basket into place; damage can occur to the door or bin
• Clean and dry mating surfaces before installation; avoid overloading beyond manufacturer load guidance

This name plate is the exterior emblem that mounts to the appliance's front panel. It replaces a missing, cracked, or faded badge to restore a clean, factory look and cover the designated trim area.

• Attaches to the outer panel to display brand/series identification
• Restores a finished appearance where the original emblem sits
• Direct replacement for a lost, damaged, or worn badge
• Typical symptoms: missing emblem, loose or broken tabs, peeling, or discoloration

• Disconnect power before servicing the appliance
• Carefully remove the old emblem; release any tabs from behind or peel away remaining adhesive
• Clean and dry the mounting surface; remove all residue for best fit
• Align with the recess/holes and press evenly until fully seated

The Handle Mounting Stud is an OEM replacement part for LG refrigerator doors. It provides a sturdy mounting point for the door handle assembly. Reliable handle connection and support is crucial for dependable door function and access.

Causes of a faulty stud can include damage from excess weight or impact over time rendering the stud loose or unstable.

Symptoms of a bad stud include:

• Loose or sagging door handle
• Difficulty opening and closing the refrigerator door
• Potential for the handle to detach completely
• Safety concerns if the handle connection fails

This OEM LG replacement stud is also compatible with Sears/Kenmore models.

Please Note: The Sears/Kenmore parts diagram shows this part to be a 16 inch refrigerator door shelf. However, this piece is actually 8 inches in length. If you need the 16 inch shelf, you will need to order 5004JJ1028A.

Please Note: The Sears/Kenmore parts diagram shows this part to be a 8 inch refrigerator door shelf. However, this piece is actually 16 inches in length. If you need the 8 inch shelf, you will need to order 5004JJ1030A.

This is the door basket that mounts on the inner door to hold bottles, jars, and condiments. Replace a cracked or missing bin to restore secure, convenient storage and keep items organized on the refrigerator door.

• Attaches to the door liner to provide easy-access storage for small items
• Common failure signs: cracked plastic, broken mounting tabs, bin falls off, won't stay level, or missing bin
• Helps restore original storage layout and capacity
• Designed to fit the designated door slots for a solid, stable hold

What's included: One door basket/bin. Install notes:

• Compare the new bin to the original to confirm size and mounting points
• Empty contents; lift the old bin up and out of the door slots
• Align the new bin with the slots and lower until fully seated—do not force
• Distribute weight evenly and avoid overloading to prevent future damage

This is the small trim cap that snaps over the end of a refrigerator door handle. It finishes the handle, covers the mounting hardware, and helps keep the handle secure and looking clean.

• Covers exposed door-handle screws and mounting points
• Restores a finished appearance if the original cap is missing or damaged
• May help reduce handle looseness if the old cap no longer held properly
• Common symptoms: missing end cover, visible handle screws, loose or rattling handle

• Unplug the appliance before starting and open the door for access
• Remove the old cap by gently prying at the seam; avoid scratching the door finish
• Align the new cap with the handle end and press until it snaps fully into place
• If required, tighten handle mounting screws before installing the cap

This freezer door stop cushions and limits the freezer door's movement to prevent over-travel, reduce impact noise, and protect the door and cabinet from damage. Replacing a worn or missing stop restores smoother, quieter door operation. What it does:

• Stops the freezer door from swinging too far and absorbing impact at full open
• Helps prevent door misalignment and sealing gaps that can lead to cooling issues
• Common symptoms: loud thud when opening, visible crack or missing bumper, door catching on cabinet
• Simple wear item — replace when cracked, flattened, or missing

• Unplug the appliance or disconnect power before working near electrical components
• Many door stops snap or slide into place; a flat screwdriver or trim tool may help with removal
• Avoid forcing parts; inspect surrounding trim and gasket for damage before reassembly

The Hinge Bushing is an OEM part for LG refrigerators. It serves as a crucial component in the door hinge mechanism, ensuring smooth and stable operation when opening and closing the refrigerator door.

You should replace this hinge bushing if it becomes worn out or damaged. Common causes of a bad hinge bushing include constant use leading to wear and tear, misalignment of the door, or physical damage due to impact.

Symptoms of a bad hinge bushing include:

• Difficulty in opening or closing the door
• The door sagging or not aligning properly
• Unusual noises like squeaking or grinding when the door is moved

This OEM LG part is also compatible with Sears/Kenmore.
