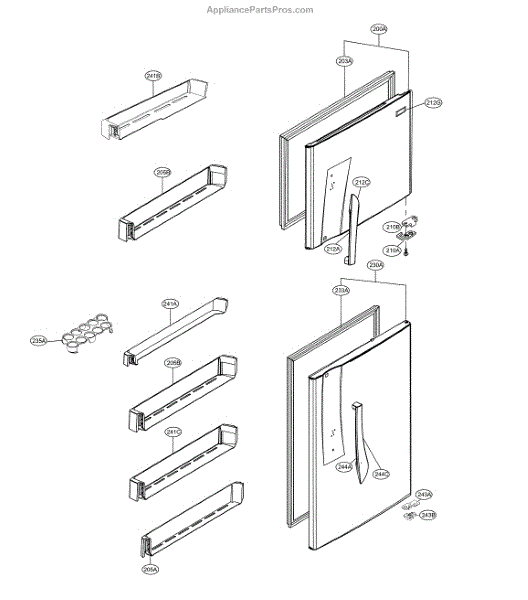

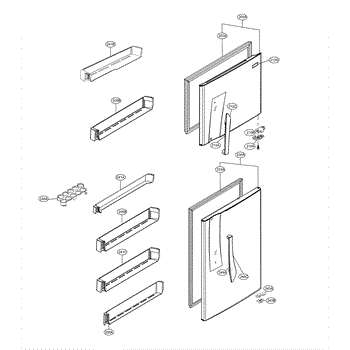

Parts for Lg LTNS16121V/00: Door Parts

This replacement mounting screw secures appliance panels and components to restore proper fit and reduce rattling or loose parts. Simple, direct replacement when a worn or missing screw causes loose panels or intermittent contact. What it does:

• Fastens panels, brackets, or small components to maintain proper alignment and reduce vibration
• Prevents loose trim, covers, or assemblies that can cause noise or improper sealing
• Replaces missing, stripped, or corroded screws that interfere with reliable operation
• Works wherever the OEM screw specification is required for secure mounting

• Use the matching screw hole and tighten until snug; avoid over-torquing to prevent stripping
• Disconnect power to the appliance if accessing electrical or moving parts near the work area
• If multiple screws are missing or panels are damaged, replace all fasteners for even support

The Drain Pipe Assembly is an OEM replacement part for LG refrigerators. It is a plastic tubing system that collects and removes liquid condensation from evaporator coils. Proper drainage is crucial to minimizing frost buildup and ensuring optimal cooling of food storage areas.

Symptoms of a bad drain pipe assembly include:

• Excessive frost or ice accumulation inside the refrigerator
• Puddling or leaks detected near evaporator housing
• Slow draining allowing water to pool versus emptying fully
• Cracks or breaks in the tubing prevent complete fluid removal

Causes are typically mineral sediment clogging drainage paths or deteriorating plastic from constant use. This OEM LG replacement pipe restores reliable condensate removal to maintain peak efficiency.

This OEM LG part is also compatible with Sears/Kenmore.

This refrigerator shelf assembly replaces a damaged or missing tempered glass shelf to restore usable storage space and stable support for food and containers. It gives a clean, easy-to-clean surface that fits into the fridge cabinet shelving tracks. What it does:

• Provides a flat, sturdy surface for storing food, beverages and containers.
• Replaces cracked, chipped or broken glass shelves that no longer safely support items.
• Restores proper shelving height and organization when a shelf is missing or broken.
• Helps contain minor spills on a smooth, wipeable surface for easier cleanup.

• One tempered glass shelf assembly

• Remove food and items from adjacent shelves before installation to avoid breakage.
• Slide the shelf into the cabinet tracks until it seats securely; do not force into position.
• Handle with care—tempered glass can break if dropped or struck.
• If glass is damaged, wear gloves and eye protection when removing and disposing of the old shelf.

A replacement vegetable drawer tray that supports the crisper area and provides a stable surface for produce storage. Restores proper fit and function to the lower storage compartment so fruits and vegetables sit level. What it does:

• Replaces a cracked, warped or broken vegetable/crisper tray that no longer holds items securely
• Provides a stable surface so produce doesn't tip, fall or get caught when drawers slide
• Helps the crisper drawer glide properly by restoring correct alignment and spacing
• Keeps moisture contained in the crisper area to help organized storage

• Disconnect power to the appliance before servicing to reduce shock risk
• Remove the crisper drawer before installing; lift and slide the old tray out per diagram
• Align the new tray with the drawer rails and slide into place until it seats fully
• Use caution handling edges; if glass is present, replace only with the exact OEM-design part

This cover assembly replaces a damaged or missing rear housing panel to protect internal TV components and restore the unit's finished appearance. It helps keep circuitry safe from dust and accidental contact while maintaining proper airflow. What it does:

• Replaces a cracked, warped, or broken rear TV housing panel
• Protects internal boards, power components, and connections from dust and impact
• Restores secure mounting points for internal parts and external connectors
• Improves cosmetic appearance and prevents exposed wiring or sharp edges

• Unplug the TV and remove power and signal cables before beginning work
• Use appropriate screwdrivers and keep fasteners organized for reassembly
• Handle the part gently to avoid damaging plastic clips or alignment tabs

This door gasket assembly seals the edge of a refrigerator or freezer door to help maintain proper internal temperature and improve energy efficiency. It replaces a worn, cracked, or misshapen door seal to restore a tight closure. What it does:

• Forms an airtight seal around the door perimeter to reduce cold air loss and cycling
• Helps prevent moisture buildup, frost, and food spoilage linked to a failing seal
• Restores proper door closure if the original gasket is torn, warped, or hardened
• Works with the existing door trim and latch to maintain consistent cooling

• Disconnect power to the appliance before beginning any service
• Remove food and adjustable shelves from the door area for clearance
• Follow OEM diagram for correct alignment; gasket commonly fits into a retainer channel or attaches with clips/screws
• Inspect door frame and mounting channel for damage or debris before installing; warm the gasket slightly to ease installation if needed

This replacement door basket restores usable storage on the refrigerator door, providing a stable shelf for bottles, condiments and small containers. It keeps items organized and prevents them from shifting or falling when the door opens. What it does:

• Replaces a cracked, broken or missing door shelf/bin so items sit securely on the door.
• Restores proper containment for bottles, jars and condiments to prevent spills.
• Helps maintain organized storage and clear access to frequently used items.
• Works with the door trim and retaining clips to stay firmly in place during normal use.

• Empty the door and remove any retained clips or trim pieces before installing.
• Align the bin with the door rails/slots and press firmly until it snaps or seats into place.
• Inspect and replace any broken mounting tabs or retaining clips if the bin does not secure properly.
• For safety, unplug the appliance or disconnect power before working near electrical components; follow OEM service instructions.

This replacement door stopper cushions and limits door movement to protect the hinge and cabinet while reducing noise and wear. It restores proper door closing action and prevents the door from swinging too far. What it does:

• Acts as a bumper between the door and cabinet to absorb impact and reduce slamming
• Helps keep the door aligned and prevents binding or rubbing
• Reduces noise from door contact during opening and closing
• Common symptom: door slams, hangs open, rubs, or makes noise when moved

• Turn off and unplug the appliance before servicing to avoid shock or injury
• Access may require opening the door or removing a trim/inner panel—use appropriate hand tools
• Align the stopper on the hinge/cabinet mounting point and secure per OEM location; do not over-tighten
• If the door or hinge shows excessive wear, inspect related parts and replace as needed

This name plate is the exterior emblem that mounts to the appliance's front panel. It replaces a missing, cracked, or faded badge to restore a clean, factory look and cover the designated trim area.

• Attaches to the outer panel to display brand/series identification
• Restores a finished appearance where the original emblem sits
• Direct replacement for a lost, damaged, or worn badge
• Typical symptoms: missing emblem, loose or broken tabs, peeling, or discoloration

• Disconnect power before servicing the appliance
• Carefully remove the old emblem; release any tabs from behind or peel away remaining adhesive
• Clean and dry the mounting surface; remove all residue for best fit
• Align with the recess/holes and press evenly until fully seated

This overload protector is a motor thermal cut-off that helps prevent motor overheating by interrupting power when temperatures get too high. It restores normal operation after the motor cools, helping protect the motor from heat damage. What it does:

• Senses excess motor temperature and interrupts power to prevent overheating
• Commonly used when a washer or motor hums, won't spin, or stops mid-cycle
• Protects the motor and associated components from heat-related failure
• Resets or is replaced after a thermal fault clears, depending on design

• Disconnect power before accessing the motor or electrical components
• Handle and mount the protector per OEM orientation to ensure proper thermal contact
• Inspect motor and wiring for underlying faults before replacing

This small stopper installs in the refrigerator to limit the travel of a moving component and keep it securely in place. Replacing a broken or missing stopper prevents over-extension and helps maintain smooth, aligned operation.

• Limits the range of motion for a door, bin, or drawer to prevent over-opening or accidental removal
• Helps keep interior components aligned and operating smoothly
• Replace if cracked, missing, or deformed
• Common symptoms: drawer or bin slides out too far, door swings past normal range, or a broken plastic stop is found

• Disconnect power before servicing; remove or support the affected bin/drawer/door
• Note the old stopper's orientation and location before removal
• Transfer and reuse any original screws or clips if applicable
• Snap or fasten the new stopper in place and test for smooth movement

This is a replacement retaining pin used to secure small moving parts and assemblies in compatible LG appliances. It restores proper alignment and holds components in place so assemblies operate smoothly. What it does:

• Secures and locates components within an assembly to prevent shifting or disengagement
• Helps maintain proper alignment for moving parts that can cause noise or malfunction when loose
• Commonly used where a small, durable metal pin is needed to retain clips, levers, or linkages
• Simple, single-purpose part — replacement when the original is bent, worn, or missing

• One retaining pin

• Unplug the appliance or disconnect power before servicing
• Access the affected assembly per the appliance service instructions; small fasteners or clips may need removal
• Use pliers or appropriate hand tools to remove/install the pin; avoid forcing to prevent damage
• Keep track of orientation and any associated clips or washers during disassembly

The Drier Assembly is an OEM part for LG refrigerators. This part is responsible for removing moisture and contaminants from the refrigerant. This ensures that the refrigerant circulates effectively and efficiently, preventing damage to other components and maintaining the refrigerator's cooling performance.

Causes of a bad Drier Assembly can include contamination from moisture entering the refrigerant lines, blockages from debris or particulates, and general wear and tear over time that reduces its effectiveness.

Symptoms of a bad Drier Assembly include:

• Reduced cooling efficiency or warm refrigerator temperatures
• Unusual noises from the refrigeration system
• The compressor running continuously or cycling frequently
• Frost buildup on the evaporator coils due to improper refrigerant flow

This OEM LG part is also compatible with Sears/Kenmore models.

This holder secures the dryer-related assembly in place to reduce movement and wear, helping maintain proper alignment and quieter operation. It's a simple replacement that restores part stability in the appliance. What it does:

• Secures a dryer assembly or component to the appliance frame to prevent shifting
• Helps reduce vibration and rubbing noises caused by a loose part
• Maintains correct alignment so related parts operate smoothly
• Used when the existing holder is cracked, broken, or missing

• Disconnect power before replacing any dryer components to avoid shock or injury
• Access location and removal steps vary by model; follow the appliance's service manual or exploded view
• Keep fasteners and adjacent parts organized for reassembly; replace any damaged clips or screws

This condenser assembly with attached wiring routes refrigerant and electrical connections behind the refrigerator, restoring proper heat exchange and fan wiring for consistent cooling performance. Designed to replace a damaged or corroded condenser/wire assembly. What it does:

• Transfers heat from the refrigerant so the refrigerator can cool efficiently.
• Provides the factory wiring connection for the condenser fan and compressor circuits.
• Commonly replaced when cooling is reduced, the condenser area is visibly damaged, or wiring is burnt/corroded.
• Helps stop issues like unusually warm compartments or condenser-area arcing/smoke when wiring is compromised.

• One condenser assembly with attached wiring harness.

• Disconnect power before beginning service to avoid shock or injury.
• Handle condenser fins carefully to avoid bending; use gloves to protect hands.
• Basic hand tools required; some models may require removing rear panels for access.

This DC evaporator fan motor circulates cold air across the evaporator coil and throughout the cabinet. Replacing a noisy or non-running motor restores airflow so the refrigerator cools evenly and reliably. What it does

• Draws air across the evaporator coil and distributes chilled air between sections
• Helps maintain stable temperatures and recover after door openings/defrost
• Common symptoms: refrigerator too warm, weak or no airflow from vents, loud or intermittent fan noise, frost buildup around the evaporator cover
• Fan may not run even though the compressor and lights are on

• Includes: 1 DC fan motor

• Unplug the refrigerator and wear cut-resistant gloves
• Remove the evaporator cover to access the motor; disconnect the wire harness
• Reuse your existing fan blade, grommets, and bracket if applicable; match the original orientation
• Route wires clear of the blade, reassemble, restore power, and verify airflow

The Damper Motor Support is an OEM part for LG refrigerators. It holds the damper motor in place, ensuring proper air flow between the refrigerator and freezer compartments. This support is essential for maintaining the correct temperature balance within the appliance.

Causes of a bad damper motor support can include wear and tear over time, physical damage from impacts, or exposure to moisture that can weaken the support structure. A faulty support can lead to improper functioning of the damper motor, affecting the refrigerator's cooling efficiency.

Symptoms of a bad Damper Motor Support include:

• Inconsistent temperatures between refrigerator and freezer
• Unusual noises coming from the damper area
• Visible damage or cracks in the support
• Reduced cooling efficiency

This OEM LG part is also compatible with Sears/Kenmore models.

The Power Cord Assembly is an OEM replacement part for LG refrigerators. It includes the electrical cord and strain relief that links the refrigerator to an external power source.

This power cord assembly safely delivers electricity from the wall outlet to the internal compressor and fan modules. It facilitates proper cooling functions through this transmission of alternating current.

Symptoms of a bad power cord can include:

• Abnormal sounds such as humming or buzzing from within
• Tripped circuit breakers interfering with operations
• Indicators of cord damage like frays or exposed wiring
• Inconsistencies in interior temperature maintenance

Causes may involve normal wear over extended use, physical stress, or accidental damage to the cord insulation.

Replacing the power cord assembly with this genuine LG OEM part restores a reliable electrical pathway. It ensures a continued power supply to keep foods fresh and frozen.

This sheath heater is the protective heating element cover used in electric dryers to help direct heat and protect the element assembly. It restores proper heat delivery and helps prevent direct contact with the element. What it does:

• Protects and surrounds the dryer's heating element assembly to help direct airflow and heat
• Helps prevent shorting or damage from contact with the element
• Commonly replaced when the dryer fails to heat, heats intermittently, or shows scorch marks or visible damage to the heater area
• Works with the dryer's heating system; not a thermal fuse, thermostat, or heating coil by itself

• One sheath heater

• Disconnect power (unplug or turn off breaker) before starting any repair
• Handle with care — sheet metal edges can be sharp
• Verify the heating element and thermostats are in good condition; replace any damaged components
