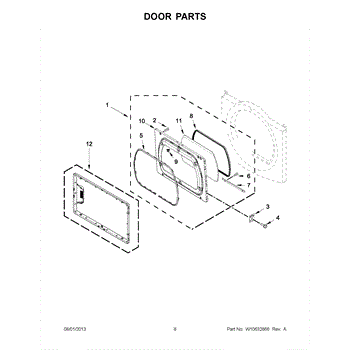

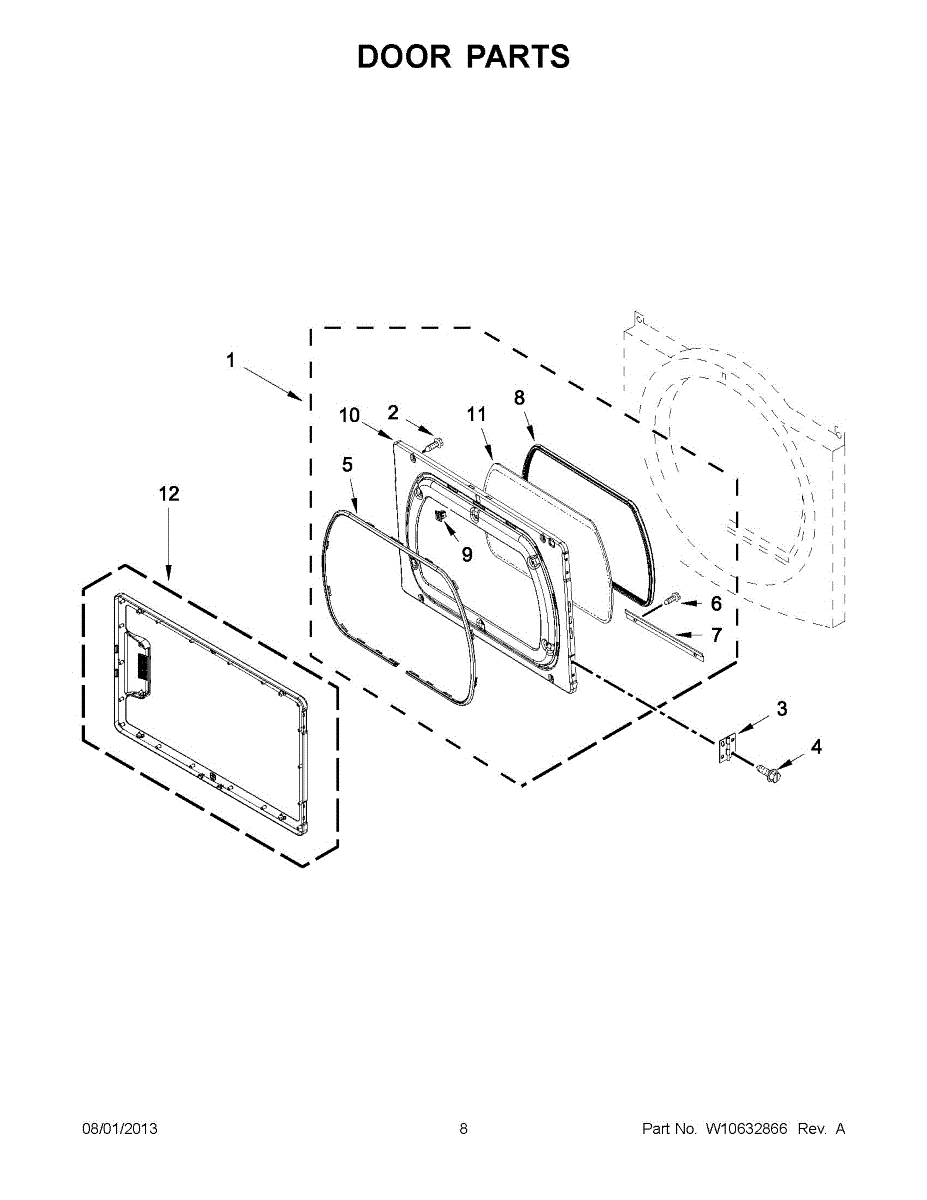

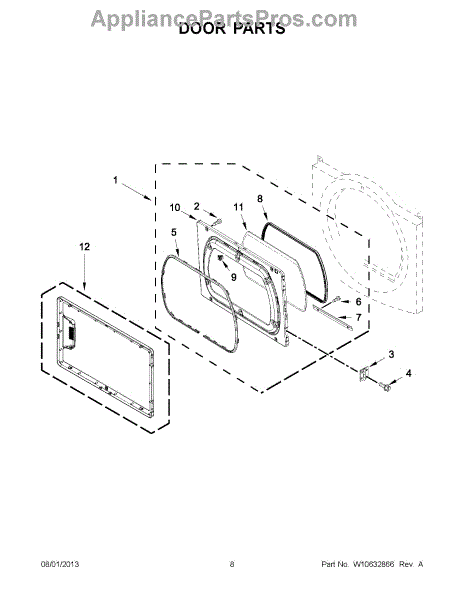

Parts for Maytag MGDX700AG1: 04 - Door Parts

This factory screw secures panels, brackets, and other components in your appliance. Replace a missing, stripped, or corroded fastener to restore a tight fit and keep parts properly aligned and rattle-free.

• Secures appliance components and panels in their mounting points
• Replaces damaged, stripped, or missing hardware
• Helps reduce rattling or vibration from loose parts

• Disconnect power; shut off water or gas supplies if applicable
• Match location with the original screw; start threads by hand to avoid cross-threading
• Tighten until snug; do not over-torque, especially into plastic or thin metal
• Reinstall any covers or panels and test for secure fit

This hinge pin assembly provides the pivot point for your door, keeping it aligned on the hinge and allowing smooth opening and closing. Replacing a worn pin restores proper door movement and helps maintain a reliable seal.

• Creates the pivot for the door to rotate smoothly on the hinge
• Maintains door height and alignment for consistent gasket contact
• Helps prevent sagging, rubbing, or gaps that can affect sealing
• Common symptoms include clicking/popping at the hinge, door wobble, or difficulty closing

• Disconnect power and support the door before servicing
• Note hinge orientation and the placement of any spacers/washers; transfer as needed
• Secure fasteners without overtightening to avoid binding
• After installation, verify door alignment and gasket seal

This flat-head screw secures panels, brackets, or trim so they sit flush on your appliance. Replacing a worn or missing screw restores a tight fit and helps prevent vibration, rattling, or shifting components.

• Provides a countersunk, flush-mount fastener for panels, trim, brackets, or covers
• Helps maintain alignment and secure attachment during operation
• Replaces stripped, rusted, or missing hardware
• Symptoms can include loose panels or handles, rattling noises, or visible gaps/misalignment

• Disconnect power (and shut off gas, if applicable) before servicing
• Match screw length and thread to the original for proper fit
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Support the part being fastened to keep alignment while tightening

This Door Seal replaces the perimeter gasket on the appliance door so it closes snugly and maintains a proper barrier during operation. A fresh seal supports performance and helps reduce heat and moisture escaping around the door edge.

• Creates a continuous barrier between the door and front frame
• Helps maintain proper door fit and latching
• Replaces a torn, warped, or brittle seal that can cause leaks or a loose-feeling door
• Common symptoms include visible gaps, escaping steam/heat at the door, or needing extra force to close

• Disconnect power at the breaker before servicing; allow the unit to cool completely
• Open the door and remove any retaining trim/fasteners to release the old seal; avoid bending the door
• Clean the channel and press the new seal fully into place, ensuring an even, continuous fit around the perimeter

This is a replacement sheet-metal screw used to secure panels and components on compatible Whirlpool appliances. It provides a reliable fasten point for reattaching trim, brackets, and access panels after service. What it does:

• Secures appliance panels, brackets, and smaller components to the cabinet or frame
• Helps restore original fit and finish after repairs or part replacement
• Prevents rattles or loose panels when properly installed
• Matches OEM thread size and head style for a correct fit

• Turn off and unplug the appliance before removing panels or installing hardware
• Use the correct driver bit to avoid stripping the screw head
• Tighten until snug; avoid over-torquing to prevent thread damage or warped panels

This retainer clip secures small appliance components in place to prevent movement and ensure proper alignment for reliable operation. It's a simple replacement that restores lost or broken mounting support. What it does:

• Holds and stabilizes the attached component or assembly to prevent shifting during use
• Maintains proper alignment for connected parts to reduce wear and noise
• Commonly used where a small plastic or metal clip is needed for secure mounting
• Can address symptoms like loose panels, rattling, or parts that won't stay seated

• One retainer clip

• Disconnect power to the appliance before attempting any repair
• Remove surrounding panels as needed to access the clip; small trim tools may help
• Replace the broken retainer with the new clip and verify the secured component is seated correctly

This replacement seal restores a tight barrier at its mounting point in your appliance. It helps prevent leaks and maintains performance by ensuring a proper fit between connected components where fluids or air must be contained. Location varies by model.

• Creates a reliable seal between mating parts to contain water or air
• Helps stop drips, seepage, and unwanted airflow that can affect performance
• Replace if cracked, flattened, swollen, or leaking
• Common symptoms: moisture under/around unit, residue, or diminished efficiency
• Direct-fit replacement to match the original part's size and profile

• Disconnect power and, if applicable, shut off water supply before servicing
• Note the original seal's orientation; clean and dry all sealing surfaces
• Lightly moisten or use only manufacturer-approved lubricant; avoid petroleum products unless directed
• Seat evenly without twisting; after reassembly, run a test cycle and check for leaks

The Door Latch Kit is an OEM replacement part for Whirlpool washers. This component is responsible for securely locking the washer door during the wash cycle, preventing it from opening unexpectedly and ensuring a safe and efficient operation.

Symptoms of needing to replace the door latch kit include:

• Difficulty in closing or latching the washer door
• Door opening unexpectedly during the wash cycle
• Leaks or water seeping due to an improper door seal
• Excessive wear or damage to the latch components

Causes of a faulty door latch kit can include normal wear and tear over time, physical damage due to impact or mishandling, or issues with the door alignment or strike plate.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore washer models.

This door is the outer access panel that restores a proper seal and finished appearance to your appliance. It replaces a damaged or dented outer door so the unit looks and functions as intended. What it does:

• Provides the exterior panel that covers the appliance opening and mounting points for trims or handles
• Restores a secure closure and helps maintain internal temperature control when the gasket and hinges are properly installed
• Replaces visibly damaged, dented, or cosmetically worn doors to improve appearance
• Works with existing hinges, handles, and seals when those components are undamaged and installed correctly

• One outer door assembly

• Inspect hinges, screws, gaskets, and mounting hardware before installation; replace any worn components separately
• Wear gloves to protect hands from sharp edges and to avoid fingerprints on finished surfaces
• Support the door during removal and installation to prevent damage to the door or appliance
