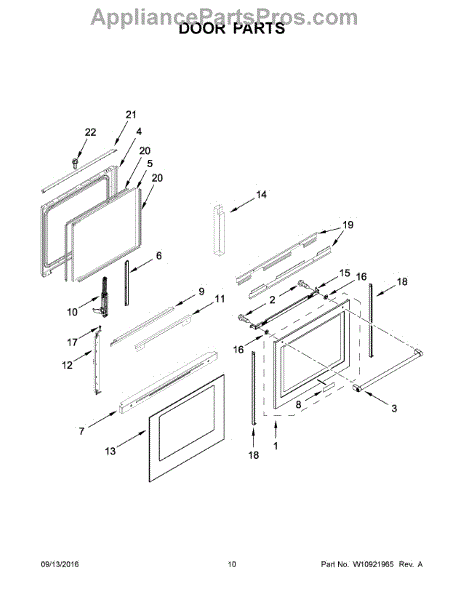

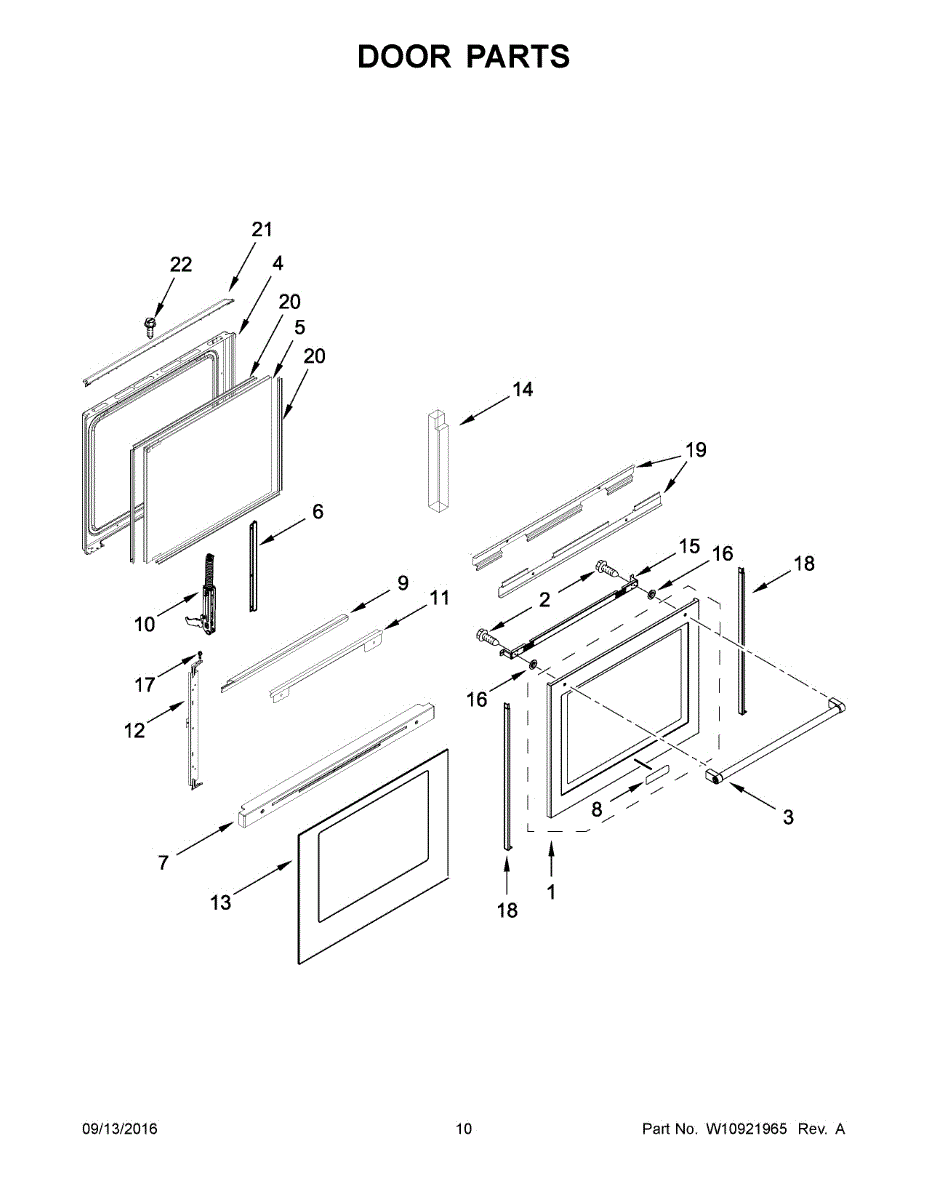

Parts for Whirlpool KFGG500EBL2: 06 - Door Parts

This replacement door glass is the transparent window panel used in the door assembly. It restores clear visibility and a safe barrier when the original glass is cracked, shattered, or permanently stained between panes.

• Replaces a damaged or broken door window panel
• Restores a clear view through the door
• Helps maintain proper door integrity and safety
• Common signs include cracks, chips, shattered glass, looseness/rattling, or discoloration between panes

• Disconnect power at the breaker; also shut off gas
• Allow the appliance to cool completely before servicing
• Wear cut-resistant gloves and eye protection; handle glass by the edges
• On many models, removing the door and laying it flat on a padded surface simplifies installation; transfer any brackets or trim from the original glass and tighten fasteners evenly

This replacement screw with a 10-16 thread secures panels, brackets, and other components in your appliance. Restoring the correct hardware keeps parts tight and aligned, reducing vibration and preventing loosening over time.

• Secures sheet-metal panels, brackets, and assemblies
• Replaces missing, stripped, or corroded fasteners
• Helps eliminate rattling or vibration from loose hardware
• Maintains proper alignment for reliable performance

• Disconnect power; turn off the water supply before servicing
• Use the correct driver/bit and start threads by hand to avoid cross-threading
• Tighten snugly; do not overtighten into sheet metal or plastic
• Reinstall in the original location and orientation

This replacement door handle restores a secure grip and smooth operation to your appliance door. It provides a direct-fit swap for worn, cracked, or broken handles so the door opens and closes reliably. What it does:

• Replaces the damaged or broken door handle so the door can be opened and closed safely
• Provides a comfortable grip and restores original door appearance
• Reduces the risk of further damage from using a compromised handle
• Helps prevent door misalignment caused by loose or missing hardware

• Verify power is off or appliance is in a safe state before starting any work
• Installation requires removing the old handle hardware and securing this handle with the original fasteners
• Keep small screws and retainers in a safe place during installation to avoid loss

This door liner is the oven's inner door panel that helps protect the door cavity and support the inner glass. Replaces a damaged or worn liner to restore a clean interior surface and proper glass fit. What it does:

• Replaces the oven's inner door panel that secures the inner glass and insulation
• Restores a sealed, smooth interior door surface to help contain heat and cooking messes
• Helps eliminate rattles or misalignment caused by a cracked or bent liner
• Compatible with ovens that specify part number W10902192

• One inner oven door liner

• Refer to the oven model's service manual for step-by-step disassembly and reassembly
• Disconnect power (and gas if applicable) before starting work
• Handle the glass and liner carefully—wear gloves and eye protection to avoid cuts
• If other door components are damaged, inspect and replace them as needed for a complete repair

This inner oven door liner replaces the damaged or warped inner panel that supports the oven door glass and helps contain heat inside the oven cavity. It restores a solid mounting surface for door glass and internal components. What it does:

• Provides the inner structural panel for the oven door and supports the door glass and insulation.
• Helps maintain proper oven heat containment to support uniform cooking.
• Prevents direct exposure of insulation and internal parts to oven cavity heat and food debris.
• Addresses symptoms like visible cracks, warping, or detached glass mounting points on the inside of the door.

• Disconnect power before starting any repair and follow manufacturer's safety instructions.
• Remove the oven door per the appliance manual to access and replace the inner liner; handle glass and sharp edges carefully.
• Keep all original screws and mounting clips; confirm screw locations during disassembly to ensure proper reassembly.
• If the door has multiple glass panels or seals, verify placement during reassembly—do not force parts into position.

This inner door glass is the heat-resistant panel mounted on the inside of the oven door. It restores a clear, secure barrier to help retain heat and visibility when the original glass is cracked, shattered, or stained.

• Forms the inner pane of the oven door to contain heat and allow viewing of food
• Damage can cause heat loss, longer preheat/cook times, and unsafe sharp edges
• Cracked, shattered, or missing glass should be replaced before using the appliance
• Cloudy or permanently stained glass reduces visibility into the oven

• Disconnect power at the breaker and allow the oven to cool completely
• Wear cut-resistant gloves and eye protection; handle glass carefully
• Support or remove the door and work face-down on a padded surface
• Transfer any brackets/clips/insulation as configured; do not overtighten fasteners against the glass

The Door Glass is an OEM replacement part for Whirlpool ranges. It provides insulation and protection for the oven cavity and maintains the proper temperature inside the oven while allowing you to visually check on your dishes without opening the door.

Symptoms of a faulty inner door glass include:

• Cracks or shattered glass
• Foggy or discolored appearance
• Heat escaping from the oven

A bad inner door glass can occur due to accidental damage, extreme temperatures, or regular wear and tear. If you notice signs such as cracks, shattered glass, or foggy appearance, it may be time to replace the inner door glass.

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.


The Range Bracket-Glass is an OEM part for Whirlpool ranges. It is designed to support and secure the glass surface or cooktop in place, ensuring stability during operation. This bracket is essential for maintaining the proper alignment and positioning of the glass panel.

Causes of a damaged bracket can include repeated exposure to heat and stress during cooking, accidental impacts, or improper installation. Over time, the material may weaken, crack, or warp, compromising its ability to hold the glass securely.

Symptoms of a bad bracket include:

• Loose or wobbly glass cooktop
• Visible cracks or damage to the bracket
• Gaps between the glass and the frame
• Difficulty securing the glass properly during reassembly

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and some Kenmore models.

The Range Bracket-Glass (White) is an OEM part for Whirlpool ranges. It is designed to support and secure the glass surface or cooktop in place, ensuring stability during operation. This bracket is essential for maintaining the proper alignment and positioning of the glass panel.

Causes of a damaged bracket can include repeated exposure to heat and stress during cooking, accidental impacts, or improper installation. Over time, the material may weaken, crack, or warp, compromising its ability to hold the glass securely.

Symptoms of a bad bracket include:

• Loose or wobbly glass cooktop
• Visible cracks or damage to the bracket
• Gaps between the glass and the frame
• Difficulty securing the glass properly during reassembly

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and some Kenmore models.

Color: Black

The Vent Trim is an OEM part for Whirlpool ranges. This is a decorative and protective cover that surrounds the vent or exhaust opening, enhancing the overall aesthetic appearance while also preventing accidental access to the vent area.

Causes of a bad Vent Trim include physical damage from impact or mishandling, exposure to excessive heat or moisture, and general wear and tear over time, leading to discoloration, warping, or deterioration of the trim material.

Symptoms of a bad part include:

• Visible cracks, dents, or deformities in the trim
• Discoloration or fading of the trim's finish
• Loose or improperly fitting trim, allowing potential access to the vent area

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Nameplate is an OEM part for Whirlpool appliances. It serves as an identification label, typically displaying the brand name and model number, providing a clean and professional appearance for the appliance.

You should replace this nameplate if it becomes damaged or worn out. Common causes of a bad nameplate include wear and tear from regular cleaning, exposure to moisture or heat that can cause peeling or fading, and accidental impact that can lead to cracks or detachment.

Symptoms of a bad nameplate include:

• Fading or illegible text
• Peeling or detaching from the appliance surface
• Visible cracks or damage
• The nameplatae being completely missing

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This mounting bracket secures internal or external appliance components to the cabinet, restoring proper alignment and preventing vibration. It's a small but critical metal support used where fasteners attach panels or assemblies. What it does:

• Provides a secure attachment point for panels, controls, or assemblies
• Prevents loosening, rattling, and misalignment caused by broken or missing supports
• Restores proper fit and function when original bracket is bent, cracked, or missing
• Works as a direct replacement using existing fasteners and mounting holes

• Disconnect power (and gas if applicable) before beginning any repair
• Installation typically requires basic hand tools (screwdriver, nut driver, or socket)
• Retain or reuse original screws; verify bracket orientation before tightening
• If metal edges are sharp, use care and protective gloves to avoid cuts

The door hinge is an OEM part for Whirlpool ranges. This piece serves as the anchor for stable, smooth opening and closing of the oven door.

Causes of a bad door hinge include warping from repeated heat exposures and compromising its secure gateway function over time. Breakdowns disrupt workflows.

Symptoms involve:

• A sagging oven portal is unable to support itself when ajar
• Grating or binding movements straining the hinge mechanism
• Difficulty latching or sealing the door during baking

This OEM Whirlpool part is also compatible with some Maytag, Jenn-Air, and KitchenAid ranges.

The Door Hinge is an OEM part for Whirlpool ovens. This hinge is crucial for supporting the oven door, allowing it to open and close smoothly. It ensures the door remains securely in place during cooking and baking.

Over time, oven door hinges can wear out or become damaged due to frequent use and exposure to high temperatures. Common causes of a bad hinge include metal fatigue, rust or corrosion, and accidental damage from slamming the oven door.

Symptoms of a bad hinge include:

• Difficulty opening or closing the oven door
• The oven door not staying securely closed
• A misaligned or sagging oven door
• Noises or squeaks when the door is operated

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This door trim is the front-facing decorative bezel that restores the finish and edge protection to your appliance door. It replaces a worn, cracked, or damaged trim to improve appearance and help seal the door edge. What it does

• Replaces damaged or cracked door bezel to restore appearance
• Covers and protects the door edge from impacts and wear
• Helps maintain a clean seal line by securing the door edge trim
• Common symptom: visible cracks, chips, or loose trim along the door perimeter

• One door trim piece as shown

• Disconnect power to the appliance before beginning any service
• Use appropriate tools and keep fasteners for reassembly; handle trim carefully to avoid damage

This outer door trim restores the finished appearance of an appliance door and covers the edge gap between the door panel and console for a clean, factory look. It helps protect the door edge from everyday wear. What it does:

• Covers and finishes the outer edge of the appliance door for a seamless appearance
• Helps prevent dirt and moisture from collecting at the door edge
• Restores cosmetic damage like scratches, dings or missing trim pieces
• Useful when replacing a cracked, warped or broken door trim piece

• High-level replacement only; remove and reinstall the outer door panel to access the trim
• Use appropriate screwdrivers and keep fasteners organized for reassembly
• Disconnect power (or gas) and follow manufacturer's safety steps before beginning service
• If trim is clipped in, carefully release retaining clips to avoid breaking adjacent parts

This support bracket secures internal components to the appliance chassis, restoring proper alignment and stability for attached parts. It's a simple replacement that helps stop rattling and prevents components from shifting during use. What it does:

• Provides a secure mounting point to hold panels, assemblies or components in place
• Helps eliminate vibration or rattling caused by a loose or broken bracket
• Restores proper alignment so connected parts operate correctly
• Prevents further wear or damage from loose components

• Disconnect power to the appliance before starting any repair
• Basic hand tools (screwdriver, nut driver) are typically required
• Keep original fasteners and note their location for reassembly; replace damaged hardware as needed

This glass outer door panel replaces the outer glass on compatible oven/microwave doors to restore a clean appearance and protect the inner components. It provides the visible glass surface users touch and see. What it does:

• Replaces cracked, scratched or cosmetically damaged outer door glass
• Restores the door's visible finish and helps maintain proper sealing aesthetics
• Helps prevent exposure of inner door components to spills and debris
• Addresses rattling or movement when outer glass is missing or broken

• Disconnect power to the appliance before beginning any repair.
• Handle glass with care; use gloves and eye protection to avoid cuts.
• May require removal of door trim, screws, or clips—retain hardware and follow manufacturer disassembly order.

Inner oven door glass that restores the viewing window and helps keep heat inside the oven. Replaces cracked, broken or fogged glass so you can safely check cooking progress without opening the door. What it does:

• Replaces damaged or cracked inner oven door glass to restore a safe viewing window.
• Helps contain oven heat and maintain normal cooking conditions by restoring the sealed door surface.
• Clears fogging or condensation between panes when the inner glass is the affected component.
• Improves visibility so you can monitor food without interrupting the cooking cycle.

• Disconnect power to the appliance and allow the oven to fully cool before beginning work.
• Handle glass carefully and wear cut-resistant gloves and eye protection; support the door on a flat surface if removal is required.
• Installation may require removing the oven door or inner door assembly and detaching clips or screws.

This oven cavity insulation panel helps reduce heat loss and improves temperature stability inside the oven for more even cooking. It replaces worn or damaged insulation that can allow heat to escape or make the exterior hotter than normal. What it does:

• Provides thermal barrier between the oven cavity and outer cabinet to help maintain internal temperature
• Reduces heat transfer that can cause the exterior surfaces to become unusually hot
• Helps prevent excessive heat loss that can affect cooking performance and energy use
• Fits behind the oven liner where original insulation is mounted

• One oven cavity insulation panel

• Disconnect power (and gas, if applicable) before starting any repair
• Handle insulation with gloves; avoid compressing or tearing the material
• Follow the appliance service manual for proper placement and secure mounting

This mounting bracket secures and supports appliance panels and internal components to keep assemblies aligned and stable during operation. It restores proper fit and prevents excessive vibration or movement in the affected area. What it does:

• Provides a sturdy attachment point for cabinet panels and internal parts
• Helps maintain correct alignment to reduce rattling and vibration
• Restores secure mounting after damage, wear, or during reassembly
• Commonly used when panels are loose, misaligned, or produce noise

• One mounting bracket

• Turn off and unplug the appliance before beginning any repairs
• Verify bracket orientation and fastener locations match the removed part
• Use the original screws or OEM-recommended fasteners; replace any stripped hardware

This flat washer is a direct-replacement fastening washer that restores proper spacing and fastening for appliance panels and components. It helps re-secure loose hardware so assemblies sit and operate as intended. What it does:

• Provides a smooth bearing surface for bolts and screws to distribute load
• Helps keep fasteners tight to prevent wobble or loose panels
• Restores correct spacing and alignment between mating parts
• Can reduce vibration-related noise when worn or missing

• One replacement flat washer

• Disconnect power and water before starting repairs
• Use the correct size socket or driver to remove and reinstall fasteners
• Inspect mating fastener and surrounding parts for wear; replace if damaged
• Tighten hardware securely but avoid overtightening which can deform the washer

This screw-and-washer fastener is a factory-size 8-18 x 5/16 hardware piece used to secure appliance panels and components. Replace stripped, rusty, or missing hardware to restore a tight, rattle-free fit and proper alignment. What it does:

• Fastens sheet-metal panels, brackets, and small components in the appliance cabinet
• Replaces lost, stripped, or corroded screws to maintain secure mounting
• Helps reduce vibration, buzzing, or rattling from loose parts
• Useful when the original hardware is missing or no longer holds securely

• Includes 1 screw-and-washer fastener (8-18 x 5/16)

• Disconnect power; shut off gas and water supplies if applicable
• Match the fastener to the original location; sizes can vary by application
• Start threads by hand to avoid cross-threading; use an appropriately sized driver
• Tighten snugly without overtightening to prevent stripping sheet metal

This glass bracket secures the oven/microwave door glass, keeping the inner glass panel aligned and stable for safe operation. It replaces worn or damaged brackets to restore proper door fit and reduce rattling. What it does:

• Secures and supports the door's inner glass panel to maintain alignment
• Prevents glass movement that can cause vibration, noise, or improper sealing
• Helps restore proper door closing and even heat retention when functioning parts are present
• Commonly replaced when bracket is cracked, bent, or missing mounting integrity

• One glass bracket

• Disconnect power to the appliance before beginning any repair
• Handle glass carefully; wear cut-resistant gloves and eye protection
• Installation typically requires partial door disassembly and removal of retaining screws—keep track of fasteners

This door trim is the decorative outer panel that restores the finished look of the appliance door and covers the door edge for a clean appearance. It replaces damaged, cracked or missing trim to improve appearance and edge protection. What it does:

• Covers and finishes the outside edge of the appliance door for a uniform look
• Hides gaps and protects the underlying door edge from chips and wear
• Restores a secure fit when original trim is cracked, loose, or missing
• Helps prevent dirt and moisture buildup along the door edge

• One door trim piece as pictured

• Disconnect power (or unplug appliance) before beginning any door work
• Removal may require loosening or removing the door panel or handle; follow your model service instructions
• Align trim clips or screw holes, then press or fasten evenly to avoid distortion
• Use basic hand tools and avoid overtightening fasteners

This is a genuine replacement mounting screw used to secure appliance panels and components. It restores proper fastening to reduce vibration and prevent parts from loosening during normal operation. What it does:

• Secures panels, brackets, or trim to the appliance frame
• Prevents rattling or vibration caused by loose fasteners
• Keeps wiring and small components held in place
• Helps maintain proper alignment of removable parts

• Disconnect power to the appliance before servicing
• Use the correct screwdriver or bit to avoid stripping the head
• Start threads by hand, then tighten until snug; do not overtighten
• Keep removed fasteners organized to ensure correct reassembly
