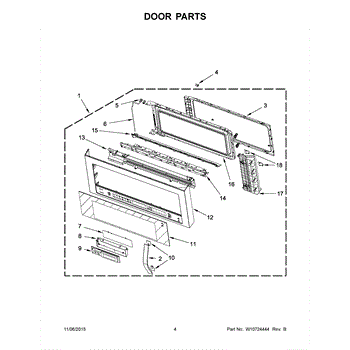

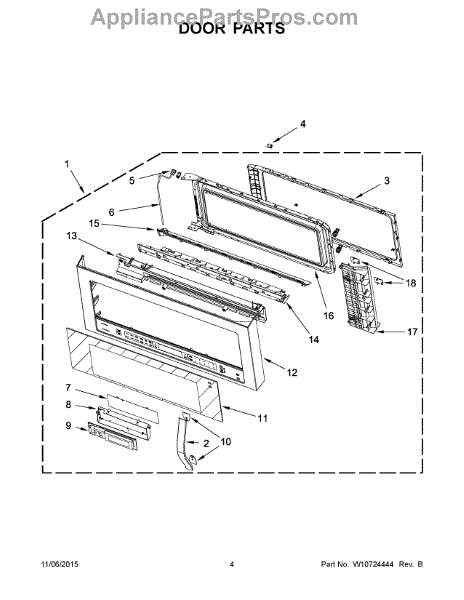

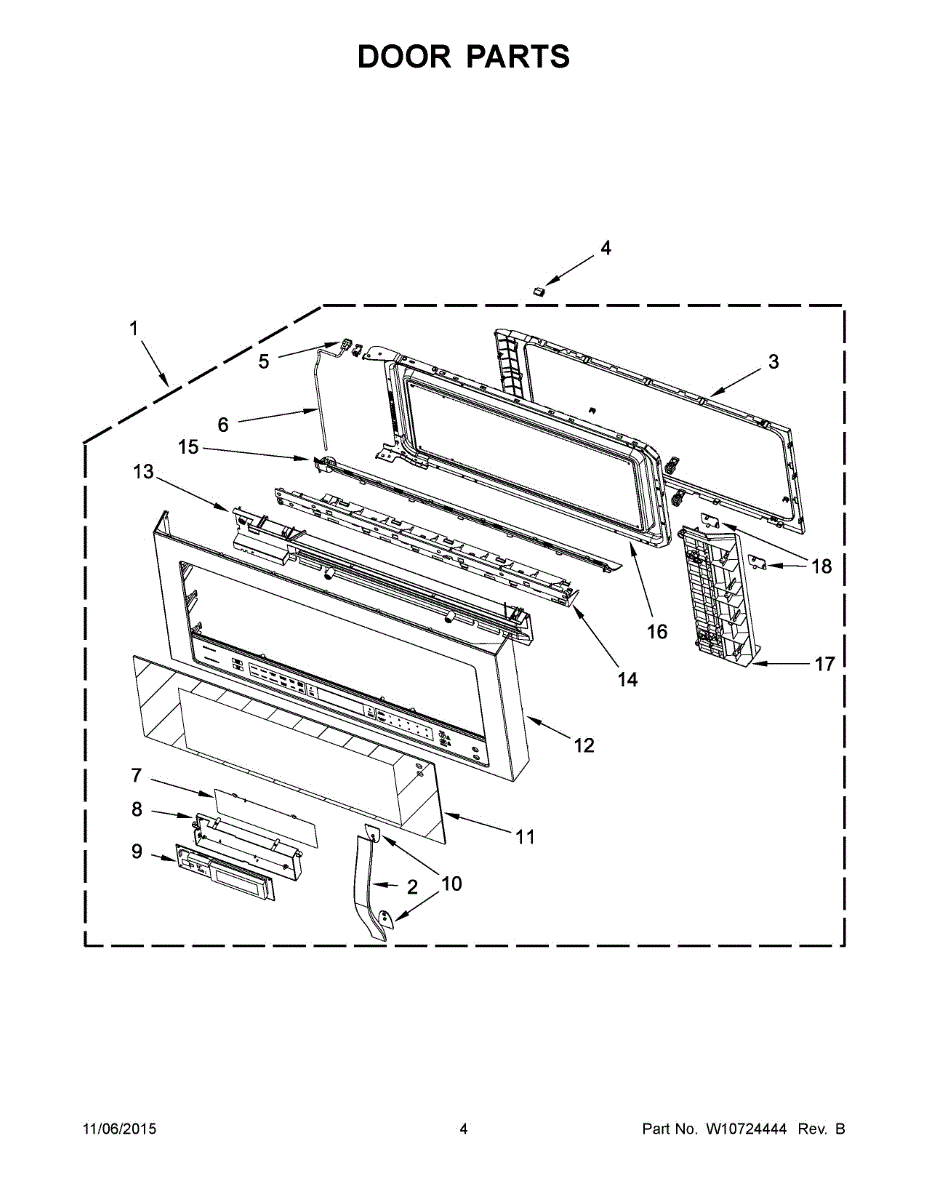

Parts for Whirlpool WMH76719CS1: 03 - Door Parts

Replace a damaged or cracked microwave door with this complete door assembly to restore a proper seal and appearance. Designed to match the original OEM door form and fit for straightforward replacement. What it does:

• Provides the full outer door assembly so the microwave can close and seal properly
• Restores damaged or cracked glass, frame, or inner door surfaces that affect appearance and function
• Addresses symptoms such as visible door damage, bent frame, or a door that won't latch confidently
• Helps prevent microwave energy leakage by replacing a door that no longer seats or seals correctly

• Disconnect power and unplug the microwave (or switch off circuit) before starting any repair
• Handle the door and glass carefully—wear gloves and eye protection to avoid cuts
• Installation may require removing trim or outer housing; keep screws and small parts organized

Color: Stainless

Color: White

Color: Black

This choke cover is a small protective trim piece that secures and shields the choke assembly on compatible Whirlpool appliances. It helps prevent debris contact and keeps internal components properly positioned. What it does:

• Protects the choke assembly from dust, debris and incidental contact
• Keeps wiring and small components held in place to reduce movement
• Helps eliminate rubbing or rattling caused by loose trim pieces
• Visible damage or missing cover can lead to exposed components and increased wear

• One choke cover

• Disconnect power to the appliance before beginning any repair
• Basic hand tools are typically required; follow the service manual for access steps
• Handle plastic trim carefully to avoid cracking; do not force or modify the part

This small retainer clip secures appliance components to keep panels, trims, or assemblies properly positioned—helping reduce vibration, noise, and misalignment for reliable everyday operation. What it does:

• Holds a panel, trim or internal component in place to prevent shifting during use
• Reduces rattling, buzzing or vibration caused by loose parts
• Helps maintain proper alignment of assemblies for consistent performance
• Useful when a damaged or missing clip allows parts to come loose

• Disconnect power to the appliance before beginning any service
• Use basic hand tools to remove the affected trim or panel and access the clip location
• Observe clip orientation and engagement points; install in the same position as the original
• Replace only with the correct part number to ensure proper fit and function

This wire harness routes power and signals between key components for consistent performance. Replacing a damaged harness restores reliable connections and correct operation of affected controls, motors, or sensors.

• Distributes electrical power and control signals between boards, switches, sensors, and motors
• Replaces cut, brittle, burned, or corroded wires and terminals that cause connection faults
• Common symptoms include intermittent operation, a component that won't run, or error codes related to poor connections
• Restores proper wire routing when installed in the factory path and secured with clips/ties

• Disconnect power before servicing; turn off water or gas supply if applicable
• Photograph and label existing connections; move plugs one at a time to the new harness
• Route along the original path; secure in clips/ties and keep clear of sharp, hot, or moving parts
• Seat each connector fully by the plug body (do not pull on wires); inspect mating terminals for heat damage

This cushion support pad reduces vibration and cushions components to prevent wear and noise. It replaces a worn or missing cushion to restore quieter, more stable operation. What it does:

• Dampens vibration between cabinet or housing and moving parts
• Helps prevent metal-on-metal contact and related rattling or squeaking
• Maintains correct spacing to reduce uneven wear on adjacent parts
• Useful when cushion is cracked, flattened, or missing

• One cushion support pad

• High-level replacement only; no special tools usually required
• Clean mating surfaces before installing to ensure full contact
• Inspect surrounding mounting points and fasteners for wear while replacing
• Disconnect power to the appliance and follow all safety precautions before servicing

Color: White

Color: Black

Color: Black (used on Stainless and Black Ice models)

This is an outer door panel that restores the exterior finish and protective cover of the appliance door. It provides a clean, replaceable surface for normal use and helps protect internal door components from damage. What it does:

• Replaces a worn, dented, cracked, or cosmetically damaged outer door panel
• Restores the door's exterior appearance and helps prevent moisture and debris from reaching internal parts
• Supports latches, hinges, and trim so the door opens and closes correctly
• Addresses visible damage or finish wear without replacing the full door assembly

• One outer door panel

• Disconnect power and, if applicable, water supply before beginning any repair
• Typical installation requires removing trim, hinges, and/or screws; handle panels carefully to avoid scratching
• Keep fasteners and small parts organized during removal for reassembly

This outer door is the front panel that restores the appliance's appearance and protects internal components from dust and damage. It replaces a cracked, dented or cosmetically worn outer door to make the appliance look and function like new. What it does:

• Replaces damaged or dented outer door panel to restore appearance
• Covers and protects inner door components, window and latch assembly
• Helps maintain proper cabinet airflow and prevents debris entry
• Suitable when the exterior door is cracked, bent or cosmetically unacceptable

• Disconnect power (and gas if applicable) before starting any repair
• Basic hand tools (screwdriver, nut driver) are typically required; handle panel edges with care
• Support the door during removal/installation to avoid dropping or damaging the new panel

This support bracket secures internal components or panels to keep assemblies aligned and stable, helping prevent looseness or vibration for reliable appliance operation. What it does:

• Provides structural support for panels, controls, or internal assemblies
• Keeps components properly aligned to reduce rattling or vibration
• Prevents sagging or misalignment that can affect door/console fit
• Restores secure mounting after damage or wear

• Disconnect power (and water if applicable) before starting any repair
• Keep original fasteners where possible; replace damaged hardware as needed

Color: White

Color: Black

Color: Black

Color: White

Color: White

Color: Black
