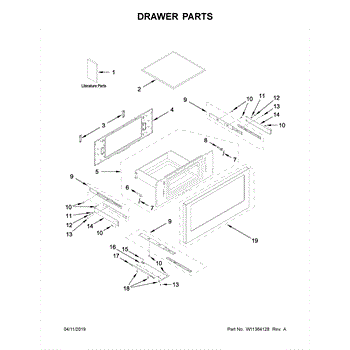

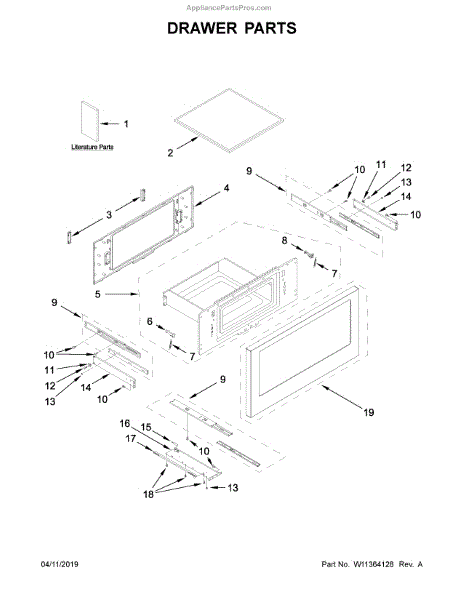

Parts for Jenn-Air JMDFS24GS01: Drawer Parts

This complete microwave door assembly replaces a damaged or worn door to restore a secure seal and proper operation. It gives the oven a finished look while helping keep heat and steam inside for safe, efficient cooking. What it does:

• Replaces a cracked, bent or cosmetically damaged microwave door to restore appearance and function
• Restores the door latch and sealing surface so the microwave can close and latch properly
• Helps prevent heat and steam from escaping during operation for safer use
• Can stop intermittent operation caused by a faulty or misaligned door switch contact point

• One complete microwave door assembly

• Disconnect power at the breaker or unplug the microwave before any repair
• Door installation may require removing outer trim panels and reconnecting latch/linkage; follow your model's service manual
• Handle the glass and edges carefully to avoid breakage or injury

Fastener screw

This outer door panel restores the appliance's exterior look and protects internal door components from damage and wear. It replaces a cracked, dented, or cosmetically damaged outer door to keep the appliance functioning and looking right. What it does:

• Covers and protects the door frame, insulation, and inner door components
• Restores a smooth, finished exterior surface and factory appearance
• Helps prevent drafts and moisture from reaching internal door parts
• Addresses visible damage like dents, bends, cracks, or peeling finish

• Disconnect power to the appliance before starting any repair.
• Remove interior door trim and hardware as needed; support the door while removing fasteners to avoid damage.
• Handle panel with care to avoid scratching the finish; use appropriate tools for clips and screws.

This replacement drawer wire harness restores the electrical connection between the drawer assembly and the appliance wiring, allowing controls, lights, and motors in the drawer area to receive power and signals. Use when the original harness is worn, damaged, or has failed. What it does:

• Carries power and signal between the appliance body and the drawer assembly
• Replaces frayed, burnt, or broken wiring that can cause intermittent operation
• Helps stop electrical faults that can prevent drawer motors, lights, or switches from working
• Matches OEM connector layout to fit original mounting points

• One replacement drawer harness

• Disconnect power to the appliance before starting any repair
• Handle connectors gently and route the harness away from sharp edges and moving parts
• Confirm connector orientation and secure all clips and fasteners during installation
