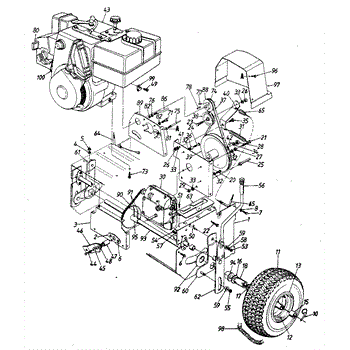

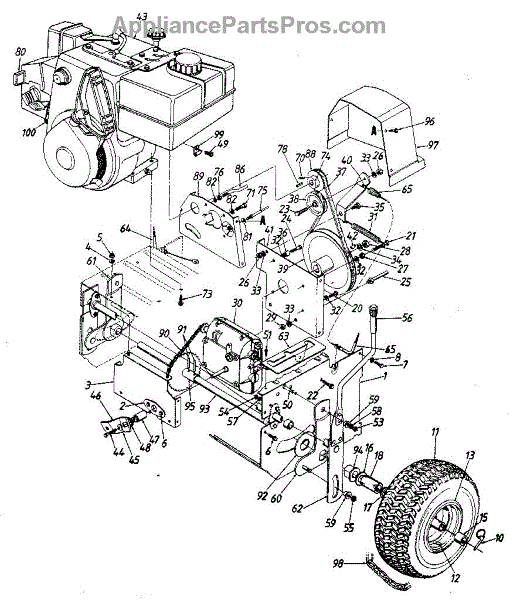

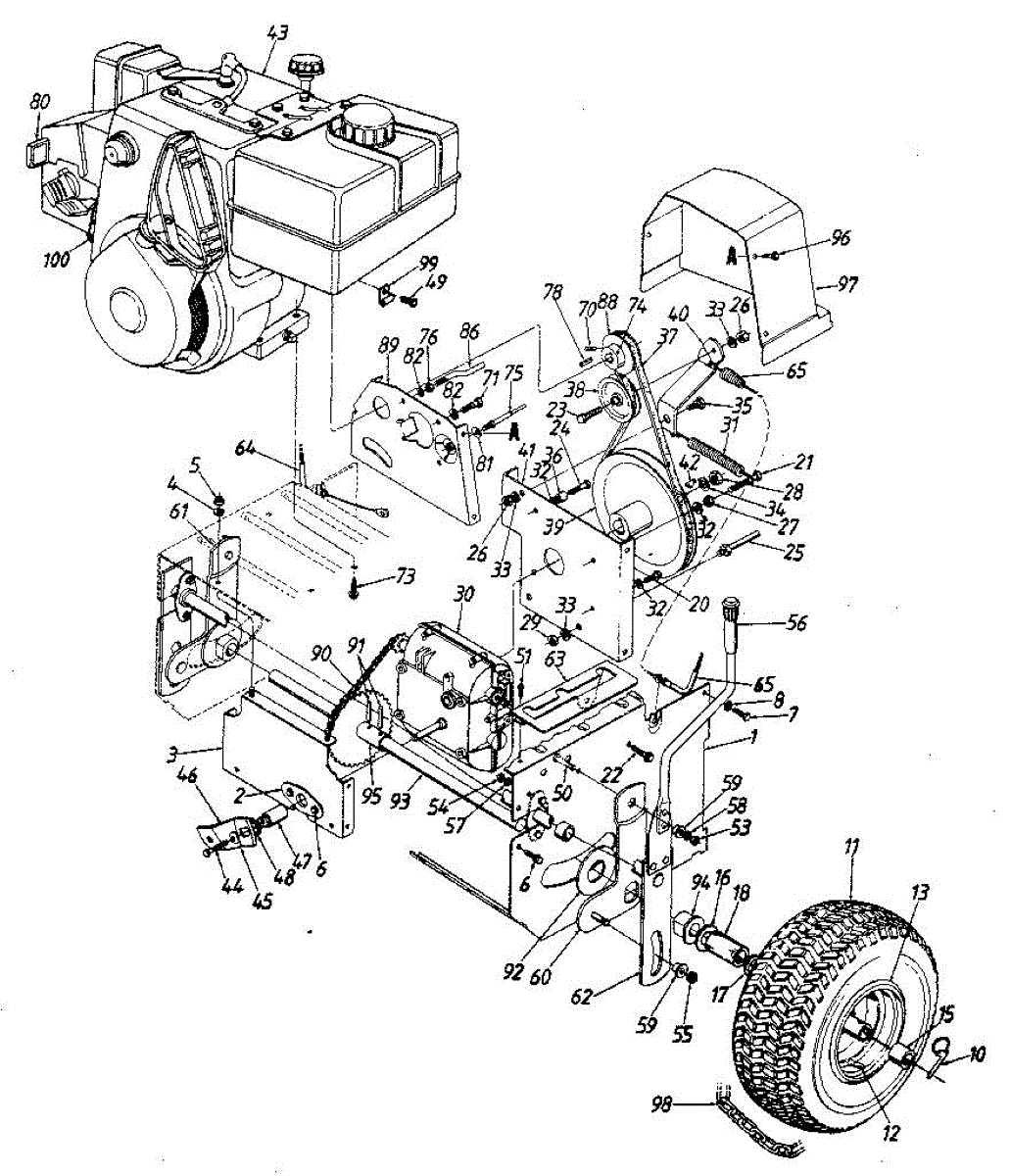

Parts for Craftsman 247886700: Drive Mechanism Parts

A hex screw fastens and holds two components together. It has a hexagonal head and features threading starting underneath the shoulder down to the tip. Its all-metal construction offers rigidity and longer lifespan. It is also threaded, so you can conveniently loosen or tighten in position. It measures 1/4-20 x 0.5 inch and comes in brass or gold color. Take note that this replacement hex screw may beused in different locations of a machine. Double check the device’s model number for compatibility. To install this hex screw, you will need a hex wrench or a hex socket. This hex screw is a replacement made by MTD. This screw/bolt may be used on lawn mowers, snowblowers, tillers, string trimmers, leaf blowers, edgers, chainsaws, pole pruners, log splitters, or wood chippers made by Craftsman, Toro, Cub Cadet, Ryobi, Troy-Bilt, Husky, Murray, Yard Machines, MTD, Huskee, Montgomery Wards, Bolens, Yard-Man, Turf King, or MasterCut. This OEM hex screw is sold individually.

This replacement part is a hex screw. This part is small but important in many different kinds of machinery. Screws secure components within the equipment.Over time, screws can become stripped or corroded, causing them to break or get stuck in place. Excessive vibration during the use could also eventually lead to a screw coming loose and being lost.This is a genuine OEM replacement part manufactured by MTD. This part is sold individually.

This washer is a genuine MTD replacement part for lawn and garden appliances that are operated by small engines, such as lawn tractors, snowblowers, chipper shredders, leaf blowers, and lawn mowers. The purpose of a washer is to protect and insulate nuts, bolts, and other types of fasteners, preventing these fasteners from gradually loosening. A washer will have to be replaced in the event that it is lost or misplaced, a common occurrence given its extremely small size and its ability to slide off without calling any attention to its absence. Other reasons to replace a washer could include general wear and tear or visible damage in the form of erosion, bending, or cracking metal as a result of overuse or overexposure. If a washer is subject to any of this kind of damage, it should be replaced immediately to avoid nuts and bolts coming loose and separating the materials that they protect and hold together. Remember that gloves must always be worn when handling, repairing, and operating outdoor equipment. This washer part is compatible with the brands MTD, Yard Machines, Cub Cadet, and Yard Man.

This klik pin is used as a fastener on various lawn equipment such as tillers and lawnmowers. It is often used as a way to hold the wheel onto the assembly so the equipment can easily move over rough terrain. If the tool is having trouble with terrain and movement, it could be related to the klik pin. It may have become bent, damaged, or broken. If those things occur, or the klik pin is missing, it will need to be replaced.Getting access to the klik pin is fairly easy. It will be securing the wheel to the axle and will need to be pulled off. A quick look at the pin will give an idea of whether it is damaged or broken. If it is, the solution is to replace the part with a new klik pin. This klik pin is a genuine OEM replacement part that is directly sourced from the manufacturer. It is sold as an individual component. The pin is made to be used in lawnmowers, edgers, snowblowers, and tillers created by Craftsman, Cub Cadet, Ryobi, Troy-Bilt, Yard Machines, MTD, Huskee, Montgomery Wards, Bolens, Yard-Man, and MasterCut.

This tubeless air valve attaches to wheels, allowing air into and out of the tires on various lawn equipment. Regularly replacing this part is considered a part of routine maintenance. Make sure that you use appropriate pliers and other tools for easy installation. Be sure to use gloves when replacing these valves and work with caution so as not to damage the sensitive parts. This OEM tubeless air valve can be the perfect fit for compatible wheels on equipment such as lawn mowers, snowblowers, tillers, edgers, log splitters, and wood chippers. It is designed for use with select models from MTD, including Craftsman, Troy-Bilt, Bolens, Remington, Yardman, RYOBI, Husky, Power Pro, and many others. There is a limited parts warranty on this valve, which is made of durable rubber and metal and designed to offer a high-quality replacement. Sold individually.

This is a hex screw used on a variety of types of lawn and garden equipment. On large machinery, it is often used to mount the gas tank. On smaller items, it tends to be used to clamp the housing together. It can secure items like plastic, metal, brick, and wood together. It measures 5/16-18 x .75 inches and is made of durable metal. In some cases, the screw can become damaged, broken, or stripped, which means it needs to be replaced.A visual inspection will indicate whether the screw is damaged. If it needs to be replaced, a hex wrench can be used to remove it from the equipment. Afterward, the replacement hex screw can be installed with the wrench before being tightened to ensure materials hold together well.This hex screw is a genuine OEM part that is sold individually. It is sourced directly from the manufacturer. The hex screw is compatible with lawnmowers, wood chippers, log splitters, snowblowers, chainsaws, edgers, tillers, leaf blowers, and string trimmers by Craftsman, Cub Cadet, Ryobi, Troy-Bilt, Husky, Broan, Yard Machines, MTD, Huskee, Montgomery Wards, Bolens, Turf King, Yard-Man, and MasterCut.

Screw hex caps are found on lawn equipment and other small machines. Over time, with the machine's use or following accidental damage, a screw hex cap may break or become loose. In order to continue safely operating the machine, the part must be replaced. A missing or damaged screw hex cap can cause the equipment to move in unpredictable ways. Check for excessive vibration or noise.Always wear gloves for protection when replacing parts on lawn equipment. Tools required may include a socket set, wrench set, and a screwdriver. Screw hex caps are quick and easy to replace. Make sure that the replacement screw hex cap is installed correctly and properly secured for a tight and long-lasting fit.This screw hex cap is an authentic OEM replacement part. It is supplied by the manufacturer. The replacement screw hex cap is made of durable metal and is gold in color. The replacement piece can be used in a variety of machines, including chippers, shredders, cultivators, edgers, lawnmowers, lawn tractors, and snowblowers. The screw hex cap is compatible with Husky, Cub Cadet, Ryobi, Bolens, Yard Machines, Yard-Man, Troy-Bilt, and MTD. It is sold as an individual unit.

This hex nut is designed for use with select trimmers and mowers. It is a standard hardware part that may have multiple applications depending on the type of unit and model. The nut is typically used to secure engine components or housing elements to provide safe use of the machine. These nuts are durable, but they are small and can become lost during other repairs. The constant exposure to vibrations and use can also cause them to strip or become damaged over time. Either way, a replacement with this genuine hex nut will resolve the issue and get equipment back in working order. This genuine OEM hex nut is manufactured to exact standards and sourced from the manufacturer. It can be used with trimmers and mowers from RYOBI, MTD, Bolens, Troy-Bilt, Yard Machines, Huskee, Yard Man, and Cub Cadet. Check the parts diagram for exact application and location of this nut and note that it may have multiple uses on select models. This hex nut is sold individually, and additional nuts will require the purchase of multiple pieces. In order to replace this nut, a hex socket wrench and driver will be required. Always wear gloves for safety.

An authentic OEM replacement extension spring is an integral part of a lawn tractor or snowblowers brake system that helps to hold together and redistribute energy throughout the lower deck. When a driver applies the brakes, the lower deck has a tendency to continue moving forward with inertia. This extension spring helps to keep the parts in place and transfer a balance of energy. Although replacing the extension spring itself is a simple and straightforward process, gaining access to the spring is a little complicated as it requires removing the lawn mower or snowblower's lower deck. You will need a pair of pliers to remove the pins and cables that hold the lower deck in place but there is no other required hardware. Be sure to follow the user's manual as you remove the deck. This part is a top-quality replacement part sourced from its original manufacturer. It is designed to be used with Murray, Husky, Troy-Bilt Poulan, Yard Man, Yard Machines, Bolens, and MTD appliances. This part ships individually.

This lock washer is used frequently for a number of applications on power yard equipment. The size, 5/16, is the default for many small engine housing and manifold applications. Lock washers are used with machined bolts to fasten engine blocks to the housing of the equipment being used. The compressed washer is able to handle the constant vibration of the small gasoline engine without losing the seal between the screw or bolt and the housing. Typically these lock washers only need to be replaced when they are misplaced during repairs or when the screws that attach them have to be chiseled or cut away, meaning the washers are destroyed as well. These OEM certified replacement washers have been manufactured to the same specifications as the originals they are replacing. In addition to lawn mowers, lock washers of this type and size are frequently used on blowers, lawn tractors, cultivators, snowblowers, and trimmers. Brands compatible with this type of washer are Murray, Husky, Poulan, Bolens, Yard-Man, Cub Cadet, Troy-Bilt, Yard Machines, MTD, and Ryobi.

This lock washer is a genuine MTD part, sold individually. This lock washer can be used as a replacement part in lawn mowers, snowblowers, tillers, string trimmers, leaf blowers, edgers, log splitters, and wood chippers.The lock washer in a small engine outdoor appliance is a small component that can easily be lost or misplaced during the typical lifespan of the appliance. If this occurs, it should be replaced once the operator of the appliance notices its absence. The washer can also be stripped away as a result of general wear and tear, in which case it should be removed and replaced by this genuine OEM replacement part.This is a genuine OEM replacement part sourced directly from the manufacturer. It is sold individually. This lock washer is compatible with the following outdoor appliance brands: MTD, Craftsman, Cub Cadet, Troy-Bilt, Husky, Broan, Yard Machines, Huskee, Montgomery Wards, Yard Man, Turf King, and MasterCut.

This spring washer has a conical shape with an open center. It has a shape like a traditional washer but is smaller than a typical coiled spring. These washers can handle a larger load than a coiled spring and are used in lawn and garden equipment to cushion heavy loads. Over time, these washers can experience wear and tear which will lead to damage or breakage. When this occurs, the spring washer will need to be replaced.Visually inspect the spring washer for damage like scratches, breaks, and dents. If these occur or the washer is warped, it needs to be replaced. The process involves removing the nut or screw above the washer with a screwdriver or other tool. After accessing the spring washer, it can be removed and a replacement part can be added to the equipment. Reassemble the parts and the equipment should work again.This is a genuine OEM spring washer replacement part that is sold individually. It's sourced directly from the manufacturer. It is compatible with lawnmowers, wood chippers, snowblowers, log splitters, tillers, chainsaws, string trimmers, and edgers by Craftsman, MasterCut, Toro, Turf King, Cub Cadet, Yard-Man, Ryobi, Bolens, Husky, Montgomery Wards, Murray, Huskee, Yard Machines, and MTD.

This replacement part is a hex screw. It is a genuine replacement part made by MTD. Hex screws are able to hold other parts in place and secure them so that everything can operate smoothly. This part is small yet very important to the overall operation of many different machines.A new hex screw might be needed if the user notices that the current ones are damaged or missing. The repair should be fairly easy, only requiring a screwdriver or pliers if the previous screw is stuck. It is possible that screws become stripped or lodged over time and should be replaced when this occurs. Be sure the engine is completely powered down before starting a repair. This is a genuine OEM replacement part sourced directly from the manufacturer. This screw is sold individually. Be sure to purchase the correct amount as many appliances require more than one.

This replacement part is a key starter. This is a genuine replacement part made by MTD. This handy part is made to assist users in starting up and turning off riding lawn mowers. This works with the key itself to allow the user to control the engine during use.A new key starter might be needed if the current one is damaged. This can be due to an isolated incident or from normal wear and tear caused over time. If the key starter is damaged, it should be replaced as soon as possible so that the machine can return to working order. Be sure to refer to the proper user manual before attempting to replace this part. This part is also a genuine OEM replacement part to ensure proper fit. This part is sold individually and is sourced directly from the manufacturer.

This is a replacement bell washer, a flat washer that can be used with a wide range of various types of lawn and garden equipment. The inner dimension of this washer is 0.40 inches, while the outer dimension is 0.88 inches. Washers are typically used as a way to help ensure a tight connection when used with bolts or screws. They will also help to distribute the pressure of the connection and reduce the risk of corrosion. Washers will also provide some protection from damage during installation. Washers could need to be replaced for any number of reasons. In some cases, they might have become corroded or worn down over time. This could mean they no longer provide a solid and secure connection. Other times, the washer could become lost while working on the machine. Owners should always be sure that they replace any lost or damaged washers right away. Not using washers can reduce the lifespan of the machine. This is a genuine OEM bell washer that is sold individually. It is typically used in lawn mowers, snowblowers, tillers, leaf blowers, string trimmers, log splitters, wood chippers, edgers, and chainsaws. It is compatible with Craftsman, Cub Cadet, Ryobi, Troy-Bilt, Husky, Murray, Yard Machines, MTD, Huskee, Montgomery Wards, Bolens, Yard-Man, Turf King, and MasterCut brands.

This flange bearing fits tightly between two connected components to create an airtight seal in a variety of types of lawn and garden equipment. With time and use of the equipment, the flange bearing can start to become damaged, break, or may be lost. When this occurs, the flange bearing will need to be replaced.Place the equipment on a flat surface and disconnect the spark plug wire. The location of the flange bearing will vary based on the equipment being used, so condult the user manual. Disassemble the tool as needed to get access to the flange bearing. It can be removed using a set of pliers. Clean off the components where the bearing was located before installing the new flange bearing. Replace the components and connect the spark plug wire.This is a genuine OEM replacement part that is sourced directly from the manufacturer. The part is sold as an individual item. The flange bearing can be used with lawnmowers, edgers, and snowblowers manufactured by MasterCut, Craftsman, Yard-Man, Cub Cadet, Montgomery Wards, Yard Machines, and MTD.

This is a seven-inch cable tie that is used with different types of lawn and garden equipment. It is most commonly used to secure the cable onto the handle of the lawnmower or tiller so it is secure. The cable tie is made of durable plastic but can be damaged or break. When this happens, the tie will need to be replaced to ensure the cable stays on the handle.If the cable tie needs to be replaced, no tools are needed. In the situation where other parts need to be replaced at the same time, a basic set of tools and a pair of work gloves may be required. Turn off the yard equipment and place it on a stable surface before replacing the broken cable tie. The old tie can be removed so the new one can be installed before further use.This cable tie is an authentic OEM replacement part that is directly sourced from the manufacturer. This product is sold individually. The component is designed to be compatible with lawnmowers, lawn tractors, tillers, and snowblowers manufactured by MTD, Troy-Bilt, Yard-Man, and Yard Machines.
