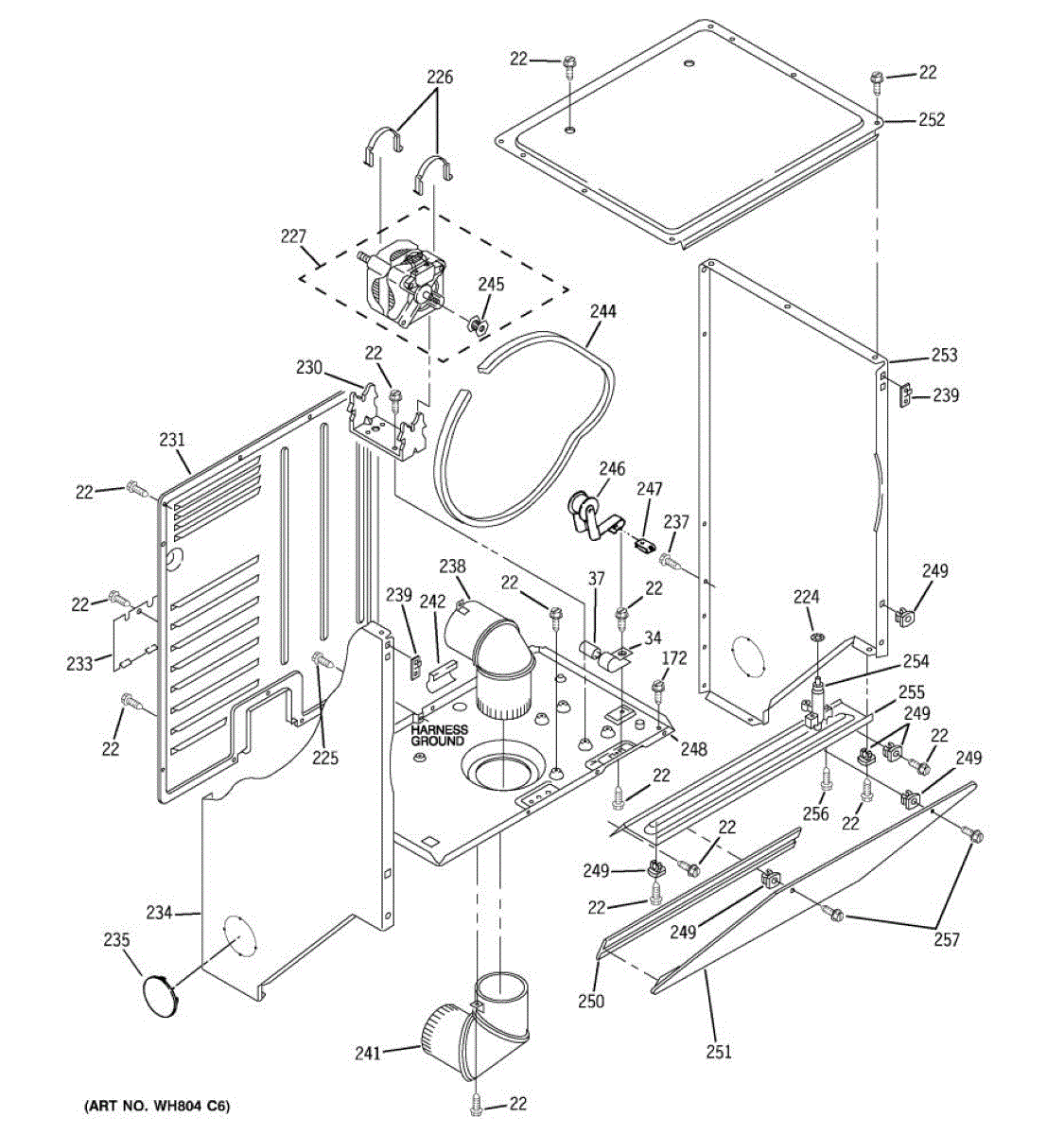

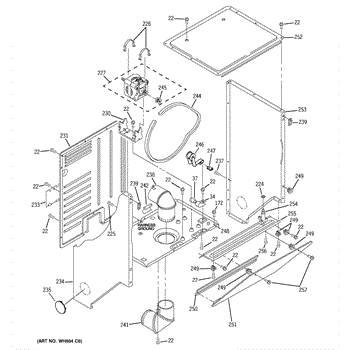

Parts for Ge WSM2420D0CC: 06 - Dryer Cabinet & Motor Parts

This motor, switch & pulley assembly drives the drum and controls motor operation so your dryer tumbles and heats correctly. Direct-fit replacement for the original equipment assembly to restore normal drum rotation and motor switching. What it does:

• Powers drum rotation by coupling the motor to the drive system
• Houses the motor switch that controls on/off and safety switching
• Includes the pulley that routes the drive belt and maintains belt tension
• Commonly replaces worn pulley, failed switch, or motor-related tumbling issues
• Stops dryer from tumbling, causes loud squeaks, or prevents motor start when failed

• Disconnect power before starting any repair to avoid shock or injury
• This assembly typically mounts in the dryer cabinet and may require belt removal and basic hand tools
• Inspect the drive belt and mounting hardware while installing; replace if damaged

A replacement 10-24 x 3/8 machine screw used to secure panels, brackets, and components in compatible household appliances. Provides a straightforward hardware replacement to restore proper fastening and alignment. What it does:

• Fastens panels, brackets or assemblies where a 10-24 threaded machine screw is required
• Restores secure connections that can reduce vibration and rattling
• Replaces stripped or missing screws that prevent proper component alignment
• Compatible with metal-to-metal or metal-to-plastic mounting points that use a 10-24 thread

• Disconnect power to the appliance before working on internal components
• Use the correct screwdriver or nut driver to avoid stripping the head
• Thread the screw in straight and hand-start to avoid cross-threading; tighten snugly but do not overtighten
• Replace any damaged mating hardware or inserts for a secure repair

This front panel clip is a small replacement retainer that secures a stove/console or appliance front/trim panel in place, restoring a snug, rattle-free fit and proper panel alignment. What it does

• Secures the front/trim panel to the appliance housing or console
• Prevents the panel from sagging, shifting, or producing rattling noises
• Helps maintain correct panel alignment for buttons, switches, and seams
• Common fix if a front panel is loose or won't stay attached

• One front panel clip

• Disconnect power to the appliance before starting any work
• Access may require removing screws or trim pieces; handle painted surfaces carefully to avoid scratches
• Clip typically snaps into place; confirm proper engagement before reassembling
• If other fasteners are damaged or missing, replace them as needed for a secure fit

This drive belt turns the dryer drum by linking the motor pulley and idler assembly. Replacing a stretched or broken belt restores smooth tumbling performance and helps eliminate slippage noises so clothes can dry evenly. What it does:

• Transfers motor rotation to the drum for consistent tumbling
• Works with the idler/tensioner to maintain proper belt tension and grip
• Typical failure symptoms: drum won't turn, motor runs but drum is still, squealing or thumping noises, burning-rubber smell, or a visibly frayed/split belt
• On models with a belt switch, a broken belt can stop the dryer shortly after starting

• 1 drive belt

• Disconnect power; for gas dryers, also shut off the gas supply
• Access the belt by removing the top and front panels; support the drum when the front is off
• Release belt tension from the idler, note the routing, and install the new belt around the drum, idler, and motor pulley per your model's diagram
• Rotate the drum by hand to seat the belt before reassembly and testing

This replacement dryer top panel restores the cabinet's upper surface and provides a secure mounting area for controls and lint access. It helps cover internal components and maintain the dryer's appearance and function. What it does:

• Replaces a dented, scratched or rusted top panel to restore the dryer's exterior finish
• Provides the structural surface where control housing or console mounts
• Helps keep lint and debris contained and protects internal parts from exposure
• Reduces vibration-related noise caused by a loose or damaged top

• One dryer top panel

• Disconnect power (unplug or shut off breaker) before servicing
• Remove console or screws securing the old top; lift off and set aside carefully
• Align replacement top, secure fasteners, and reinstall any removed trim or console
• Use caution to avoid scratching the finish and wear gloves to protect sharp edges

This closure for the control area is the molded cover that protects and finishes the range/oven control panel, restoring a clean appearance and helping keep spills, grease, and heat away from switches and electronics. It's a direct-fit replacement used behind the control knobs and display. What it does:

• Covers and protects the control panel area to prevent spills, food, and debris from entering behind controls
• Restores a flush, finished appearance when the original cover is cracked, warped, or missing
• Helps reduce direct heat and grease exposure to switches and electronic components
• Supports proper seating of control knobs and control-switch hardware

• One closure (control area) cover

• Disconnect power (unplug or shut off breaker) before starting any repair
• Access usually requires removing knobs, trim, and a few screws—handle plastic pieces gently to avoid cracking
• Keep fasteners organized and reuse original screws unless replacements are specified
