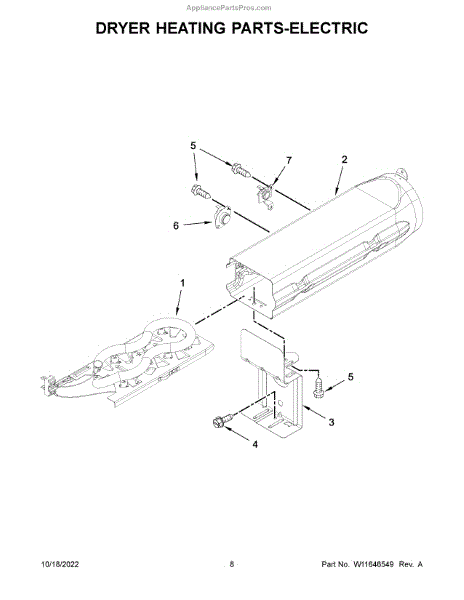

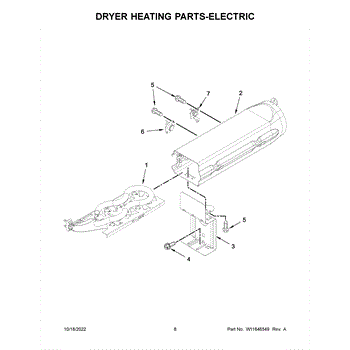

Parts for Maytag MED6230HC3: Dryer Heating Parts-Electric Parts

The Dryer Heating Element is an OEM replacement part for Whirlpool dryers. It is responsible for generating the heat necessary for the drying process, ensuring clothes and fabrics are thoroughly dried.

Symptoms of a bad dryer heating element include:

• Clothes coming out damp or taking excessive time to dry
• No heat or insufficient heat produced during the drying cycle
• Visible signs of damage or burnout on the heating element itself
• Unusual burning smells emanating from the dryer

Causes of a faulty heating element can include normal wear over time, electrical issues, or physical damage from impact or overloading.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore dryer models.

This heater box is the protective housing that encloses and supports the heating element in your appliance. Replacing a warped or damaged housing helps restore safe, efficient heating and protects nearby components from excessive heat.

• Holds the heater element securely and maintains proper spacing from surrounding parts
• Shields adjacent wiring and components from direct heat
• Helps maintain consistent heating performance when the original housing is heat-damaged or cracked
• Common symptoms include visible melting/warping, loose element fitment, burning odors, or repeated safety shutoffs

• Disconnect power (and gas supply, if applicable) and allow the unit to cool completely before service
• Take photos of the existing layout to aid reassembly and wire routing
• Transfer the heater element and any model-specific hardware to the new housing in the same orientation
• Ensure wiring is clear of sharp edges and heat sources; reassemble and test for proper operation

This Heater Box Bracket secures the dryer's heater housing to the cabinet, keeping the heating assembly firmly mounted and aligned. Replace a bent, cracked, or missing bracket to restore stable support and reduce vibration around the heater area.

• Anchors the heater housing/box to the cabinet frame
• Maintains proper alignment and clearance for the heating element assembly
• Helps prevent rattling or rubbing noises from a loose heater housing
• A damaged bracket may leave the heater housing loose, cause vibration, or contribute to intermittent heating issues

• Disconnect power; if gas, shut off gas supply and allow the unit to cool completely
• Access the heater housing; note bracket orientation and reuse existing fasteners
• Support the heater housing and keep wiring clear while removing/installing the bracket
• After installation, verify the housing sits square and clear of the drum and wiring before restoring power

This 8-18 x 5/8-inch screw secures appliance panels, brackets, and covers. Replacing a missing or stripped fastener restores a tight fit and helps prevent vibration or loosening where this exact size is specified.

• Fastens sheet-metal or plastic components where a #8-18 x 5/8 screw is called for
• Helps maintain alignment and reduce rattling or vibration
• Replaces stripped, corroded, or missing screws of the same size
• Common symptoms: loose panels, gaps/poor fit, rattling noises, or visible missing hardware

• Disconnect power and shut off gas/water (as applicable) before service
• Match thread and length to the original; replace screws one at a time to keep parts aligned
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• If the receiving threads are damaged, additional repair (clip, insert, or new nut) may be needed

The High Limit Thermostat is an OEM replacement part for Whirlpool dryers. Located on the heater housing, it functions as a critical safety component monitoring drum compartment temperatures. L295-50F.

Causes of thermostat failure include normal conductor fatigue from many heating cycles over extended usage. Chemical degradation potentially infiltrates components as well.

Symptoms of an ineffective high-limit thermostat include:

• Dryer fails to automatically disengage heat above certain temperatures
• Decreased safety risking overheating scenarios
• Dryer will not start
• Dryer shuts off prematurely

This is a genuine Whirlpool OEM replacement this part is also compatible with Maytag, Jenn-Air and some Kenmore models.

The Thermal Cut-Off Kit is an OEM replacement part for Whirlpool dryers, responsible for protecting the dryer from overheating by interrupting the power flow to the heating element if the dryer air temperature reaches a dangerously high level.

Symptoms of a bad Thermal Cut-Off Kit include:

• The dryer not heating up
• Excessive heat buildup within the dryer drum
• Clothes not drying properly

Causes of failure can include restricted airflow from a clogged lint filter or venting system or a malfunctioning heating element causing excessive temperatures. These issues can lead to the thermal cut-off being triggered to prevent overheating, necessitating the replacement of the kit.

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

Note: It's possible some models may use part number 280148 in place of this. Look at photo's for verification.
