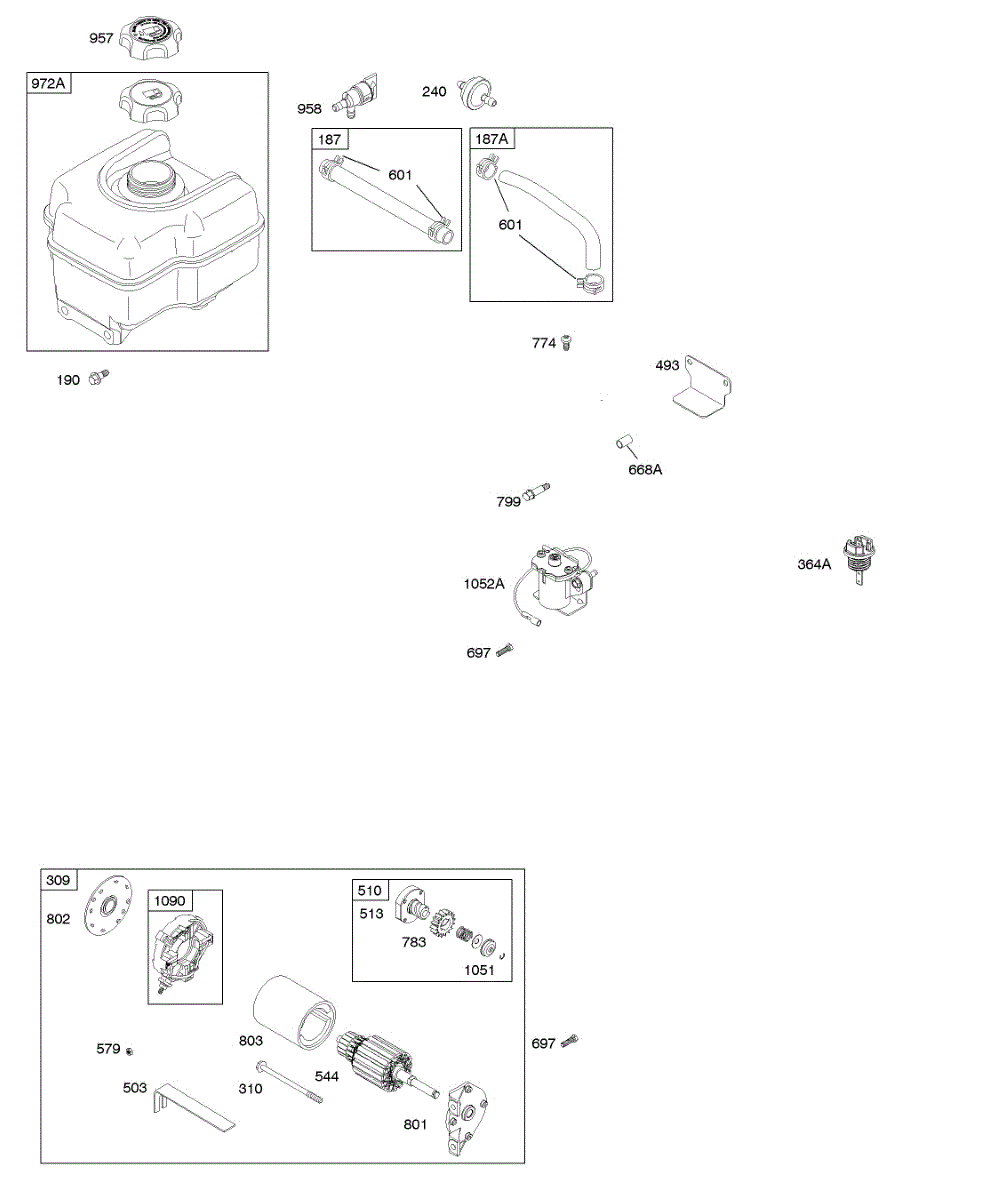

Parts for Briggs & Stratton 210412-0186-E1: Electric Starter, Fuel Supply Parts

This is a fuel line replacement intended to keep a lawnmower's engine running smoothly. It is long enough to make a couple of fuel lines, just cut the fuel line to the desired length and keep the rest as a spare. When a mower doesn't start easily or performs poorly when running, the fuel delivery system may have a problem and will need repair. The fuel line that supplies gas from the tank to the carburetor may be cracked or broken. When this occurs, it is best to replace the fuel line before it becomes a flammable hazard. This is an OEM replacement fuel line sourced from the manufacturer and is sold individually. This replacement part is compatible with different Briggs & Stratton mowers. Remember to use work gloves and drain the gas tank before the installation of this part.

This is an inline fuel filter and is an essential part of a fuel system. This part can be found inside the fuel tank or fitted into the fuel line. The fuel filter is responsible for straining particles like water and debris in the fuel so that they won't reach and clog the combustion chamber and eventually reduce the engine's performance. Annoying sputters when starting equipment and uneven idling are incidents that may be related to a clogged fuel filter. To remove a fuel filter, first cut off the fuel supply and then slide the fuel clamps away to remove the filter. Remember to work in a well-ventilated area, with no open flame or fire source, when installing this component. This part works with lawn mowers, snowblowers, tillers, generators, wood chippers, and others with small engines. It is compatible with brands such as Briggs & Stratton, Craftsman, Toro, Cub Cadet, Murray, Lawn Boy, Snapper, and Simplicity. This is a manufacturer-supplied OEM replacement part and comes as an individual component.

A hose clamp serves the basic purpose of holding together two connecting hoses. This is a crucial job in an engine. Since there are so many connecting tubes and hoses transferring oil and fuel within an engine, a leak could prove catastrophic. It could not only cause the engine to malfunction but could also become a fire hazard. Replacing a hose clamp is an easy job, though the exact process will depend on where the connection is located. A pair of pliers may be needed. This is a genuine OEM replacement part and will work with a wide range of appliances, such as pressure washers, engines, generators, tractors, mowers, blowers, shredders, and chippers from Murray, Toro, Briggs & Stratton, Snapper, MTD, Lawn-Boy, or Simplicity. This part ships individually.

This is a fuel cut-off value that is used in over 150 different small gasoline-powered engines. Those devices that have this value include power vacuums, leaf blowers, pressure washers, and generators. The fuel cut-off valve is a safety feature that sits on the bottom of the fuel tank. In situations where the engine must be cleared of gasoline, this valve is very useful. It allows the gasoline in the fuel line to continue to the carburetor and to be combusted in the cylinder. Once the engine block is drained of gasoline, no further ignition of fuel is possible until the cut-off is reactivated. Although it is out of the way of casual contact, the cut-off can be bumped and damaged by contact with other tools, hoses, or debris. Also, since it is a narrow passage through which gasoline passes, it is possible for contaminants to jam the flow and create a blockage. If the tank is full of gasoline and the carburetor is functioning normally, an engine that won't offer to start at all may be the victim of a faulty cut-off fuel valve. This OEM genuine replacement is compatible with Toro and Briggs and Stratton engines.

This brush retainer is part of the starter motor on many types of lawn and garden machinery. It comes with both the retainer and a set of four brushes. The main job of the brush retainer is to hold a set of carbon brushes against the commutator bars located on the armature. If the brush retainer is worn, damaged, or improperly seated, it can cause problems with the equipment. The starter motor will not be able to get the proper amount of current from the battery.If the brush retainer might be causing problems, a visual inspection can be performed. A damaged brush retainer can wear down to the wire lead and become burned, pitted, or cracked. When the brush retainer is worn out, it can decrease engine performance, reduce braking, and cause the motor to lose power. This brush retainer is an authentic OEM replacement part sourced directly from the manufacturer. It is sold as an individual part. The retainer is made to be used with lawnmowers, snowblowers, tillers, and wood chippers created by Briggs & Stratton, Craftsman, Toro, Cub Cadet, Lawn-Boy, Snapper, MTD, and Simplicity.
