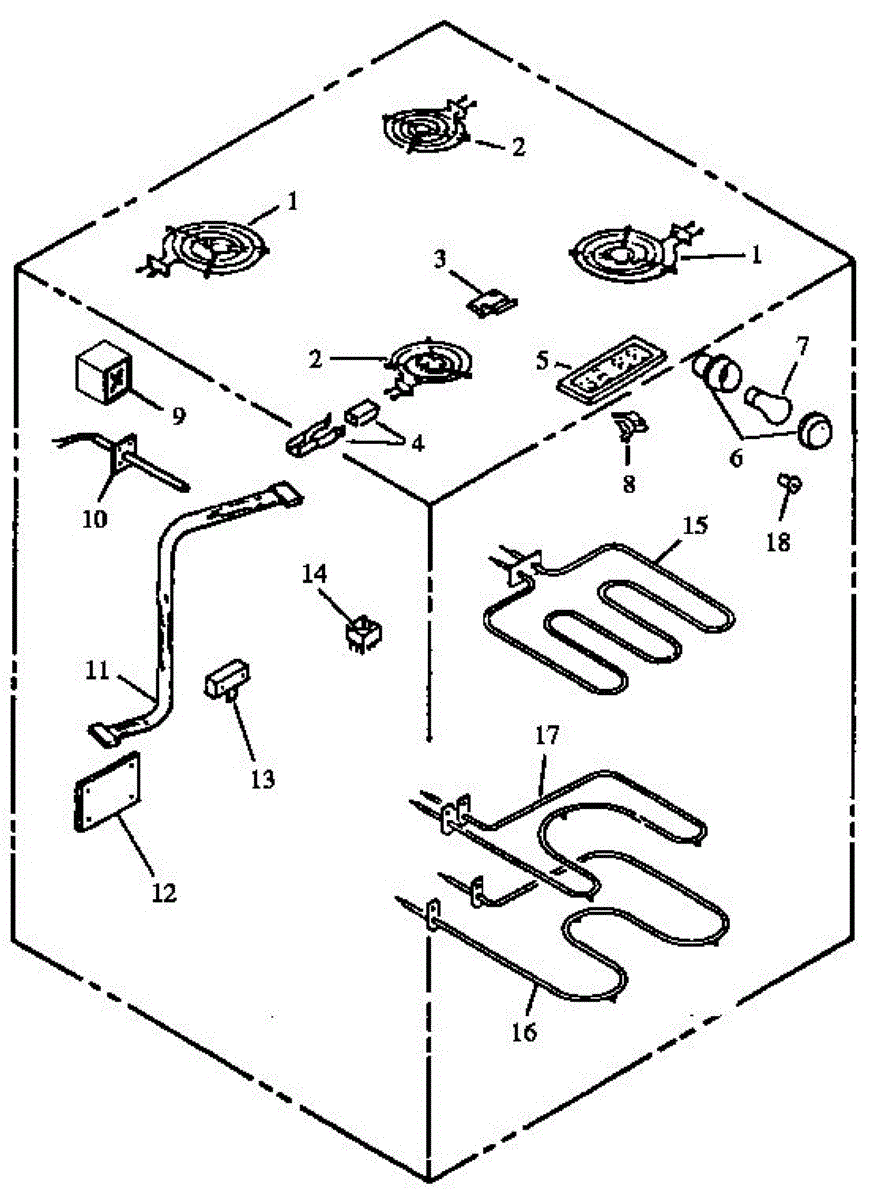

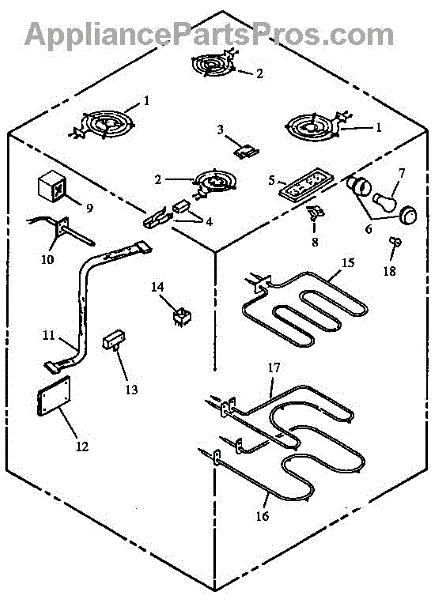

Parts for Modern Maid FDU2492B-P1130630NB: Electrical Components Parts

1200w. Size: 6 inch. Location: Left front, right rear, and left rear.

This terminal block is the insulated connection point where the appliance's incoming power ties into the internal wiring. Replacing a heat-damaged or loose block restores a safe, reliable electrical path and helps prevent arcing and intermittent power loss.

• Connects the supply conductors to the unit's internal wiring
• Provides insulated posts to securely fasten and distribute power
• Helps maintain tight, low-resistance connections
• Common failure signs: melted/discolored plastic, burned or loose terminals, arcing, scorching, or intermittent/no power after confirming the cord and breaker

• Disconnect power at the breaker or unplug the appliance; verify no voltage before servicing
• Photograph or label wire positions to ensure correct reassembly
• Inspect and replace any heat-damaged wire ends or lugs; use appropriate terminals
• Tighten connections securely and ensure wires are fully seated and strain-relieved as originally installed

Restore top-heat performance with this 240V broil element. It provides the intense overhead heat needed for broiling and finishing, replacing a burned-out or damaged element so your oven broiler works reliably and browns evenly again.

• Supplies the oven's top heat source for broiling and quick browning
• Common failure signs: broiler won't heat, uneven browning, visible breaks/blisters, or a breaker trip when broil is selected
• 240V design for standard residential electric ranges and wall ovens
• Replacing an open/weak element restores proper broiler operation

• Disconnect power at the breaker or unplug the appliance before servicing
• Remove oven racks; unfasten the element mounting screws and gently pull the element forward
• Transfer the two wires to the new element one at a time; do not let wires slip back through the liner
• Reinstall and secure; ensure terminals are tight and the element isn't touching oven surfaces before restoring power and testing

This lower bake element supplies the primary heat for Bake cycles, restoring consistent oven temperatures and even results. Replace a burned-out or damaged element to resolve no-heat on Bake, extended preheat times, and undercooked food.

• Heats the oven cavity from the bottom during Bake cycles for proper cooking
• Restores heat when the original element is burned out or broken
• Common symptoms: no heat on Bake, very long preheat, uneven or undercooked results
• Visible damage such as blistering, cracks, or breaks indicates replacement

• Disconnect power at the breaker before servicing
• Remove oven racks, take out the element's mounting screws, and gently pull the element forward
• Transfer the two wires one at a time; do not allow wires to slip behind the oven liner
• Reinstall the element and screws, restore power, and test Bake

The Terminal Block is an OEM part for Whirlpool ranges. It serves as a crucial connection point for the range’s electrical wiring, ensuring a safe and reliable transfer of power to the appliance.

Over time, terminal blocks can deteriorate due to factors such as heat exposure, electrical surges, or wear and tear. When the terminal block becomes damaged or corroded, it can lead to poor electrical connections or potential safety hazards.

Symptoms of a bad terminal block include:

• Burnt or scorched connections
• Intermittent power loss to the range
• Difficulty in the range heating up properly
• Visible damage or corrosion on the terminal block

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.
