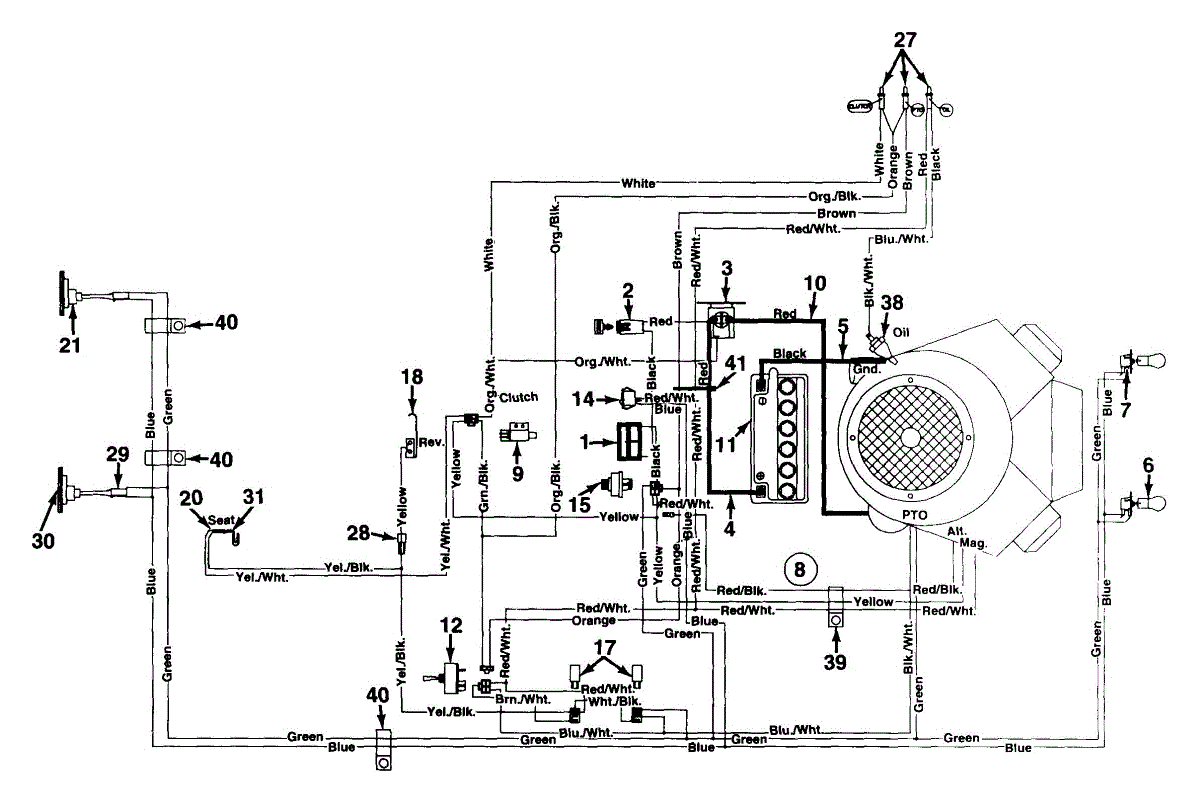

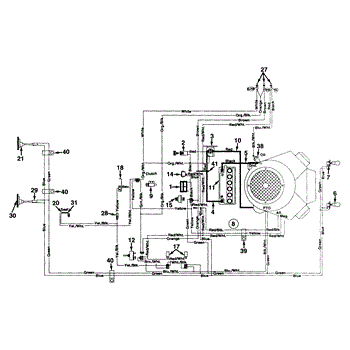

Parts for White Outdoor 143U836H190 / 1993: Electrical Schematic Parts

Replace a cracked, broken, or non-functioning ammeter gauge on your lawn tractor. Installs on the dashboard to display battery charge levels.

Tractor won't start or loses power? This electrical fuse protects against current overload. Simple 5-minute replacement restores safe operation.

Lawn tractor won't start or clicks when turning the key? This starter solenoid activates your engine. Simple DIY fix in under 30 minutes.

Replace your lawn tractor's headlamp bulb to restore visibility for early morning or evening operation. Fits most riding mowers and tractors. Verify fit.

Light socket for lawn tractors and outdoor power equipment. Replace when socket is cracked, corroded, or bulb won't stay secure. Verify fit with your model.

If your mower deck won't engage when you pull the PTO lever, this switch redirects engine power to activate the cutting blades. Direct fit part.

Headlights won't turn on or off on your lawn tractor? This headlamp switch mounts on the dash panel to control tractor headlamp operation. Easy install.

Engine won't start or turn off? This lawn tractor ignition switch controls engine starting and stopping. Direct replacement takes 15-30 minutes.

Fix a lawn tractor that won't start or clicks when turning the key. This starter relay controls power to the starter motor. Simple 15-minute repair.

Fix mower that won't start or shuts off when you stand up. This seat safety switch spring ensures proper electrical contact. Easy 10-minute repair.

Spring switch for lawn tractors and riding mowers. Mounts near the switch button. Replace if worn, broken, or damaged from regular use over time.

Actuator spring for lawn tractor seat safety switch assembly. Replace if spring is broken, missing, or no longer provides proper tension for switch contact.

7-inch plastic cable tie secures cables to lawn mower or tiller handles. Replace when cracked, broken, or worn to keep cables properly fastened.
