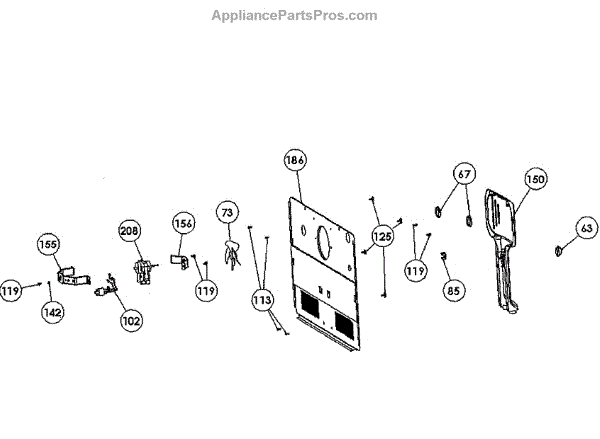

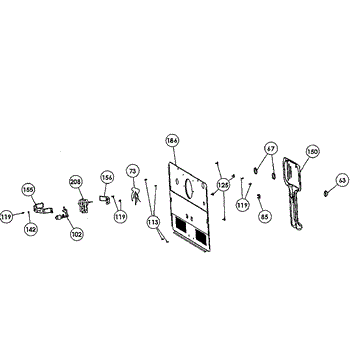

Parts for HRT18R1AWB: Evap Cover Parts

This evaporator fan motor jumper is a replacement wire harness that reconnects the evaporator fan motor to the appliance wiring. It restores a secure electrical connection so the fan can run reliably and help maintain proper cooling. What it does:

• Provides a direct, insulated electrical connection between the evaporator fan motor and the main wiring harness.
• Restores power to the evaporator fan when original jumper or pigtail is frayed, broken, or corroded.
• Helps the evaporator fan run consistently, supporting proper airflow across the evaporator coil.
• Resolves symptoms such as the fan not running, reduced cooling, or unusual noise from loose connections.

• One evaporator fan motor jumper / wire harness.

• Disconnect power to the appliance before accessing electrical components to avoid shock.
• Accessing the evaporator area may require removing interior panels or the freezer evaporator cover; follow manufacturer instructions.
• Replace only the damaged jumper; ensure connectors are fully seated and wires are routed clear of moving parts.

This ground screw secures a cabinet or component grounding conductor, providing a reliable electrical ground connection to help reduce shock and interference risk. Compact and simple, it's used where chassis grounding is required. What it does:

• Fastens a ground wire to the appliance chassis or mounting point
• Star washer bites into metal to improve contact and prevent loosening
• Helps maintain a consistent ground to reduce electrical noise and safety hazards
• Commonly used on control panels, motors, or metal cabinet grounding points

• Disconnect power or unplug the appliance before accessing electrical components
• Ensure the mating surface is clean and free of paint or corrosion for proper grounding
• Tighten securely but do not over-torque; washer is designed to bite into metal
