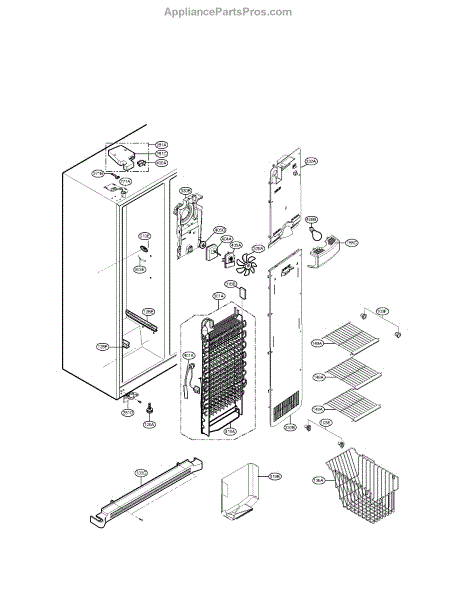

Parts for Lg LSC27914ST: Freezer Compartment Parts

The LG Refrigerator Water Filter is an OEM Replacement Part. It is designed to improve the quality of water and protect refrigerators and ice machines from sediment deposits. This NSF-Certified filter effectively reduces iron and particulates. It also preserves beneficial minerals like fluoride. The filter measures 5.6 inches high and 3.3 inches in diameter.

It is installed by removing the top shelf and pulling the old filter downward. Then turn it counter-clockwise, and replace it with the new filter aligned in a horizontal position. To ensure the best performance and the removal of trapped air and contaminants, it's recommended to flush the dispenser with 2.5 gallons of water in alternating cycles. If your model includes a water filter indicator, press and hold the Filter or Reset button for 5 seconds after installation. With a lifespan of 6 months and a 500-gallon capacity, this filter provides both quality and longevity.

This shelf holder is a molded support clip that secures and positions a removable shelf inside the appliance, restoring proper shelf alignment and preventing slipping or tilt for safer storage. What it does:

• Supports and locks a shelf into the cabinet wall to keep it level and stable
• Prevents shelves from sliding forward or falling when loaded
• Stops rattling or uneven shelf movement caused by a worn or broken clip
• Fits where the shelf edge rests to maintain correct shelf spacing

• One shelf holder

• Disconnect power and empty the area before starting work
• Typically installs by snapping into the shelf track or sliding onto a mounting peg; small hand tools may be required
• Inspect the mating shelf edge and track for damage and clean debris before installing
• Replace any matching clips on the opposite side if the shelf still sits unevenly

The Lower Cover Assembly is an OEM part for LG refrigerators. This cover is located at the bottom of the refrigerator, protecting internal components and providing a finished look to the appliance. It plays a crucial role in maintaining the refrigerator’s efficiency by shielding important parts from dust, debris, and potential damage.

Causes of a bad lower cover assembly include regular wear and tear, accidental impact, or exposure to moisture, which can lead to degradation over time.

Symptoms of a bad lower cover assembly include:

• Visible cracks or breaks in the cover
• The cover not fitting securely or coming loose
• Accumulation of dust or debris around the internal components
• Aesthetically displeasing appearance of the refrigerator’s bottom area

This OEM LG part is also compatible with Sears/Kenmore.

This leveling leg assembly stabilizes and levels your refrigerator so it sits solidly on the floor and the doors align correctly. Replacing a worn or stripped leg helps reduce rocking and vibration and restores smooth leveling adjustment.

• Provides height adjustment to level the cabinet on uneven floors
• Supports the unit to prevent rocking or wobbling
• Helps doors close and seal properly when the cabinet is level
• Symptoms may include persistent wobble, vibration/rattling, or a stripped/bent foot or screw

• Unplug the refrigerator and use a helper to prevent tipping injuries.
• Protect flooring; remove the kickplate/grille for access if present.
• Thread out the worn leg; hand-thread the new assembly and adjust height—do not over-extend.
• Level side-to-side and front-to-back per your owner's manual, then reattach any panels.

This upper hinge assembly supports the refrigerator door at the top and acts as the pivot point for smooth opening and closing. Replacing a worn hinge restores proper alignment and helps the door seal and close consistently.

• Supports and pivots the door at the top hinge point
• Maintains door alignment with the cabinet and gasket
• Helps ensure complete closure and proper sealing
• A worn hinge may cause door sagging, rubbing, popping/creaking noises
• Misalignment may lead to air leaks, frost, or temperature fluctuations

• Disconnect power and, if applicable, shut off the water supply.
• Remove the hinge cover, support the door, and note shim/bushing positions.
• Remove hinge screws, lift the door off, transfer any spacers/bushings, and install the new hinge.
• Align the door and verify gasket contact all around before restoring power.

This hinge lever mounts on the refrigerator door hinge to guide door movement and closure, helping the door seal properly. Replacing a worn or broken lever restores smooth operation and consistent sealing.

• Guides hinge motion so the door opens and closes smoothly
• Helps maintain door alignment for a reliable gasket seal
• Replace if the lever is visibly cracked, worn, or deformed

• Disconnect power and support the door to prevent injury or damage
• Remove the hinge cover and fasteners; note the lever's orientation before removal
• Install the new lever in the same position and reassemble the hinge components
• Adjust hinge per model procedures if needed

This replacement fan assembly restores airflow in your appliance's cooling system to help maintain proper temperature and circulation. It's a direct-fit replacement designed to stop airflow-related issues and reduce noise from a failing fan. What it does:

• Circulates air across evaporator/condenser coils to support proper cooling and defrost cycles
• Replaces a worn or failed fan that can cause warm compartments or poor cooling
• Helps eliminate unusual humming, grinding, or rattling caused by a damaged fan blade or motor
• Supports even temperature distribution and can reduce frost buildup when fan operation is restored

• Disconnect power before starting; work on powered appliances can cause shock or injury
• Handle the fan blade carefully to avoid bending blades or damaging the motor
• Secure mounting fasteners to prevent vibration

It contains the defrost temperature sensor and the defrost thermal fuse.

This evaporator fan motor assembly circulates cold air across the evaporator coils and throughout the cabinet to keep temperatures even. Replacing a worn motor restores airflow and helps reduce warm spots and grinding or squealing fan noise. What it does:

• Circulates air across the evaporator and through vents to cool the refrigerator and freezer compartments
• Helps maintain uniform temperatures and consistent airflow throughout the cabinet
• Common failure signs: weak or no airflow, refrigerator section warmer than the freezer, or whining/rattling fan noise
• Fan typically runs only with the door switch closed; lack of operation with the switch closed can indicate a failed motor

• Includes: 1 evaporator fan motor assembly

• Disconnect power before servicing; interior panels and liners can have sharp edges
• Access is typically behind the rear panel of the freezer or fresh food section (varies by model)
• Disconnect the wiring harness, remove the old assembly, and install the new one securely with wiring routed clear of the blade
• Restore power and depress the door switch to verify fan operation and airflow

This bracket motor secures and supports the appliance motor assembly, restoring proper alignment and stable operation. Replacing a worn or broken bracket helps reduce noise and prevents motor misalignment that can cause poor performance. What it does:

• Holds the motor assembly in the correct position so the motor runs smoothly and stays aligned.
• Prevents excess vibration and rattling caused by a damaged or cracked bracket.
• Helps stop intermittent motor movement or binding that can affect operation.
• Reduces risk of additional wear to the motor or connected components due to misalignment.

• One bracket motor

• Disconnect power to the appliance before beginning any work.
• Replacement typically requires removing access panels and supporting the motor during removal/installation.
• Inspect surrounding fasteners and mounting surfaces; replace any damaged hardware.

The Rear Evaporator Motor Grommet is an OEM part for LG refrigerators. It's designed to secure and cushion the evaporator motor, ensuring it remains in place and operates quietly. This grommet plays a crucial role in minimizing vibrations and noise from the motor, which can otherwise lead to a disruptive refrigerator operation.

Causes of a bad Rear Evaporator Motor Grommet can result from deterioration due to cooling and thawing cycles in the refrigerator. Physical damage during cleaning or servicing may cause a loose motor fit.

Symptoms of a malfunctioning Rear Evaporator Motor Grommet include:

• Unusual noises or vibrations from the back of the refrigerator.
• The evaporator motor shifting out of place, which can affect cooling efficiency.
• Increased wear on the evaporator motor due to lack of proper cushioning and support.

This OEM LG part is also compatible with some Kenmore models.

A momentary push-button switch that restores reliable button control on the appliance console. Replaces a worn or non-responsive push switch so the control board receives a clear input when the button is pressed. What it does:

• Sends a momentary electrical signal to the control board when pressed
• Replaces broken, stuck, or intermittently working push buttons
• Helps resolve symptoms like no response from the console, intermittent button function, or a physically damaged button
• Functions as the user input for single-press commands

• One momentary push switch

• Disconnect power before servicing to avoid shock or injury
• Access usually requires removing the control panel or console; use appropriate screwdrivers
• Note connector orientation and gently unplug wire harness—do not pull on wires

The Freezer Temperature Sensor is an OEM part for LG refrigerators. This sensor monitors the temperature within the freezer compartment, sending readings to the refrigerator’s control board to maintain optimal temperature levels. It plays a crucial role in ensuring that the freezer operates efficiently and keeps food items properly frozen.

Over time, the temperature sensor can fail due to regular wear and tear, electrical issues, or exposure to extreme temperatures. A faulty sensor can lead to inaccurate temperature readings, affecting the freezer's performance.

Symptoms of a bad freezer temperature sensor include:

• Inconsistent freezer temperatures
• The freezer running continuously or not running at all
• Frost buildup in the freezer compartment
• The control board displaying error codes related to temperature

This OEM LG part is also compatible with Sears/Kenmore.
