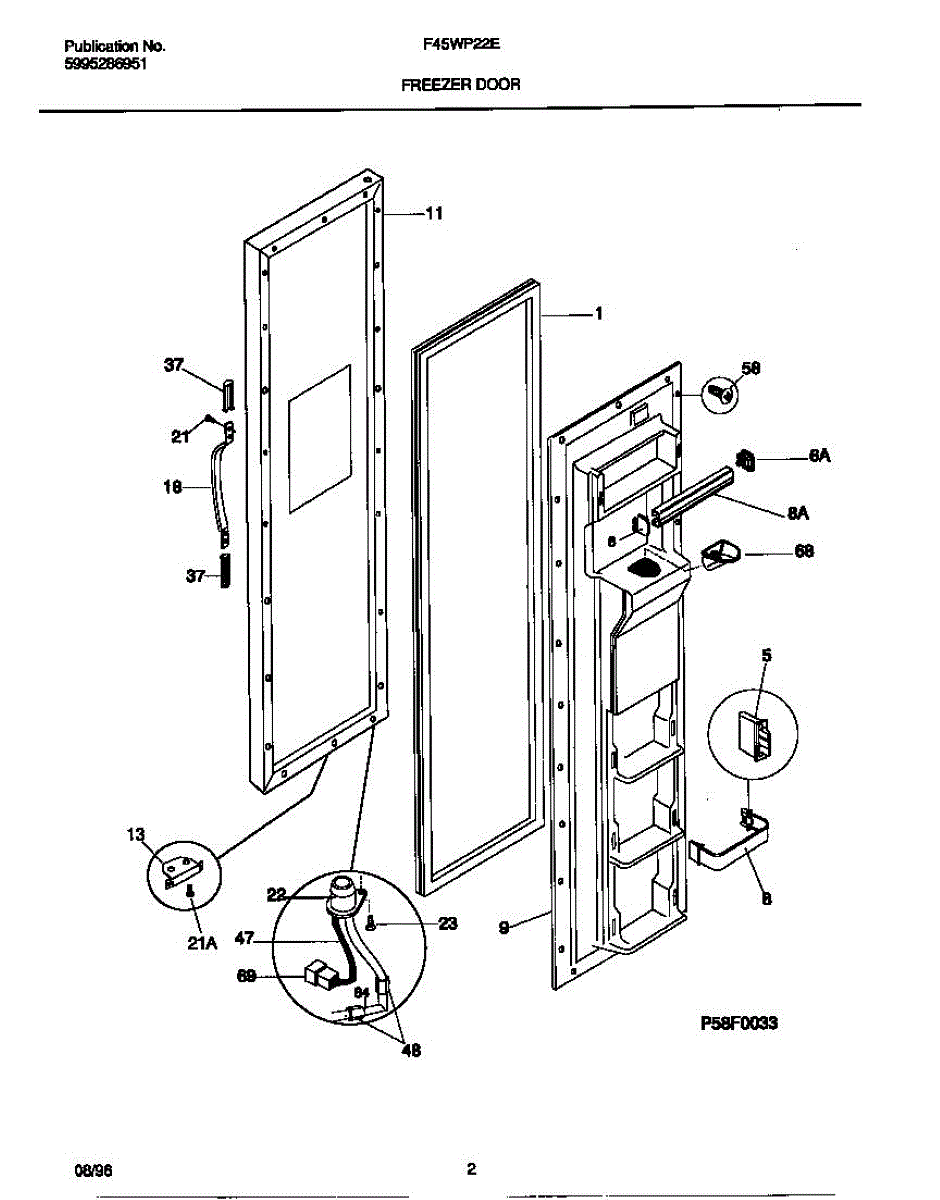

Parts for Frigidaire F45WP22EW0: 02 - Freezer Door Parts

Color: White

Includes endcaps

Cut to fit design.

Specs: 10 - 16 x 3/4 phillips truss head

Specs: 7/16 x 20

This replacement screw secures appliance components so brackets, shelves, trim, or panels stay firmly in place. Install a new screw when the original is missing, stripped, or corroded to restore a tight, rattle-free fit.

• Fastens brackets, panels, trim, or covers to the cabinet or liner
• Helps maintain alignment and reduce vibration and noise
• Direct replacement for a missing, rusted, or stripped fastener
• Use wherever your model's parts diagram specifies this screw

• Disconnect power before servicing; shut off water if working near water lines
• Match thread and length to the original location as shown in your model's parts diagram
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening (especially into plastic)
• Retain and transfer any original spacers or clips used with this fastener

This connector door harness links the cabinet wiring to the refrigerator door, restoring electrical connections for door-mounted components. Use this harness to replace a damaged or corroded door connector and regain reliable electrical contact. What it does:

• Provides the sealed electrical connection between the cabinet wiring and the door harness
• Restores power and signal to door-mounted parts such as switches, lights, and dispenser controls when the original connector fails
• Prevents intermittent or lost connections caused by worn, damaged, or corroded terminals
• Maintains proper connector alignment and strain relief for the door wiring

• One connector door harness

• Always disconnect power to the appliance before beginning any repair
• Installation typically requires removing the door panel or inner liner to access the connector
• Inspect mating terminals and wiring for damage; replace or repair any frayed wires before reconnecting
• Ensure connectors are fully seated and secured; test door functions after reassembly

Note: This is a 1/4" x 1/4" compression elbow fitting without the nuts. See part# 4932JA3009A which is a 1/4" by 1/4" John Guess quick connector elbow.

#10 OD, steel

Size: Approximate 2.5 inches thick, 33 inches wide and 70 inches long.
