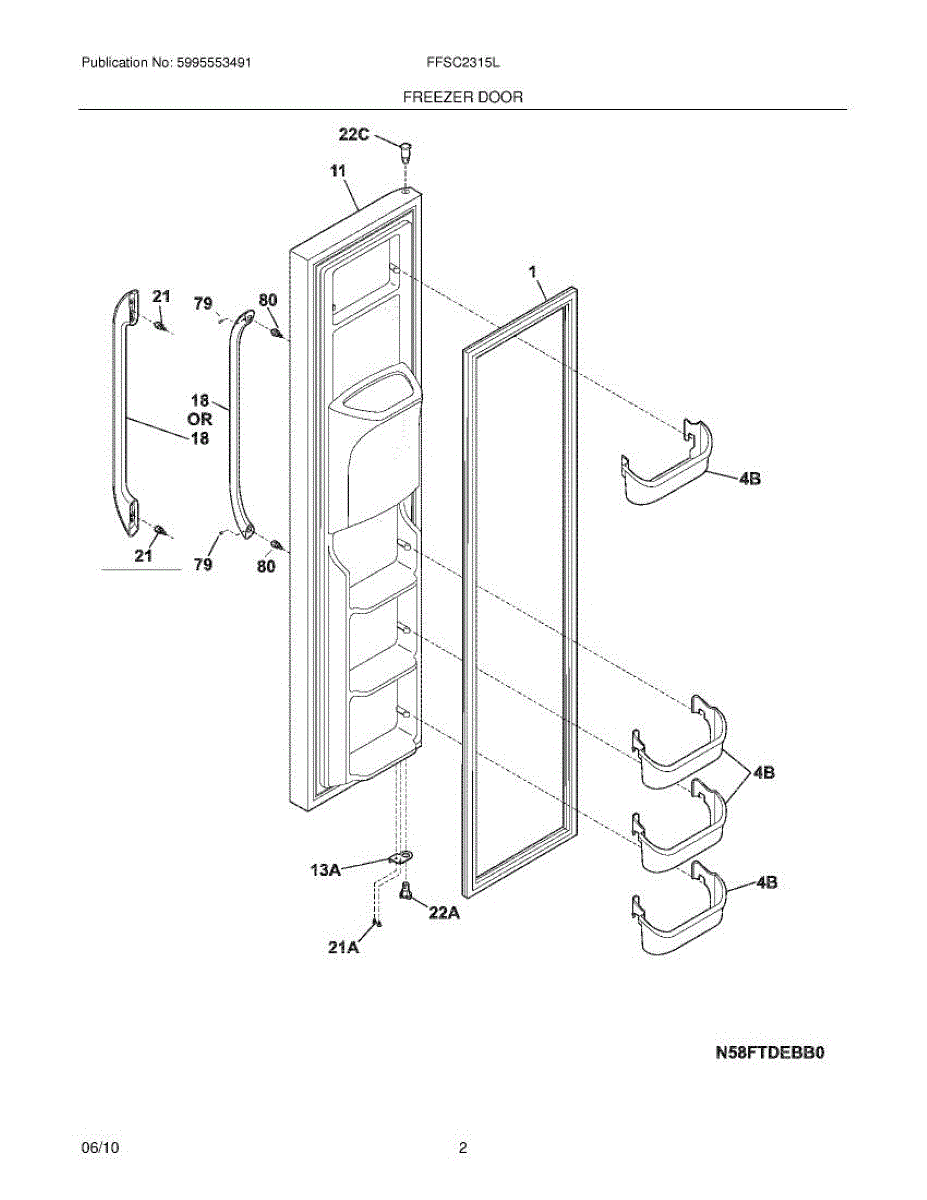

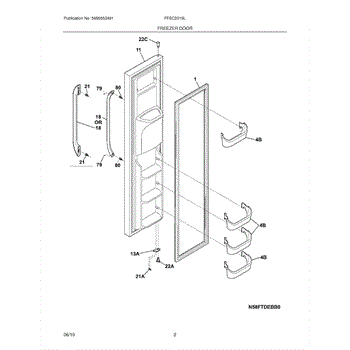

Parts for Frigidaire FFSC2315LE0: 03 - Freezer Door Parts

This single-pack Frigidaire PureSource 3 WF3CB Water Filter is an OEM replacement part for Frigidaire refrigerators. It improves the quality and taste of your drinking water. It removes impurities such as lead, cysts, and mercury, as well as reduces chlorine taste and odor. The filter is NSF and WQA certified and is designed to fit specific side-by-side models after 2009 where the filter is located in the back, right top.

Specs:

• Pressure range: 30 - 100 PSIG
• Color: White
• Dimensions: Approximately 2-1/2 inches in diameter by 9-1/2 inches deep.

To ensure optimal performance, filters should be changed every 6 months or 200 gallons, depending on usage.

This gray, magnetic freezer door gasket seals the perimeter of the door to keep cold air in and moisture out, helping maintain proper temperatures and reduce frost buildup for dependable food preservation.

• Forms an airtight magnetic seal between the freezer door and cabinet
• Helps stabilize internal temperature and humidity to limit frost and ice
• Common signs of failure: cracks or warping; condensation around the door; frost near the gasket; door not closing flush
• Restores sealing performance when the original gasket hardens or shrinks

• Unplug the refrigerator before servicing; use caution around sharp edges
• Warm the new gasket (warm water or low heat) to make it pliable
• Seat corners into the door retainer first, then work along the sides for an even fit
• Verify an even seal all around (dollar-bill test) and adjust gasket or door alignment as needed

Replace a cracked or missing refrigerator bin door to keep items contained and organized. This cover restores proper function so contents stay put and are easy to access when opening and closing the refrigerator. What it does:

• Serves as the cover for a storage bin and pivots open/closed
• Helps retain contents to prevent items from falling out during door movement
• Restores secure, tidy storage when the original door is damaged or missing
• Common symptoms: cracked plastic, broken hinge tabs, won't latch, won't stay attached

• 1 bin door

• Unplug the appliance and remove items from the bin before starting
• Release the old door from its side tabs/hinges; remove any debris from the mounting points
• Align the new door's hinge pins/tabs with the bin's slots and press to snap into place
• Check for smooth pivot and proper latching before reloading items

Black

This replacement screw secures appliance components to their mounting points so panels, brackets, and trim stay tight and aligned. Replace missing or stripped hardware to restore a solid, rattle-free fit and proper assembly integrity.

• Secures panels, brackets, and trim to prevent movement and maintain alignment
• Replaces missing, damaged, or stripped hardware that can compromise assembly
• Helps reduce rattling or vibration from loose components
• Restores proper fit after service or access panel removal

• Unplug the appliance before servicing; turn off water supply if working near dispenser/ice areas
• Compare the new screw to the original to ensure thread, head style, and length
• Start threading by hand to avoid cross-threading; tighten snugly without over-torquing, especially into plastic
• Retain and reuse any original washers, spacers, or clips as required

This #10-32 x 3/4-inch machine screw secures appliance components such as panels, brackets, and handles. Using the correct length and thread helps restore a snug, rattle-free hold wherever this screw is specified by the manufacturer.

• Fastens components with a #10-32 machine thread and 3/4-inch length
• Helps keep panels, trim, brackets, or handles secured and aligned
• Replaces missing, stripped, or corroded hardware
• Common signs include loose or wobbly parts, rattling, missing screws, or damaged screw heads/threads

• Disconnect power before servicing; if working near a water connection, shut off the water supply
• Use the correct driver/bit and start threads by hand to avoid cross-threading
• Tighten snugly; do not overtighten to prevent stripping plastic or threads
• Reuse any model-specific washers or spacers if present

The Upper Hinge Bearing is an OEM replacement part for Frigidaire refrigerators. It facilitates the smooth and quiet opening and closing. By reducing friction at the hinge point, it ensures the door operates seamlessly and is less prone to wear over time.

Causes of a faulty upper hinge bearing include repetitive stress and wear from continuous door opening and closing over time. Exposure to moisture may accelerate bearing degradation.

Symptoms of a bad upper hinge bearing include:

• Squeaking or grinding noises emitted from the hinge area
• Difficult door operation requiring increased lifting force
• Potential misalignment compromising door seal integrity

This Frigidaire OEM replacement part is also compatible with Electrolux, Gibson, Kelvinator, and some Kenmore models.

The Hinge Bearing is an OEM part for Frigidaire refrigerators. This bearing is designed to support the refrigerator door, ensuring it opens and closes smoothly. It helps maintain proper alignment and balance of the door, preventing it from sagging or becoming misaligned.

You should replace the hinge bearing if it becomes worn out, damaged, or broken. Common causes of a bad hinge bearing include regular wear and tear, frequent opening and closing of the door, and accidental impacts.

Symptoms of a bad hinge bearing include:

• Difficulty in opening or closing the refrigerator door
• The door sagging or not aligning properly
• Unusual noises, such as squeaking or grinding, when the door is moved
• The door not staying securely in place

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This genuine replacement screw secures appliance components and restores proper fit and stability. Use it to replace a missing or damaged fastener and stop panels, trim, or parts from shifting or rattling during normal use. What it does:

• Fastens and holds panels, brackets, or small components in place
• Restores secure attachment when an original screw is missing, damaged, or stripped
• Helps eliminate vibration, rattling, or loose-fitting parts
• Matches the OEM fit and function for reliable reassembly

• Use correct screwdriver or driver bit to avoid stripping the head
• Tighten until snug; avoid over-torquing which can strip threads or crack plastic
• Disconnect power and remove food or contents from appliance areas as needed before servicing
• If fastener threads are damaged, replace with the exact OEM screw rather than forcing installation

This water connector links sections of the refrigerator's water supply tubing, maintaining a sealed path to the dispenser and ice maker. Replace a cracked or leaking connector to stop drips and restore reliable water flow and ice production.

• Connects sections of internal water tubing between components (inlet valve, filter, door, ice maker)
• Helps maintain a sealed route for proper dispenser and ice maker operation
• Common symptoms: water leaking behind/under the refrigerator, weak/no dispenser flow, ice maker not filling, visible damage at the fitting
• Direct-fit component built to OEM specifications for the intended application

• Unplug the refrigerator and shut off the household water supply before servicing
• Dispense water to relieve line pressure; place a towel to catch residual water
• Cut tubing ends square and fully insert into the connector until seated; tug gently to confirm engagement
• Restore water, check carefully for leaks, and recheck after the first dispense cycle
