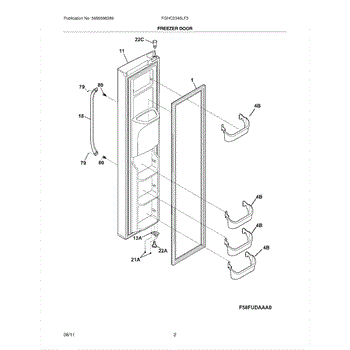

Parts for Frigidaire FGHC2345LF3: 03 - Freezer Door Parts

The Air Filter is an OEM part for Frigidaire refrigerators designed to enhance the air quality inside the refrigerator, ensuring that food stays fresh and odor-free.

The Air Filter helps to remove unwanted odors and impurities from the refrigerator's circulating air. It absorbs and neutralizes common food odors, keeping your fridge smelling clean and pleasant. The activated carbon filter is 7 times more effective than baking soda at removing odors.

For best results, change filter every 6 months.
Color: Black.
Measures about 7 inches wide by 5 inches deep.

Symptoms of a bad air filter include:

• Lingering food odors inside the refrigerator
• Increased presence of stale or unpleasant smells
• Decreased effectiveness in eliminating odors

Replace your Air Filter with this genuine part to ensure a clean and fresh-smelling refrigerator. This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

This single-pack Frigidaire PureSource 3 WF3CB Water Filter is an OEM replacement part for Frigidaire refrigerators. It improves the quality and taste of your drinking water. It removes impurities such as lead, cysts, and mercury, as well as reduces chlorine taste and odor. The filter is NSF and WQA certified and is designed to fit specific side-by-side models after 2009 where the filter is located in the back, right top.

Specs:

• Pressure range: 30 - 100 PSIG
• Color: White
• Dimensions: Approximately 2-1/2 inches in diameter by 9-1/2 inches deep.

To ensure optimal performance, filters should be changed every 6 months or 200 gallons, depending on usage.

This gray, magnetic freezer door gasket seals the perimeter of the door to keep cold air in and moisture out, helping maintain proper temperatures and reduce frost buildup for dependable food preservation.

• Forms an airtight magnetic seal between the freezer door and cabinet
• Helps stabilize internal temperature and humidity to limit frost and ice
• Common signs of failure: cracks or warping; condensation around the door; frost near the gasket; door not closing flush
• Restores sealing performance when the original gasket hardens or shrinks

• Unplug the refrigerator before servicing; use caution around sharp edges
• Warm the new gasket (warm water or low heat) to make it pliable
• Seat corners into the door retainer first, then work along the sides for an even fit
• Verify an even seal all around (dollar-bill test) and adjust gasket or door alignment as needed

Replace a cracked or missing refrigerator bin door to keep items contained and organized. This cover restores proper function so contents stay put and are easy to access when opening and closing the refrigerator. What it does:

• Serves as the cover for a storage bin and pivots open/closed
• Helps retain contents to prevent items from falling out during door movement
• Restores secure, tidy storage when the original door is damaged or missing
• Common symptoms: cracked plastic, broken hinge tabs, won't latch, won't stay attached

• 1 bin door

• Unplug the appliance and remove items from the bin before starting
• Release the old door from its side tabs/hinges; remove any debris from the mounting points
• Align the new door's hinge pins/tabs with the bin's slots and press to snap into place
• Check for smooth pivot and proper latching before reloading items

Replacement door stop that limits refrigerator door swing to prevent over-rotation and protect the hinge and cabinet. Restores controlled door travel so the appliance door opens and stops where it should. What it does:

• Limits how far the door can open to prevent damage to the hinge, door, or surrounding cabinetry
• Reduces stress on the hinge assembly and helps maintain proper door alignment
• Common symptom fix: door swings past normal stop, scrapes cabinet, or does not hold open properly
• Mounts at the hinge area to control travel and stop movement at the correct point

• Disconnect power to the appliance or follow the manufacturer's safety recommendations before starting
• Use basic hand tools; you may need to loosen or remove the hinge or door to access the stop
• Reuse existing screws/fasteners unless new hardware is supplied; tighten securely but avoid over-torquing plastic parts
• After installation, check door alignment and operation; make minor hinge adjustments if needed

This replacement door handle restores a sturdy, comfortable grip on your refrigerator door. It replaces cracked or loose handles so you can open and close the door safely while keeping the appliance's appearance clean and finished.

• Provides the leverage and grip needed to open and close the door
• Restores appearance when the original handle is worn, discolored, or broken
• Helps prevent stress on the door gasket by giving a proper grab point
• Common signs of failure: handle is cracked, loose, wobbly, or missing

• Disconnect power before servicing; turn off water supply if working near a dispenser line
• Open the door and remove any decorative end caps to access the mounting screws
• Support the handle, remove screws, position the new handle, and reinstall using existing hardware; do not overtighten
• The handle is secure and the door opens and closes smoothly

This #10-32 x 3/4-inch machine screw secures appliance components such as panels, brackets, and handles. Using the correct length and thread helps restore a snug, rattle-free hold wherever this screw is specified by the manufacturer.

• Fastens components with a #10-32 machine thread and 3/4-inch length
• Helps keep panels, trim, brackets, or handles secured and aligned
• Replaces missing, stripped, or corroded hardware
• Common signs include loose or wobbly parts, rattling, missing screws, or damaged screw heads/threads

• Disconnect power before servicing; if working near a water connection, shut off the water supply
• Use the correct driver/bit and start threads by hand to avoid cross-threading
• Tighten snugly; do not overtighten to prevent stripping plastic or threads
• Reuse any model-specific washers or spacers if present

This bearing supports a rotating shaft to reduce friction and restore smooth, quiet operation. It replaces a worn bearing to help stop grinding, wobbling, or noisy rotation in the appliance. What it does

• Supports and centers a rotating shaft or drum to reduce friction and wear.
• Allows smoother rotation to reduce noise such as grinding, squealing, or rumbling.
• Helps prevent wobble or uneven rotation that can stress other components.
• When worn, can cause vibration, excess noise, or difficulty maintaining proper rotation speed.

• Disconnect power (and water, if applicable) before starting any repair.
• Handle bearings and shafts carefully; keep parts clean and free of debris during installation.
• Use appropriate pullers/press or follow OEM instructions to remove/install; improper tools can damage the part.
• If other wear is present (seals, shafts, supports), inspect and replace as needed.

This hinge bearing supports the freezer door on the hinge pin so it swings smoothly and stays aligned. Replacing a worn bearing can stop scraping or sagging and help restore proper door movement and sealing.

• Provides a low-friction surface between the hinge pin and door
• Helps maintain correct door height and alignment for a reliable seal
• Wear symptoms include squeaking/scraping, door drop or wobble, and difficulty closing
• Replace if the original bearing is cracked, flattened, or missing

• Disconnect power and remove items from the freezer door before starting
• Support the door; remove hinge cover and fasteners, then lift the door off the hinge pin
• Slide the old bearing off the hinge pin and install the new bearing in the same orientation
• Reassemble, then check door alignment and gasket contact; adjust as needed

This part number contains one (1) screw.

The Door Handle Screw is an OEM part for Frigidaire refrigerators. This screw secures the door handle to the refrigerator door, ensuring a firm and stable grip for opening and closing the door.

Causes of a bad door handle screw can include regular wear and tear from frequent use, corrosion due to exposure to moisture, or damage from over-tightening or stripping. A faulty screw can lead to a loose or wobbly door handle, making it difficult to operate the refrigerator.

Symptoms of a bad door handle screw include:

• The door handle feeling loose or coming off
• Difficulty in securely tightening the handle
• Visible rust or corrosion on the screw
• Stripped threads on the screw or handle

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This 3/32" screwdriver is the service tool used to access and adjust small screws on appliances, making routine panel and control adjustments easier and more precise. Handy for basic repairs and maintenance. What it does:

• Fits 3/32" slotted screws commonly found on control panels, trim, and small fasteners
• Allows removal and installation of small service screws for access to internal components
• Helps correct loose screws that can cause rattling or misaligned panels
• Provides better fit than oversized drivers to reduce screw head damage

• Always disconnect power to the appliance before performing service or repairs
• Use the correct 3/32" blade size to avoid stripping screw heads
• Apply steady pressure and avoid excessive torque; use hand force only unless otherwise specified

This dispenser heater kit warms the dispenser area to help prevent ice build-up and keep the water/ice dispenser operating reliably. Replaces a failed heater assembly to restore proper dispenser function. What it does:

• Heats the dispenser chute/valve area to reduce frost and ice clogging
• Helps restore reliable water or ice dispensing when the dispenser intermittently freezes
• Prevents repeated thaw cycles that can cause leaks or inconsistent dispense flow
• Works as the direct replacement heater component used in the dispenser assembly

• Disconnect power to the appliance before beginning any work
• Access may require removing the dispenser housing or control panel
• Handle electrical connections carefully and secure wiring per OEM routing

This genuine replacement screw secures appliance components and restores proper fit and stability. Use it to replace a missing or damaged fastener and stop panels, trim, or parts from shifting or rattling during normal use. What it does:

• Fastens and holds panels, brackets, or small components in place
• Restores secure attachment when an original screw is missing, damaged, or stripped
• Helps eliminate vibration, rattling, or loose-fitting parts
• Matches the OEM fit and function for reliable reassembly

• Use correct screwdriver or driver bit to avoid stripping the head
• Tighten until snug; avoid over-torquing which can strip threads or crack plastic
• Disconnect power and remove food or contents from appliance areas as needed before servicing
• If fastener threads are damaged, replace with the exact OEM screw rather than forcing installation

This wiring harness is the appliance's pre-wired connector assembly that routes power and signals between the control and components, restoring proper electrical connections for reliable operation. What it does

• Connects control board, motors, sensors and switches so components receive power and communicate.
• Replaces damaged or frayed wiring that can cause intermittent operation or component failure.
• Stops symptoms like no power to a component, intermittent cycles, blown fuses or visible arcing at connectors.
• Ensures secure plug-to-plug connections and correct wire routing when installed correctly.

• Disconnect power to the appliance before attempting any repair to avoid shock.
• Compare the harness and connector shapes to the original before installing; route wires away from heat and moving parts.
• Secure connectors fully until they click; do not force mismatched plugs.
• If terminals are corroded or connectors are damaged at either end, replace harness or repair terminals per OEM instructions.

This is a service wrench used to loosen and tighten appliance fasteners for maintenance and repairs, making access and part replacement easier for technicians and DIYers. Durable tool designed for specific appliance fastener sizes. What it does:

• Provides the correct fit and leverage for removing or installing designated appliance nuts, bolts, and fittings
• Helps safely access internal components during service and part replacement
• Reduces risk of rounding fasteners compared with improvised tools
• Useful for routine maintenance tasks and repair procedures that require a dedicated wrench

• One wrench

• Use the wrench only for its intended appliance fasteners; avoid excessive force
• Disconnect power and water to the appliance before beginning service
• Wear safety gloves and eye protection when working on appliances

This water connector links sections of the refrigerator's water supply tubing, maintaining a sealed path to the dispenser and ice maker. Replace a cracked or leaking connector to stop drips and restore reliable water flow and ice production.

• Connects sections of internal water tubing between components (inlet valve, filter, door, ice maker)
• Helps maintain a sealed route for proper dispenser and ice maker operation
• Common symptoms: water leaking behind/under the refrigerator, weak/no dispenser flow, ice maker not filling, visible damage at the fitting
• Direct-fit component built to OEM specifications for the intended application

• Unplug the refrigerator and shut off the household water supply before servicing
• Dispense water to relieve line pressure; place a towel to catch residual water
• Cut tubing ends square and fully insert into the connector until seated; tug gently to confirm engagement
• Restore water, check carefully for leaks, and recheck after the first dispense cycle
