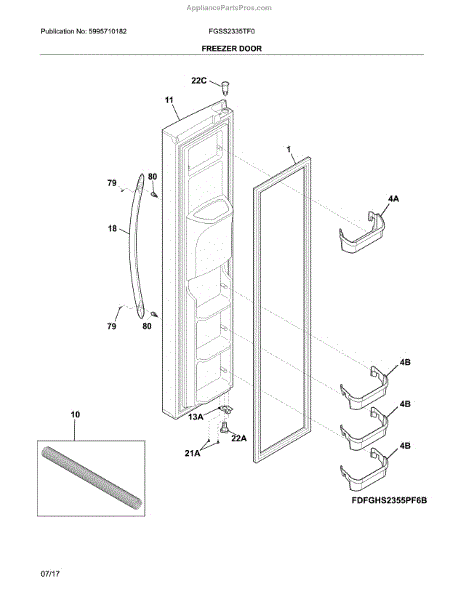

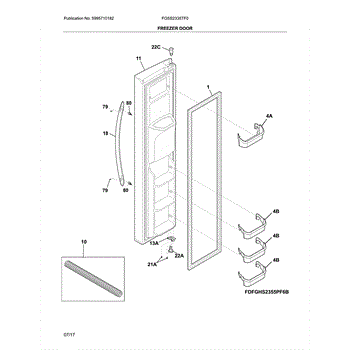

Parts for Frigidaire FGSS2335TF0: Freezer Door Parts

The Air Filter is an OEM part for Frigidaire refrigerators designed to enhance the air quality inside the refrigerator, ensuring that food stays fresh and odor-free.

The Air Filter helps to remove unwanted odors and impurities from the refrigerator's circulating air. It absorbs and neutralizes common food odors, keeping your fridge smelling clean and pleasant. The activated carbon filter is 7 times more effective than baking soda at removing odors.

For best results, change filter every 6 months.
Color: Black.
Measures about 7 inches wide by 5 inches deep.

Symptoms of a bad air filter include:

• Lingering food odors inside the refrigerator
• Increased presence of stale or unpleasant smells
• Decreased effectiveness in eliminating odors

Replace your Air Filter with this genuine part to ensure a clean and fresh-smelling refrigerator. This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

The Water Filter is an OEM replacement part for Frigidaire refrigerators. This PureSource Ultra Ultrawf Refrigerator Water Filter is designed to provide superior filtration, ensuring that your water and ice are clean and refreshing.

With the Frigidaire Refrigerator Water Filter, you can enjoy up to six months of crystal-clear water and ice. For the filter bypass, order part number 242294402. Get the most out of your Frigidaire appliance with a new OEM water filter, and enjoy clean, refreshing water and ice every time!

Causes of a bad part:

• Overused or expired
• Clogged by excessive impurities

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.


This refrigerator door gasket forms an airtight seal between the door and cabinet to keep cold air in and moisture out. Replacing a worn gasket restores proper temperatures, reduces frost and condensation, and helps the unit run more efficiently. The part has been updated by the manufacture, the color has been changed from black to white or light grey.

• Creates a tight perimeter seal to prevent air leaks
• Helps maintain consistent internal temperatures
• Reduces moisture and frost buildup around the door
• Common symptoms of failure: tears or warping, visible gaps, door not sealing fully, temperature fluctuations, excess run time, or condensation at the door edge

What's included: 1 door gasket. Installation notes:

• Disconnect power before service.
• Warm the new gasket in hot water or with low heat to relax kinks; avoid overheating.
• Remove the old gasket; install the new one by seating corners first, then work evenly around. For screw-retained styles, loosen and retighten fasteners evenly.
• Verify an even seal all around; adjust door alignment/leveling if needed and use a paper-slip test to check sealing.

This upper freezer door bin replaces the molded storage bin that holds small frozen items on the freezer door, restoring secure storage and organization. Durable plastic construction matches the original fit and mounting points. What it does:

• Replaces cracked, broken, or missing upper freezer door storage bin
• Restores proper storage so items no longer fall out when opening the door
• Provides the molded pocket for cans, frozen foods, and small containers
• Matches original mounting locations for a stable fit

• Remove all items from the door and open the freezer door fully before installing
• Align the bin with the door tracks or mounting tabs and press until it snaps into place
• Handle carefully to avoid sharp edges and wear gloves if necessary

Replacement bin door that covers and secures an interior refrigerator storage bin, restoring organized storage and helping the drawer close properly. Ideal when the original door is cracked, broken, or no longer latches. What it does:

• Replaces a damaged interior bin door so the drawer can close and hold contents securely
• Helps keep stored food contained and prevents items from falling out of the bin
• Stops rattling or catching caused by a cracked or warped door
• Restores smooth drawer operation when the original door or hinge is compromised

• Always unplug the appliance or disconnect power before beginning repairs
• Remove bin contents and slide the drawer out to access the door and mounting area
• Align the door with the bin and snap or press into place; some models use simple clips, others may require a small screwdriver to remove/install hinge screws
• Inspect mounting tabs and hinge components for damage and replace if needed

This tension spring provides the restoring force needed for a moving appliance component, helping the part return to its normal position and restoring proper balance for smooth operation. What it does

• Provides tension to assist a hinged or moving component in returning to position
• Restores balance so doors, lids or levers open and close smoothly
• Helps prevent slamming or drooping of the attached component
• Common symptom: component won't stay open, won't return, or moves unevenly

• One tension spring

• Replace with the exact OEM spring number to ensure fit and safe operation
• Use proper tools and keep hands and fingers clear of stored energy when removing/ installing springs
• Disconnect power before working on electrical or moving parts

Replacement door stop that limits refrigerator door swing to prevent over-rotation and protect the hinge and cabinet. Restores controlled door travel so the appliance door opens and stops where it should. What it does:

• Limits how far the door can open to prevent damage to the hinge, door, or surrounding cabinetry
• Reduces stress on the hinge assembly and helps maintain proper door alignment
• Common symptom fix: door swings past normal stop, scrapes cabinet, or does not hold open properly
• Mounts at the hinge area to control travel and stop movement at the correct point

• Disconnect power to the appliance or follow the manufacturer's safety recommendations before starting
• Use basic hand tools; you may need to loosen or remove the hinge or door to access the stop
• Reuse existing screws/fasteners unless new hardware is supplied; tighten securely but avoid over-torquing plastic parts
• After installation, check door alignment and operation; make minor hinge adjustments if needed

This replacement door handle restores a sturdy, comfortable grip on your refrigerator door. It replaces cracked or loose handles so you can open and close the door safely while keeping the appliance's appearance clean and finished.

• Provides the leverage and grip needed to open and close the door
• Restores appearance when the original handle is worn, discolored, or broken
• Helps prevent stress on the door gasket by giving a proper grab point
• Common signs of failure: handle is cracked, loose, wobbly, or missing

• Disconnect power before servicing; turn off water supply if working near a dispenser line
• Open the door and remove any decorative end caps to access the mounting screws
• Support the handle, remove screws, position the new handle, and reinstall using existing hardware; do not overtighten
• The handle is secure and the door opens and closes smoothly

This #10-32 x 3/4-inch machine screw secures appliance components such as panels, brackets, and handles. Using the correct length and thread helps restore a snug, rattle-free hold wherever this screw is specified by the manufacturer.

• Fastens components with a #10-32 machine thread and 3/4-inch length
• Helps keep panels, trim, brackets, or handles secured and aligned
• Replaces missing, stripped, or corroded hardware
• Common signs include loose or wobbly parts, rattling, missing screws, or damaged screw heads/threads

• Disconnect power before servicing; if working near a water connection, shut off the water supply
• Use the correct driver/bit and start threads by hand to avoid cross-threading
• Tighten snugly; do not overtighten to prevent stripping plastic or threads
• Reuse any model-specific washers or spacers if present

This bearing supports a rotating shaft to reduce friction and restore smooth, quiet operation. It replaces a worn bearing to help stop grinding, wobbling, or noisy rotation in the appliance. What it does

• Supports and centers a rotating shaft or drum to reduce friction and wear.
• Allows smoother rotation to reduce noise such as grinding, squealing, or rumbling.
• Helps prevent wobble or uneven rotation that can stress other components.
• When worn, can cause vibration, excess noise, or difficulty maintaining proper rotation speed.

• Disconnect power (and water, if applicable) before starting any repair.
• Handle bearings and shafts carefully; keep parts clean and free of debris during installation.
• Use appropriate pullers/press or follow OEM instructions to remove/install; improper tools can damage the part.
• If other wear is present (seals, shafts, supports), inspect and replace as needed.

This hinge bearing supports the freezer door on the hinge pin so it swings smoothly and stays aligned. Replacing a worn bearing can stop scraping or sagging and help restore proper door movement and sealing.

• Provides a low-friction surface between the hinge pin and door
• Helps maintain correct door height and alignment for a reliable seal
• Wear symptoms include squeaking/scraping, door drop or wobble, and difficulty closing
• Replace if the original bearing is cracked, flattened, or missing

• Disconnect power and remove items from the freezer door before starting
• Support the door; remove hinge cover and fasteners, then lift the door off the hinge pin
• Slide the old bearing off the hinge pin and install the new bearing in the same orientation
• Reassemble, then check door alignment and gasket contact; adjust as needed

This part number contains one (1) screw.

The Door Handle Screw is an OEM part for Frigidaire refrigerators. This screw secures the door handle to the refrigerator door, ensuring a firm and stable grip for opening and closing the door.

Causes of a bad door handle screw can include regular wear and tear from frequent use, corrosion due to exposure to moisture, or damage from over-tightening or stripping. A faulty screw can lead to a loose or wobbly door handle, making it difficult to operate the refrigerator.

Symptoms of a bad door handle screw include:

• The door handle feeling loose or coming off
• Difficulty in securely tightening the handle
• Visible rust or corrosion on the screw
• Stripped threads on the screw or handle

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This dispenser heater kit warms the dispenser area to help prevent ice build-up and keep the water/ice dispenser operating reliably. Replaces a failed heater assembly to restore proper dispenser function. What it does:

• Heats the dispenser chute/valve area to reduce frost and ice clogging
• Helps restore reliable water or ice dispensing when the dispenser intermittently freezes
• Prevents repeated thaw cycles that can cause leaks or inconsistent dispense flow
• Works as the direct replacement heater component used in the dispenser assembly

• Disconnect power to the appliance before beginning any work
• Access may require removing the dispenser housing or control panel
• Handle electrical connections carefully and secure wiring per OEM routing

This genuine replacement screw secures appliance components and restores proper fit and stability. Use it to replace a missing or damaged fastener and stop panels, trim, or parts from shifting or rattling during normal use. What it does:

• Fastens and holds panels, brackets, or small components in place
• Restores secure attachment when an original screw is missing, damaged, or stripped
• Helps eliminate vibration, rattling, or loose-fitting parts
• Matches the OEM fit and function for reliable reassembly

• Use correct screwdriver or driver bit to avoid stripping the head
• Tighten until snug; avoid over-torquing which can strip threads or crack plastic
• Disconnect power and remove food or contents from appliance areas as needed before servicing
• If fastener threads are damaged, replace with the exact OEM screw rather than forcing installation

This is a service wrench used to loosen and tighten appliance fasteners for maintenance and repairs, making access and part replacement easier for technicians and DIYers. Durable tool designed for specific appliance fastener sizes. What it does:

• Provides the correct fit and leverage for removing or installing designated appliance nuts, bolts, and fittings
• Helps safely access internal components during service and part replacement
• Reduces risk of rounding fasteners compared with improvised tools
• Useful for routine maintenance tasks and repair procedures that require a dedicated wrench

• One wrench

• Use the wrench only for its intended appliance fasteners; avoid excessive force
• Disconnect power and water to the appliance before beginning service
• Wear safety gloves and eye protection when working on appliances

This water connector links sections of the refrigerator's water supply tubing, maintaining a sealed path to the dispenser and ice maker. Replace a cracked or leaking connector to stop drips and restore reliable water flow and ice production.

• Connects sections of internal water tubing between components (inlet valve, filter, door, ice maker)
• Helps maintain a sealed route for proper dispenser and ice maker operation
• Common symptoms: water leaking behind/under the refrigerator, weak/no dispenser flow, ice maker not filling, visible damage at the fitting
• Direct-fit component built to OEM specifications for the intended application

• Unplug the refrigerator and shut off the household water supply before servicing
• Dispense water to relieve line pressure; place a towel to catch residual water
• Cut tubing ends square and fully insert into the connector until seated; tug gently to confirm engagement
• Restore water, check carefully for leaks, and recheck after the first dispense cycle
