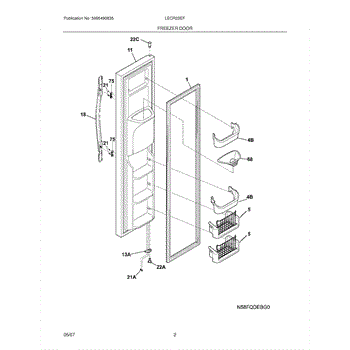

Parts for Frigidaire LECR23EFE2: 03 - Freezer Door Parts

This Frigidaire Refrigerator Water Filter is an OEM replacement part for select Frigidaire brand refrigerators with a slide-out cartridge in the front compartment. Your refrigerator water filter reduces the chorine taste and odor from your water. It also effectively helps filter out sediment, including dirt, sand, and rust,

The filter is easy to install without the need for special tools and should be changed every 6 months. With an operating temperature range of 33-100°F and a pressure range of 30-100 PSI, this OEM part offers reliable performance. The filter measures approximately 6-3/4" x 5-1/4" x 2-1/4" and features a high-grade coconut carbon filter media.

For filter bypass order 242227702.

This freezer door gasket forms the airtight seal between the freezer door and cabinet. Replacing a worn or damaged seal helps keep cold air in, reduce frost buildup, and restore proper temperatures and efficiency.

• Creates a tight perimeter seal to prevent warm air leaks and moisture intrusion
• Helps maintain stable freezer temperature and humidity
• Reduces frost and ice accumulation around the door area
• Common symptoms: visible gaps or tears, door not sealing fully, condensation at the door edge, heavy frost near the door

• Disconnect power before servicing
• Warm the new gasket (soak in warm water or use gentle, low heat) to relax and ease installation; do not overheat
• Remove the old gasket; seat the new gasket fully into the door channel (some models require loosening and retightening retainer screws)
• Verify an even seal all around; perform a paper/dollar-bill test and adjust corners as needed

The Door Bin is an OEM part for Frigidaire refrigerators. It provides additional storage within the refrigerator door, ideal for holding items like bottles, condiments, and other small containers. This door bin helps to maximize space and keep the refrigerator organized.

You should replace the door bin if it becomes cracked, broken, or no longer fits securely in the door. Causes of a bad door bin can include regular wear and tear, overloading, or impact damage.

Symptoms of a bad door bin include:

• Cracks or breaks in the plastic
• The bin not staying securely in place
• Difficulty fitting the bin into its designated slot
• Items falling out or instability when loaded

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

Black

This replacement screw secures designated components in your appliance to maintain a tight, rattle-free fit. Replacing missing or stripped hardware restores proper attachment and helps keep panels and trim properly aligned.

• Fastens specified parts to the cabinet or frame
• Helps maintain alignment of panels and trim pieces
• Replaces missing, stripped, or corroded screws
• Common symptoms: loose or vibrating parts, panel/trim won't stay secured, visible missing hardware

• Disconnect power to the appliance before servicing
• Hand-start threads to avoid cross-threading; use the correct driver
• Do not overtighten, especially when threading into plastic
• If replacing multiple screws, replace one at a time to maintain alignment

This replacement screw secures appliance components so brackets, shelves, trim, or panels stay firmly in place. Install a new screw when the original is missing, stripped, or corroded to restore a tight, rattle-free fit.

• Fastens brackets, panels, trim, or covers to the cabinet or liner
• Helps maintain alignment and reduce vibration and noise
• Direct replacement for a missing, rusted, or stripped fastener
• Use wherever your model's parts diagram specifies this screw

• Disconnect power before servicing; shut off water if working near water lines
• Match thread and length to the original location as shown in your model's parts diagram
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening (especially into plastic)
• Retain and transfer any original spacers or clips used with this fastener

The Upper Hinge Bearing is an OEM replacement part for Frigidaire refrigerators. It facilitates the smooth and quiet opening and closing. By reducing friction at the hinge point, it ensures the door operates seamlessly and is less prone to wear over time.

Causes of a faulty upper hinge bearing include repetitive stress and wear from continuous door opening and closing over time. Exposure to moisture may accelerate bearing degradation.

Symptoms of a bad upper hinge bearing include:

• Squeaking or grinding noises emitted from the hinge area
• Difficult door operation requiring increased lifting force
• Potential misalignment compromising door seal integrity

This Frigidaire OEM replacement part is also compatible with Electrolux, Gibson, Kelvinator, and some Kenmore models.

The Hinge Bearing is an OEM part for Frigidaire refrigerators. This bearing is designed to support the refrigerator door, ensuring it opens and closes smoothly. It helps maintain proper alignment and balance of the door, preventing it from sagging or becoming misaligned.

You should replace the hinge bearing if it becomes worn out, damaged, or broken. Common causes of a bad hinge bearing include regular wear and tear, frequent opening and closing of the door, and accidental impacts.

Symptoms of a bad hinge bearing include:

• Difficulty in opening or closing the refrigerator door
• The door sagging or not aligning properly
• Unusual noises, such as squeaking or grinding, when the door is moved
• The door not staying securely in place

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This water connector links sections of the refrigerator's water supply tubing, maintaining a sealed path to the dispenser and ice maker. Replace a cracked or leaking connector to stop drips and restore reliable water flow and ice production.

• Connects sections of internal water tubing between components (inlet valve, filter, door, ice maker)
• Helps maintain a sealed route for proper dispenser and ice maker operation
• Common symptoms: water leaking behind/under the refrigerator, weak/no dispenser flow, ice maker not filling, visible damage at the fitting
• Direct-fit component built to OEM specifications for the intended application

• Unplug the refrigerator and shut off the household water supply before servicing
• Dispense water to relieve line pressure; place a towel to catch residual water
• Cut tubing ends square and fully insert into the connector until seated; tug gently to confirm engagement
• Restore water, check carefully for leaks, and recheck after the first dispense cycle
