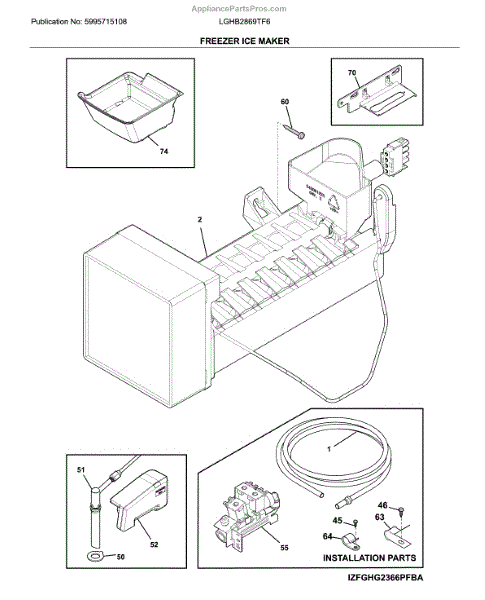

Parts for Frigidaire LGHB2869TF6: Freezer Ice Maker Parts

This refrigerator water tube carries fresh water between the valve, reservoir, dispenser, and/or ice maker. Replacing a cracked or kinked tube restores proper water flow and helps stop leaks inside or behind the refrigerator.

• Directs pressurized water between components in the refrigerator's water system
• Common failure signs: leaks, visible cracking, kinks, or pinhole sprays
• May cause no or slow dispenser flow, or an ice maker that doesn't fill
• Restores correct routing after tubing becomes brittle or damaged with age

• Unplug the refrigerator and shut off the household water supply before servicing
• Place a towel under connections and dispense water to relieve line pressure
• Depress quick-connect collars or loosen clamps to remove the old tube; route the new tube exactly like the original
• Fully seat tubing in fittings, perform a gentle tug test, restore water, check for leaks, and flush several cups to clear air

The Ice Maker is an OEM replacement part for Frigidaire French doors and side-by-side refrigerators. It automatically produces batches of fresh ice for daily use.

Symptoms of an issue include:

• Reduced or discontinued ice production
• Ice cubes fused or stuck together
• Water or moisture inside the refrigerator

Causes can be mineral or scale buildup inhibiting parts, or damage from opening the refrigerator door before harvest is complete. Other causes involve mold growth or freezing of internal components over time.

Compatible with Gibson and Electrolux refrigerator models as well, it maintains a constant ice supply.

The Ice Maker Assembly is an OEM part for Frigidaire refrigerators. It is responsible for automatically producing batches of ice through a process of freezing water into cube form. The ice maker works in conjunction with the refrigerator's freezer compartment and water supply line to perform its ice production function.

Symptoms of a faulty ice maker include:

• Failure to produce ice cubes
• Oddly shaped, sparse, or chunky ice output
• Leaks or water pools in the freezer
• Strange noises coming from the ice maker area
• Error codes shown regarding ice maker performance

Causes of a bad ice maker assembly can include issues with components like the mold heater, water valve, or agitator that are vital to the freezing process. Improper refrigeration temperatures or clogs preventing water flow can also negatively impact ice production.

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.


This factory fastener secures appliance panels and components. Replace a missing, stripped, or corroded screw to restore a tight, rattle-free fit and keep brackets and covers properly aligned.

• Fastens panels, brackets, and internal parts as specified by the manufacturer
• Helps maintain alignment and reduces vibration/rattling
• Replace if the head is stripped, threads are damaged, or corrosion is present
• Symptoms include loose/missing hardware, gaps, or rattling during operation

• Disconnect power; shut off gas/water if applicable before servicing
• Use the correct driver/bit size to avoid stripping the head
• Start threads by hand to prevent cross-threading; do not overtighten
• Match screw length/thread to the location; replace in sets when required

The Water Tube Kit is an OEM part for Frigidaire refrigerators. As an integral part of the ice maker system, the flexible tubing transports water from the external water supply to the internal ice maker assembly.

Symptoms of a bad water tube kit include:

• Slow or incomplete ice production when the ice maker is engaged
• Water leaks detected inside the refrigerator compartment
• Disconnection between the external water source and ice maker assembly

Causes may involve cracked or split tubing from repeated flexing during years of use, degraded connectors coming loose from vibrations, or punctures from impact or rodent damage.

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

The Water Inlet Valve is an OEM part for Frigidaire refrigerators. It is designed to manage the flow of water to the ice maker and water dispenser. This solenoid-operated valve responds to commands from the refrigerator's electronic control, opening to allow water in and closing to stop the flow, ensuring proper operation of both ice production and water dispensing functions.

Symptoms of a bad Water Inlet Valve include:

• No water being dispensed or ice being made
• Leaking water at the back or bottom of the refrigerator
• An unusually noisy operation when the valve is activated

Causes of a bad water inlet valve can include mineral buildup, which may obstruct the flow of water, mechanical failure of the solenoids, or wear and tear that leads to leaks or failure to open/close properly.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This is a factory-style replacement screw used to secure appliance components. It restores proper fastening where the original screw is missing, stripped, or damaged so panels and assemblies stay firmly attached. What it does:

• Fastens panels, brackets, or components to the appliance frame or assemblies
• Replaces missing or damaged mounting hardware that can cause rattles or loose parts
• Provides the correct fit and thread engagement for a secure connection
• Helps maintain appliance alignment and safe operation

• Use the matching screwdriver or bit to avoid stripping the head
• Tighten until snug; do not over-torque to prevent thread or part damage
• Turn off power and remove any access panels before working on electrical components

This spring-style hose clamp secures flexible appliance hoses and helps prevent leaks by holding hose ends tightly to fittings. Reliable, low-profile design for use on drain, water, or vent hoses where a strong, consistent grip is needed. What it does:

• Provides a spring-tensioned grip to keep hoses seated on fittings and reduce leaks
• Commonly used on flexible drain or water hoses and small vent lines
• Helps maintain proper connection under normal vibration and thermal cycling
• Replaces worn, stretched, or corroded clamps that no longer hold tension

• One spring hose clamp (exact quantity as sold)

• Use pliers to expand the clamp, slide into position, then release to seat on the fitting
• Inspect hose ends and fittings for wear; replace hose if damaged before installing clamp
• Wear eye protection when compressing the clamp; keep fingers clear of the clamp's edges
• Tighten only as needed—over-compressing can damage the hose

Color: Black/natural. Nylon

This ice maker mounting bracket secures the ice maker assembly inside the refrigerator so it stays stable and correctly aligned with the water fill tube. Replace a damaged bracket to prevent looseness and restore consistent ice production.

• Supports and positions the ice maker assembly
• Maintains proper alignment with the water fill tube for correct filling
• Damage can cause a loose/sagging ice maker, rattling, water drips near the ice maker, or intermittent/no ice
• Replace if the bracket is cracked, bent, or missing

• Unplug the refrigerator and shut off the water supply before service
• Remove the ice bin and ice maker to access the bracket; reuse existing mounting hardware
• Ensure the fill tube seats correctly and the ice maker sits level before tightening fasteners
• Restore power and water; check for leaks and proper ice maker operation

This replacement ice container catches and stores cubed ice from the refrigerator's icemaker, keeping ice accessible and organized in the freezer. It restores proper ice pickup and reduces spills from loose ice. What it does:

• Holds and stores made ice from the icemaker so you can reach and dispense cubes easily
• Guides ice from the icemaker into a single bin to prevent jamming or scatter
• Helps maintain proper ice pickup by the dispenser/auger (when applicable)
• Commonly used when the original bin is cracked, warped, or missing

• One ice container

• Disconnect power to the appliance before removing or installing the ice container
• Slide out the old bin straight from the freezer compartment or remove any retention clips as needed
• Inspect surrounding components for damage before reinstalling
• Handle with care to avoid cracks; no special tools typically required

This refrigerator clip is a small retainer that secures a component in place so it stays properly seated during use. Replacing a worn or missing clip restores a snug fit and helps eliminate looseness, rattling, or misalignment.

• Holds a part, panel, tube, or wire securely in its mounting point
• Maintains alignment to prevent shifting or vibration
• Helps preserve proper fit and airflow when components are correctly seated
• Symptoms can include loose or sagging pieces, rattling noises, or parts that won't stay attached

• Unplug the refrigerator; if working near water lines, shut off the water supply
• Note the clip's orientation before removal; take a photo for reference
• Use needle-nose pliers to release/install; avoid over-flexing the clip
• After installation, tug-test gently to confirm a secure fit before reassembling

This water inlet tube routes water from the inlet valve to the ice maker and dispenser, restoring proper water flow and helping prevent leaks. Use when the original tube is cracked, split, or blocking water delivery. What it does:

• Directs water from the refrigerator inlet valve to the ice maker and dispenser assembly.
• Restores normal water flow if the original tube is crushed, cracked, or blocked.
• Helps stop leaks associated with damaged or deteriorated inlet tubing.
• Common symptoms: no water to ice maker or dispenser, slow dispenser flow, or visible leaking beneath the fridge.

• Disconnect electrical power and shut off the household water supply before starting.
• Handle tubing carefully and avoid sharp bends or kinks when routing.
• Check and reuse or replace any associated fittings, clips, or seals as needed for a secure, leak-free connection.
