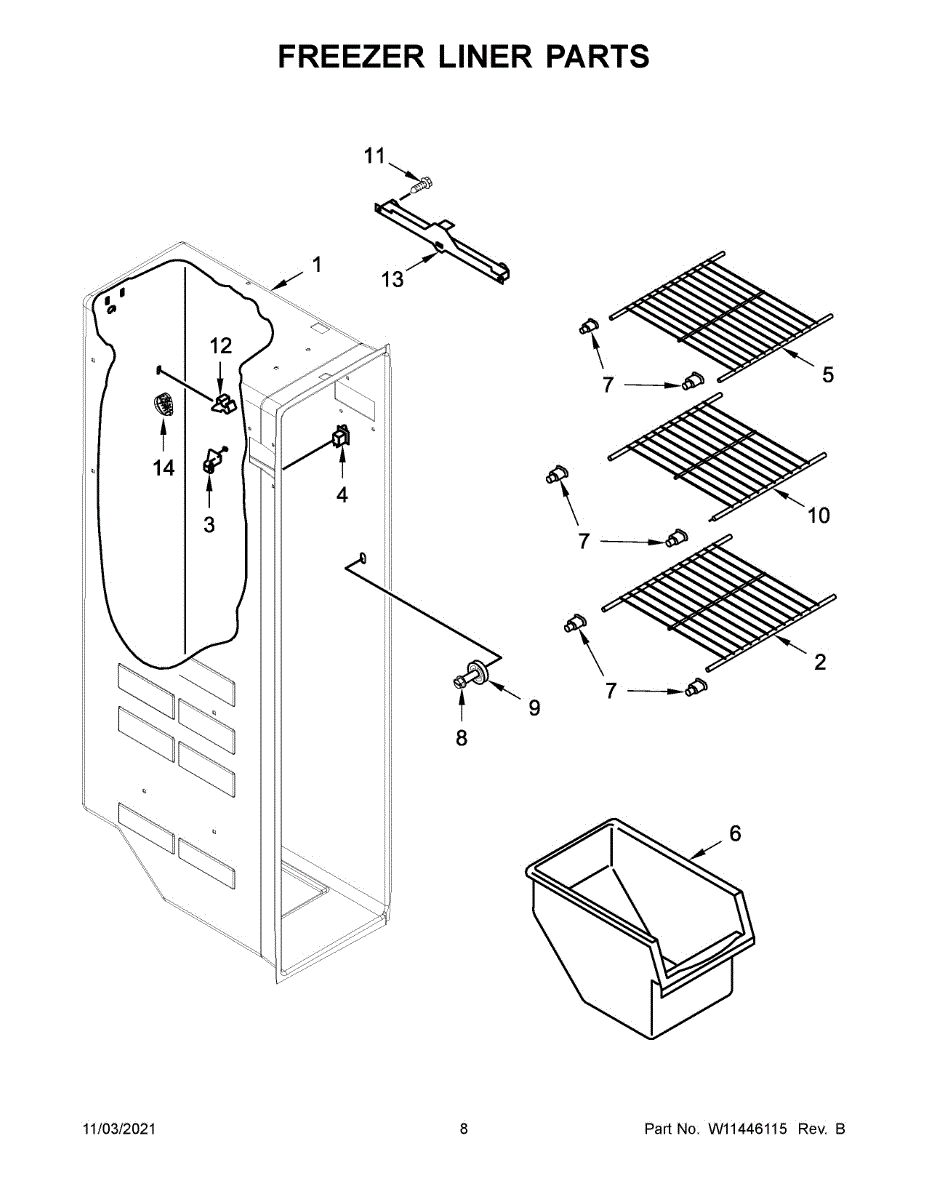

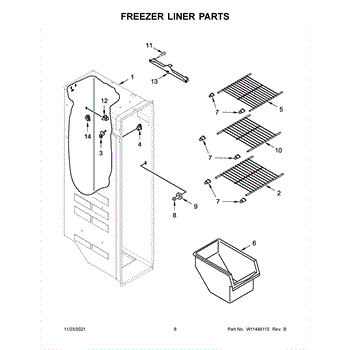

Parts for Whirlpool WRS311SDHT04: Freezer Liner Parts

Approximate measurement: 15" x 11"

This shelf support stud secures a refrigerator shelf or rail to the liner wall, restoring proper support so shelves sit level and stay in place during everyday use.

• Provides a stable mounting point for the shelf/rail in the cabinet wall
• Helps correct a sagging, loose, or uneven shelf
• Replaces a broken, stripped, or missing stud
• Helps prevent shelves from slipping or falling when loaded

• Unplug refrigerator and wear cut-resistant gloves
• Remove the shelf/rail to access the mounting point
• Install the new stud fully seated and aligned before reinstalling the shelf
• Do not overtighten or force; replace any damaged mating parts for a secure fit

Approximate measurement: 11.5" x 11"

This freezer bin replaces a cracked or missing bin to restore organized storage in your freezer. It mounts on existing tabs or rails to keep frozen items secure and easy to access.

• Provides storage and organization within the freezer compartment
• Replaces a broken, warped, or missing bin
• Helps prevent items from tipping or falling when the door opens
• Restores proper fit so the bin stays seated on its mounts

• Power isn't required for this replacement; open the freezer and remove items from the affected area
• Lift the old bin straight up and out from the tabs/rails
• Align the new bin with the mounting points and slide or press down until fully seated
• Do not force into place; distribute weight evenly and avoid overloading

This freezer shelf mounting cup fits into the liner opening to support the ribbed freezer shelf post, keeping the shelf level and secure. Replace cracked or missing cups to restore proper shelf support and prevent sagging.

• Supports the ribbed freezer shelf post and anchors it in the liner
• Helps keep the shelf level and properly positioned
• Replaces cracked, worn, or missing cups
• Common symptoms: shelf tilts, won't stay in place, rattles, or falls

• Unplug the refrigerator before starting
• Remove the freezer shelf; carefully pry the old cup straight out of the liner opening to avoid damage
• Press the new cup fully into the opening until flush; reinstall the shelf post into the cup
• Verify the shelf is seated and level before loading items

Pan-head screw used to secure panels, brackets and trim on Whirlpool appliances. Replacing a damaged or missing screw restores proper fastening to reduce vibration and keep assemblies aligned during operation. What it does:

• Secures panels, brackets and trim pieces to the appliance chassis.
• Stops loose panels from rattling, vibrating or shifting during use.
• Used when the original screw is stripped, corroded or missing.
• OEM replacement that restores the original fastening point.

• Unplug the appliance or shut off power before working on it.
• Use the correct screwdriver or bit to avoid stripping the head.
• Tighten until snug—do not overtighten or force in plastic parts.
• If the original hole or threads are damaged, inspect the surrounding area before reuse.

This shelf support stud anchors a refrigerator shelf to the cabinet liner so it stays level and secure. Replace a cracked or missing stud to restore proper support and prevent shelves from tilting, slipping, or dropping.

• Locks into the liner wall to provide a mounting point for the shelf frame or bracket
• Keeps the shelf aligned and at the correct height
• Common symptoms: broken/missing stud, shelf won't sit flat, shelf sags or falls on one side
• Helps prevent items from sliding due to an unstable shelf

• Disconnect power; remove the shelf and any items resting on it. Handle glass shelves carefully and consider wearing cut-resistant gloves.
• Remove the damaged stud (release the locking tab or twist out, depending on design).
• Insert the new stud into the existing hole until fully seated and locked.
• Reinstall the shelf and verify it sits level before reloading.

Approximate measurement: 13.5" x 9.5"

This air duct clip secures an appliance's air duct or vent to the housing, keeping airflow channels properly aligned and reducing air leaks. A simple replacement that restores correct duct positioning and minimizes airflow issues. What it does:

• Holds the air duct or vent in place to maintain proper airflow alignment
• Prevents the duct from slipping or separating from the housing
• Helps reduce air leaks that can affect performance or cause noise
• Fits where a small plastic/metal retainer is required to secure ducting

• One air duct clip/retainer

• Disconnect power before servicing the appliance to avoid shock or injury
• Use basic hand tools to remove the old clip and snap or screw the new clip into place
• Handle carefully to avoid breaking plastic tabs; the clip fully engages the duct and housing
• If the clip doesn't fit securely, re-check the duct orientation and mounting position

This track is the replacement rack guide that supports and guides a dishwasher or oven rack so it slides smoothly in and out. It restores proper rack alignment and prevents the rack from sticking or tipping. What it does:

• Provides a smooth sliding surface for a rack to roll or glide along
• Restores proper rack alignment to prevent tipping and rubbing
• Replaces worn, cracked, or broken guides that cause sticking or noisy operation
• Compatible with factory mounting points to maintain original movement

• Disconnect power and water (if applicable) before servicing the appliance
• Remove the affected rack and any retaining clips or screws to replace the track
• Tighten fasteners securely and test rack movement after installation

This track is the replacement support rail that guides and stabilizes a sliding component so it moves smoothly and stays aligned. Replacing a worn track restores proper slide action and reduces binding or scraping. What it does:

• Guides a drawer, rack or assembly along a straight path to prevent tipping or catching
• Keeps the sliding component aligned for smooth opening and closing
• Reduces noise and wear caused by a worn or damaged rail
• Common symptom: drawer or rack sticks, drops, or moves unevenly when operated

• Disconnect power (or unplug appliance) before starting repairs to reduce shock risk
• Keep track of all screws, clips and any retained fasteners during removal
• Use basic hand tools; support the sliding component while removing/installing the track

The LED Light Module is an OEM replacement part for Whirlpool refrigerators. This lighting module is responsible for providing illumination inside the refrigerator and freezer compartments. It contains energy-efficient LEDs that produce a bright, consistent light.

Causes of a bad LED Light Module can include failing or damaged LEDs due to age or accidental impact. Sensor or electrical issues within the module itself could also cause lighting problems.

Symptoms of a bad LED Light Module include:

• Dim, flickering, or non-functioning lights
• Parts of the lighting not working properly
• Premature burning out of LEDs
• Electrical humming or buzzing from the lighting area

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.
