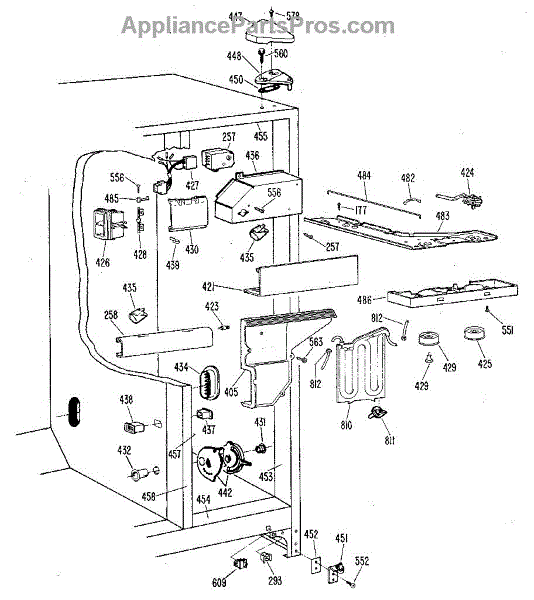

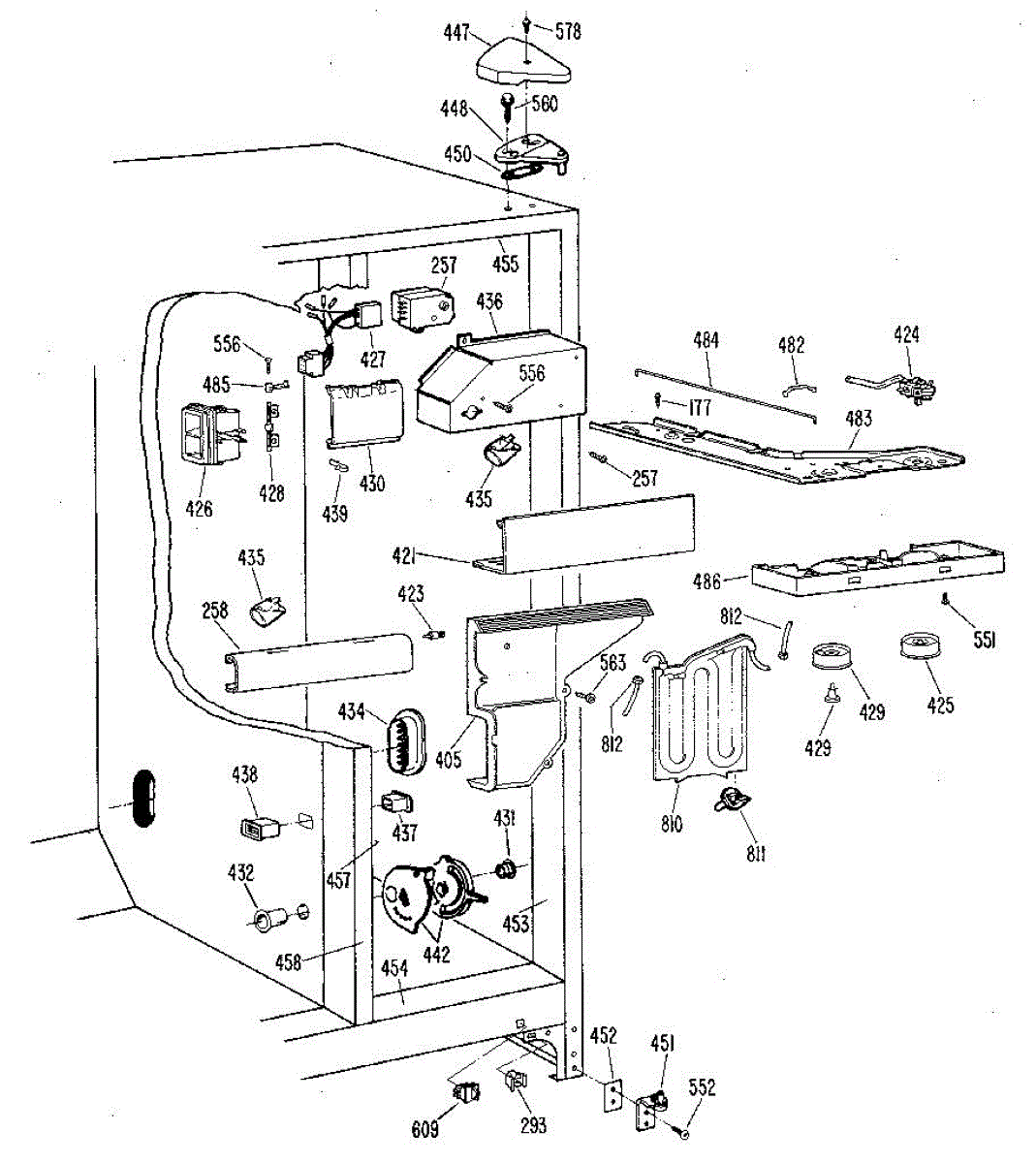

Parts for Kenmore 363.8594786 (3638594786, 363 8594786): Fresh Food Section Parts

The Defrost Timer is an OEM part for GE refrigerators. This part manages the defrost cycle of the fridge and freezer compartments, ensuring that the evaporator coils do not build up excessive frost.

This cycling is crucial for maintaining optimal temperatures for food preservation and energy efficiency. Over time, the defrost timer can malfunction due to wear, electrical issues, or a buildup of dust and debris, leading to poor performance or failure.

Symptoms of a bad Defrost Timer include:

• Frost buildup in the freezer compartment
• The refrigerator or freezer is not maintaining the set temperature
• The fridge or freezer sections are too warm
• The defrost cycle does not activate, leading to reduced cooling efficiency

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

This light shield is the interior cover that protects and directs the appliance light, keeping the bulb secure while improving illumination. It helps prevent damage to the lamp and keeps food or items from contacting the bulb. What it does:

• Covers and protects the interior light bulb from bumps and debris.
• Directs and diffuses light for more even interior illumination.
• Prevents direct contact with the bulb, reducing breakage risk.
• A cracked, discolored, or missing shield can cause dim, uneven, or exposed lighting.

• One light shield

• Disconnect power or unplug the appliance before servicing to avoid shock.
• Remove any shelves or bezels that block access to the shield; handle gently to avoid cracking.
• Inspect mounting clips or screws and reuse if still serviceable; replace if damaged.
• Wear gloves when handling the bulb or shield to avoid fingerprints and possible breakage.

Refrigerator and freezer door bar end cap. Used on both the right and left hand side. Color: white. Measures about 2-1/2 inches high by 3 inches deep.

This control housing secures and protects the oven/range user interface and control board, restoring a safe, finished console. It keeps buttons, display and electronics in place so controls operate correctly and stay protected. What it does:

• Holds the control board and user interface components in the console
• Protects electronics from spills, heat and debris that can cause intermittent faults
• Provides the mounting points for buttons, display lens and trim
• Restores a secure, finished appearance and stable control operation

• One control housing (console) as shown

• Disconnect power at the breaker before starting any work
• Remove any front trim or knobs to access the control panel; keep screws and hardware organized
• Handle the display lens and control board carefully to avoid scratches or connector damage

The Lower Door Hinge Kit is an OEM part for GE refrigerators. This kit is essential for the proper functioning and alignment of the refrigerator door, providing the necessary support and pivot point for smooth opening and closing.

Symptoms of a failing Lower Door Hinge include:

• The refrigerator door sagging or failing to close properly
• Squeaking or grinding noises when the door is opened or closed
• Resistance or difficulty when moving the door
• Visible wear or damage to the hinge or surrounding area

Causes of a bad lower door hinge can include mechanical stress from frequent use, improper alignment or installation that increases wear, or corrosion from moisture exposure, which can weaken the metal components.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This replacement 5/16-inch icemaker tubing carries water to the ice maker. It helps restore proper flow and reduce leaks when the original line becomes brittle, cracked, or kinked, improving ice production reliability. What it does:

• Carries water from the inlet valve to the icemaker
• Replaces tubing that is brittle, cracked, or kinked
• Helps restore normal icemaker fill and ice production
• Can help stop leaks caused by a damaged water line

• 1 icemaker water tube (5/16 in.)

• Unplug the refrigerator and shut off the water supply before servicing
• Place a towel or container to catch residual water during line removal
• Route the new tube along the original path; avoid sharp bends and hot or moving components
• Tighten all fittings, restore water, and check all connections for leaks before powering on
