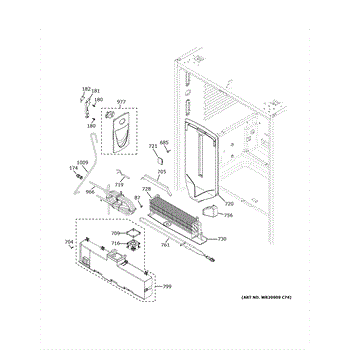

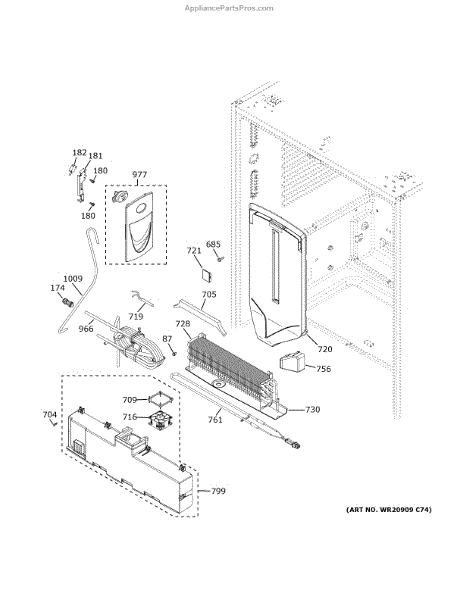

Parts for Ge ZWE23ESNESS: Fresh Food Section Parts

This 8-18 x 9/16 screw is a short sheet-metal fastener used to secure panels, trim and small components on appliances. It replaces missing or stripped screws to restore proper fit and reduce noise from loose parts. What it does

• Secures appliance panels, brackets and trim to prevent movement and rattling
• Holds small components in correct alignment for reliable operation
• Replaces lost, worn or stripped screws that cause gaps or loose fittings
• Common symptom link: fixes rattling panels, loose trim, or parts that shift during use

• One 8-18 x 9/16 screw

• Use the correct 8-18 driver bit and hand or low-torque power driver to avoid stripping
• Do not overtighten; snug until secure to prevent thread damage or panel deformation
• Turn power off/unplug appliance when installing near electrical components
• Keep extra screws on hand—hardware often comes in single quantities

This 5/16 in. water line connector attaches the refrigerator water supply to the valve or inlet tubing, providing a secure link for water delivery to the ice maker and dispenser. Use it to replace worn, cracked, or leaking connectors. What it does:

• Connects 5/16 in. water tubing to the refrigerator inlet/valve for the ice maker or dispenser
• Provides a watertight transition to prevent leaks at the connection point
• Restores proper water flow when a damaged connector is causing reduced or intermittent supply
• Compatible with common 5/16 in. polyethylene or vinyl water lines used on refrigerators

• Turn off the refrigerator water supply and disconnect power before installing.
• Remove the old connector and ensure tubing ends are cut square and free of debris.
• Push tubing fully into the connector until seated; secure per OEM instructions (use proper fittings/tools).
• After installation, restore water and power, then check the connection for leaks.

This 6-22 pan head Phillips screw (3/8 in) secures panels and trim on compatible appliances, providing a reliable fastener replacement for loose or missing hardware. It's a small but essential part for stable assembly. What it does:

• Fastens panels, brackets, trim, and light housings in appliance assemblies
• Restores secure mounting when screws are missing, stripped, or worn
• Reduces rattling, movement, or gaps caused by loose fasteners
• Matches common 6-22 thread applications found on many appliance components

• Turn off and unplug the appliance before replacing hardware to avoid injury
• Use a correctly sized Phillips screwdriver to avoid stripping the head
• Inspect mating threads or inserts for damage; replace damaged inserts before installing
• Tighten securely but avoid over-torquing, which can strip threads or crack plastic

This refrigerator switch actuator is the small linkage that presses a microswitch when the matching lever or door moves. Replacing a worn or broken actuator helps restore reliable response when you press the control or close the door.

• Engages the microswitch when the associated lever or mechanism is pressed
• Transfers motion from the user control to trigger the intended function
• Helps maintain proper alignment for consistent switch engagement
• Common clues it's failing: no response unless pressed hard, intermittent operation, or visible damage/missing piece

• Disconnect power to the refrigerator before servicing; also turn off the water supply
• Note the actuator's orientation and take a quick photo before removal
• Use small tools to release locking tabs; avoid prying against the microswitch or wiring
• After installation, manually press the actuator to confirm the switch clicks and responds before reassembly

This selector control provides the hi/lo switching function for the oven/range heating circuit, restoring user control over high and low heat settings. It replaces a failed selector so the range can select the proper heat level reliably. What it does:

• Switches between high and low heat settings for the heating element or burner
• Restores control when heat setting changes do not respond or stick
• Helps eliminate intermittent or no-heat conditions caused by a worn selector
• Matches OEM function and mounting for a direct replacement

• One selector control assembly as shown

• Disconnect power to the appliance before starting any repair
• Handle electrical connections carefully; note wire locations or take a photo before removal
• Use basic hand tools; do not force connectors or mounting tabs

This foam seal is a flexible adhesive gasket that fills small gaps and cushions parts to help reduce air leaks and vibration in refrigeration assemblies. It restores a tighter fit where panels, liners or components meet. What it does:

• Seals gaps to help reduce air infiltration and potential frost buildup
• Cushions and isolates parts to reduce rattle or vibration noise
• Helps maintain proper airflow paths inside the appliance
• Useful for restoring a flush fit where foam or tape has deteriorated

• Unplug the appliance before starting any repair
• Clean and dry the surface; remove old sealant or adhesive for best adhesion
• Measure and trim the foam to fit; press firmly to ensure full contact
• Avoid stretching the foam; allow adhesive to set before closing panels or returning to service

Mounts between the fresh food fan assembly and its housing to create an airtight, cushioned seal. Replacing a damaged gasket restores proper airflow and helps stabilize refrigerator temperatures while reducing vibration and noise from the fan area.

• Seals the interface between the fresh food fan and the duct/liner to prevent air leaks
• Directs airflow through the evaporator and vents for consistent cooling
• Cushions the fan mount to minimize vibration and rattling
• Failure may present as weak airflow, temperature swings, or new buzzing near the fresh food fan cover

• Disconnect power before servicing to avoid electrical shock
• Remove shelves/bins and the fresh food rear interior panel to access the fan
• Note gasket orientation; seat it evenly with no gaps and avoid stretching/compressing it
• Ensure the fan spins freely and runs quietly before reassembly

The Refrigerator Fan Motor is an OEM replacement part for GE refrigerators. It circulates chilled air within the main cavity and fresh food compartment to maintain even cooling temperatures for foods. Proper airflow is critical for energy efficiency as well as preserving the freshness and longevity of stored items.

Causes of a bad fan motor include failure of the electrical components or motor bearings over many years of operation. Dust buildup may also slow airflow and result in overworking the motor.

Symptoms of a bad fan motor involve:

• Temperature fluctuations between sections of the refrigerator
• Frost or condensation building up quicker than expected
• Louder buzzing or grinding noises coming from inside the back wall

This genuine GE OEM replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Temperature Sensor is an OEM replacement part for GE refrigerators, designed to accurately monitor and relay the temperature inside the refrigerator and freezer compartments to the electronic control board. By detecting the slightest changes in internal temperature, the sensor allows the control board to make real-time adjustments to the cooling system, activating the compressor and fans as needed to maintain optimal conditions for food preservation.

Over time, the temperature sensor can fail due to electrical issues, exposure to moisture, or general wear and tear. A malfunctioning sensor can lead to improper temperature regulation, affecting the efficiency of the refrigerator and the freshness of stored food.

Symptoms of a bad Temperature Sensor include:

• The refrigerator or freezer not maintaining the set temperature
• The appliance running continuously or more frequently than normal
• Inaccurate temperature readings displayed

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

The Air Tower is an OEM component for GE side-by-side refrigerator models designed to distribute cold airflow across shelves and crisper bins. Strategically located in the fresh food compartment, it facilitates even temperature regulation within. Efficient airflow relies on an intact tower design.

Symptoms of a defective air tower include:

• Warm spots or frost buildup noticed on certain shelves and walls
• Fluctuating temperatures displayed on control panels
• Condensation or moisture issues in unaffected areas

Causes stem from common blockages within vent channels from food debris over time, wear of fan blade bearings reducing distribution power, or cracks in injection-molded tower walls.

Replacing with this genuine GE part restores optimum temperature balance throughout the refrigerator. Compatible for replacement fits Hotpoint, RCA, or Kenmore units seeking uniform chilling without dead zones developing. Regular cleaning helps but replacement maintains long-term efficiency.


This center track screw cover caps the exposed screw on the center track assembly to protect the screw head and give the track a finished appearance. It helps reduce debris buildup and prevents accidental snags on the screw head. What it does:

• Covers and protects the center track screw head from dirt, moisture, and surface wear
• Helps maintain a smooth surface on the track to reduce snagging or catching
• Restores the OEM appearance where the original cap is missing or damaged
• Small replacement part used with center track assemblies and trim pieces

• One center track screw cover (cap)

• Designed for simple push- or snap-fit installation over the exposed screw head
• Remove power to the appliance before accessing internal trim or track areas, and follow manufacturer safety guidance
• If screw or track is damaged, inspect and replace the underlying hardware before installing the cap
• Handle small parts carefully to avoid loss during installation

This trough drain directs defrost water from the evaporator to the refrigerator drain system, helping prevent water buildup and puddling inside the freezer compartment. It's a direct-fit replacement for the damaged or cracked drain trough. What it does:

• Channels defrost and condensation water away from the evaporator area to the main drain
• Prevents ice buildup and water pooling that can lead to floor or compartment leaks
• Restores proper drain flow when original trough is cracked, warped, or clogged
• Works with the refrigerator's defrost cycle to keep the compartment dry

• One trough drain piece

• Disconnect power to the appliance before starting any work
• Remove stored food and secure shelving or trim that blocks access to the evaporator area
• Inspect and clear the drain path and drain tube while installing the new trough

This refrigerator defrost heater and harness assembly helps remove frost buildup from the evaporator so the freezer and fridge can cool evenly. It replaces a failed heater/harness to restore normal defrost cycles and reduce ice accumulation. What it does:

• Heats the evaporator during defrost cycles to melt accumulated frost and ice
• Uses an attached wiring harness for direct electrical connection to the appliance
• Commonly used when ice buildup causes poor cooling, long run times, or frost on evaporator coils
• Works with the freezer's defrost control and thermostat to operate only during defrost

• Disconnect power to the appliance before servicing to avoid shock or injury
• Handle the heater element carefully to avoid damage; do not bend or crease the element
• Test heater continuity and the defrost circuit per the manufacturer's service instructions

This coiled cold water tank stores and supplies chilled water for the refrigerator's dispenser and ice-making system. Replacing a damaged tank restores proper cold-water delivery and prevents leaks or contamination from a cracked reservoir. What it does:

• Holds chilled water and maintains a ready supply for the dispenser and ice maker
• Feeds the water dispenser and ice maker inlet when the system calls for water
• Prevents direct flow from supply lines into dispenser/ice maker, helping regulate temperature
• Common symptoms of a failing tank: leaking, no or low water dispensing, poor ice production, or visible cracks

• Turn off refrigerator power and shut off the household water supply before starting
• Drain remaining water from the tank and lines to avoid spills
• Inspect and replace any worn O-rings, seals, or hose clamps as needed

The Dispenser Assembly is an OEM replacement part for GE refrigerators. This actuator is responsible for controlling the functions of the refrigerator's dispenser, allowing you to dispense water or ice.

A bad dispenser actuator assembly can occur due to wear and tear, damage, or component failure over time. If you notice symptoms such as the dispenser not responding to your input, loose or wobbly movement of the actuator, or the dispenser not dispensing water or ice properly, it may indicate a need to replace the actuator assembly.

Symptoms of a bad dispenser actuator assembly include:

• Unresponsive dispenser
• Loose or wobbly actuator movement
• Improper dispensing of water or ice

Restore your refrigerator's dispenser by replacing the faulty dispenser actuator assembly with this genuine OEM part.

This GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.


This water dispenser tube carries chilled water from the refrigerator water valve to the dispenser, restoring reliable water flow for drinking and filling containers. Fits common front-dispense systems and replaces damaged or cracked tubing. What it does:

• Channels water from the internal valve to the exterior dispenser spout
• Stops leaks and restores normal dispensing when original tube is cracked, split, or blocked
• Maintains sanitary water path when replaced with a clean, intact tube
• Works with gravity-fed and valve-driven dispenser assemblies

• Disconnect power and shut off the refrigerator water supply before starting
• Handle tubing ends carefully; ensure secure fittings or clamps to prevent leaks
• Trim tubing squarely if needed and test for leaks at low pressure before regular use
