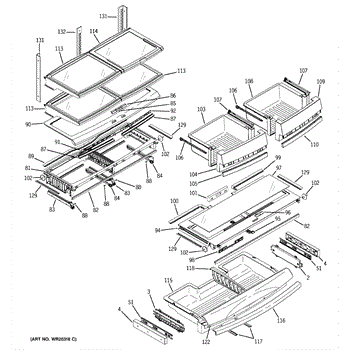

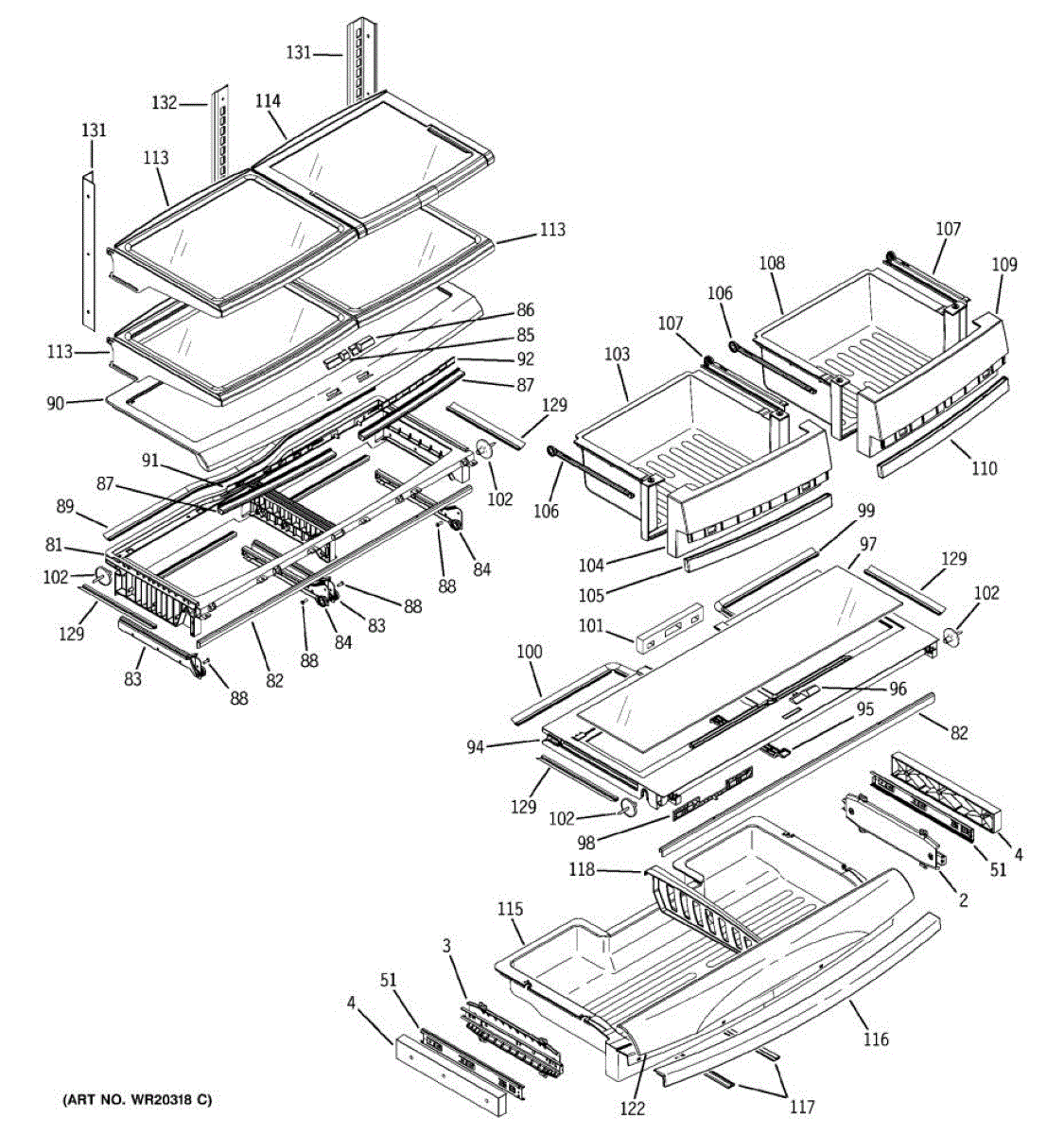

Parts for Ge PDSS5NBWARSS: 05 - Fresh Food Shelves Parts

This slide and bracket assembly supports and guides a refrigerator shelf so it moves smoothly and stays level. Replaces worn or damaged slides to restore stable shelf operation and prevent sagging or sticking. What it does:

• Provides a guided track and mounting bracket for a refrigerator shelf to slide in and out
• Restores smooth shelf movement when the shelf sticks, binds, or falls out of alignment
• Keeps the shelf level and properly supported to prevent tipping or sagging under load
• Works where original slide hardware is cracked, bent, or worn

• Disconnect power to the appliance and remove stored items from the shelf area before starting
• Remove the old slide assembly and fasteners; preserve screws if they are undamaged and re-usable
• Use common hand tools (screwdriver, nut driver) and handle edges carefully to avoid cuts

This Slide & Bracket Assembly restores smooth drawer movement by replacing a worn or broken refrigerator drawer slide. It helps keep the drawer aligned and operating properly so food storage compartments open and close reliably. What it does:

• Replaces damaged or bent drawer slide and mounting bracket that cause sticking or uneven movement
• Restores smooth sliding action and proper drawer alignment
• Prevents drawers from dropping or coming off their track
• Addresses symptoms like a drawer that sticks, tilts, or won't stay level

• One slide and bracket assembly

• Disconnect power to the appliance before servicing to avoid injury
• Remove the drawer and any stops or clips to access mounting screws; basic hand tools are typically required
• Align the bracket and slide, secure all fasteners, then test drawer movement before returning contents

This SCR is a solid-state switching module that controls on/off power flow in select appliance circuits. Replacing a failed SCR helps stop intermittent operation and restores reliable switching for affected motors or heating elements. What it does:

• Regulates electrical switching in the control circuit to turn motors or heaters on and off.
• Used where a solid-state switch is required for smooth, repeatable control.
• Symptoms of a failing SCR: appliance won't start, runs intermittently, hums without operating, or a controlled circuit does not respond.
• Restores proper switching when the original SCR is shorted, open, or erratic.

• Disconnect power to the appliance before beginning service; follow lockout/tagout procedures.
• Handle as an electronic component—avoid static discharge and protect the spade terminals from bending or contamination.
• Ensure correct orientation and secure mounting; reconnect wiring exactly as shown on the appliance wiring diagram.

This is a replacement gasket for the refrigerator pan/vegetable drawer frame that helps restore a proper seal around the produce drawer to reduce air exchange and help maintain stored-food freshness. Fits the pan/frame channel for a direct OEM-style replacement. What it does:

• Seals the vegetable/crisper pan area to limit warm or moist air from entering the drawer
• Helps reduce excess condensation and premature spoilage of produce
• Restores proper drawer fit and alignment when the original gasket is worn or damaged
• Can stop minor air leaks around the pan frame that contribute to uneven cooling

• One replacement gasket for the pan/vegetable frame

• Remove the drawer and any clips or screws securing the frame before replacing the gasket
• Clean the mating channel of debris and old adhesive/sealant before installing the new gasket
• Press the gasket evenly into the frame channel; work around the perimeter to ensure a full seat
• Unplug the refrigerator or turn off power before starting

This meat pan frame is the replacement support that holds the deli/meat pan securely in the refrigerator crisper area, restoring proper fit and preventing the pan from sagging or shifting. What it does:

• Supports and stabilizes the deli/meat pan so it stays level and slides correctly
• Helps maintain proper airflow and organization in the crisper/deli section
• Replaces a cracked, bent, or missing frame that lets the pan shift or fall
• Reduces risk of spills and food contact with damaged cabinet edges

• Unplug the appliance or disconnect power before servicing
• Remove food and the deli/meat pan before installing the frame
• Typically installs with simple clips or screws; hand tools may be required
• Inspect adjacent trim and fasteners and replace any damaged pieces for a secure fit

This inlet meat pan gasket seals the meat pan/deli drawer area to help maintain proper compartment airflow and reduce moisture and odors. It restores a tighter seal for more consistent internal temperatures and fresh storage. What it does:

• Replaces a worn or torn inlet gasket that lets air leak around the meat/deli pan
• Helps reduce moisture buildup and frost near the drawer area
• Can improve temperature consistency inside the deli/meat compartment
• Reduces food odors caused by gaps in the seal

• One inlet meat pan gasket

• Disconnect power to the appliance before starting any repair
• Remove the drawer/pan to access and clean the gasket seating area prior to install
• Press the gasket fully into its channel, ensuring an even, continuous seal around the opening
• Inspect for proper fit and reassemble drawer; check drawer operation and seal after reinstall

This vegetable pan support assembly holds and guides the crisper/vegetable drawer so it opens smoothly and keeps the cover/shelf above level. Replace a damaged support to restore proper drawer alignment and prevent sagging or sticking. What it does:

• Supports the crisper/vegetable drawer and the cover/shelf it rides on
• Maintains level alignment to reduce binding, scraping, or tipping
• Provides a stable track point for smooth drawer movement
• Common symptoms: drawer tilts, binds, or falls; shelf sags; visible cracks or broken tabs on the support

• 1 vegetable pan support assembly

• Unplug the refrigerator before servicing
• Remove the crisper drawer and cover/shelf to access the support
• Match the new support's orientation to the original; transfer any reusable hardware if applicable
• Seat the support fully and securely before reinstalling the cover/shelf and drawer; test drawer travel

This right-side replacement front for the refrigerator vegetable/crisper pan restores the drawer face and helps keep produce contained and sealed within the crisper area. Use it to replace a cracked, broken or missing front panel. What it does:

• Replaces a damaged or cracked right-side vegetable/crisper pan front to restore drawer fit and appearance
• Helps keep fruits and vegetables contained and prevents items from falling out when opening the drawer
• Supports proper drawer alignment to maintain an effective refrigerator seal and airflow around the crisper
• Visible cosmetic repair for scratched, cracked or broken drawer fronts

• Remove produce and slide the crisper drawer out to access the front panel.
• Many installations are tool-free; the front snaps or slides into the drawer frame—inspect clips and align before pressing into place.
• Handle edges carefully; dispose of broken plastic pieces safely.

This cover flip lid assembly replaces a worn or damaged ice maker/ice bin lid to keep stored ice covered and help prevent spills and contamination. It restores the lid function so the ice bin opens and closes smoothly. What it does:

• Covers the ice storage area to keep ice cleaner and reduce exposure to odors
• Provides a hinged lid that flips open for easy access to ice
• Helps prevent ice from spilling when removing the bin
• Restores proper lid alignment and operation when the old lid is cracked or broken

• Disconnect power to the appliance before beginning any work.
• Remove the ice bin and any obstructions to access the lid assembly.
• Align the hinge and snap or secure the lid into place using existing fasteners; do not force parts.
• Reinstall the ice bin, restore power, and verify the lid opens and closes smoothly.
