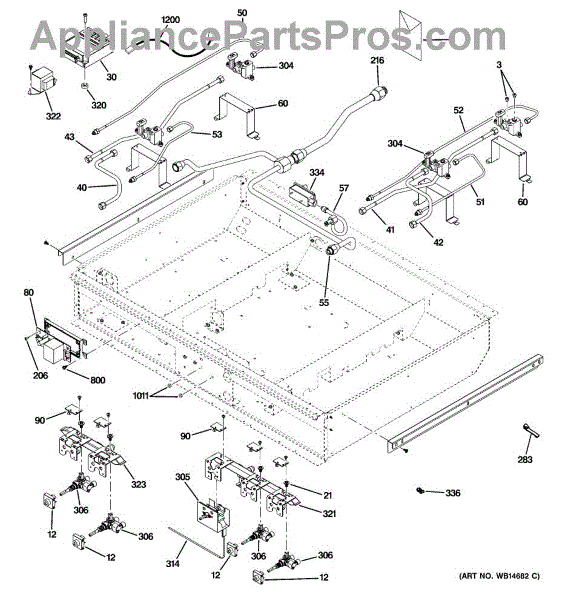

Parts for Ge ZDP364LDP2SS: 01 - Gas & Burner Parts

This carrier orifice assembly routes and meters gas to a surface burner so the cooktop lights and maintains a steady flame. It restores proper gas delivery for reliable burner performance and safer operation. What it does:

• Holds the orifice that meters gas flow to the burner for correct flame size and stability
• Ensures consistent ignition and even heating across the burner
• Can address weak, uneven, or inconsistent flames and burners that struggle to light
• Works as the mounting interface between the gas valve/orifice and the burner head

• Shut off gas supply and electrical power before servicing the appliance
• Basic hand tools are typically required; avoid forcing fittings or overtightening

This lubricant/cleaner is used during service of cooking appliances to dissolve residue and provide light lubrication on small moving parts. It helps restore smoother operation of control shafts and valves when burner knobs feel stiff or sticky. What it does:

• Cleans deposits and old grease from control shafts and valve components
• Provides light lubrication to reduce friction and sticking
• Helps address symptoms such as hard-to-turn burner knobs or rough valve rotation
• Supports preventative maintenance during range/cooktop service

• Lubricant/cleaner

• Disconnect power and shut off gas; allow the appliance to cool before servicing
• Work in a well-ventilated area and keep away from open flames or ignition sources
• Apply sparingly per service instructions; avoid contact with igniters, electrical components, and flame ports
• Replace any worn or leaking valve—do not rely on lubricant/cleaner to correct a leak

This spud orifice is the gas flow jet that meters fuel to a griddle burner, restoring proper flame size and heat for cooking. It's a direct-replacement consumable used in gas griddle assemblies. What it does:

• Precisely meters gas to the griddle burner so the flame burns correctly for even heating
• Helps resolve weak, uneven, or absent griddle flames when the orifice is clogged or damaged
• Reduces improper combustion symptoms such as sputtering or inconsistent heat output
• Works as a replacement component in burner/griddle fuel delivery systems

• One spud orifice for griddle burner

• Turn off the gas supply and power to the appliance before beginning work
• Replace only with the matching orifice for your appliance;
• Use basic hand tools; avoid forcing fittings to prevent damage to the burner or manifold

Natural gas. Main burner.

Natural gas. Simmer burner

Liquid propane. Main burner.

Liquid propane. Simmer burner

This 1/4-20 screw secures panels, brackets, and other assemblies in your appliance. It restores a tight, reliable hold when an original fastener is missing, stripped, or corroded.

• Fastens components that require a 1/4-20 threaded screw
• Helps keep panels and assemblies aligned and rattle-free
• Direct replacement for worn, rusted, or lost hardware
• Common symptoms: loose or vibrating parts, misaligned brackets, missing fastener

• Disconnect power; turn off gas supply before servicing
• Allow the appliance to cool; wear gloves and eye protection
• Start threads by hand to avoid cross-threading; use the correct driver/tool
• Tighten snugly—do not overtighten to prevent stripping or damage

This spark module controls surface-burner ignition on gas cooktops and ranges, sending high-voltage pulses to the igniters when you turn a knob. Replacing a failed module restores quick, consistent sparking so burners light reliably.

• Generates and routes high-voltage pulses to the surface burner igniters
• Triggers sparking when a burner knob is turned to the Ignite/Light position
• Common symptoms: no spark or clicking on any burners; multiple burners won't ignite; weak or intermittent sparking
• Restores dependable ignition performance across the surface burners

• Disconnect electrical power and shut off gas supply before servicing
• Access the module behind the control area or beneath the cooktop, depending on model
• Label and transfer wires one at a time to the new module to maintain correct placement
• Mount securely and ensure a good ground; test burner ignition before reassembly

18K

This LED power supply powers and regulates the refrigerator's LED lighting, restoring reliable interior illumination. It replaces a failed driver to stop flicker and prevent LEDs from remaining dark or dim. What it does:

• Converts appliance line voltage to the proper low-voltage DC for LED strips
• Keeps LED lights stable and prevents flickering or intermittent operation
• Restores full brightness when a failed driver causes dim or no interior lighting
• Protects LEDs from irregular voltage that can shorten lamp life

• Disconnect power to the appliance before starting any work to avoid shock.
• Handle the board and connectors carefully to avoid static or physical damage.
• Basic hand tools and access to the light housing/panel are usually required.

This LED light assembly replaces a failed or damaged interior refrigerator light to restore bright, energy-efficient illumination inside the fresh-food compartment. It mounts in the light housing and connects to the factory wiring harness. What it does:

• Replaces burned-out or broken interior LED lighting
• Restores consistent, flicker-free illumination when the door is opened
• Helps you see foods and settings clearly on shelves and door bins
• Works with the factory light housing and wiring for a direct replacement

• Disconnect power to the appliance before beginning any work to avoid electric shock.
• Handle the LED assembly and connectors carefully; avoid touching LED surfaces or exposing contacts to moisture.
• Some installations require removing the light housing or interior trim; keep fasteners organized for reassembly.
• If mounting screws, brackets, or clips are not obvious, refer to the appliance's parts diagram or service manual to identify the correct removal order.

This genuine replacement screw secures panels, trim and small components on compatible appliances to restore proper fit and prevent rattling or gaps. Use it when a missing or damaged fastener causes loose or misaligned parts. What it does:

• Fastens panels, bezels, trim pieces and small assemblies to the appliance frame
• Restores secure fit to eliminate rattling, vibration noise or loose trim
• Replaces stripped, rusted or missing screws that prevent proper alignment

• Disconnect power to the appliance before servicing to avoid electrical hazard
• Use the correct screwdriver or driver bit to prevent stripping the head
• Tighten securely but avoid over-torquing; excessive force can strip threads or crack plastics
• Keep removed fasteners organized to ensure correct reassembly

The Valve Dual is an OEM replacement part for GE gas ranges that feature dual fuel capabilities. Located beneath the center burner head, this dual valve simultaneously regulates gas and electric functions for hybrid cooking options.

Symptoms of issues include:

• Inconsistent or unstable electric element heating
• Irregular gas burner ignition and temperature control
• Abnormal sounds originating from the center cooking location

Causes typically involve the degradation of internal thermostatic components from prolonged combined gas/electric use. Physical obstructions blocking valve operation could also impair functionality.

This genuine GE dual valve is compatible with select Hotpoint, RCA and Kenmore ranges as well.

This handle grommet cushions and secures a range or oven door handle, preventing vibration and wear while keeping the handle snug. It's a small replaceable part that restores proper fit and reduces rattling. What it does

• Provides a soft mounting surface between the handle and door to prevent metal-to-metal contact
• Keeps the handle tight and aligned to stop looseness or movement
• Dampens vibration and reduces rattling during operation
• Helps protect the door finish where the handle mounts

• One handle grommet

• High-level push-fit part; remove the handle or access the mounting area per your model's service instructions
• Disconnect power to the appliance before beginning service when accessing electrical or heated components
• Use a plastic trim tool or small screwdriver to pry out the old grommet carefully to avoid scratching the door
• If the handle or mounting hardware is damaged, inspect and replace as needed for a lasting repair

This pipe manifold assembly routes gas from the supply to the cooktop burners so the range's burners get a steady, metered fuel feed for normal flame operation. It replaces a damaged or leaking manifold to restore safe gas delivery. What it does

• Distributes incoming gas to the individual burner valves for proper burner operation
• Helps maintain consistent burner flames and reliable ignition
• Stops gas leaks when a cracked or corroded manifold is replaced
• Addresses symptoms such as a persistent gas smell near the cooktop, burners that won't light, or uneven flame at one or more burners

• One pipe manifold assembly

• Turn off gas supply and electrical power to the appliance before beginning work
• Recommended for experienced DIYers comfortable with gas fittings
• Use proper gaskets/seals and tighten fittings per manufacturer torque guidance; always perform a leak test after installation
• Inspect adjacent valves, lines, and connections for damage while replacing the manifold

This replacement transformer converts household line voltage to the correct level for the appliance's control circuits. It restores stable power to the display and relays so the unit can start and run consistently.

• Converts incoming AC power to the proper voltage for electronic controls and relays
• Failure can leave the display blank and controls unresponsive even though power is supplied
• Intermittent resets or loss of functions can indicate a weakening transformer
• Replace if windings test open/shorted or the part shows overheating damage

• Disconnect power at the breaker before servicing; this part connects to line voltage
• Photograph and label wires; transfer connections one at a time to the new part
• Mount securely and route wiring away from sharp edges and hot components
• Restore power and verify the controls power up normally

This pipe manifold assembly supplies and distributes gas to a range's burners so the cooktop lights and heats consistently. It replaces a damaged or leaking manifold to restore safe fuel delivery to each burner. What it does:

• Channels gas from the main valve to individual burner ports for even ignition
• Stops operation or causes gas odor when cracked, corroded, or loose
• Prevents burners from lighting properly if blocked or leaking
• Works with the cooktop's valves and orifice connections to control flow

• One pipe manifold assembly

• Turn off the appliance and shut off the household gas supply before servicing
• Inspect and replace related gaskets, fittings, or mounting hardware as needed
• After installation, check all connections with an approved gas leak detector and verify proper burner operation

A single 6-32 keps nut that secures panels and components by combining a hex nut with a captive lock washer for vibration-resistant fastening. Fits standard 6-32 machine screws to restore proper fastener function and fit. What it does:

• Provides a secure threaded connection for 6-32 screws where a built-in lock washer prevents loosening.
• Commonly used to fasten panels, brackets, and small components prone to vibration.
• Replaces missing, stripped, or damaged nuts causing loose panels, rattling, or misaligned parts.
• Works with standard 6-32 threaded hardware in appliance assemblies.

• One keps nut (6-32).

• Unplug or disconnect power before working on the appliance.
• Hand-start the nut on the screw to avoid cross-threading, then tighten with the appropriate wrench or socket.
• Do not overtighten; stop when snug and the captive washer seats against the surface.
• If threads are damaged, replace the mating screw or repair the threads before installing.

High-voltage harness routes power between high-voltage components in a microwave oven, restoring safe electrical connections and preventing intermittent operation or arcing when replacing a damaged or burned wiring assembly. What it does:

• Connects the microwave's high-voltage components to maintain proper power flow.
• Failing or damaged harnesses can cause no-heat, intermittent heating, arcing, burning smell, or blown fuses.
• Replaces frayed, melted, or corroded high-voltage wiring that risks shorting or unsafe operation.
• Designed to restore original electrical routing and secure connector fit for reliable operation.

• Disconnect power and unplug the appliance before servicing. Ensure the high-voltage capacitor is properly discharged—do not attempt service without this step.
• Inspect connectors, insulation, and routing; replace damaged clips or retainers and secure wiring away from sharp edges and moving parts.
• Follow the wiring diagram for correct connections.
• Never operate the appliance with covers or safety panels removed.
