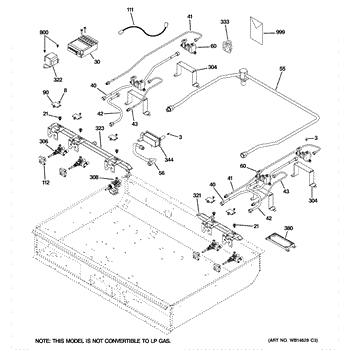

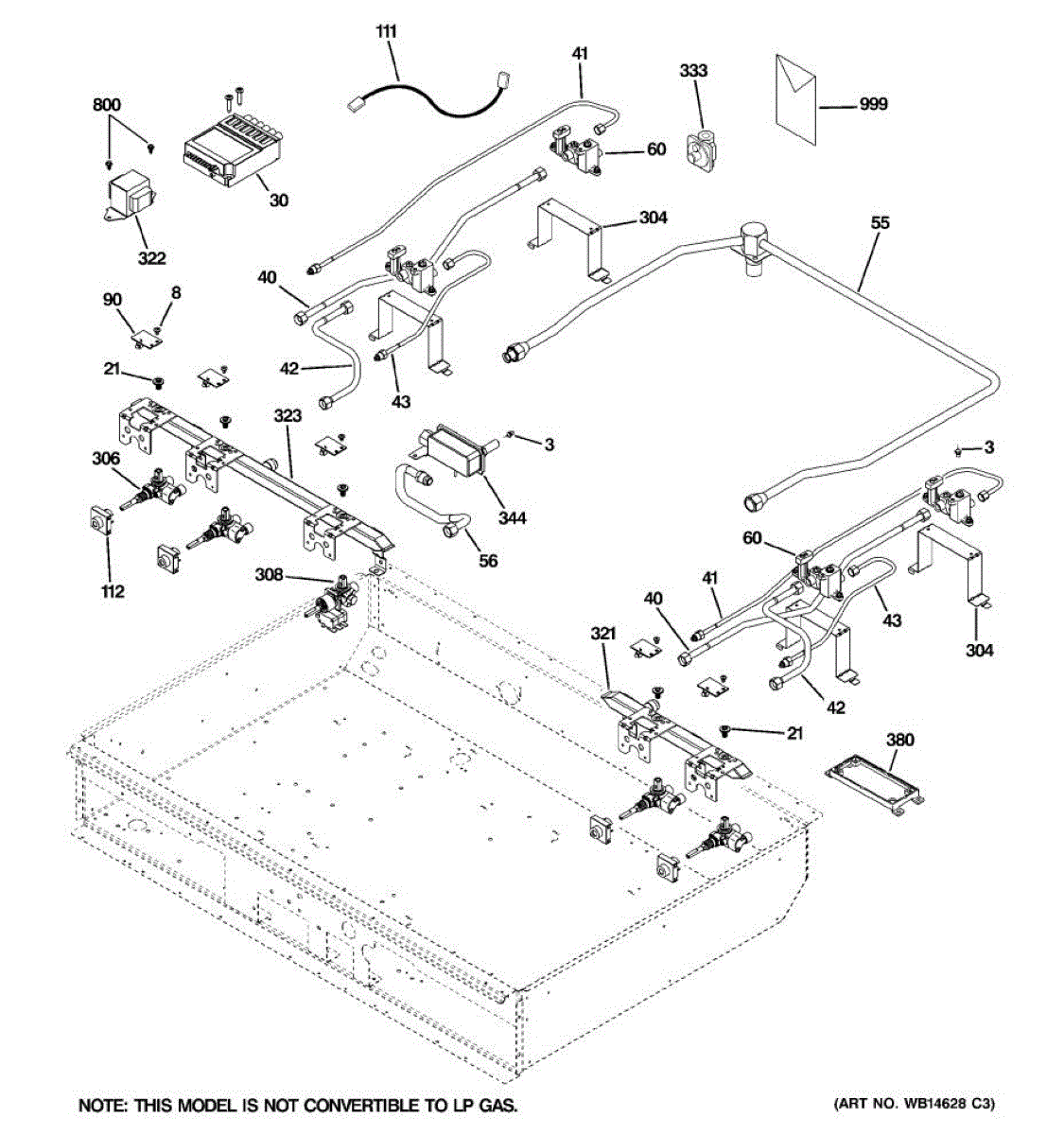

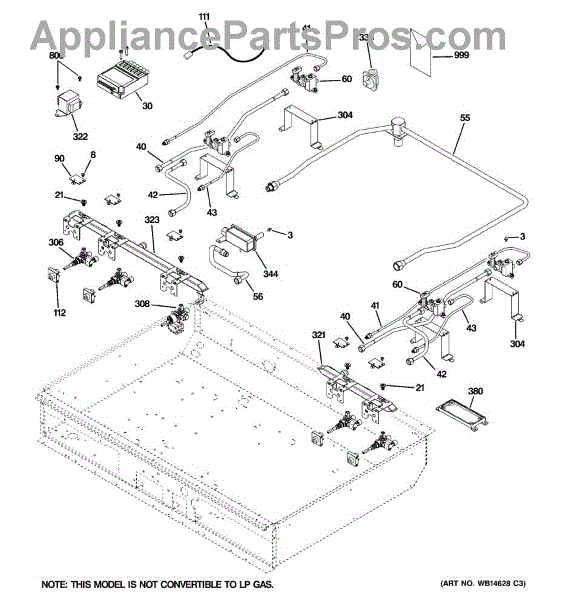

Parts for Ge ZGU364NRP4SS: 01 - Gas & Burner Parts

Natural gas. Main burner.

Natural gas. Simmer burner

Size: 8 - 32 inch.

This 1/4-20 screw secures panels, brackets, and other assemblies in your appliance. It restores a tight, reliable hold when an original fastener is missing, stripped, or corroded.

• Fastens components that require a 1/4-20 threaded screw
• Helps keep panels and assemblies aligned and rattle-free
• Direct replacement for worn, rusted, or lost hardware
• Common symptoms: loose or vibrating parts, misaligned brackets, missing fastener

• Disconnect power; turn off gas supply before servicing
• Allow the appliance to cool; wear gloves and eye protection
• Start threads by hand to avoid cross-threading; use the correct driver/tool
• Tighten snugly—do not overtighten to prevent stripping or damage

18K

This LED light assembly replaces a failed or damaged interior refrigerator light to restore bright, energy-efficient illumination inside the fresh-food compartment. It mounts in the light housing and connects to the factory wiring harness. What it does:

• Replaces burned-out or broken interior LED lighting
• Restores consistent, flicker-free illumination when the door is opened
• Helps you see foods and settings clearly on shelves and door bins
• Works with the factory light housing and wiring for a direct replacement

• Disconnect power to the appliance before beginning any work to avoid electric shock.
• Handle the LED assembly and connectors carefully; avoid touching LED surfaces or exposing contacts to moisture.
• Some installations require removing the light housing or interior trim; keep fasteners organized for reassembly.
• If mounting screws, brackets, or clips are not obvious, refer to the appliance's parts diagram or service manual to identify the correct removal order.

High-voltage harness routes power between high-voltage components in a microwave oven, restoring safe electrical connections and preventing intermittent operation or arcing when replacing a damaged or burned wiring assembly. What it does:

• Connects the microwave's high-voltage components to maintain proper power flow.
• Failing or damaged harnesses can cause no-heat, intermittent heating, arcing, burning smell, or blown fuses.
• Replaces frayed, melted, or corroded high-voltage wiring that risks shorting or unsafe operation.
• Designed to restore original electrical routing and secure connector fit for reliable operation.

• Disconnect power and unplug the appliance before servicing. Ensure the high-voltage capacitor is properly discharged—do not attempt service without this step.
• Inspect connectors, insulation, and routing; replace damaged clips or retainers and secure wiring away from sharp edges and moving parts.
• Follow the wiring diagram for correct connections.
• Never operate the appliance with covers or safety panels removed.

The Valve Dual is an OEM replacement part for GE gas ranges that feature dual fuel capabilities. Located beneath the center burner head, this dual valve simultaneously regulates gas and electric functions for hybrid cooking options.

Symptoms of issues include:

• Inconsistent or unstable electric element heating
• Irregular gas burner ignition and temperature control
• Abnormal sounds originating from the center cooking location

Causes typically involve the degradation of internal thermostatic components from prolonged combined gas/electric use. Physical obstructions blocking valve operation could also impair functionality.

This genuine GE dual valve is compatible with select Hotpoint, RCA and Kenmore ranges as well.

This pipe manifold assembly routes gas from the range's main valve to the individual burners, restoring proper fuel flow for reliable heating. Designed to replace a worn or damaged manifold to help get burners operating correctly. What it does:

• Distributes gas evenly from the main valve to each cooktop burner
• Replaces bent, cracked, or corroded manifold tubing that can block flow
• Addresses symptoms like burners that won't light, weak or uneven flames, or multiple burner failures
• Works with the appliance's existing valves and fittings to restore normal operation

• Turn off gas supply and unplug the appliance before starting work
• Check for leaks with a soap solution or approved leak detector after installation
• Only replace with the exact part number specified for your appliance

This replacement transformer converts household line voltage to the correct level for the appliance's control circuits. It restores stable power to the display and relays so the unit can start and run consistently.

• Converts incoming AC power to the proper voltage for electronic controls and relays
• Failure can leave the display blank and controls unresponsive even though power is supplied
• Intermittent resets or loss of functions can indicate a weakening transformer
• Replace if windings test open/shorted or the part shows overheating damage

• Disconnect power at the breaker before servicing; this part connects to line voltage
• Photograph and label wires; transfer connections one at a time to the new part
• Mount securely and route wiring away from sharp edges and hot components
• Restore power and verify the controls power up normally

This pipe manifold assembly routes gas from the regulator to the cooktop burners for consistent fuel delivery and proper burner operation. It replaces a damaged or leaking manifold to restore safe, even burner flames. What it does:

• Distributes gas to each burner so burners can ignite and maintain flame
• Stops common issues like weak or no flame when manifold passages are blocked or damaged
• Helps eliminate gas leaks caused by cracked or corroded manifold tubing
• Works with the cooktop's valves and orifices to ensure correct fuel flow to burners

• One pipe manifold assembly

• Turn off the gas supply and power to the appliance before starting any work
• Inspect gaskets, fittings and orifices for wear and replace as needed
• Tighten all fittings to manufacturer torque specifications and test for leaks with soapy water or a gas leak detector

This regulator controls gas pressure to the range/oven so burners and the oven heat consistently and safely. Replaces a failed regulator to restore proper flame behavior and reliable cooking performance. What it does:

• Regulates incoming gas pressure to the appliance's burner system
• Helps maintain steady, even flame height for consistent cooking
• Resolves symptoms like weak or uneven flames, burners that won't light, or poor oven heat
• Prevents over-pressurization that can cause unstable burner operation

• One regulator

• Turn off the gas supply and electrical power before beginning work
• Install using proper fittings and thread sealant rated for gas; tighten to OEM torque specs
• After installation, test all gas connections for leaks (do not use an open flame)

This mounting bracket secures the range/oven power supply assembly to the appliance frame, keeping the supply stable and properly positioned for reliable operation and safe electrical connections. What it does:

• Holds the power supply assembly in place to prevent movement and vibration
• Helps maintain correct alignment of electrical connections to avoid intermittent power
• Reduces strain on wiring and components that can cause arcing or connection issues
• Supports safe operation by keeping the supply mounted away from heat and other parts

• Turn off and disconnect power at the breaker before servicing to avoid electrical shock
• Handle sharp sheet-metal edges with care and wear gloves
• Verify proper orientation and secure all fasteners; confirm wiring is routed clear of moving parts and heat sources
