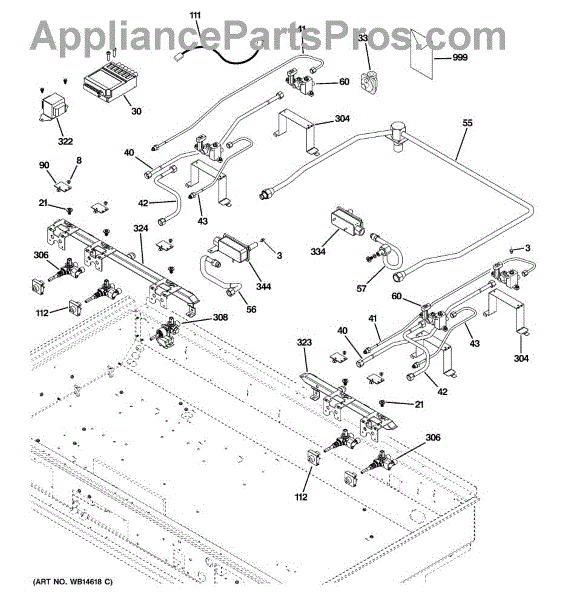

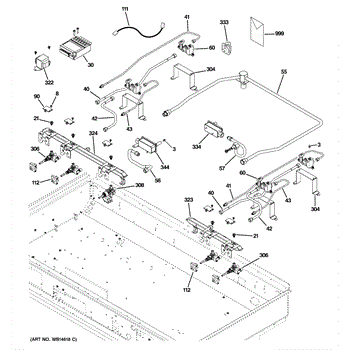

Parts for Ge ZGU484LGP2SS: 01 - Gas & Burner Parts

This spud orifice is the gas flow jet that meters fuel to a griddle burner, restoring proper flame size and heat for cooking. It's a direct-replacement consumable used in gas griddle assemblies. What it does:

• Precisely meters gas to the griddle burner so the flame burns correctly for even heating
• Helps resolve weak, uneven, or absent griddle flames when the orifice is clogged or damaged
• Reduces improper combustion symptoms such as sputtering or inconsistent heat output
• Works as a replacement component in burner/griddle fuel delivery systems

• One spud orifice for griddle burner

• Turn off the gas supply and power to the appliance before beginning work
• Replace only with the matching orifice for your appliance;
• Use basic hand tools; avoid forcing fittings to prevent damage to the burner or manifold

Natural gas. Main burner.

Natural gas. Simmer burner

Liquid propane. Main burner.

Liquid propane. Simmer burner

Size: 8 - 32 inch.

This 1/4-20 screw secures panels, brackets, and other assemblies in your appliance. It restores a tight, reliable hold when an original fastener is missing, stripped, or corroded.

• Fastens components that require a 1/4-20 threaded screw
• Helps keep panels and assemblies aligned and rattle-free
• Direct replacement for worn, rusted, or lost hardware
• Common symptoms: loose or vibrating parts, misaligned brackets, missing fastener

• Disconnect power; turn off gas supply before servicing
• Allow the appliance to cool; wear gloves and eye protection
• Start threads by hand to avoid cross-threading; use the correct driver/tool
• Tighten snugly—do not overtighten to prevent stripping or damage

This spark module controls surface-burner ignition on gas cooktops and ranges, sending high-voltage pulses to the igniters when you turn a knob. Replacing a failed module restores quick, consistent sparking so burners light reliably.

• Generates and routes high-voltage pulses to the surface burner igniters
• Triggers sparking when a burner knob is turned to the Ignite/Light position
• Common symptoms: no spark or clicking on any burners; multiple burners won't ignite; weak or intermittent sparking
• Restores dependable ignition performance across the surface burners

• Disconnect electrical power and shut off gas supply before servicing
• Access the module behind the control area or beneath the cooktop, depending on model
• Label and transfer wires one at a time to the new module to maintain correct placement
• Mount securely and ensure a good ground; test burner ignition before reassembly

18K

This LED light assembly replaces a failed or damaged interior refrigerator light to restore bright, energy-efficient illumination inside the fresh-food compartment. It mounts in the light housing and connects to the factory wiring harness. What it does:

• Replaces burned-out or broken interior LED lighting
• Restores consistent, flicker-free illumination when the door is opened
• Helps you see foods and settings clearly on shelves and door bins
• Works with the factory light housing and wiring for a direct replacement

• Disconnect power to the appliance before beginning any work to avoid electric shock.
• Handle the LED assembly and connectors carefully; avoid touching LED surfaces or exposing contacts to moisture.
• Some installations require removing the light housing or interior trim; keep fasteners organized for reassembly.
• If mounting screws, brackets, or clips are not obvious, refer to the appliance's parts diagram or service manual to identify the correct removal order.

This burner-box harness is the wiring assembly that connects the cooktop/oven burner components to the appliance's control system, restoring proper electrical connections for ignition and safety circuits. What it does:

• Routes and connects burner/igniter, safety valve, and related wiring inside the burner box
• Enables reliable ignition and control signal transmission for gas burners
• Commonly replaced when wires are damaged, burned, melted, or have loose/broken terminals
• Helps prevent intermittent ignition or loss of burner function caused by wiring faults

• Disconnect power and shut off gas supply before starting any repair
• Inspect connector ends and routing; replace if insulation or terminals show damage
• Secure harness away from high-heat surfaces and moving parts to prevent future wear

The Valve Dual is an OEM replacement part for GE gas ranges that feature dual fuel capabilities. Located beneath the center burner head, this dual valve simultaneously regulates gas and electric functions for hybrid cooking options.

Symptoms of issues include:

• Inconsistent or unstable electric element heating
• Irregular gas burner ignition and temperature control
• Abnormal sounds originating from the center cooking location

Causes typically involve the degradation of internal thermostatic components from prolonged combined gas/electric use. Physical obstructions blocking valve operation could also impair functionality.

This genuine GE dual valve is compatible with select Hotpoint, RCA and Kenmore ranges as well.

This switch valve assembly replaces the appliance's combined valve and switch module to restore controlled on/off operation of the valve. It provides a direct replacement for the original electromechanical valve switch to help the appliance operate reliably. What it does:

• Acts as the combined valve and switch module that controls flow when signaled by the appliance control
• Reestablishes reliable electrical switching to open and close the valve under normal operation
• Commonly used when the valve fails to actuate or when intermittent valve switching occurs
• Helps eliminate symptoms such as failure to start flow, no actuation, or inconsistent on/off cycling

• Disconnect power to the appliance before servicing; if the valve controls gas or water, also shut off supply
• Take photos or mark wiring before disconnecting to ensure correct reconnection
• Handle the part by mounting points; avoid stressing wiring or connectors

This replacement transformer converts household line voltage to the correct level for the appliance's control circuits. It restores stable power to the display and relays so the unit can start and run consistently.

• Converts incoming AC power to the proper voltage for electronic controls and relays
• Failure can leave the display blank and controls unresponsive even though power is supplied
• Intermittent resets or loss of functions can indicate a weakening transformer
• Replace if windings test open/shorted or the part shows overheating damage

• Disconnect power at the breaker before servicing; this part connects to line voltage
• Photograph and label wires; transfer connections one at a time to the new part
• Mount securely and route wiring away from sharp edges and hot components
• Restore power and verify the controls power up normally

This pipe manifold assembly routes gas from the regulator to the cooktop burners for consistent fuel delivery and proper burner operation. It replaces a damaged or leaking manifold to restore safe, even burner flames. What it does:

• Distributes gas to each burner so burners can ignite and maintain flame
• Stops common issues like weak or no flame when manifold passages are blocked or damaged
• Helps eliminate gas leaks caused by cracked or corroded manifold tubing
• Works with the cooktop's valves and orifices to ensure correct fuel flow to burners

• One pipe manifold assembly

• Turn off the gas supply and power to the appliance before starting any work
• Inspect gaskets, fittings and orifices for wear and replace as needed
• Tighten all fittings to manufacturer torque specifications and test for leaks with soapy water or a gas leak detector

This oven gas pressure regulator controls and stabilizes gas flow to the oven burner so the appliance heats reliably and maintains consistent cooking temperatures. Replaces a worn or failed regulator to restore normal burner operation. What it does:

• Regulates gas pressure delivered to the oven burner for steady flame and temperature control.
• Helps prevent low or uneven heat that can cause undercooked food or extended cook times.
• Works as part of the oven's gas supply system and interacts with the thermostat and safety valves.

• Turn off gas supply and electrical power before servicing; test for leaks after installation.
• Replacement may require basic appliance service skills and the correct fittings.
• Do not modify the part; use only as specified by the manufacturer.

This regulator controls gas pressure to the range/oven so burners and the oven heat consistently and safely. Replaces a failed regulator to restore proper flame behavior and reliable cooking performance. What it does:

• Regulates incoming gas pressure to the appliance's burner system
• Helps maintain steady, even flame height for consistent cooking
• Resolves symptoms like weak or uneven flames, burners that won't light, or poor oven heat
• Prevents over-pressurization that can cause unstable burner operation

• One regulator

• Turn off the gas supply and electrical power before beginning work
• Install using proper fittings and thread sealant rated for gas; tighten to OEM torque specs
• After installation, test all gas connections for leaks (do not use an open flame)

This safety valve controls gas flow to the range/oven burner and helps ensure reliable ignition and shutoff for safe cooking. Replacing a worn valve restores proper gas delivery and can stop intermittent heating issues. What it does:

• Opens and closes the gas supply to the oven/burner so burners ignite only when commanded
• Prevents uncontrolled gas flow when the appliance is off
• Common replacement when burners or oven fail to light or heat inconsistently
• Can address persistent clicking, weak flame, or failure to maintain temperature

• One safety valve

• Turn off the appliance power and gas supply before starting work
• Inspect and replace any damaged gaskets or fittings during installation
• Use proper tubing fittings and a leak test after reassembly; check for tight seals
