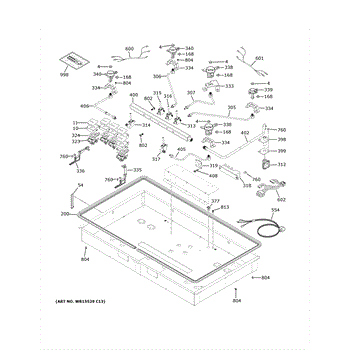

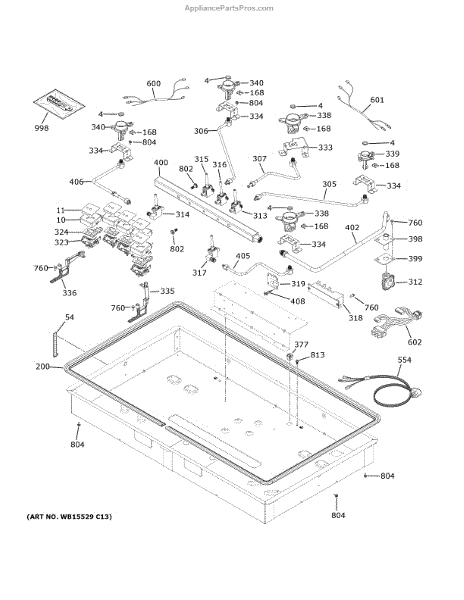

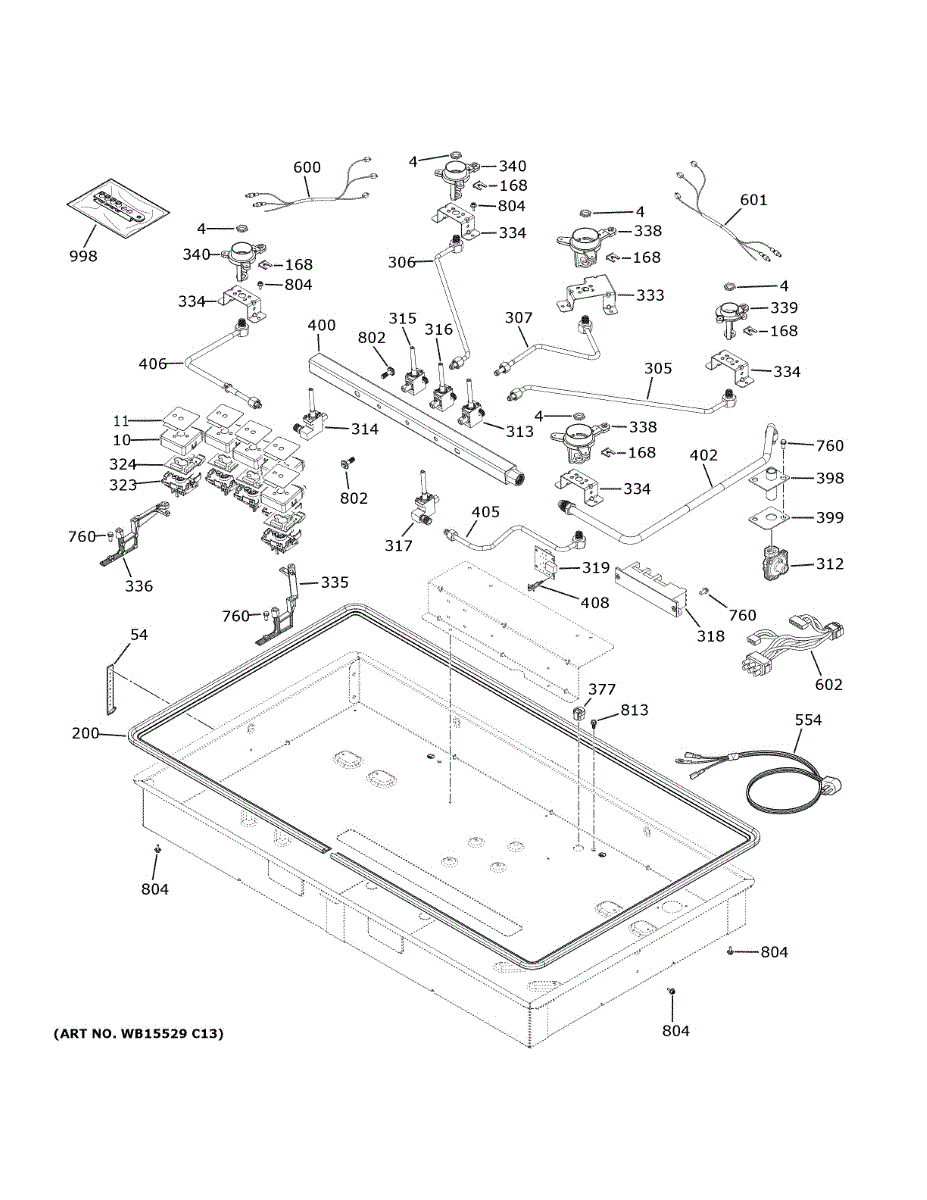

Parts for Ge PGP7036BM1TS: Gas & Burner Parts

This economic nut is a small replacement fastening nut that restores secure connections for appliance components. It replaces worn or missing hardware so panels and internal parts stay firmly seated and reduce vibration. What it does:

• Secures components and panels by threading onto the matching stud or bolt to hold assemblies in place
• Prevents loose or rattling panels and hardware caused by a missing or damaged nut
• Restores proper fit for user-accessible panels and internal brackets where this nut is specified
• Simple hardware replacement to regain stable mechanical connections

• Disconnect power and water (if applicable) and follow basic electrical safety before servicing the appliance
• Use the matching size wrench or socket; thread-on by hand first to avoid cross-threading, then snug—do not overtighten
• Inspect mating stud or bolt for damage; replace hardware that is stripped, corroded, or deformed

This LED board housing (white) secures and shields the LED light board within your appliance's lighting or control assembly, keeping the board properly aligned and protected for reliable illumination and a clean, finished appearance.

• Positions the LED board correctly so light is directed where intended
• Protects the board from movement and incidental contact
• Helps maintain a snug, rattle-free fit of the surrounding trim/assembly
• Typical failure signs: cracked or missing housing, a loose LED board, uneven or intermittent illumination around the lit area

• Disconnect power at the breaker before servicing.
• Access the LED/light assembly per your model's service or parts diagram.
• Transfer the existing LED board (and any clips) into the new housing; secure with original fasteners.
• Reassemble, restore power, and test the light before final closure.

This housing film is a thin protective barrier that installs on an appliance housing to help shield nearby components from grease, moisture, and abrasion. Replacing a damaged or missing film helps maintain proper protection and a clean, secure fit.

• Provides a protective layer between the housing and internal components
• Helps limit moisture, grease, and debris intrusion
• Can restore correct spacing where the film serves as an insulator/shim
• Replace if the original is torn, warped, peeling, or missing

• Disconnect power at the breaker or unplug the appliance before servicing
• Note the orientation of the original film and match it during installation
• Handle by the edges; avoid creasing or contaminating the surface
• Ensure the film lays flat and fully seated before reassembly

The Clip Igniter is an OEM replacement part for GE ranges.

This GE OEM replacement is also compatible with some Hotpoint, Sears Kenmore, and RCA models.

This center gas tube assembly routes gas from the manifold to the center burner on compatible gas ranges and cooktops, restoring proper fuel flow for reliable ignition and even burner operation. What it does:

• Directs gas from the manifold to the center burner for normal burner operation
• Helps restore ignition when the center burner fails to light
• Addresses weak or uneven flame at the center burner when tubing is clogged or damaged
• Prevents gas leakage at the burner connection when installed correctly

• Turn off gas supply and electrical power to the appliance before servicing
• Use appropriate fittings and gas-rated thread sealant where required; do not overtighten
• After installation, check all connections for leaks with a gas leak detector or soapy water and test burner operation

This gas pressure regulator controls and stabilizes incoming gas pressure to your appliance. A properly regulated supply helps ensure steady flames and consistent heating performance when cooking or baking.

• Regulates and maintains correct gas pressure to the range/oven
• Convertible design for Natural Gas or LP setups
• Issues may include weak or uneven flames, burners not lighting, or oven temperature problems
• Can help address gas odor concerns when the source is an internal regulation fault

• Disconnect power and shut off gas before service; verify no leaks after installation
• Follow the appliance's conversion/installation instructions for NG/LP configuration
• Use approved thread sealant on threaded fittings as directed by the manufacturer
• After installation, perform a leak test and verify proper burner operation and flame quality

This gas valve (LF) controls gas flow to the burner for safe, consistent ignition and heating—restoring proper fuel delivery so the cooktop or oven reaches and maintains set temperatures. What it does:

• Regulates gas flow to the burner assembly for controlled ignition and heating.
• Works with the appliance's safety and ignition systems to allow safe operation.
• Commonly replaced when burners fail to light, the oven won't heat, or heat is intermittent.
• Enables reliable on/off control of gas when commanded by the appliance controls.

• Turn off electrical power and shut off the gas supply before beginning service.
• After installation, check all gas connections for leaks and verify proper operation.
• Follow all local codes and the appliance manufacturer's installation instructions.

Replacement center gas valve that controls gas flow to the oven/burner assembly, restoring proper fuel delivery and ignition for safe, consistent heating. Fits compatible GE gas ranges and ovens when this valve is the failed component. What it does:

• Regulates gas flow to the oven's center burner so the unit can ignite and maintain temperature
• Works with the range's ignition system to open/close fuel supply on demand
• Common failure symptoms: oven or center burner won't light, uneven or no heating, repeated ignition cycling

• Turn off gas supply and electrical power before starting any work
• Match wiring and mounting to the original valve—do not force connections or modify parts
• After installation, check for proper ignition, operation, and gas-tight seals per OEM guidance

This single-stage gas valve controls natural or LP gas flow to the oven burner, restoring ignition and temperature control for safe, consistent cooking. Replace a failed valve to address no-heat or erratic burner performance. What it does

• Opens and closes to let gas reach the oven burner when the range calls for heat
• Enables reliable ignition; commonly replaced when oven won't light or stays off
• Helps maintain steady burner operation when temperature cycles are inconsistent
• Works with the appliance's existing safety and control systems to ensure proper shutdown

• One replacement gas valve

• Shut off gas supply and unplug appliance before starting work
• Use proper fittings and sealants rated for gas; check for leaks after installation
• Do not attempt conversion between natural gas and LP without verified kit and instructions

This LED control board is the refrigerator's electronic display and interface module that lets you view settings and status. Replaces a faulty display board to restore visible indicators and electronic control feedback. What it does:

• Powers and drives the LED display so temperature and status information is visible
• Provides the user interface signals for touchpads/buttons on the control panel
• Can cause dim or no display, unresponsive control panel, or missing status indicators when failing
• Works with the main control system to communicate user commands to the refrigerator electronics

• Disconnect power to the appliance before starting work to avoid shock or shorting circuits
• Handle the board by its edges and avoid touching components to reduce risk of ESD damage
• Remove the control panel or console trim as needed; keep track of screws and connectors
• Verify proper connector seating and test functions before reassembling the appliance

The Switch Harness Assembly is an OEM part for GE gas cooktops. It connects control knobs and switches to regulate cooking functions.

Symptoms of a bad switch harness include:

• Faulty or non-responsive burners/control knobs
• Inability to ignite burners or adjust flames
• Intermittent or no power to electrical components

Causes involve cut/worn wires from repeated use under high heat, loose terminals, or cracked casings over time.

This GE replacement part is also compatible with Hotpoint and RCA gas cooktop models.

This LED board powers and controls the appliance's LED illumination and indicators to ensure clear, stable visibility. When it fails, LEDs may be dim, flicker, show missing segments, or stay completely dark.

• Regulates power to LED circuits for consistent brightness and operation
• Drives indicator/display LEDs based on signals from the main control
• Helps communicate appliance status and settings to the user
• Common symptoms: dim or flickering LEDs, missing segments, intermittent lighting, or no illumination

• Disconnect power to the appliance before servicing to avoid electrical shock
• Handle the PCB by the edges and observe anti-static precautions
• Note connector locations; transfer any mounting brackets or hardware from the original board
• After reassembly, restore power and verify LED operation

This mounting bracket secures components in place to keep appliance parts stable and properly aligned during operation. It restores structural support so panels or assemblies remain correctly positioned and reduces movement-related noise or wear. What it does:

• Provides a secure mounting point to hold panels, modules, or assemblies in position
• Restores alignment and prevents parts from shifting or vibrating during use
• Helps reduce rattling or intermittent contact caused by loose components
• Suitable when old or damaged brackets are bent, cracked, or missing

• Turn off and unplug the appliance (or disconnect power) before beginning any work
• Handle sharp edges carefully and use appropriate hand tools for removal and installation
• Verify bracket orientation and fastener locations match the original part before tightening
• If mounting hardware is missing or damaged, replace with matching fasteners

This genuine OEM GE replacement is compatible with additional Hotpoint, RCA and Kenmore gas range models.

This small V2 inlet jet directs water flow to the dispenser/ice-making area so the appliance fills and forms properly. It restores correct water routing for consistent filling and helps reduce weak or misshapen ice or slow dispensing. What it does:

• Channels water to the ice maker/dispenser so the correct amount reaches the fill area.
• Helps ensure uniform ice formation and consistent dispenser flow.
• Can resolve symptoms like weak/slow dispensing, underfilled ice trays, or uneven ice cubes.
• Works as the small replacement nozzle where the original inlet jet is worn or blocked.

• One small V2 inlet jet

• Disconnect power and shut off the water supply before beginning work.
• Access may require removing inner panels or the ice maker/dispenser housing; follow your model's service instructions.
• Inspect the seat and surrounding fittings for debris or damage before installing; replace other damaged components as needed.

The Medium surface burner base is an OEM part for GE ranges. It serves as the base for the surface burners, covering and protecting the burner cavities.

Causes of a bad surface burner base include warping or deformation from high heat over time, cracks or breaks from impact damage, or corrosion from liquid spills or grease accumulation.

Symptoms of a bad surface burner base include:

• Burners no longer sitting flush or securely on the cooktop surface
• Excessive air gaps around the burners allowing gas/flames to escape
• Difficulty cleaning due to liquid leaks into the burner cavities
• Visible cracks, breaks, or deformities in the material

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This range cord supplies main power to an electric range so the appliance can heat and run safely. It replaces a worn or damaged cord to restore reliable power connection and reduce risk of arcing or intermittent power. What it does:

• Transfers mains power from the wall outlet to the range's terminal block
• Restores a secure, stable electrical connection when the original cord is frayed or damaged
• Helps stop sparking, burning smells, or intermittent power caused by a faulty cord
• Supports normal oven and cooktop operation when the outlet and terminal connections are serviceable

• Disconnect power at the breaker before servicing; verify power is off with a meter
• Securely tighten terminal screws and route cord to avoid contact with hot surfaces

This igniter and harness assembly delivers the spark and electrical connection needed to ignite gas burners in ranges and ovens, restoring reliable burner ignition and consistent oven heat delivery. What it does:

• Provides the high-voltage spark/ignition source and wiring connection for gas burners
• Transfers power from the control to the igniter via the harness
• Commonly replaces failed or cracked igniters that prevent burners from lighting
• Helps stop continuous clicking or failed ignition cycles associated with worn components

• Disconnect electrical power and shut off the gas supply before starting work.
• Handle the igniter carefully; the element is brittle and can break if dropped or flexed.
• Verify proper electrical connections and secure harness routing away from heat sources.
• After installation, restore power and gas, then check burners for correct ignition and test for gas leaks.

A complete igniter and wiring harness assembly designed to replace a factory igniter setup on gas ranges and ovens. Restores ignition reliability by providing a matched igniter element with its attached harness for a direct plug-in replacement. What it does:

• Heats the igniter element to ignite the oven/burner gas for normal operation.
• Provides the factory-style wiring harness to ensure correct electrical connections.
• Common symptom: oven or burner fails to light or the igniter does not glow.
• Common symptom: extended ignition delay or intermittent ignition.

• Turn off electrical power and shut off the gas supply before starting any repair.
• Handle the igniter element carefully; the ceramic/glass surface is fragile—do not touch the glowing surface with bare hands.
• Ensure all connectors are fully seated and wiring is routed away from hot components.

This replacement power wire harness routes main electrical power between components to restore secure connections and reliable operation. It's a direct-fit OEM-style harness that helps fix intermittent power or no-power symptoms caused by damaged wiring. What it does:

• Provides secure, insulated conductors to transfer power from the main supply to control and motor assemblies
• Replaces damaged, frayed, or burnt wiring that can cause intermittent power loss or failure to start
• Restores proper connector fit where terminals or plug ends have worn or melted
• Helps prevent shorting and arcing by renewing factory wiring and insulation

• Disconnect power at the breaker or unplug the appliance before beginning work
• Verify wire routing and connector orientation match the original harness before final installation
• Use appropriate tools to secure connectors; replace any damaged terminal clips as needed

A small machine screw used to fasten appliance panels and components. This 10-32 x 7/16 screw secures assemblies and replacement parts so panels and brackets stay properly mounted during normal operation. What it does:

• Fastens small panels, brackets, and assemblies that use a 10-32 thread
• Replaces missing or stripped mounting screws to stop rattling and loose parts
• Helps maintain proper alignment of fitted components
• Used where a short 7/16" length is required for a flush fit

• Unplug the appliance before starting any repair
• Use the correct sized screwdriver or nut driver for 10-32 threads
• Hand-start the screw to avoid cross-threading, then snug—do not overtighten
• If threads are damaged, replace with correct fastener; avoid forcing the screw

Appliances are designed to run on either natural gas or propane. Compatible stoves, ranges, heaters, and water heaters that are capable of being converted from natural gas to propane require an LP converter kit to make the switch. The kit contains detailed instructions and more information.The process will vary depending on what type of device is being converted, but a wrench set, socket wrench set, metric nut driver set and screwdriver will be necessary. Be sure to wear gloves. Ensure that the appliance is entirely disconnected from all power sources before beginning. This process takes about thirty minutes to complete. Ensure that all connections are secure before using the appliance.This GE LP conversion kit is an authorized OEM part. It is manufactured and supplied by General Electric. It is made of high-quality, durable materials. It is only compatible with equipment made by General Electric. It is sold as an individual unit.
