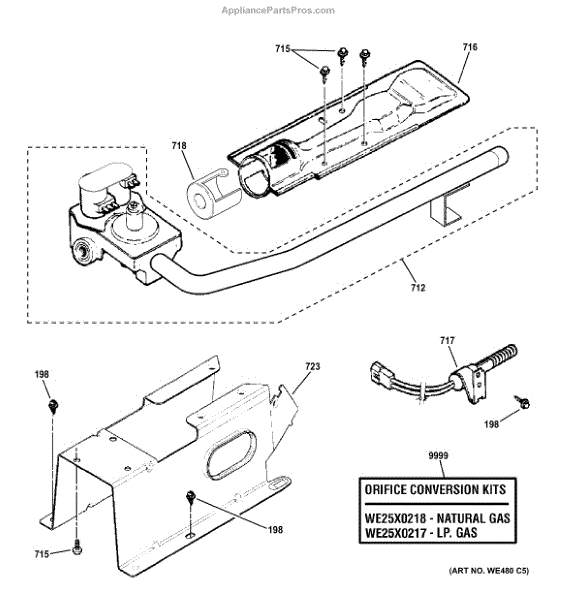

Parts for Ge GFDS175GH2DG: Gas Valve & Burner Assembly Parts

This factory screw secures dryer panels and internal components, keeping assemblies tight and aligned so the machine operates safely and without vibration or rattling.

• Fastens sheet-metal panels, brackets, or trim to the dryer cabinet/frame
• A loose or missing screw can cause panel vibration, noise, or misalignment
• Helps restore stability after service or when original hardware is lost
• Typical symptoms include rattling, loose panels, or gaps in trim

• Unplug the dryer before servicing
• Keep track of original screw locations and lengths; replace like-for-like
• Start screws by hand to avoid cross-threading, then snug—do not overtighten
• If threads are damaged, inspect mating hole or clip before installing

This gas valve and pipe assembly controls and routes natural gas from the appliance inlet to the burner manifold, restoring proper fuel flow for ignition and stable burner operation. Designed as a direct-replacement service part. What it does

• Regulates and directs gas flow from the inlet to the oven/range burners.
• Enables proper ignition and stable flame for baking and broiling cycles.
• Works with the appliance's existing manifold and burner orifices to maintain correct gas delivery.

• Turn off gas supply and disconnect power before servicing; follow all safety procedures.
• After installation, check all fittings for leaks with an approved gas leak test (do not use an open flame).
• Replace only with the exact part specified for your appliance; inspect connections and gaskets and tighten to manufacturer torque specs.

This small mounting screw secures panels and trim on compatible GE appliances, restoring a solid, vibration-free fit. Use it to replace a missing, stripped, or damaged fastener and keep parts aligned and secure. What it does:

• Fastens panels, trim, or small components to the appliance frame
• Replaces missing or damaged screws that cause loose or rattling parts
• Restores secure attachment when threads are stripped or worn
• Helps maintain proper alignment to prevent noise and component wear

• Use the correct screwdriver size to avoid stripping the head
• Tighten until snug; do not overtighten to prevent thread damage
• Disconnect power or move the appliance to a safe position when accessing internal panels
• Consider a replacement clip or insert as recommended by the manufacturer

This burner assembly is the combustion head for GE gas dryers. It mixes gas and air and directs a stable flame into the heater housing, restoring consistent heat when the original burner is corroded, warped, or clogged.

• Directs the gas flame into the heat chamber for proper drying temperatures
• Works with the igniter, flame sensor, and gas valve to produce heat
• Typical failure symptoms: no heat or intermittent heat, long dry times, burner lights then goes out, unstable/yellow flame
• Physical issues can include rust, warping, or blocked burner ports

• Disconnect power and shut off the gas supply; allow the dryer to cool completely
• Note position of the igniter and flame sensor relative to the burner port; realign during reassembly
• Transfer any reusable fittings from the original burner as needed and verify orifice/fuel type match your installation
• After reconnecting gas, perform a leak check with a non-corrosive soapy water solution before restoring power

The Igniter is an OEM part for GE dryers. It is designed to ignite the gas burner to produce heat, which is essential for drying clothes. The igniter ensures that the gas is lit efficiently and safely, enabling the dryer to reach and maintain the proper temperature for effective drying.

You should replace the igniter if it becomes faulty. Causes of a bad igniter can include electrical failures, cracks or breaks in the igniter material, or wear and tear from regular use. These issues can prevent the igniter from generating the necessary heat to ignite the gas.

Symptoms of a bad igniter include:

• The dryer not heating up
• Extended drying times
• The igniter glowing but failing to light the gas burner
•  A lack of flame in gas dryers

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This replacement gas valve bracket secures the oven/range gas valve to the chassis, keeping the valve aligned and stable for reliable gas flow. Fits where the valve mounts to the appliance frame to restore proper positioning and reduce vibration. What it does:

• Holds the gas valve firmly in place to prevent movement or misalignment
• Maintains correct spacing between the valve and burner assembly for safe operation
• Helps eliminate rattling or vibration caused by a loose or damaged bracket
• Supports consistent valve operation that can reduce ignition or heating issues related to a loose mount

• One gas valve mounting bracket

• Shut off gas supply and unplug the appliance before starting any work
• Only install on the mount specified by the OEM; use correct fasteners and torque to avoid stripping or deformation
• After installation, check all gas fittings and connections for leaks using a gas leak detector or soapy-water test

This steam kit is the OEM steam generator assembly that supplies steam for steam-refresh and wrinkle-care cycles. It restores the appliance's ability to produce steam for improved fabric care and odor removal. What it does

• Heats and releases water as steam into the drum during steam cycles to help relax wrinkles and freshen clothes.
• Addresses weak or no-steam symptoms when the dryer runs steam cycles but garments remain untreated.
• Works with the appliance's control system to deliver steam only during designated cycle phases.
• Helps reduce the need for ironing by loosening fabric fibers during the cycle.

• One steam generator assembly (steam kit) as shown.

• Disconnect power before starting any repair to avoid shock or flooding.
• Suitable for technicians or experienced DIYers; follow the appliance service manual for disassembly and routing of water/steam lines.
• Inspect and replace any brittle or cracked tubing and seals to prevent leaks; test for proper steam delivery after installation.
• Do not operate the dryer with missing or damaged panels; ensure all connectors are secure.

Liquid propane to natural gas

The LP Conversion Kit is an OEM part for GE dryers. It is designed to convert a natural gas dryer to liquid propane (LP) gas. This conversion kit ensures that the dryer operates efficiently and safely with LP gas, which requires different pressure settings and orifices than natural gas.

Causes of a bad LP conversion kit can include improper installation, damage to the kit components, or compatibility issues with the dryer model.

Symptoms of a bad LP conversion kit include:

• Dryer not heating properly
• Unusual gas odors
• Inconsistent drying performance
• Burner flame issues

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

For LP to natural gas conversion kit, order part number WE25X218.
