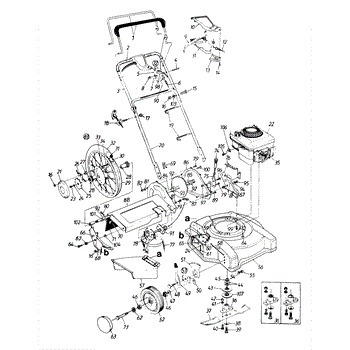

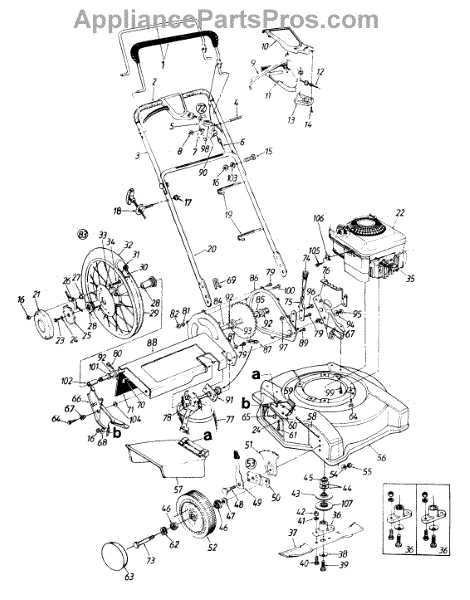

Parts for Tradesman 122-528R119 / 1992: General Assembly Parts

This is an oval c-sunk screw commonly used in mowers and snowblowers to help secure the throttle housing to the upper handle. If there is a problem with the screw, it should be replaced to ensure the proper function of the machine.The screw is made from metal and it should last a long time. However, there could be several reasons to replace the screw. It might become lost when working on other parts of the machine. The threads could be stripped, or the head of the screw could start to wear away or corrode over time. Replacement of this piece is usually fast and easy, but it can depend on the location of the screw.The oval c-sunk screw will work with models of machines from MTD, Mastercut, Husky, Western Sun, Lawn Hawk, Wizard, Servistar, and Tradesman. The screw is sold individually. It is a genuine OEM replacement part.

This replacement part is a nut, and it is intended for use in different types of lawn equipment. This is a genuine replacement part made by MTD. Nuts are a small part found in many different types of machinery and are used to connect different parts and secure things together.A new nut might be needed if the current ones are missing or damaged in any way. It is common that nuts become stripped overtime and might get stuck or fall out of place. In this case, it is recommended that the nut be replaced. Be sure to review the specific owner's manual for more information on how to replace the nuts. This part is sold as an individual piece. Be sure to purchase the correct amount as many different machines use more than one during operation. This is also a genuine OEM replacement part sourced directly from the manufacturer.

A rope guide eyebolt is an important piece of hardware designed for use with pieces of outdoor lawn and garden power equipment that have small engines, such as lawn mowers. It is compatible with products by brands such as Craftsman, Bolens, Husky, Yard Machines, Yard Man, MTD, and Troy-Bilt.The rope guide eyebolt part plays a valuable role in making the lawn mower easier to operate. The metal rope guide eyebolt is to be mounted to the side rail of the handle, which then keeps it secured with a handle knob. The rope guide eyebolt keeps the starter rope on the upper handle for ease of access. The purpose of all of this is simply to keep the rope out of the way while operating. The replacement or repair process of the rope guide eyebolt should be straightforward, but the user replacing the part should always be sure to wear gloves during any assembly, replacement, or installation processes.The user should also refer to the owner's manual of their equipment and any guiding diagrams that clarify the placement location. This part is made out of metal. This rope guide eyebolt is an original OEM part sourced directly from the manufacturer, MTD. It is sold individually.

This spring washer has a conical shape with an open center. It has a shape like a traditional washer but is smaller than a typical coiled spring. These washers can handle a larger load than a coiled spring and are used in lawn and garden equipment to cushion heavy loads. Over time, these washers can experience wear and tear which will lead to damage or breakage. When this occurs, the spring washer will need to be replaced.Visually inspect the spring washer for damage like scratches, breaks, and dents. If these occur or the washer is warped, it needs to be replaced. The process involves removing the nut or screw above the washer with a screwdriver or other tool. After accessing the spring washer, it can be removed and a replacement part can be added to the equipment. Reassemble the parts and the equipment should work again.This is a genuine OEM spring washer replacement part that is sold individually. It's sourced directly from the manufacturer. It is compatible with lawnmowers, wood chippers, snowblowers, log splitters, tillers, chainsaws, string trimmers, and edgers by Craftsman, MasterCut, Toro, Turf King, Cub Cadet, Yard-Man, Ryobi, Bolens, Husky, Montgomery Wards, Murray, Huskee, Yard Machines, and MTD.

This hex nut is designed for use with select trimmers and mowers. It is a standard hardware part that may have multiple applications depending on the type of unit and model. The nut is typically used to secure engine components or housing elements to provide safe use of the machine. These nuts are durable, but they are small and can become lost during other repairs. The constant exposure to vibrations and use can also cause them to strip or become damaged over time. Either way, a replacement with this genuine hex nut will resolve the issue and get equipment back in working order. This genuine OEM hex nut is manufactured to exact standards and sourced from the manufacturer. It can be used with trimmers and mowers from RYOBI, MTD, Bolens, Troy-Bilt, Yard Machines, Huskee, Yard Man, and Cub Cadet. Check the parts diagram for exact application and location of this nut and note that it may have multiple uses on select models. This hex nut is sold individually, and additional nuts will require the purchase of multiple pieces. In order to replace this nut, a hex socket wrench and driver will be required. Always wear gloves for safety.

This is a replacement bell washer, a flat washer that can be used with a wide range of various types of lawn and garden equipment. The inner dimension of this washer is 0.40 inches, while the outer dimension is 0.88 inches. Washers are typically used as a way to help ensure a tight connection when used with bolts or screws. They will also help to distribute the pressure of the connection and reduce the risk of corrosion. Washers will also provide some protection from damage during installation. Washers could need to be replaced for any number of reasons. In some cases, they might have become corroded or worn down over time. This could mean they no longer provide a solid and secure connection. Other times, the washer could become lost while working on the machine. Owners should always be sure that they replace any lost or damaged washers right away. Not using washers can reduce the lifespan of the machine. This is a genuine OEM bell washer that is sold individually. It is typically used in lawn mowers, snowblowers, tillers, leaf blowers, string trimmers, log splitters, wood chippers, edgers, and chainsaws. It is compatible with Craftsman, Cub Cadet, Ryobi, Troy-Bilt, Husky, Murray, Yard Machines, MTD, Huskee, Montgomery Wards, Bolens, Yard-Man, Turf King, and MasterCut brands.

This replacement part is an adjuster kit. It is a genuine replacement part made by MTD. This adjuster kit is typically found in lawnmowers and is responsible for assisting the user in changing the height of the blades so that the user may determine the setting which the grass is cut at. A new adjuster kit might be needed if the user is unable to adjust the height of the blades and therefore cannot perform the necessary duties. If the blades are stuck at one height it is possible that the adjuster kit is to blame. Because this part is located close to dangerous objects it is recommended that work gloves be worn for protection. This is a genuine OEM replacement part to ensure proper fit and long-lasting use. Note that part is sold individually and is sourced directly from the manufacturer.

A hex screw fastens and holds two components together. It has a hexagonal head and features threading starting underneath the shoulder down to the tip. Its all-metal construction offers rigidity and longer lifespan. It is also threaded, so you can conveniently loosen or tighten in position. It measures 1/4-20 x 0.5 inch and comes in brass or gold color. Take note that this replacement hex screw may beused in different locations of a machine. Double check the device’s model number for compatibility. To install this hex screw, you will need a hex wrench or a hex socket. This hex screw is a replacement made by MTD. This screw/bolt may be used on lawn mowers, snowblowers, tillers, string trimmers, leaf blowers, edgers, chainsaws, pole pruners, log splitters, or wood chippers made by Craftsman, Toro, Cub Cadet, Ryobi, Troy-Bilt, Husky, Murray, Yard Machines, MTD, Huskee, Montgomery Wards, Bolens, Yard-Man, Turf King, or MasterCut. This OEM hex screw is sold individually.

This hex screw and lock washer are commonly used with lawn mowers and other small engines to secure a motor to the housing of the equipment. It is machined in such a way that it binds the manifold and frame permanently. There are occasions when these bolts have to be removed, typically when major repairs are performed on the engine. In those cases, users often find it advisable to replace the hex bolts and washers with new ones. It happens as well that these screws are so tightly fastened that they cannot be unscrewed and must be cut off. In those cases, it is necessary to replace the original screws. These replacement screws and lock washers are genuine OEM certified replacements that are manufactured to be identical to the hardware they are replacing. In addition to mowers, these hex screws are used to secure engines to devices such as log splitters, edgers, shredders, trimmers, and snowblowers. This screw is compatible with devices made by Husky, Yard-Man, Cub Cadet, Troy-Bilt, Ryobi, Bolens, and Yard Machines.

This bell washer is a genuine MTD part, sold individually. This bell washer can be used as a replacement part for a lawn tractor, chipper shredder, tiller, or lawnmower. This bell washer adds spacing on a shaft in the tool.If the user of the appliance notices that a washer is missing, it should be replaced. General wear and tear is very normal for outdoor appliances, and if it occurs, the washer should be removed and replaced with this genuine OEM replacement part.This is an OEM part sourced directly from the manufacturer. It is sold individually. This bell washer is compatible with the following outdoor appliance brands: MTD, Yard Man, Yard Machines, and Troy-Bilt.

This hex screw is a genuine MTD part, sold individually. A hex screw can be used as a replacement part for outdoor appliances including lawn mowers, snowblowers, leaf blowers, and wood chippers. This part is a fastener.The hex screw in a outdoor appliance might be easily lost or damaged at some point within its typical lifespan. If the screw has been lost, it should be immediately replaced by this genuine OEM replacement part; additionally, if the screw has been punctured, dented, cracked, warped, or eroded, it should be immediately replaced.This OEM part is a genuine replacement that is sold individually and sourced directly from the manufacturer. This hex screw is compatible with the following outdoor appliance brands: MTD, Craftsman, Cub Cadet, Ryobi, Husky, Yard Machines, Huskee, Montgomery Wards, Bolens, Yard Man, Turf King, and MasterCut.

A hex screw fastens and holds two components together. It has a hexagonal head and features threading starting underneath the shoulder down to the tip. Its all-metal construction offers rigidity and longer lifespan. It is also threaded, so you can conveniently loosen or tighten in position. It measures 1/4-20 x 0.5 inch and comes in brass or gold color. Take note that this replacement hex screw may beused in different locations of a machine. Double check the device’s model number for compatibility. To install this hex screw, you will need a hex wrench or a hex socket. This hex screw is a replacement made by MTD. This screw/bolt may be used on lawn mowers, snowblowers, tillers, string trimmers, leaf blowers, edgers, chainsaws, pole pruners, log splitters, or wood chippers made by Craftsman, Toro, Cub Cadet, Ryobi, Troy-Bilt, Husky, Murray, Yard Machines, MTD, Huskee, Montgomery Wards, Bolens, Yard-Man, Turf King, or MasterCut. This OEM hex screw is sold individually.

This is a replacement spacer for walk-behind lawn mowers, riding lawn tractors, snowblowers, and other outdoor machinery. The spacer prevents parts from grinding together and wearing down. This spacer fits over the axle areas and is a small, flat, metal ring.Over time and through wear and tear, a spacer can go bad or get bent. This is also dependent on frequency of use. For equipment used maybe once a week (or month, depending on the season), replacing a spacer may never be a concern. For machines used more frequently, it may be a rather minor fix. Replacing the spacer is simple, and requires a screwdriver, pliers, wrench, and a pair of durable gloves. The replacement requires some disassembly of the lawn mower and its inner workings.This is a genuine OEM replacement spacer. This part is compatible with over 150 products and machines. This part is sold separately.

This flat washer is a genuine MTD part, sold individually. This flat washer can be used as a replacement part in lawn mowers, snowblowers, tillers, edgers, chainsaws, log splitters, and wood chippers. The purpose of a flat washer for one of these small engine outdoor appliances is to serve as a fastening component, spacing internal parts out to reduce friction.The flat washer in a small engine outdoor appliance is a small component that can easily be lost or misplaced, in which case it should be replaced as soon as the operator notices its absence. The flat washer can also be stripped away over time, in which case it should be removed and replaced by this genuine OEM replacement part.This OEM part is a genuine replacement that is sold individually and sourced directly from the manufacturer. This flat washer is compatible with the following outdoor appliance brands: MTD, Craftsman, Toro, Cub Cadet, Troy-Bilt, Yard Machines, Huskee, MasterCut, Yard Man, Turf King, Montgomery Wards, Husky, and Murray.

This is the front wheel assembly that is used by a large number of manufactures as the standard wheel for push mowers. This wheel is a tough, black rubber wheel fitted onto a sturdy white chassis. Since it is not a pneumatic wheel, there is no concern that it will roll over hidden debris and be damaged. Push wheels such as these often last the lifetime of a Lawn Mower. However, there are occasions when the housing of the mower is dropped and the wheel becomes warped or broken. It's also the case that, with constant use, the wheels can lose tread, making them harder to maneuver in tough mowing conditions. It has also been reported that the tires will wear and become smaller in circumference over time, meaning it will require more gasoline to mow the same amount of yard. The front wheels are easily replaced. After removing the plug cap and stabilizing the mower, simply use a socket wrench to remove the center bolt from the wheel. It's a good idea to use a dry lubricant like graphite on the axle before replacing it. This OEM guaranteed replacement part is compatible with Ryobi, Yard Machines, Troy-Bilt, Cub Cadet, Husky, Yard-Man, and MTD push mowers.

This replacement part is a hex bolt. It is a genuine replacement part made by MTD. Hex bolts are named because they are shaped like a hexagon and are different from the regular circle-shaped bolts. These parts are able to hold other parts secure and in place so that everything can operate as needed. A new hex bolt might be needed if the current ones are damaged in any way. It is possible that these bolts become stripped or lodged in place over time due to normal wear and tear and should be replaced. The repair should be fairly easy, only requiring a screwdriver or pliers if the previous part is stuck. Be sure the engine is completely powered down before beginning this repair. This bolt is sold individually. Be sure to purchase the correct amount as many appliances require more than one. This is a genuine OEM replacement part sourced directly from the manufacturer.
