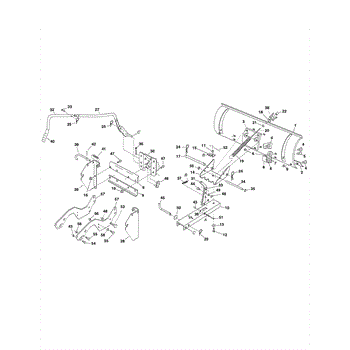

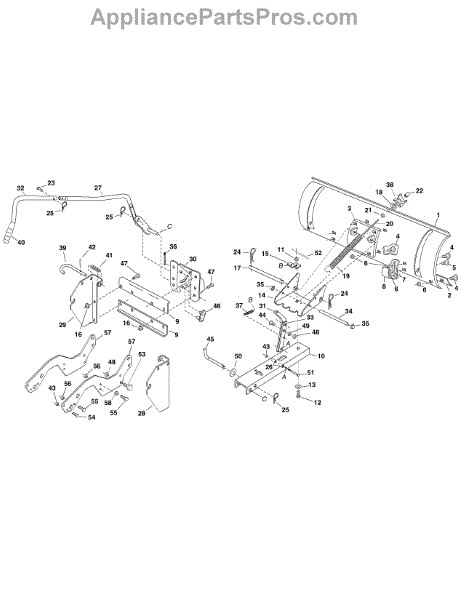

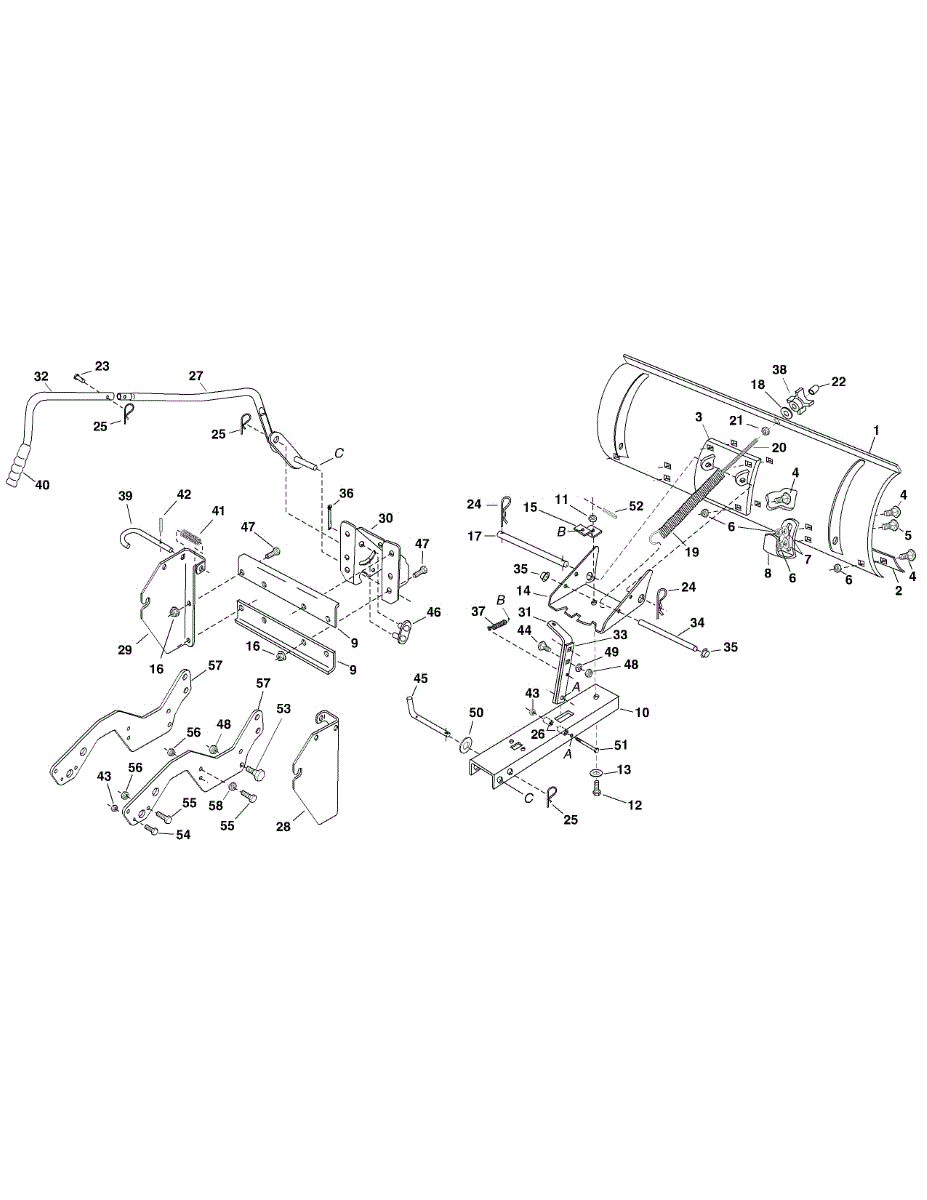

Parts for White Outdoor 190-833-000 / 2007: General Assembly Parts

A carriage bolt is a type of fastener. It features a smooth rounded head and a square domed top. It has threading, which leads to up to the square shoulder. The purpose of its square is to prevent the bolt from spinning. Once the carriage bolt is inserted through the hole, using a nut and washer can provide additional security. Carriage bolts can corrode and loosen over time. Since it doesn't have a slotted head, a socket wrench is needed when replacing. This bolt carriage replacement is compatible with wood chippers, tillers, string trimmers, lawnmowers, and edgers. It is a genuine MTD product that measures 5/16x.075. It has a smooth rounded head and square shoulder underneath it. This carriage bolt is sold individually.

This center hex nut is a genuine MTD part, sold individually. This center hex nut can be used as a replacement part in lawn mowers, snowblowers, tillers, leaf blowers, edgers, log splitters, and wood chippers. The purpose of the center hex nut for one of these small engine outdoor appliances is to work in conjunction with a bolt to provide a fastening component for one or more parts within the internal mechanisms of the appliance.The center hex nut might need to be replaced if the small fastening component is lost, misplaced, or damaged within the typical lifespan of the small engine outdoor appliance in which it has been installed.This component is a genuine OEM replacement part sourced directly from the manufacturer. It is sold individually. This center hex nut is compatible with the following outdoor appliance brands: MTD, Craftsman, Cub Cadet, Troy-Bilt, Husky, Yard Machines, Huskee, Montgomery Wards, Yard Man, and MasterCut.

The replacement flat washer here is a part commonly found on many types of small engines, including those in lawn and garden equipment. The washer can be used on various parts of the engine depending on the make and model. The washer can help to spread the pressure of the connection over a wider surface area. This will help reduce damage to the machine at the connection point. The washers are made from metal and there may be a need to replace them. If they have become corroded, bent, or lost, they should be replaced right away. Owners should keep in mind what with some models, the washers will be secured with the use of a push pin. The push pins are sold separately. This is an authentic OEM replacement flat washer that is sold individually. The washer can be used on many types of equipment including lawn mowers, snowblowers, tillers, string trimmers, leaf blowers, edgers, log splitters, and wood chippers. Compatible brands include Craftsman, Cub Cadet, Ryobi, Troy-Bilt, Husky, Yard Machines, MTD, Huskee, Montgomery Wards, Bolens, Yard-Man, Turf King, and MasterCut.

This replacement part is a shoe skid. It is a genuine replacement part made by MTD. Shoe skids are often found in snow blowers to allow the appliance to clear the ground when in use. This helps the user perform the necessary actions to rid the area of snow and other debris. A new shoe skid might be needed if the user hits the ground with the appliance as they are clearing snow. This can be because the part is damaged or missing. This should be a fairly easy repair and only require a screwdriver and some other common household tools. Be sure to refer to the owner's manual before replacing this part. This part is a genuine OEM replacement part to ensure long-lasting use and proper fit. This shoe skid is sold individually and is sourced directly from the manufacturer.

This part is a replacement push nut. This is a genuine OEM part made by MTD and has been sourced directly from the manufacturer. This part's intended use is to replace a broken or detached push nut in snow blowers.Push nuts are a special type of fastener that secures together different equipment components. Push nuts will need to be replaced if worn, broken, lost, or otherwise ineffective. When working on or near an engine, it's important to make sure the equipment is powered off and completely cool before starting any repairs. For more accurate information on how and where to install this push nut, reference the appropriate owner's manual and specific equipment diagrams.This is an authentic OEM replacement part made of high-quality materials. This push nut can be used with different models of snow blowers that have been manufactured by MTD, Craftsman, Troy-Bilt, and other brands. Part sold individually.

Cotter pins are simple but very effective fasteners used primarily to hold wheels in place on mowers. This is particularly true of the front wheels on riding mowers. Cotter pins are very light and can become overly pliable after extensive use. In some cases, the front wheels of a mower, which are the guide wheels that steer the device, become difficult to manage. The cure for this situation is often simply the replacement of the cotter pins that are not holding the guide wheels adequately in place. Before attempting to remove the pins, it is essential that the spark plug boot is moved so that the mower cannot be started. This is an important safety step because the repairer will be getting under the mower near the blades. The back wheels should be blocked so the mower cannot move, then the front end placed up on blocks. Remove the mower's hubcaps to gain access to the axle spindles. Straighten the legs of the pin so that when the curved portion of the cotter pin is grasped with pliers and it can be pulled straight back and be removed. The spindle, washers, and wheels should be checked for wear before the new pin is placed and secured. This OEM cotter pin is compatible with Bolens, Yard-Man, Craftsman, Yard Machines, Cub Cadet, Turf King, Troy-Bilt, Huskee, Toro, Ryobi, MTD, MasterCut, Murray, and Montgomery Wards.

This lift link is a genuine MTD part, sold individually. This lift link can be used as a replacement part in a lawn tractor with a snow blade attachment. The purpose of the lift link in a lawn tractor with a snow blade attachment is to affix to the lift handle rod and to the pivot support bracket such that the elevation of the snow blade can be customized to the desired height of the operator.The lift link in a lawn tractor with a snow blade attachment might need to be replaced if the lift link ceases to be able to control and allow the operator to regulate the desired height of the snow blade. This could occur if the lift link has been punctured, dented, cracked, warped, eroded, or otherwise damaged.Sourced directly from the manufacturer, this component is a genuine replacement part that is sold individually. This lift link is compatible with the following outdoor appliance brands: MTD and Craftsman.

This is a genuine washer lock that is designed to be used in various applications on lawn and garden equipment. It is a standard piece of hardware that provides a strong seal and distributes pressure between the two connected components. Because of the exposure to high pressure and vibrations, these washers can become damaged or broken over time. If they are not replaced promptly, the connection between the two different parts may be affected. These washers are small and can also get lost while doing other repairs, so it may be helpful to keep some extras on hand. This genuine OEM lock washer is manufactured to exact standards and is compatible with several lawn and garden machines from Husky, Cub Cadet, MTD, RYOBI, Yard Machines, Troy Bilt, Yard Man, and Bolens. It can be used with over 150 models of tractors, blowers, cultivators, trimmers, and snowblowers. Consult the parts diagram for the exact location(s) and application(s) of this washer. Replacing this washer will require a screwdriver or socket set to attach the screws or bolts that the washer is securing. Always wear gloves for hand protection when replacing engine components like this lock washer.

Shoulder screws are a type of fastener used in many types of lawn and garden equipment. Also called stripper bolts or shoulder bolts, they have a head, threads, and an unthreaded shoulder. These screws are used in areas where items need to be held together in a specific location. They can be used with bearings, bushings, and machinery support. Shoulder screws are made of durable metal but can still experience breakage or damage. When this occurs, the screws will need to be replaced. A wrench can be used to remove the damaged shoulder screw. First, visually inspect the shoulder screw to look for damage or corrosion. Sometimes, the screw will be entirely broken. If any of these things are present, a wrench can be used to remove the old shoulder screw. The same tool can be used to insert a new shoulder screw before reassembling the equipment.Designed for lawnmowers, lawn tractors, tillers, leaf blowers, chainsaws, log splitters, chipper shredders, and snowblowers, this part is compatible with items from Yard Machines, MTD, Cub Cadet, Craftsman, Toro, Huskee, Montgomery Wards, Yard-Man, MasterCut, and Troy-Bilt. The locknut is sold separately.

This is a frame bracket that is used with lawn mowers. It is typically located on the shield and hinge pin to hold the mower deck in the right position. The bracket assembly is an important part that ensures the lawn mower parts stay connected so they can operate at full capacity. The bracket can be broken or damaged over time which can cause parts to come loose. When this occurs, the frame bracket should be replaced to avoid additional damage.A socket set or an adjustable wrench will be needed to replace this part. A pair of work gloves will also be useful during the replacement process. Turn off the lawn equipment and place it on a stable surface. Disconnect the spark plug wire before taking off the damaged bracket. The new component can be screwed onto the same location. Test the equipment before use.This frame bracket is designed for use with lawn and garden equipment by MTD, Cub Cadet, and Troy-Bilt. This is an authentic OEM replacement part that is sourced directly from the manufacturer. This component is sold on an individual basis.
