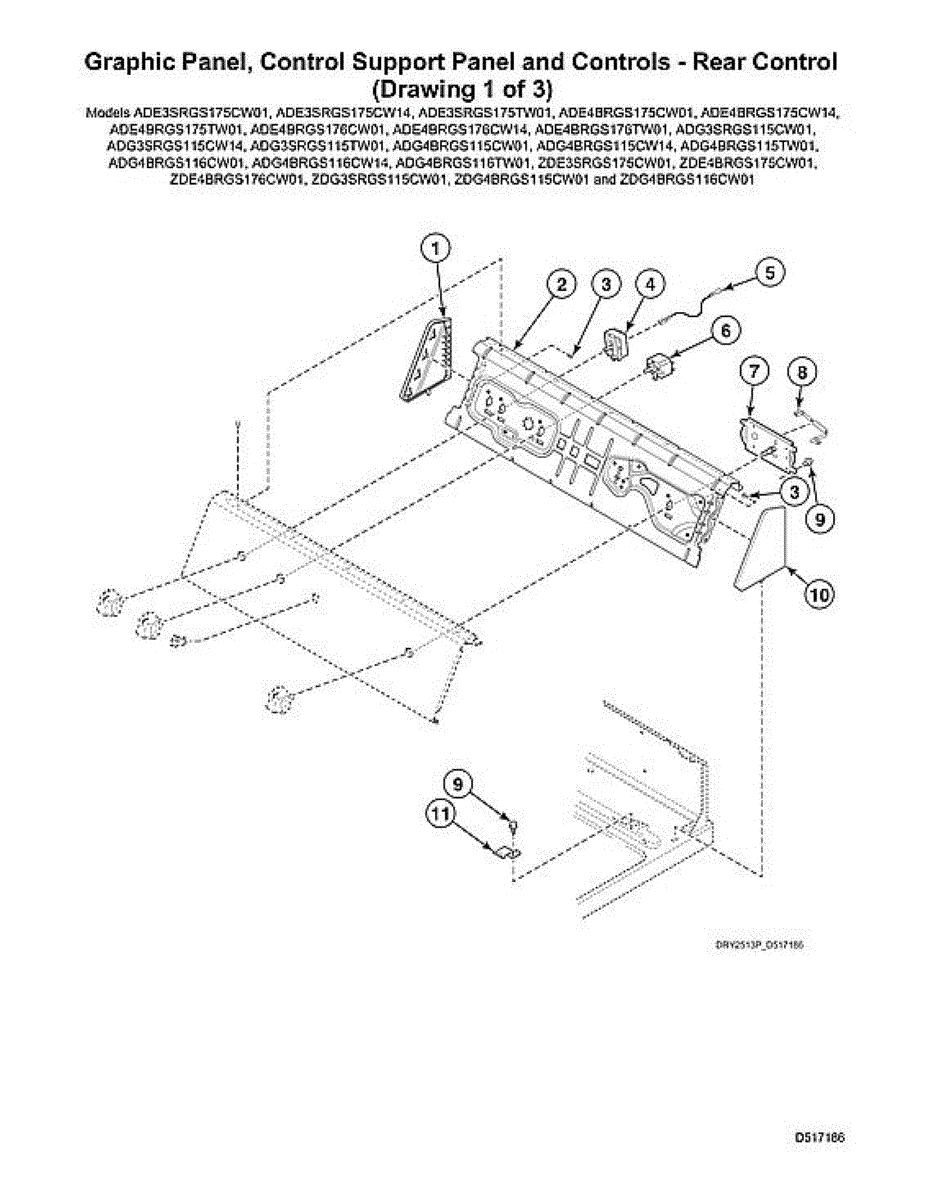

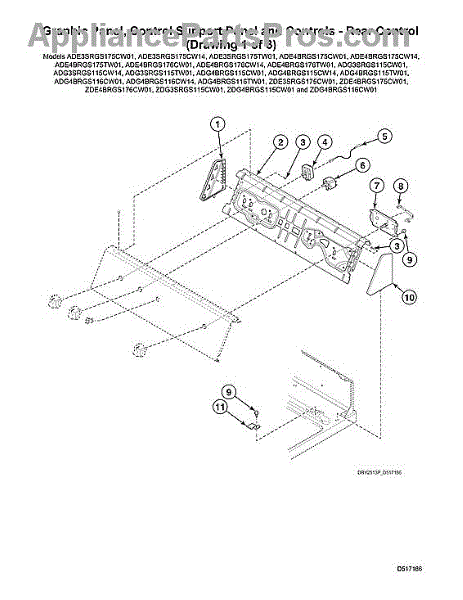

Parts for Speed Queen ADG4BRGS116TW01-THRU-S#1912999999: Graphic Panel / Control Support Panel / Rear Controls Parts

This is a tapping screw with a hex head and Torx drive designed to fasten panels and components on Speed Queen laundry appliances. It provides a secure, vibration-resistant hold for repeatable service and repairs. What it does

• Fastens outer panels, brackets and internal parts where a self-tapping screw is required
• Holds components tight to prevent rattling or misalignment during operation
• Replaces missing, worn or stripped screws that cause loose or insecure parts
• Used when a screw must tap its own threads in sheet metal or thin substrates

• One tapping screw (hex head Torx)

• Use the correct Torx driver bit to avoid stripping the drive recess
• Drive straight and steady; do not over-torque to prevent thread or sheet-metal damage
• Follow OEM service instructions for panel removal and fastening order
• Disconnect power and follow safety precautions before servicing the appliance

This 4-position fabric selector switch is the control behind the knob that sets your washer's fabric setting. Replacing a worn switch restores crisp detents and reliable selection so the machine follows the wash action you choose.

• Controls the washer's fabric setting with four selectable positions
• Directs electrical contacts to deliver the chosen wash action or speed
• Works with the timer/control to tailor cycle aggressiveness for different fabrics
• Symptoms of failure: settings don't change, only one position responds, wrong wash action, or the knob feels loose and won't detent

• Disconnect power before servicing; control panel edges can be sharp
• Remove the knob, then the retaining nut or clip to free the switch from the panel
• Photograph and label wires; transfer them one at a time to matching terminals on the new switch
• Align the shaft/indexing tabs, secure the switch, and test each position before reassembly

This wire organizer assembly secures and routes the wiring at the fabric selector to reduce wear and keep connections tidy for reliable machine operation. It helps prevent chafing, pinching, and loose harness routing that can cause intermittent issues. What it does:

• Holds and routes selector-area wiring to prevent rubbing and accidental disconnection
• Reduces risk of damaged insulation from contact with moving parts
• Keeps harnesses in the correct position for consistent electrical connections
• Helps maintain safe clearance between wires and metal edges or controls

• One wire organizer assembly for the fabric selector area

• Disconnect power to the appliance before servicing to avoid electrical shock
• Reference the machine's service manual or diagram for correct routing and clip orientation
• Replace any damaged clips or wiring and ensure the organizer snaps into factory mounting points
• Avoid pinching wires when reassembling panels and verify selector operation after installation

Adjustable 120V buzzer that restores audible cycle alerts on laundry equipment. Replaces failed or weak buzzers so you can hear end-of-cycle and warning signals clearly. What it does:

• Produces audible beeps/tones to indicate cycle completion and alert conditions.
• Adjustable design lets the buzzer be tuned to match the original unit's audible output.
• Common replacement when the machine is silent at the end of a cycle, emits intermittent beeps, or has a weak/no buzzer sound.
• Designed for use in 120V household laundry appliances requiring an adjustable buzzer.

• Always disconnect power at the breaker or unplug the appliance before servicing.
• Remove the old buzzer, transfer mounting hardware, and connect wires to matching terminals; maintain original wire routing.
• Restore power and run a test cycle to audible operation and proper adjustment.

This timer conversion kit replaces a worn or failed timer assembly to restore proper cycle timing and selector function on compatible Speed Queen washers. Designed to bring back reliable cycle advancement and control responsiveness. What it does:

• Replaces the washer's timer/control assembly to restore timed cycles and automatic advancement.
• Helps resolve symptoms like cycles that won't advance, timers that don't click/turn, or inconsistent cycle timing.
• Re-establishes reliable connections between the control selector and machine functions.
• Matches OEM form and function for a direct-replacement repair when confirmed compatible.

• One timer conversion kit assembly as shown.

• Disconnect power at the breaker or unplug the machine before servicing.
• Follow the washer's service manual for removal and installation steps and wire-terminal identification.
• Use basic hand tools; handle electronic and mechanical components carefully to avoid damage.

This resistor assembly is a direct replacement electrical component that restores proper resistance in the appliance's control circuit, helping restore reliable operation and electrical continuity where the original resistor has failed. What it does:

• Provides the correct resistance in the control/electrical circuit so related components operate as designed
• Commonly replaces a failed or open resistor causing intermittent operation or control faults
• Can help stop symptoms such as erratic cycles, failure to start, or control-board error indications tied to resistance faults
• Works as a like-for-like replacement when the original resistor assembly is damaged or shows out-of-spec resistance

• Disconnect power to the appliance before servicing to avoid electrical shock
• Handle the assembly carefully and avoid touching contact surfaces; observe ESD precautions if present
• Verify connector fit and secure all fasteners; confirm correct orientation before re-applying power

This self-tapping screw secures panels and components on Speed Queen laundry appliances, restoring firm fastening and preventing rattles or gaps. Compact 8-18 x 3/8 size for use where a small, hex-washer-head fastener is required. What it does:

• Cuts its own mating thread in sheet metal or plastic mounting holes for a secure fit
• Holds control panels, trim pieces, and light brackets in place
• Replaces missing or damaged fasteners that cause loose or vibrating panels
• Helps restore proper panel alignment and reduces noise from loose parts

• Disconnect power before servicing the appliance
• Use the matching hex-washer driver or nut driver to seat the screw
• Start straight and apply steady pressure; avoid cross-threading
• Do not overtighten — snug until panels are secure

This right-side end cap is a replacement trim piece that restores the finished appearance of the washer control/top edge and protects edges from wear. It matches the original shape and color for a clean factory look. What it does:

• Covers and protects the right edge/end of the control/top trim to prevent exposed edges
• Restores appearance when the original cap is cracked, broken or missing
• Helps keep the trim secured and reduces the chance of snagging or catching
• Matches factory color and fit for a seamless replacement

• Disconnect power to the appliance before beginning any repair.
• Remove the affected trim or panel per the service manual to access the end cap.
• The cap typically snaps or slides into place; use a plastic pry tool to avoid damaging surrounding trim.
