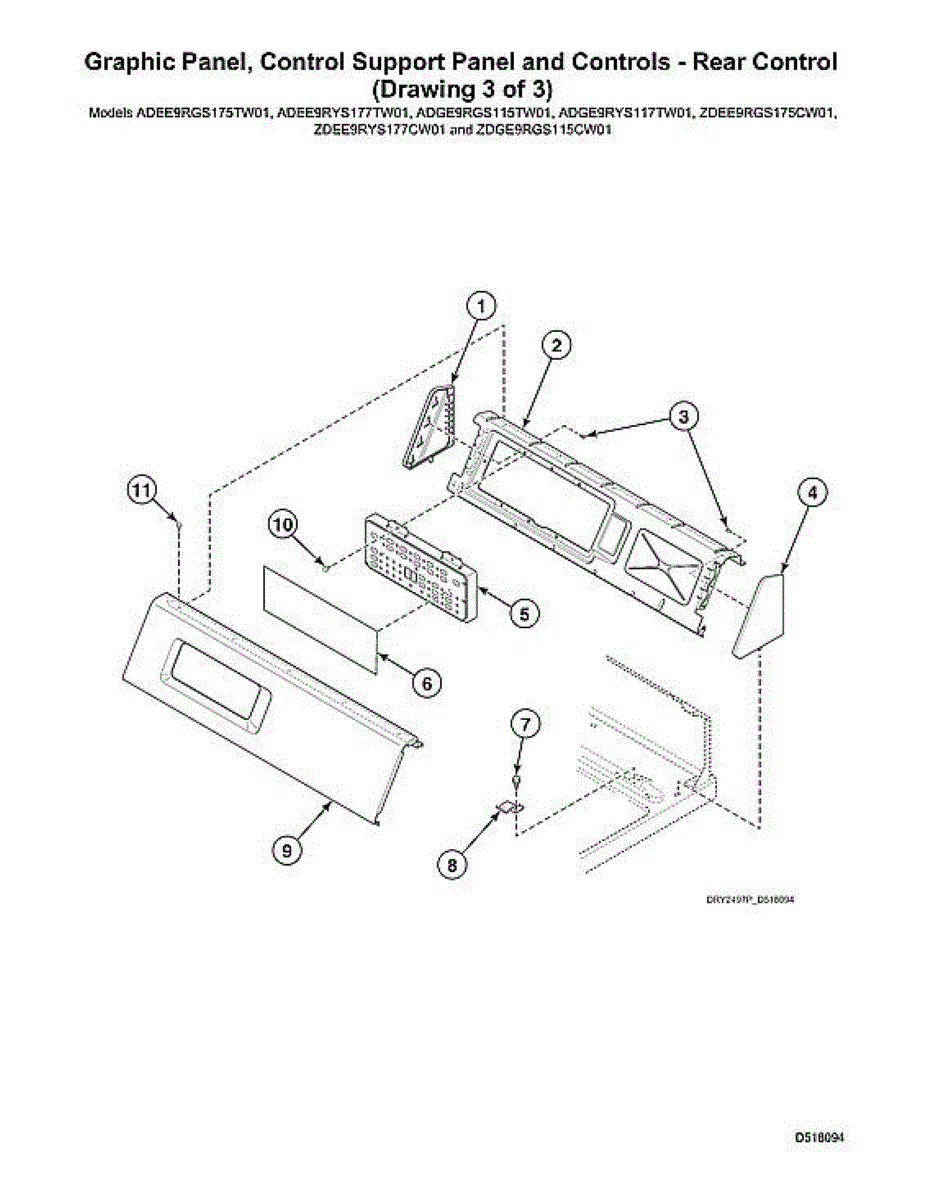

Parts for Speed Queen ADGE9RYS117TW01-START-S#2001000001: Graphic Panel / Control Support Panel / Rear Controls Parts

This is a tapping screw with a hex head and Torx drive designed to fasten panels and components on Speed Queen laundry appliances. It provides a secure, vibration-resistant hold for repeatable service and repairs. What it does

• Fastens outer panels, brackets and internal parts where a self-tapping screw is required
• Holds components tight to prevent rattling or misalignment during operation
• Replaces missing, worn or stripped screws that cause loose or insecure parts
• Used when a screw must tap its own threads in sheet metal or thin substrates

• One tapping screw (hex head Torx)

• Use the correct Torx driver bit to avoid stripping the drive recess
• Drive straight and steady; do not over-torque to prevent thread or sheet-metal damage
• Follow OEM service instructions for panel removal and fastening order
• Disconnect power and follow safety precautions before servicing the appliance

This right-side end cap is a replacement trim piece that restores the finished appearance of the washer control/top edge and protects edges from wear. It matches the original shape and color for a clean factory look. What it does:

• Covers and protects the right edge/end of the control/top trim to prevent exposed edges
• Restores appearance when the original cap is cracked, broken or missing
• Helps keep the trim secured and reduces the chance of snagging or catching
• Matches factory color and fit for a seamless replacement

• Disconnect power to the appliance before beginning any repair.
• Remove the affected trim or panel per the service manual to access the end cap.
• The cap typically snaps or slides into place; use a plastic pry tool to avoid damaging surrounding trim.

This self-tapping screw secures panels and components on Speed Queen laundry appliances, restoring firm fastening and preventing rattles or gaps. Compact 8-18 x 3/8 size for use where a small, hex-washer-head fastener is required. What it does:

• Cuts its own mating thread in sheet metal or plastic mounting holes for a secure fit
• Holds control panels, trim pieces, and light brackets in place
• Replaces missing or damaged fasteners that cause loose or vibrating panels
• Helps restore proper panel alignment and reduces noise from loose parts

• Disconnect power before servicing the appliance
• Use the matching hex-washer driver or nut driver to seat the screw
• Start straight and apply steady pressure; avoid cross-threading
• Do not overtighten — snug until panels are secure

This graphic control panel is the dryer's front user interface that displays cycle options and accepts touch/press inputs, restoring clear labeling and control feedback for normal drying functions. It helps make cycle selection intuitive and readable. What it does:

• Displays cycle names, options and status so you can select settings and monitor progress
• Registers user inputs (buttons/touch areas) to send commands to the control board
• Replaces worn, faded or damaged graphics that make controls hard to read
• Can resolve issues where the interface is visually unreadable or buttons provide inconsistent feedback

• Turn off and unplug the dryer before starting any repair to avoid shock or injury
• This panel typically secures to the console; use basic hand tools and keep screws in a safe place
• Handle with care to avoid scratching the printed surface and to protect connector tabs
