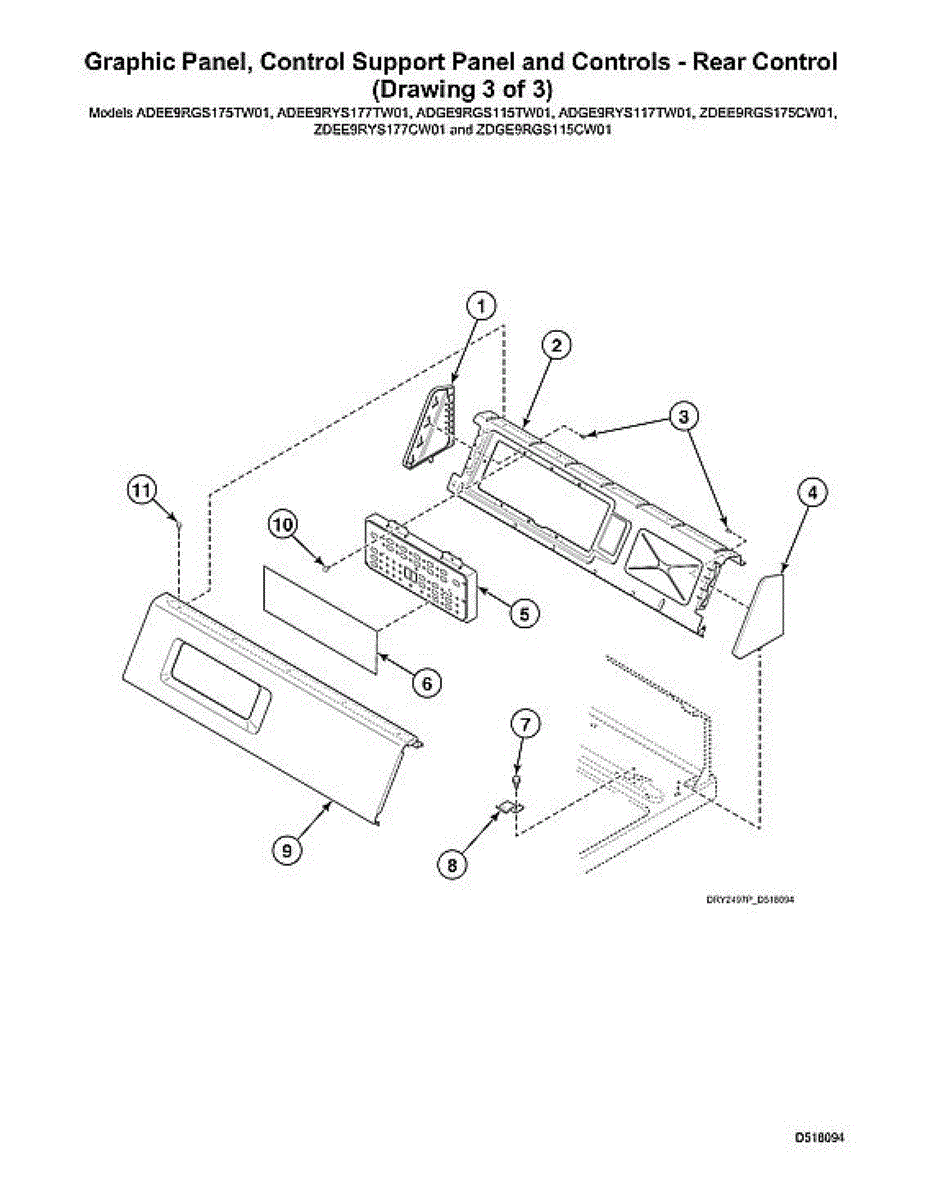

Parts for Speed Queen ADEE9RGS175TW01-START-S#2001000001: Graphic Panel / Rear Control Support Panel Parts

This is a tapping screw with a hex head and Torx drive designed to fasten panels and components on Speed Queen laundry appliances. It provides a secure, vibration-resistant hold for repeatable service and repairs. What it does

• Fastens outer panels, brackets and internal parts where a self-tapping screw is required
• Holds components tight to prevent rattling or misalignment during operation
• Replaces missing, worn or stripped screws that cause loose or insecure parts
• Used when a screw must tap its own threads in sheet metal or thin substrates

• One tapping screw (hex head Torx)

• Use the correct Torx driver bit to avoid stripping the drive recess
• Drive straight and steady; do not over-torque to prevent thread or sheet-metal damage
• Follow OEM service instructions for panel removal and fastening order
• Disconnect power and follow safety precautions before servicing the appliance

This right-side end cap is a replacement trim piece that restores the finished appearance of the washer control/top edge and protects edges from wear. It matches the original shape and color for a clean factory look. What it does:

• Covers and protects the right edge/end of the control/top trim to prevent exposed edges
• Restores appearance when the original cap is cracked, broken or missing
• Helps keep the trim secured and reduces the chance of snagging or catching
• Matches factory color and fit for a seamless replacement

• Disconnect power to the appliance before beginning any repair.
• Remove the affected trim or panel per the service manual to access the end cap.
• The cap typically snaps or slides into place; use a plastic pry tool to avoid damaging surrounding trim.

This is a replacement control assembly for select dryers. It restores the dryer's electronic controls and cycle selection so the appliance responds correctly to user input and completes selected drying cycles. What it does:

• Replaces a damaged or non-responsive control assembly to restore control panel operation
• Enables cycle selection, start/stop, and electronic timing functions
• Can resolve intermittent or total loss of control response and some display/control-behavior issues
• Matches the blue H4 styling/connector layout used on compatible dryer control consoles

• Disconnect power to the dryer before beginning any repair to avoid shock or injury
• Handle the assembly by its edges and avoid touching electronic components or connector pins
• Basic hand tools are typically required; for disassembly/reassembly steps

This black control-panel overlay restores the dryer's front console appearance and button labeling so cycle selections are easy to read and use. It replaces a cracked, faded, or peeling overlay for a cleaner, like-new look. What it does:

• Provides labeled touchpoints and control markings so settings are visible and intuitive
• Protects the underlying control board from spills, dirt and everyday wear
• Replaces torn, bubbled or worn overlays that make buttons hard to read
• Improves console appearance and helps prevent accidental button damage

• Turn off and unplug the dryer (or disconnect power at the breaker) before starting
• Remove the console or control assembly screws to access the old overlay
• Peel off the old overlay, clean the surface, align the new overlay, then press firmly to adhere
• Use basic hand tools only; avoid sharp tools that could damage the overlay or console

This self-tapping screw secures panels and components on Speed Queen laundry appliances, restoring firm fastening and preventing rattles or gaps. Compact 8-18 x 3/8 size for use where a small, hex-washer-head fastener is required. What it does:

• Cuts its own mating thread in sheet metal or plastic mounting holes for a secure fit
• Holds control panels, trim pieces, and light brackets in place
• Replaces missing or damaged fasteners that cause loose or vibrating panels
• Helps restore proper panel alignment and reduces noise from loose parts

• Disconnect power before servicing the appliance
• Use the matching hex-washer driver or nut driver to seat the screw
• Start straight and apply steady pressure; avoid cross-threading
• Do not overtighten — snug until panels are secure
