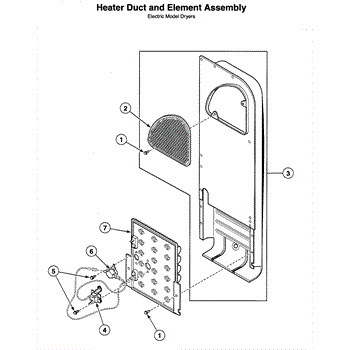

Parts for Speed Queen LTSA7AQN3300: Heater Assy Parts

The Thermostat is an OEM part for SpeedQueen dryers. The thermostat monitors and regulates the temperature inside the dryer drum during operation. It is responsible for sensing the dryer heat and activating the heating element at the selected temperature setting.

Causes of a bad thermostat can include overheating over time, fluctuations in electrical current that may damage components, or impact damage.

Symptoms of a bad thermostat include:

• The dryer not heating up or heating unevenly
• Constantly shutting off due to overheating errors
• Inability to select desired temperature settings
• Premature ending of dry cycles

Electric dryer heater assembly rated 240V/5.0kW for 60Hz systems. It replaces a failed heating element to restore proper heat output so your dryer reaches and maintains drying temperatures for consistent performance and shorter dry times. What it does:

• Heats the air that flows through the drum so moisture can be removed during the cycle
• Restores proper temperature control after a burned-out or open heating element
• Common symptoms: drum turns but no heat, very long dry times, cool exhaust air, or a visibly broken heater coil
• Durable factory-spec assembly designed for 240V, 5.0kW operation

• One 240V, 5.0kW heater assembly

• Disconnect power at the breaker and allow the appliance to cool before servicing
• Access the heater housing; note wire locations and handle the element/insulators carefully to avoid damage
• Transfer any brackets, shields, or clips from the original assembly if required
• After installation, clear lint, verify proper airflow and 240 VAC supply, and test thermostats/thermal cutoffs per manufacturer procedures
