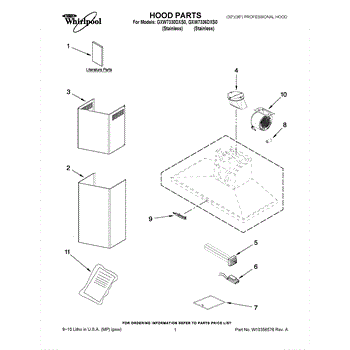

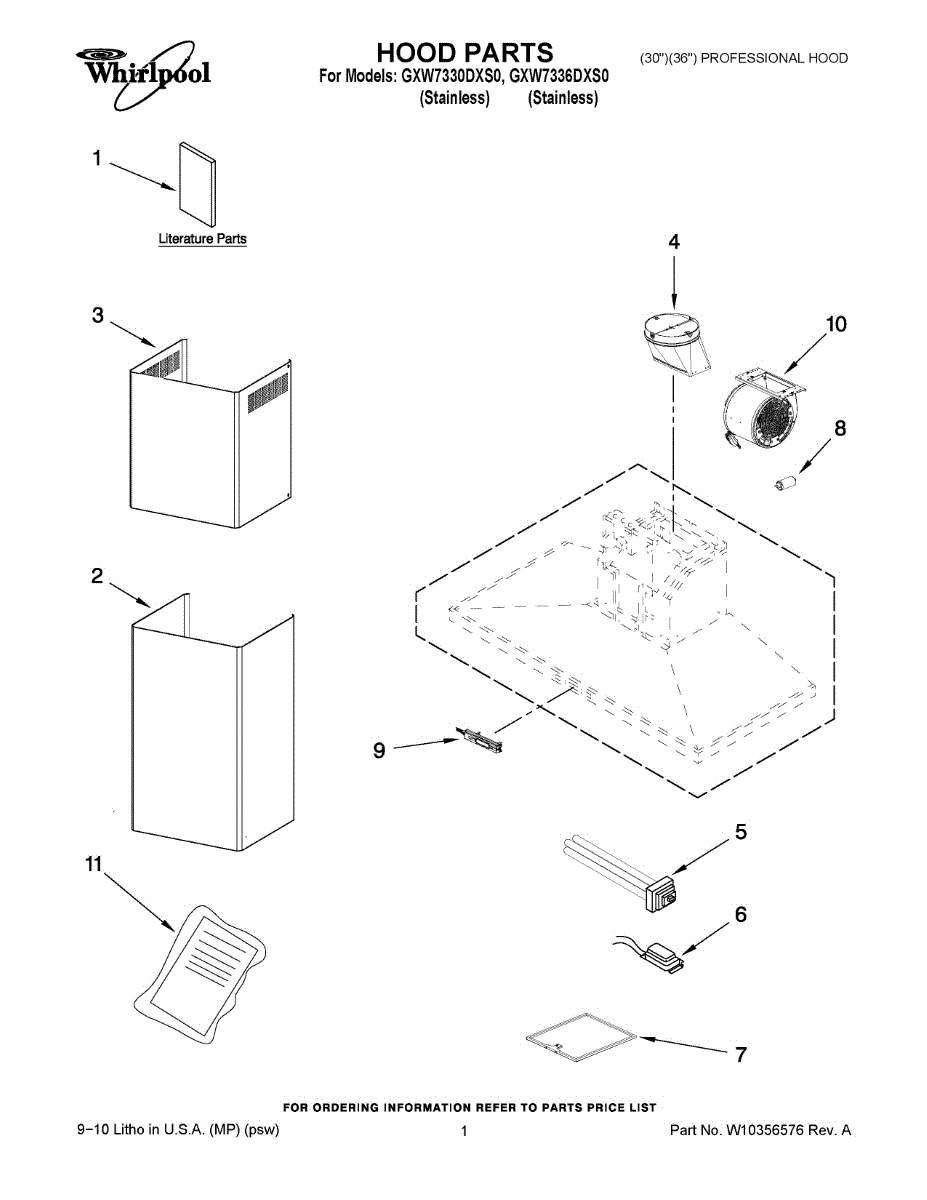

Parts for Whirlpool GXW7330DXS0: 01 - Hood Parts

The Chimney Duct Assembly is an OEM part for Whirlpool range vent hoods. It is designed to provide a connection between the vent hood and the exterior ventilation system for airflow and removal of cooking odors and smoke.

A bad chimney duct assembly can occur due to regular use, wear and tear, or damage caused by external factors. If you notice poor ventilation, lingering odors, or smoke not being adequately expelled from your kitchen, it may indicate a problem with the chimney duct assembly.

Symptoms of a bad chimney duct assembly include:

• Insufficient airflow or poor ventilation
• Lingering cooking odors or smoke in the kitchen
• Excessive grease buildup in the vent hood or duct system

Replace your faulty chimney duct assembly with this genuine OEM part to restore your appliance.

This Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.


The Chimney Duct Assembly is an OEM part for Whirlpool range vent hoods. It is designed to provide a connection between the vent hood and the exterior ventilation system for airflow and removal of cooking odors and smoke.

A bad chimney duct assembly can occur due to regular use, wear and tear, or damage caused by external factors. If you notice poor ventilation, lingering odors, or smoke not being adequately expelled from your kitchen, it may indicate a problem with the chimney duct assembly.

Symptoms of a bad chimney duct assembly include:

• Insufficient airflow or poor ventilation
• Lingering cooking odors or smoke in the kitchen
• Excessive grease buildup in the vent hood or duct system

Replace your faulty chimney duct assembly with this genuine OEM part to restore your appliance.

This Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.


This lamp ballast is the replacement lighting module that powers and stabilizes the oven/microwave/upper-cabinet light for consistent illumination. Replacing a failed ballast restores a flickering or non-working interior light for safe, visible cooking. What it does:

• Regulates power to the appliance light so the bulb or LED stays on steadily
• Commonly fixes symptoms like a light that flickers, stays dark, or works intermittently
• Works with the appliance's existing lamp socket and wiring harness
• Provides a direct replacement for the original ballast used in compatible units

• One lamp ballast

• Disconnect power to the appliance before starting — turn off breaker or unplug
• Handle gently and avoid bending terminals or damaging the wiring harness
• Reassemble panels and secure mounting fasteners before restoring power

The Grease Filter is an OEM part for Whirlpool range hoods. This part traps grease particles from the air as it circulates through the range hood, preventing grease buildup on the blower and other internal components, thus maintaining the efficiency and longevity of the range hood.

Causes of a bad grease filter can include clogging from excessive grease accumulation, physical damage from improper cleaning or handling, and general wear and tear over time.

Symptoms of a bad grease filter include:

• Reduced air flow from the range hood
• Visible grease buildup on or around the filter
• Unusual odors persisting in the kitchen
• Filter appearing worn or damaged

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This push-button switch is a user control switch that closes an electrical circuit when pressed, restoring reliable button operation on the appliance console or door. It replaces a worn or failed push-button for responsive controls. What it does

• Acts as the user push-button that completes the circuit to send a start or control signal
• Commonly used on console or door-mounted control panels
• Symptoms when faulty: button(s) feel stuck, intermittently work, or the appliance fails to respond to button presses
• Restores tactile button operation and reliable electrical contact when replaced

• Always disconnect power to the appliance before servicing to avoid shock or injury
• Remove the console or door panel to access the switch per your model's service instructions
• Handle the switch and wiring gently; avoid bending contacts or pulling wires by the harness
• Test the new switch with a multimeter if desired and verify proper operation before reassembly

This blower-fan assembly circulates air through the appliance to aid efficient drying and proper airflow. Replacing a worn or damaged blower restores airflow and helps the unit reach normal operating temperatures. What it does:

• Moves air through the drum and exhaust system for drying and venting
• Helps maintain consistent heat distribution to improve drying performance
• Prevents overheating by ensuring proper airflow through the appliance
• Common symptoms of a failing blower: reduced or no airflow, longer dry times, loud rattling or grinding noises

• Disconnect power (unplug or shut off breaker) before starting any repair
• Basic disassembly of the cabinet or front panel may be required
• Inspect surrounding seals and ducts for obstructions or wear while replacing the blower
• If you hear unusual noises after installation, recheck fitment and mounting hardware
