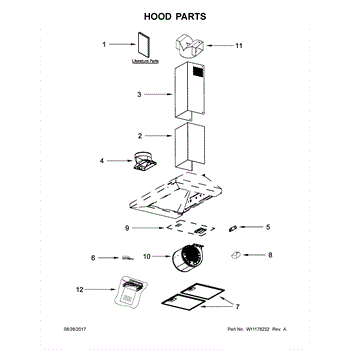

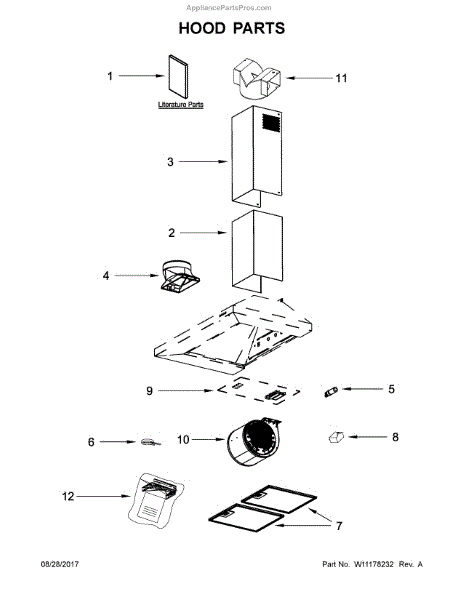

Parts for Ikea IH6302YS1: Hood Parts

The Chimney Duct Assembly is an OEM part for Whirlpool range vent hoods. It is designed to provide a connection between the vent hood and the exterior ventilation system for airflow and removal of cooking odors and smoke.

A bad chimney duct assembly can occur due to regular use, wear and tear, or damage caused by external factors. If you notice poor ventilation, lingering odors, or smoke not being adequately expelled from your kitchen, it may indicate a problem with the chimney duct assembly.

Symptoms of a bad chimney duct assembly include:

• Insufficient airflow or poor ventilation
• Lingering cooking odors or smoke in the kitchen
• Excessive grease buildup in the vent hood or duct system

Replace your faulty chimney duct assembly with this genuine OEM part to restore your appliance.

This Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.


The Chimney Duct Assembly is an OEM part for Whirlpool range vent hoods. It is designed to provide a connection between the vent hood and the exterior ventilation system for airflow and removal of cooking odors and smoke.

A bad chimney duct assembly can occur due to regular use, wear and tear, or damage caused by external factors. If you notice poor ventilation, lingering odors, or smoke not being adequately expelled from your kitchen, it may indicate a problem with the chimney duct assembly.

Symptoms of a bad chimney duct assembly include:

• Insufficient airflow or poor ventilation
• Lingering cooking odors or smoke in the kitchen
• Excessive grease buildup in the vent hood or duct system

Replace your faulty chimney duct assembly with this genuine OEM part to restore your appliance.

This Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.


This hood damper mounts at the exhaust outlet to let cooking air exit while blocking backdrafts when the fan is off. Replacing a worn damper restores proper airflow and helps eliminate rattling or sticking during vent operation.

• Controls one-way airflow from the hood into the duct; seals when the fan is off
• Helps block outside air and moisture from entering through the vent
• Wear or damage can cause poor venting, rattling noises, or a stuck exterior flap
• Restores vent performance after the original damper is bent, warped, or missing

• Disconnect power at the breaker before servicing
• Access the exhaust outlet and remove the old damper; note airflow orientation
• Install so the flap swings freely and seats closed; avoid overtightening fasteners
• Run the fan to verify smooth damper movement and proper airflow

This replacement light bulb restores illumination inside your appliance so you can clearly see contents and check progress at a glance. A fresh bulb improves visibility, safety, and everyday usability.

• Provides bright, reliable light where installed in the appliance
• Common symptoms: no light, dim or flickering light, intermittent lighting
• Physical clues of failure: dark/burned-out filament, broken glass, or loose/corroded base
• Replacing a failed bulb helps confirm whether the issue is the bulb versus the socket or switch

• Unplug the appliance or disconnect power before replacing the bulb
• Allow the old bulb and surrounding area to cool before handling
• Use clean, dry hands or gloves; avoid touching the glass with bare fingers
• Replace only with the same type and wattage specified by the manufacturer

The Grease Filter is an OEM part for Whirlpool range hoods. This part traps grease particles from the air as it circulates through the range hood, preventing grease buildup on the blower and other internal components, thus maintaining the efficiency and longevity of the range hood.

Causes of a bad grease filter can include clogging from excessive grease accumulation, physical damage from improper cleaning or handling, and general wear and tear over time.

Symptoms of a bad grease filter include:

• Reduced air flow from the range hood
• Visible grease buildup on or around the filter
• Unusual odors persisting in the kitchen
• Filter appearing worn or damaged

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This run capacitor helps the appliance's motor start and run smoothly by providing a phase-shifted electrical boost. Replacing a worn capacitor restores reliable motor operation and can stop start-up problems and irregular running. What it does:

• Provides the motor with the extra electrical charge needed for starting and stable operation
• Commonly linked to symptoms like hard-starting, a loud humming motor, or motors that won't start
• Stabilizes motor speed and reduces stress on the motor and start components
• Works as a direct replacement for the original capacitor specified for the motor circuit

• Disconnect power to the appliance before servicing to avoid shock hazard
• Discharge the capacitor before touching terminals; capacitors can hold a charge after power is removed
• Use insulated tools and avoid bridging terminals during handling

This push-button switch is a user control switch that closes an electrical circuit when pressed, restoring reliable button operation on the appliance console or door. It replaces a worn or failed push-button for responsive controls. What it does

• Acts as the user push-button that completes the circuit to send a start or control signal
• Commonly used on console or door-mounted control panels
• Symptoms when faulty: button(s) feel stuck, intermittently work, or the appliance fails to respond to button presses
• Restores tactile button operation and reliable electrical contact when replaced

• Always disconnect power to the appliance before servicing to avoid shock or injury
• Remove the console or door panel to access the switch per your model's service instructions
• Handle the switch and wiring gently; avoid bending contacts or pulling wires by the harness
• Test the new switch with a multimeter if desired and verify proper operation before reassembly

This duct cover extension kit raises a range hood's chimney to fit taller ceilings and gives a finished look where the standard chimney is too short. It provides an easy way to extend the visible duct cover for a cleaner installation. What it does:

• Extends the hood chimney/duct cover to reach higher ceilings
• Covers exposed ductwork for a finished appearance
• Helps align the duct cover with cabinetry and ceiling lines
• Useful when replacing or modifying hood installation height

• Turn off power to the hood before beginning any work
• Follow the manufacturer's instructions and use proper fasteners for your wall/ceiling type
• Do not alter structural supports or ventilation openings; consult local codes

This filter traps cooking grease and airborne particles as air moves through your appliance's ventilation system. It helps protect the blower and internal surfaces and supports proper airflow for effective venting during everyday cooking.

• Captures grease and debris from cooking vapors to reduce buildup on internal components
• Helps maintain ventilation airflow and fan performance
• Replace if the mesh is torn, warped, heavily clogged, or no longer stays seated
• Common symptoms include reduced airflow, lingering smoke or odors, and visible grease accumulation

• Disconnect power and allow surfaces to cool before servicing
• Access the filter from the underside of the hood or over-the-range unit
• Release retaining tabs or screws, remove the old filter, and slide the new filter into place
• Ensure the filter is fully seated and secured before restoring power
