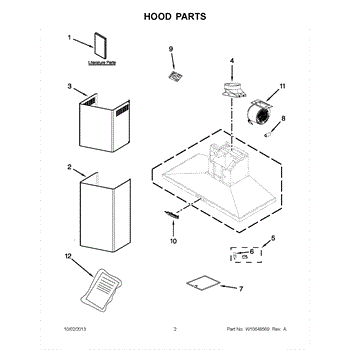

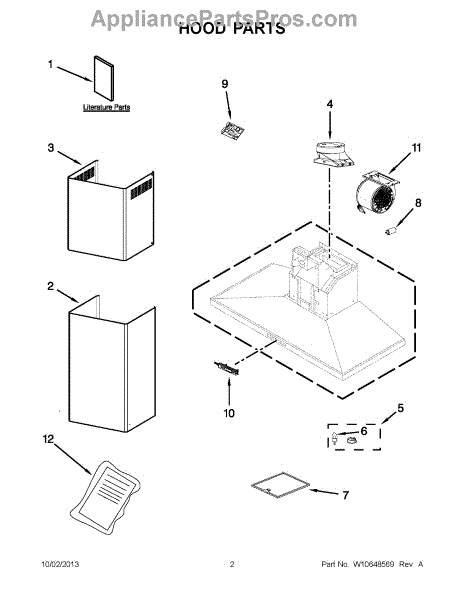

Parts for Kitchenaid KXW4336YSS2: 02 - Hood Parts

The Chimney is an OEM component specifically designed for Whirlpool downdraft ventilation hoods used above cooktop ranges. It vents fumes, steam, and smoke from the cooking surface up and out of the kitchen area.

Symptoms of a bad chimney include grease caking and blocking proper airflow. Physical damage like dents could also disrupt venting performance.

Causes of a bad chimney can be long-term residue buildup from cooking emissions, as well as potential impact incidents diminishing vent structure integrity.

Causes of a bad chimney include:

• Reduced or inefficient venting of fumes from cooking
• Greasy film forming on range backsplash/walls near the hood
• Physical blockages restricting maximum airflow
• Vent motor straining from obstruction resistance

Replacing with this authentic OEM chimney restores effective capture and removal of cooking byproducts. It keeps indoor air fresh for brands including KitchenAid, Jenn-Air and select Broan-Noren product lines.

This hood damper mounts at the exhaust outlet to let cooking air exit while blocking backdrafts when the fan is off. Replacing a worn damper restores proper airflow and helps eliminate rattling or sticking during vent operation.

• Controls one-way airflow from the hood into the duct; seals when the fan is off
• Helps block outside air and moisture from entering through the vent
• Wear or damage can cause poor venting, rattling noises, or a stuck exterior flap
• Restores vent performance after the original damper is bent, warped, or missing

• Disconnect power at the breaker before servicing
• Access the exhaust outlet and remove the old damper; note airflow orientation
• Install so the flap swings freely and seats closed; avoid overtightening fasteners
• Run the fan to verify smooth damper movement and proper airflow

This hood damper mounts at the exhaust outlet to let cooking air exit while blocking backdrafts when the fan is off. Replacing a worn damper restores proper airflow and helps eliminate rattling or sticking during vent operation.

• Controls one-way airflow from the hood into the duct; seals when the fan is off
• Helps block outside air and moisture from entering through the vent
• Wear or damage can cause poor venting, rattling noises, or a stuck exterior flap
• Restores vent performance after the original damper is bent, warped, or missing

• Disconnect power at the breaker before servicing
• Access the exhaust outlet and remove the old damper; note airflow orientation
• Install so the flap swings freely and seats closed; avoid overtightening fasteners
• Run the fan to verify smooth damper movement and proper airflow

This hood damper mounts at the exhaust outlet to let cooking air exit while blocking backdrafts when the fan is off. Replacing a worn damper restores proper airflow and helps eliminate rattling or sticking during vent operation.

• Controls one-way airflow from the hood into the duct; seals when the fan is off
• Helps block outside air and moisture from entering through the vent
• Wear or damage can cause poor venting, rattling noises, or a stuck exterior flap
• Restores vent performance after the original damper is bent, warped, or missing

• Disconnect power at the breaker before servicing
• Access the exhaust outlet and remove the old damper; note airflow orientation
• Install so the flap swings freely and seats closed; avoid overtightening fasteners
• Run the fan to verify smooth damper movement and proper airflow

This replacement light bulb restores bright, dependable illumination in your appliance, making it easier to see contents and controls. Replace a burned-out or flickering bulb to bring lighting back to normal day-to-day operation.

• Supplies interior or work-area lighting when the door opens or the light switch is turned on
• Restores visibility for monitoring, loading/unloading, and cleaning
• Typical failure symptoms: no light, dim or flickering light, intermittent lighting, or visibly darkened/broken glass

• Disconnect power to the appliance before servicing
• Allow the existing bulb and surrounding area to cool completely
• Remove any lens or cover as designed; install the new bulb carefully and do not overtighten
• Match the bulb type and ratings specified by the appliance manufacturer or on the original bulb/label

This replacement light bulb restores interior illumination inside your appliance. Swap it in for a burned-out bulb so you can clearly see contents and monitor operation when the door opens or the light button is pressed.

• Provides interior light inside the appliance cavity
• Direct replacement for a failed or broken bulb
• Common symptoms: no light when the door opens, flickering/intermittent light, visibly darkened or broken bulb

• Disconnect power to the appliance before servicing
• Allow the old bulb and nearby surfaces to cool completely
• Remove any lens or cover to access the socket; install the new bulb in the same orientation as the original
• Handle with clean, dry hands or gloves; do not overtighten. Restore power and test

The Capacitor is an OEM part for Whirlpool range hoods. This capacitor functions to optimize blower motor performance. It works in tandem with the motor to efficiently expel cooking vapors and gases from the kitchen.

Causes relate to standard wear over extended use of the vent hood. Electrical issues can cause premature capacitor failure.

Symptoms of a bad capacitor include:

• Reduced air circulation and weaker ventilation
• Abnormal humming or grinding noises from the motor
• Failure of the blower to turn on as desired

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This control board is the go-between for the range control panel and the vital functions of the range hood. There could be several issues if the hood range's fan or a light stops working or responding to controls. When the two work intermittently or stop working in conjunction with a timer, most likely it is the hood range control board. A replacement board will need to be ordered to correct these issues. This part is designed for an oven and microwave combo with the vent and fan built-in on top.This Whirlpool range hood control board is only available individually. It is a genuine OEM product sourced directly from Whirlpool. This part is compatible with Whirlpool, KitchenAid, and JennAir.

The Blower Fan is an OEM replacement part for Whirlpool vent hoods. It is responsible for powering the fan that helps to effectively remove smoke, odors, and grease particles from your kitchen.

A bad vent hood blower fan motor can occur due to regular wear and tear, electrical malfunctions, or motor failure. If you notice symptoms such as a weak or noisy fan, reduced airflow, or complete failure of the fan motor, it may be time to replace it.

Symptoms of a bad vent hood blower fan motor include:

• Weak or noisy fan operation
• Reduced airflow or poor ventilation performance
• Complete failure of the fan motor

Restore proper ventilation and eliminate unwanted odors in your kitchen by replacing the faulty or malfunctioning vent hood blower fan motor with this genuine OEM part.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.
